CM2-12026
26-inch 120-volt cheese melter
This symbol represents products that are certified to safely perform its job as intended. This product has earned this certification by undergoing rigorous testing against standards developed by UL.

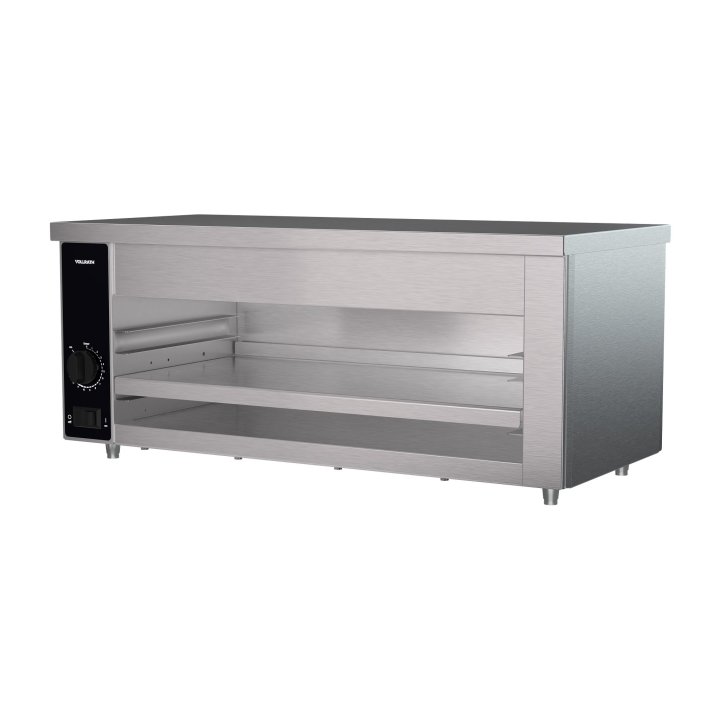

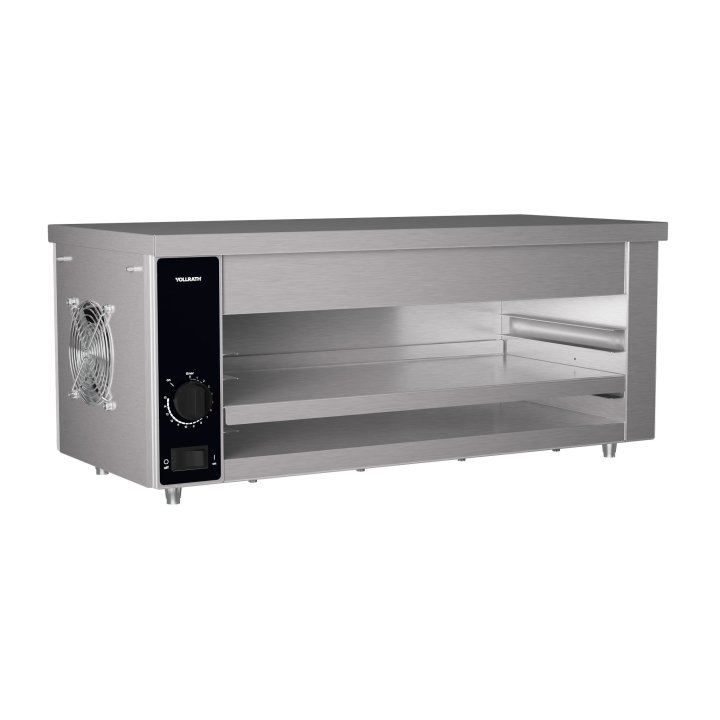

The Vollrath® 26-inch cheese melter is ideal for any medium-volume restaurant or bar. The energy-efficient quartz heating elements are fast and powerful, while the standby mode saves energy when the unit is not in use. Five optional shelf heights fit a variety of foods as well as control the distance between the plate and the heating elements. This cheese melter fits two 10-inch plates, allowing you to prepare multiple dishes at once, and the 15-minute timer helps you keep track of warming times for precise results.
- Perfectly finish or melt cheese on top of a variety of items like garlic bread, sandwiches or nachos
- Durable stainless steel exterior is built to last
- Energy efficient quartz heaters react to changes quickly
- Standby mode reduces energy use up to 50 percent
- 20¼-inch-wide opening easily fits two 10-inch plates
- Shelf can be placed in any of 5 positions to adapt to the needs of different dishes
Product Specifications
Model Information
| Name | Value |
|---|---|
| Model | JW2 |
| UPC | 671080720364 |
Unit Dimensions
| Name | Value |
|---|---|

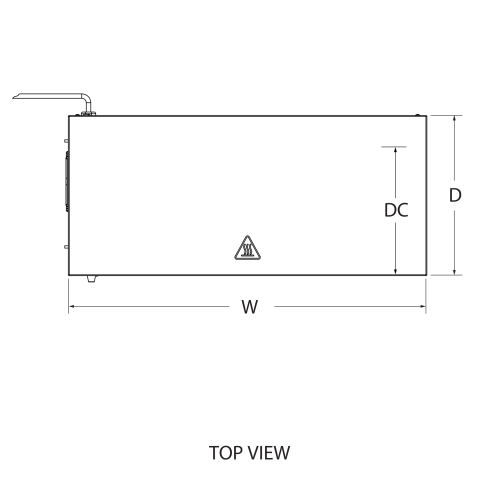

| Overall Dimensions (IN) | 26.25 x 12.125 x 11.375 |
| (W) Width (IN) | 26.25 |
| (D) Depth (IN) | 12.12 |
| (H) Height (IN) | 11.37 |

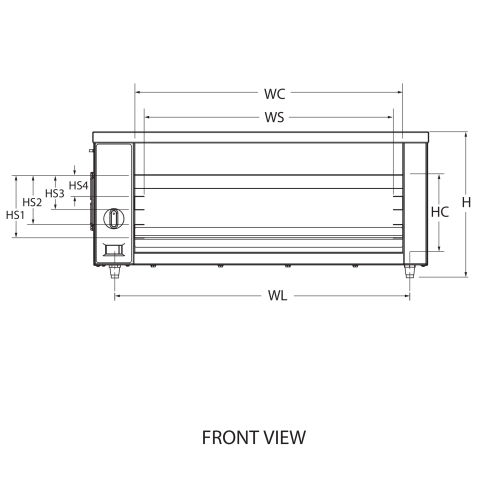

| (WL) Width between legs | 23 |

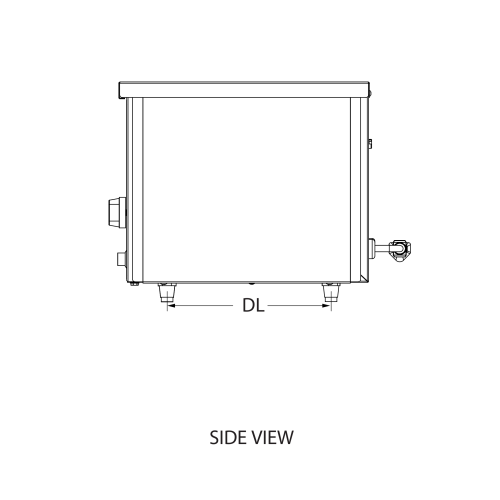

| (DL) Depth between legs | 7.937 |
| Product Opening Width (IN) | 19.375 |
| (HS1) Shelf Clearance Height (IN) | 4.875 |
| (HS2) Shelf Clearance Height (IN) | 3.75 |
| (HS3) Shelf Clearance Height (IN) | 2.6875 |
| (HS4) Shelf Clearance Height (IN) | 1.5625 |
| Overall Dimensions (CM) | 66.5 x 30.7 x 29.0 |
| (W) Width (CM) | 66.5 |
| (D) Depth (CM) | 30.7 |
| (H) Height (CM) | 29 |
| (WL) Width between legs (CM) | 58.4 |
| (DL) Depth between legs (CM) | 20.1 |
| Product Opening Width (CM) | 49.2 |
| (HS1) Shelf Clearance Height (CM) | 12.4 |
| (HS2) Shelf Clearance Height (CM) | 9.5 |
| (HS3) Shelf Clearance Height (CM) | 6.8 |
| (HS4) Shelf Clearance Height (CM) | 3.4 |
| Size | 26 |
Electrical
| Name | Value |
|---|---|
| Amps | 13.8 |
| Cord Length (IN) | 48 |
| Cord Length (CM) | 120 |
| Hz | 60 |
| Plug | NEMA 5-15 |
| Voltage | 120 |
| Watts | 1650 |
Construction
| Name | Value |
|---|---|
| Construction Material | Stainless Steel |
| Construction Material 2 | Electrical Components |
| Countertop or Drop-In | Countertop |
| Material Type | Metals |
Case Lot Measurement
| Name | Value |
|---|---|
| Case Lot | 1 |
| Case Width | 39 |
| Case Height | 16 |
| Case Length | 20 |
Product Accessories
| Name | Item # |
|---|---|
| Wall Mount Bracket for Cheese Melters | 351035 |
Product Parts
| Name | Part # | Price |
|---|---|---|
| 2PK HEAT ELEM22-3/16 120V 800W | 59877 | $160.16 |
| CORD POWER 14/3 60" 5-15 PLUG | B401052 | $58.55 |
| MOTOR FAN | B401209 | $121.70 |
| TERMINAL BLOCK 5 POSITION | B401033 | $16.02 |
| SWITCH ROCKER SINGLE ON/OFF | B401110 | $48.15 |
| LEGS BLACK 1" 1/4-20 | B400300 | $16.22 |
| CORD FAN HP-75.24-A | B401060 | $12.38 |
| KNOB CONTROL | B401185 | $11.34 |
| CM2 LEFT SIDE PANEL | B300511 | $52.73 |
| 14 Ga Straight Strain Relief | B400320 | $6.86 |
| RESET SWITCH | B401100 | $42.43 |
| CM2 26" TRAY SLIDE | B300557 | $55.33 |
| GUARD FAN | B401220 | $8.84 |
| TERMINAL BLOCK 2 POSITION | B401034 | $5.82 |
| JW2 TIMER KIT | B401531 | $186.16 |
| LABEL,CONTROL | B401461 | $29.12 |
| CM2 RIGHT SIDE PANEL | B300510 | $38.17 |
| CORD WARNING LABEL | B401404 | $0.42 |
| TIMER 15 MIN | 355197-1 | $10.40 |
Product Downloads
CAD / REVIT
For the most updated list for Vollrath products and CAD drawings
