HDCCB-36

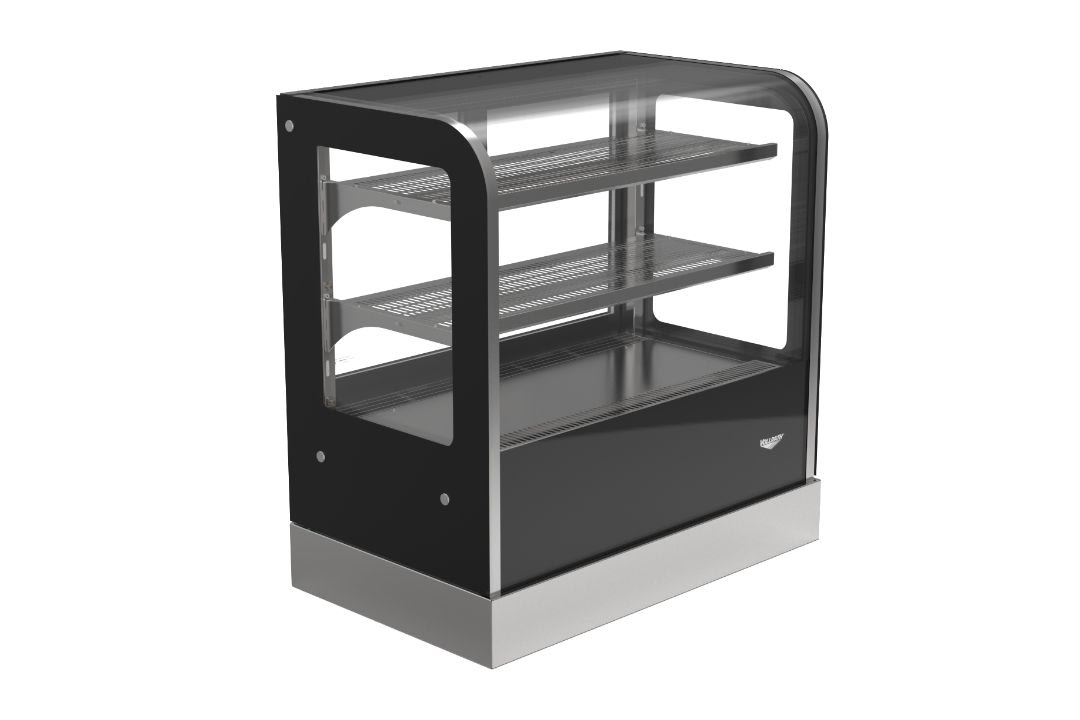

36-inch-wide 120-volt cubed-front countertop heated deli display case with rear access
Classified by UL to NSF/ANSI 4
This symbol represents products that are certified to meet specific environmental and public health standards. The UL EPH Mark is recognized and accepted as a trusted source for assessing the sanitary design, construction and performance of commercial food equipment. If it shows the word “Classified” above the UL mark, then the product also complies with ANSI/NSF regulations.
This symbol represents products that are certified to safely perform its job as intended. This product has earned this certification by undergoing rigorous testing against standards developed by UL.
Our sophisticated cubed-glass Vollrath® heated deli display case has all the right angles for maximizing space, keeping prepared foods hot and access easy. Delivering 120 volts of power, this hot food essential provides a range of 104°F to 165°F for maximum product flexibility, safety and freshness. On the aesthetic side, interior LED lighting at the top and at each shelf makes products pop, and the cubed shape features two floating shelves, each adjustable to three positions for creative customization. Bringing up the rear are sliding doors that make it easy to serve, refill and clean.
- 36-inch-wide case fits in virtually any space
- Units are UL/NSF/ANSI 4 compliant which allows for Time-Temperature controlled (TCS) foods to be consumed safely by humans
- Zero clearance on sides or between units and walls (Note: Top and operator side must remain open for proper operation and service)
- Fans circulate air for accurate, even heating
- NSF dial thermometer included with unit
- Digital thermostat on control panel provides precise settings
- Argon-filled and sealed double-pane low emissivity glass provides strength and energy efficiency
- Rear sliding doors lift and remove for easy access
- May be used as an ambient display for flexibility
- 6-foot cord allows you to display virtually anywhere
- 4-inch adjustable legs available for purchase separately
Product Specifications
Model Information
| Name | Value |
|---|---|
| Model | HDC9336 |
| UPC | 029419600984 |
Unit Dimensions
| Name | Value |
|---|---|
| (W) Width (IN) | 35.9 |
| (D) Depth (IN) | 21.5 |
| (H) Height (IN) | 37 |
| Top Shelf Depth (IN) | 13.2 |
| Bottom Shelf Depth (IN) | 10.9 |
| (W) Width (CM) | 91 |
| (D) Depth (CM) | 55 |
| (H) Height (CM) | 94 |
| Top Shelf Depth (CM) | 34 |
| Bottom Shelf Depth (CM) | 28 |
Electrical
| Name | Value |
|---|---|
| Amps | 5.8 |
| Hz | 50-60 |
| Plug | NEMA 5-15P |
| Voltage | 120 |
Construction
| Name | Value |
|---|---|
| Product Function | Heated food display cases |
Case Lot Measurement
| Name | Value |
|---|---|
| Case Lot Weight (lbs.) | 230 |
Product Parts
| Name | Part # | Price |
|---|---|---|
| Heavy Duty 4" Leg | 2351601-1 | $24.10 |
| RECT. POWER SWITCH - 120V | 352773-1 | $9.00 |
| HOT HOLDING THERMOMETER | 353200-1 | $18.05 |
| 36" LED 0.50M | RDC0084-36L | $130.00 |
| 36" BACK SLDNG DOOR TRACK UP | RDC0128-36 | $76.00 |
| 48" CUBED DOOR ASM | RDC0357-36 | $596.00 |
| HDE TERMINAL BLOCK | RDC0040 | $51.00 |
| RDCCB END GLASS ASM-R | RDC0414 | $560.00 |
| CUBED DOOR GASKET | RDC0362 | $59.00 |
| POWERCORD W/STRAIN RELIEF | RDC0501 | $53.00 |
| 36" FAN PANEL ASM | RDC0086-36 | $170.00 |
| 36" AIR OUTLET DUCT | RDC0042-36 | $108.00 |
| RDCCB END GLASS ASM-L | RDC0413 | $560.00 |
| REAR DOOR SLIDER BTM WHEEL | RDC0155 | $47.00 |
| EVAPORATOR FAN | RDC0163 | $80.00 |
| 36" LED 0.15M | RDC0084-36S | $110.00 |
| HDE HEATING ELEMENT ASM | HDC0454 | $88.00 |
| 36" REAR AIR GRILL | RDC0088-36 | $86.00 |
| 36" HDE BACK VENT PANEL REAR | RDC0127-36H | $84.00 |
| SLOT PLUG, QTY. 4 | RDC0523 | $26.00 |
| GLASS HARDWARE | RDC0522 | $31.00 |
| 36" BOTTOM DOOR TRACK | RDC0115-36 | $80.00 |
| POWER FOR LED | RDC0145 | $64.00 |
| 3-PIN LED LIGHT SOCKET | RDC0066 | $45.00 |
| RDE HDE NTC SENSOR | RDC0141 | $20.00 |
| 36" CUBED STAINLESS WRAP | RDC0355-36 | $290.00 |
| 36" CUBED BOTTOM SHELF | RDC0356-36 | $154.00 |
| FRONT GLASS KIT, HDCCB-36 | RDC0519 | $2,800.00 |
| 36" CUBED TOP SHELF ASM | RDC0335-36 | $310.00 |
| DIGITAL CONTROLLER, HDC | RDC0503 | $180.00 |
