40702

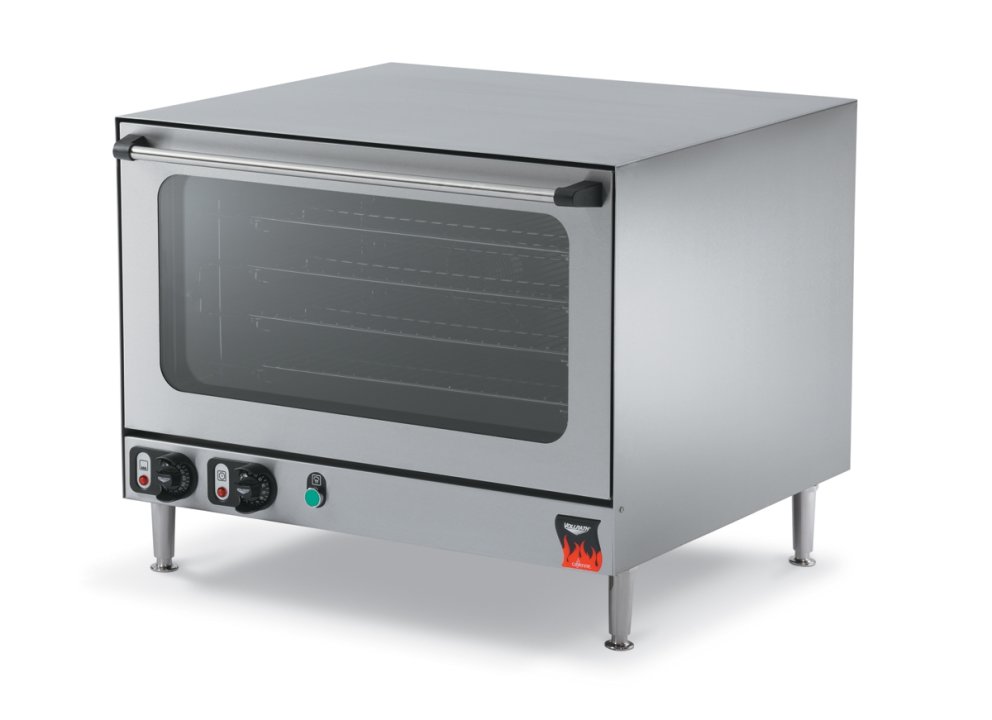

Discontinued208- to 240-volt four-shelf Cayenne® convection oven
This symbol represents products that have met the minimum requirements of prescribed product safety standards. The symbol also indicates that the manufacturer’s production site conforms to a range of compliance measures and is subject to periodic follow up inspections to verify continued conformance.
Add a variety of baked goods to your menu with the Vollrath® full-size Cayenne convection oven. The custom baffle fan and diffuser plate create a consistent bake, while dual, self-reversing fans allow for more uniform cooking. An interior light and no-tip chrome-plated steel shelves ensure ease of use. The timer automatically turns the unit off after the set time, and knob guards protect the thermostat and timer from accidental adjustments. This unit also features a steam injection system for manual humidity control. The Kool-Touch® door is easily removed, and rounded interior corners make cleaning simple. With a temperature range of 150°F to 570°F, the variety of food you can prepare in this oven is endless.
- Perfectly bake bread, pastries, cakes, meats, and vegetables
- Durable stainless steel exterior is built to last
- Four no-tip chrome-plated steel shelves accommodate full-size sheet pans
- Custom baffle fan and diffuser plate ensure an even bake
- 120-minute bake timer turns off oven after set time
- Based on independent UL testing, this product complies with NFPA96 for ventless operation using the EPA202 test method. Ventless allowance is dependent upon AHJ approval.
- Please note that you should generally either lower the temperature by about 25 degrees or lower the baking time by approximately 25 percent when modifying a traditional recipe for a convection oven, due to its unique efficiency
Product Specifications
Model Information
| Name | Value |
|---|---|
| Model | COA8005 |
| UPC | 029419719792 |

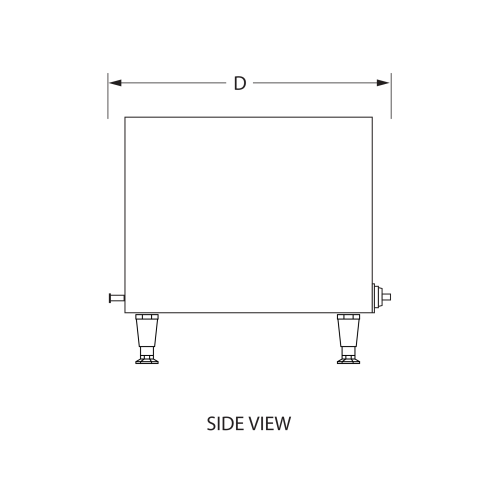

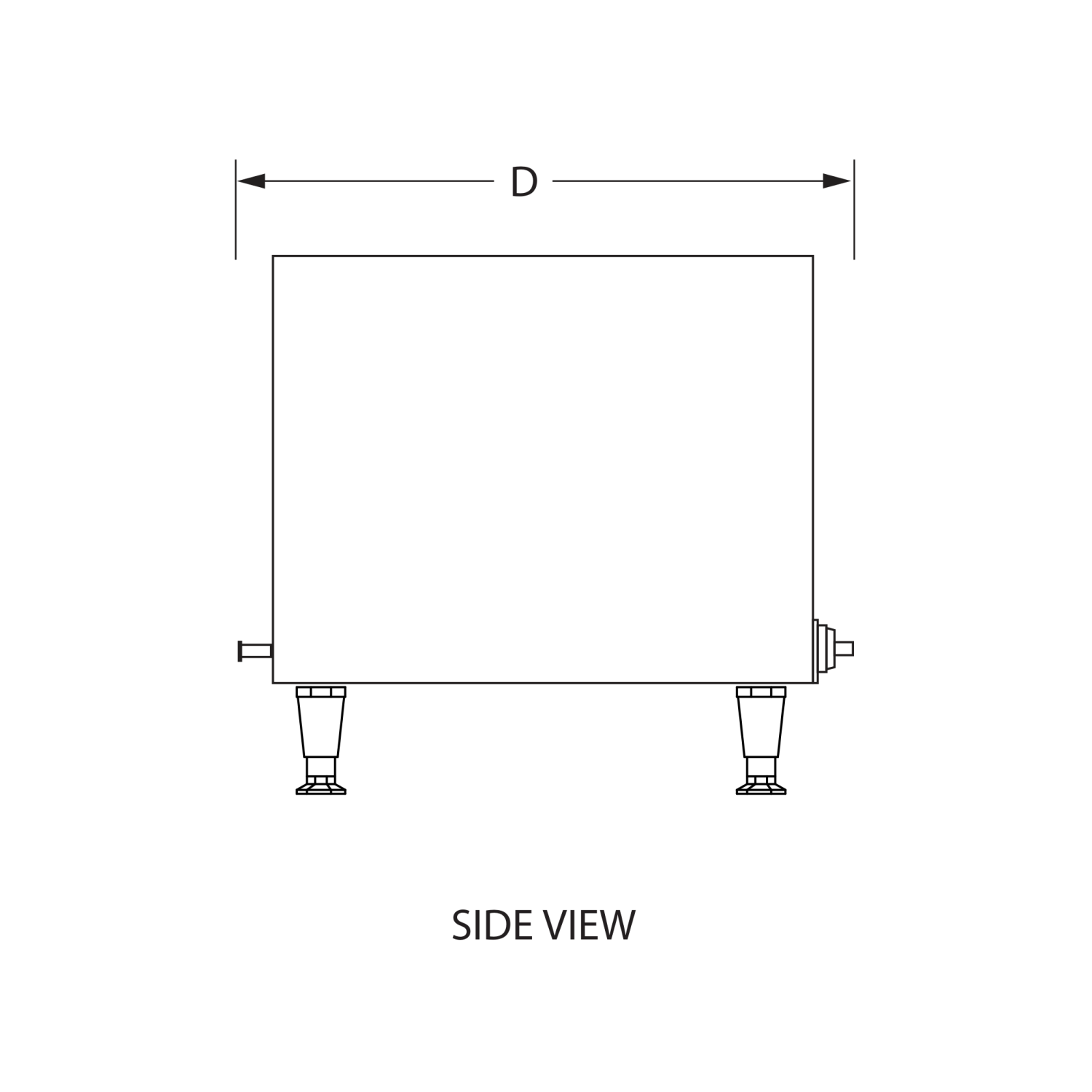

Unit Dimensions
| Name | Value |
|---|---|
| Overall Dimensions (IN) | 32.875 x 32 x 26.5 |
| (W) Width (IN) | 32.87 |
| (D) Depth (IN) | 32 |
| (H) Height (IN) | 26.5 |
| (HLR) Adjustable Legs (IN) | 2.5 - 3.5 |
| (WC) Cooking Chamber Width (IN) | 27.625 |
| (DC) Cooking Chamber Depth (IN) | 19.4375 |
| (HC) Cooking Chamber Height (IN) | 13.75 |
| Overall Dimensions (CM) | 83.5 x 81.3 x 63.7 |
| (W) Width (CM) | 83.5 |
| (D) Depth (CM) | 81.3 |
| (H) Height (CM) | 63.7 |
| (HLR) Adjustable Legs (CM) | 6.4 - 7.6 |
| (WC) Cooking Chamber Width (CM) | 70.2 |
| (DC) Cooking Chamber Depth (CM) | 49.4 |
| (HC) Cooking Chamber Height (CM) | 35 |
Electrical
| Name | Value |
|---|---|
| Amps | 20.8 - 24 |
| Cord Length (IN) | 48 |
| Cord Length (CM) | 120 |
| Plug | NEMA 6-30P |
| Voltage | 208-240 |
| Watts | 4330 - 5760 |
Construction
| Name | Value |
|---|---|
| Construction Material | Stainless Steel |
| Construction Material 2 | Electrical Components |
| Countertop or Drop-In | Countertop |
Case Lot Measurement
| Name | Value |
|---|---|
| Case Lot | 1 |
| Case Width | 33.75 |
| Case Height | 27.5 |
| Case Length | 37.5 |
| Case Lot Cube (ft.) | 20.14 |
| Case Lot Weight (lbs.) | 166.0 |
Product Parts
| Name | Part # | Price |
|---|---|---|
| CONTROL PANEL FASCIA - BLACK | XAA0009 | $29.08 |
| CONTACTOR COA8005 (#24) NC1-2 | XCOA5024 | $266.15 |
| BAKING ELEMENT COA8005 (#1) 2 | XCOA5006 | $137.09 |
| TIMER KNOB COA7001(#18)/7002/8 | XCOA1007 | $15.04 |
| POWER CORD COA8005/FTA8036/CGA | XCOA5013 | $145.44 |
| DOOR GASKET COA8005 #11 | XCOA5004 | $106.61 |
| SHELF RUNNER(NEW TYPE) LEFT SI | XCOA5029 | $108.56 |
| FAN & MOTOR(INC. CAP) COA8005 | XCOA5016 | $1,503.59 |
| PILOT LIGHT 220V (RED) | XAA0002 | $16.56 |
| CABLE RESTRAINT COA8005 | XCOA5012 | $58.81 |
| MOTOR TIMER COA8005 (NEW TYPE | XCOA5017 | $396.65 |
| LAMP HOLDER 220V W/LAMP | XCOA1004 | $78.80 |
| SHELF RUNNER THUMBSCREW COA700 | XCOA1018 | $35.23 |
| SELECTOR SWITCH COA7001(#13)/7 | XCOA1001 | $80.03 |
| FAN MOTOR CAPACITOR 5MF/450V | XCOA0001 | $62.93 |
| GRIDDLE ELECTRIC LEG | XFTA0010 | $38.42 |
| DOOR HANDLE NODE POA7002/8002 | XPOA0003 | $14.94 |
| WIRE SHELF COA8005 #5 | XCOA5001 | $95.28 |
| LIGHT BULB(25W) 220V COA8004 | XCOA1041 | $46.66 |
| WATER INJECTOR COA8005 | XCOA5031 | $85.28 |
| OVERTEMP THERMOSTAT COA8005 (S | XCOA5009 | $224.54 |
| SHELF RUNNER(NEW TYPE) RIGHT S | XCOA5030 | $116.29 |
| ON SWITCH (GREEN) ALL MIXERS ( | XMIX3009 | $97.85 |
| TIMER COA7001(#20)/7002(#27)/8 | XCOA1003 | $219.80 |
| INNER GLASS (NEW TYPE) COA8005 | XCOA5010 | $266.15 |
| SOLENOID VALVE COA8005 (#28) | XCOA5028 | $133.39 |
| CONTROL KNOB BAKE | XCOA0000 | $21.63 |
| HINGE KIT 40702 / COA8005 | XCOA0702 | $135.55 |
| COMPLETE DOOR(NEW TYPE) COA80 | XCOA5003 | $1,697.23 |
| OUTER GLASS (NEW TYPE) COA8005 | XCOA5011 | $319.71 |
| THERMOSTAT COA7001(#12)/7002(# | XCOA1002 | $89.51 |
Product Downloads
CAD / REVIT
For the most updated list for Vollrath products and CAD drawings
