72553

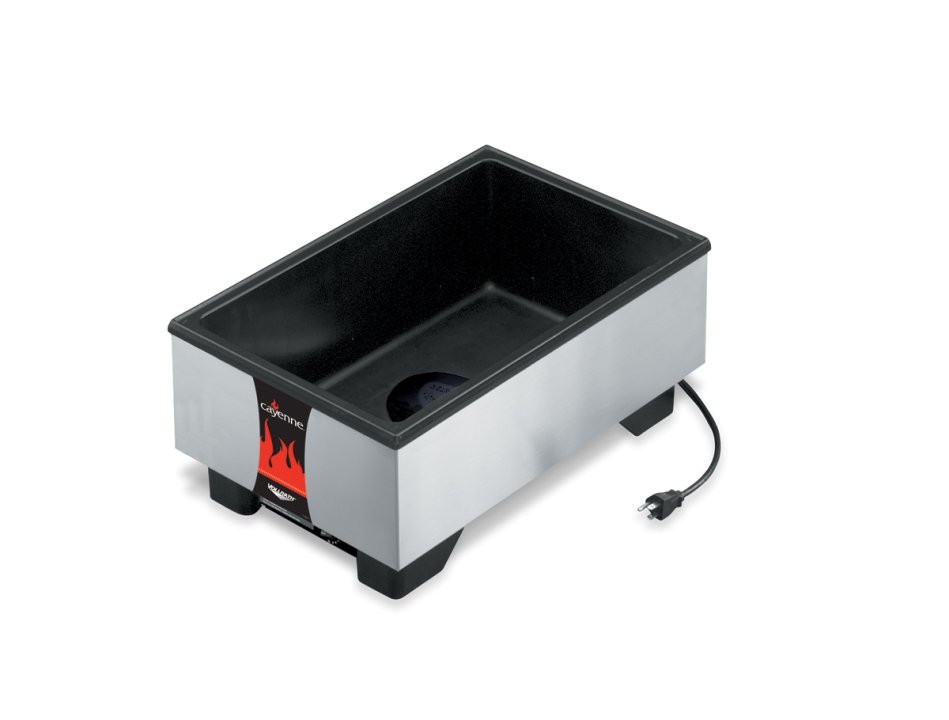

DiscontinuedCayenne® Model 1001 Warmer
$189.12
MSRP
Manufacturer Suggested Retail Price (MSRP) is a predetermined percentage off of list price (shown is US Dollars) and is valid for vollrathfoodservice.com and the United States and Canada only. Dealer pricing may differ. These prices do not include potential shipping costs. Any sales tax applicable will be added to the final price upon quote or purchase.
$315.20
List Price
List price (shown is US Dollars) is valid for vollrathfoodservice.com and the United States and Canada only. Dealer pricing may differ. These prices do not include potential shipping costs. Any sales tax applicable will be added to the final price upon quote or purchase.
The Model 1001 Warmer offers the lowest operating cost on the market.
- This model features the DIRECT CONTACT HEATING SYSTEM, the ultimate in performance and efficiency.
- Thermoset Fiber reinforced resin well
- Capillary tube thermostat control supplies power only when needed for maximum power efficiency
- Low-water indicator light eliminates guesswork
- Dome heating element uses up to 25% less energy and concentrates energy into the well
- Element's non-stick surface prevents scale build-up for easy cleaning and longer operating life
- Element is cast-in for longer service life and greater energy transfer
- Must be used with water for maximum energy transfer
- Standard black well and brushed exterior
- Wide no-drip lip keeps countertop dry
- Recommend using up to 4" (10.2 cm) deep food pans - standard and fractional sizes

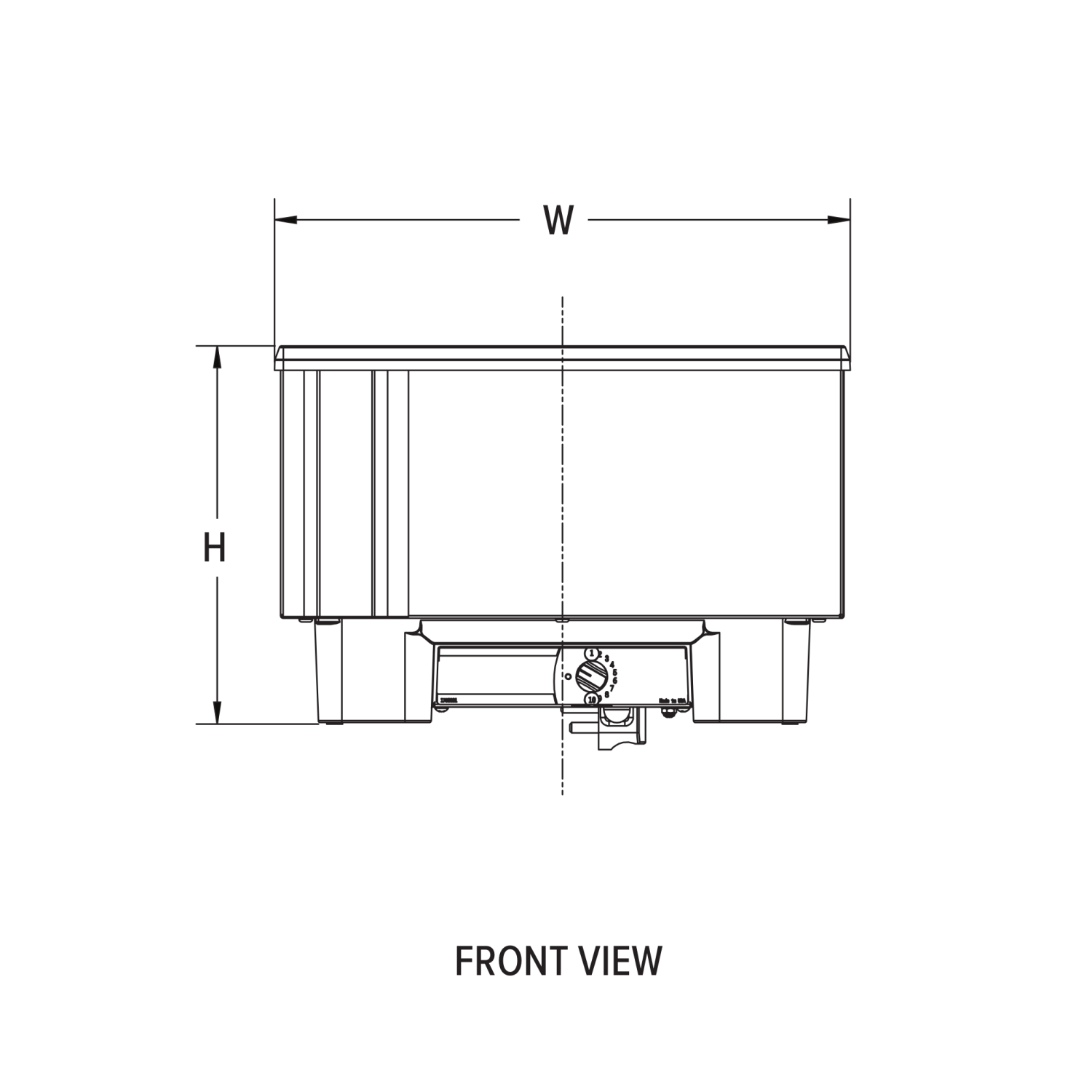

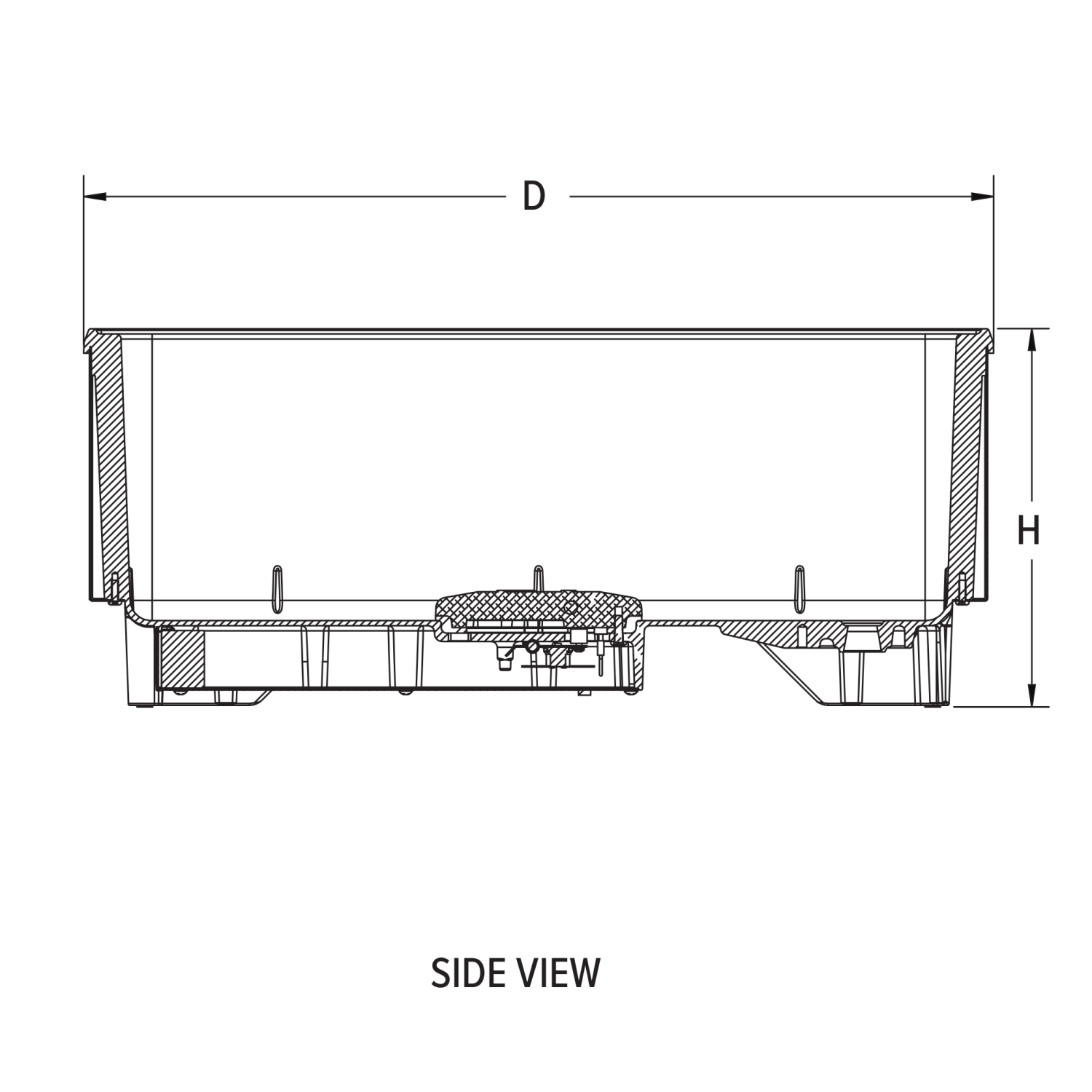

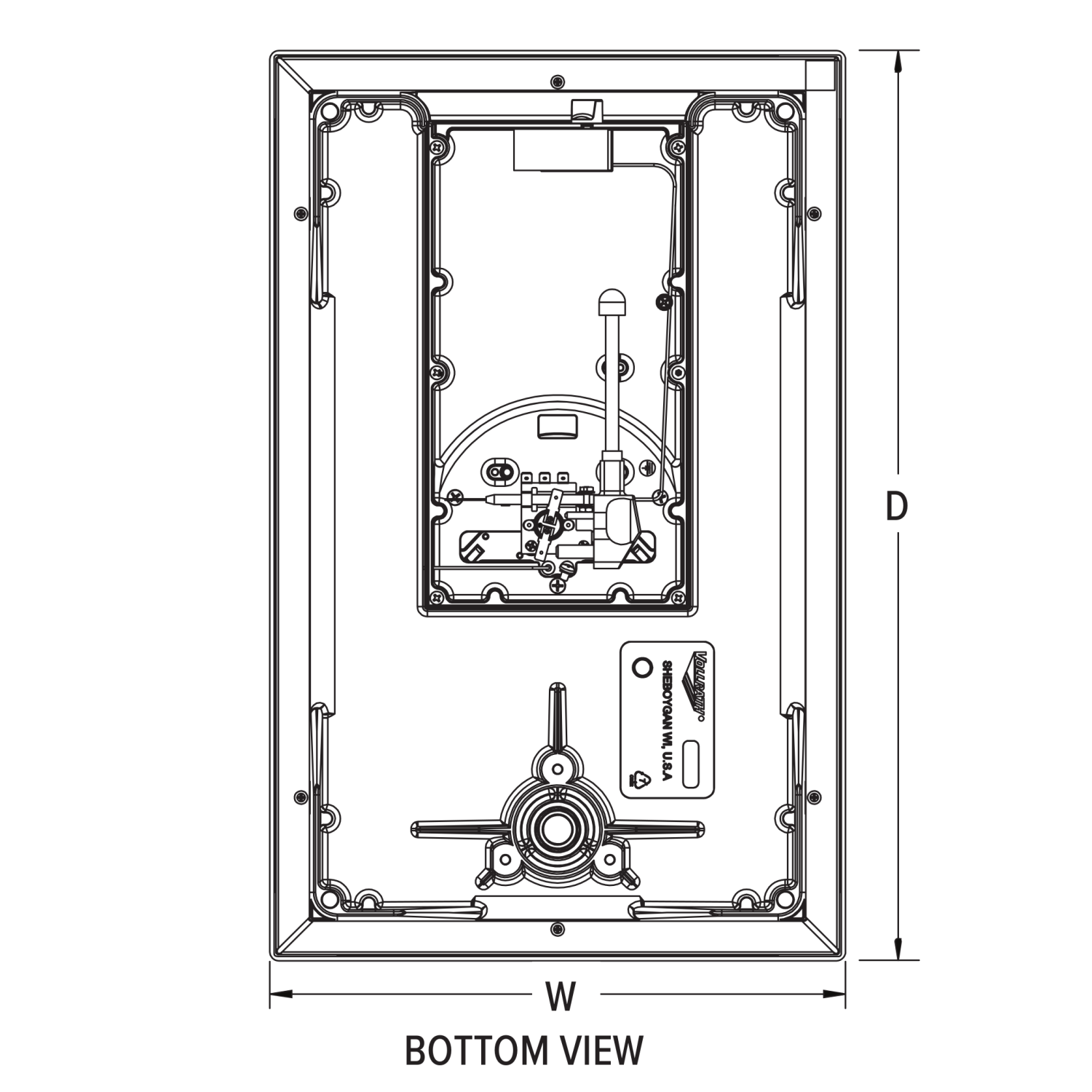

- Overall dimensions: 21 3/4"L. x 13 3/4"W. x 9"H. (55 x 33 x 23 cm)
- Bottom exit power cord allows for universal positioning
- 6' (183 cm) cord and plug
Product Videos
Product Specifications
Model Information
| Name | Value |
|---|---|
| Model | 1001 |
| UPC | 029419256662 |
Unit Dimensions
| Name | Value |
|---|---|
| Overall Dimensions (IN) | 13.779 x 21.779 x 9.05 |
| (W) Width (IN) | 13.77 |
| (D) Depth (IN) | 21.77 |
| (H) Height (IN) | 9.05 |
| (W) Width (CM) | 35 |
| (D) Depth (CM) | 55.3 |
| (H) Height (CM) | 23 |
Electrical
| Name | Value |
|---|---|
| Amps | 4.3 |
| Cord Length (IN) | 72 |
| Cord Length (CM) | 183 |
| Plug | UK |
| Domestic / International | United Kingdom |
| Voltage | 230 |
| Watts | 1000 |
Case Lot Measurement
| Name | Value |
|---|---|
| Case Width | 18.5 |
| Case Height | 26 |
| Case Length | 11.25 |
Product Parts
| Name | Part # | Price |
|---|---|---|
| CONTROL KNOB (BLACK) | 17012-1 | $5.62 |
| 3/8 DIA CLOSED CELL FEET | 17015-1 | $0.71 |
| HIGH LIMIT SWITCH | 17504-1 | $10.31 |
| HI LIMIT ASSEMBLY | 44407-2 | $21.75 |
| STRAIN RELIEF BUSHING BLACK | 17024-3 | $1.33 |
| THERMOSTAT HIGH LIMIT | 17950-1 | $4.19 |
| SILICONE D-HEATER GASKET | 178681-1 | $15.42 |
| CAST HEATER 760W 240V | 44206-1 | $97.71 |
| UK POWER CORD - 220V/240V | 17235-1 | $63.71 |
| SCREW THREAD ROLLING 10-32 | 17014-3 | $0.71 |
| POP RIVET .125 DIA | 23686-3 | $1.53 |
| NUT KEPS #6-32 | 17019-3 | $0.71 |
| THERMOSTAT SHORT CAPIL. EGO | 17074-1 | $92.71 |
| Plastic replacement well in black | 17489-1 | $137.63 |
| HIGH LIMIT SWITCH BRACKET | 44459-2 | $2.14 |
