77430

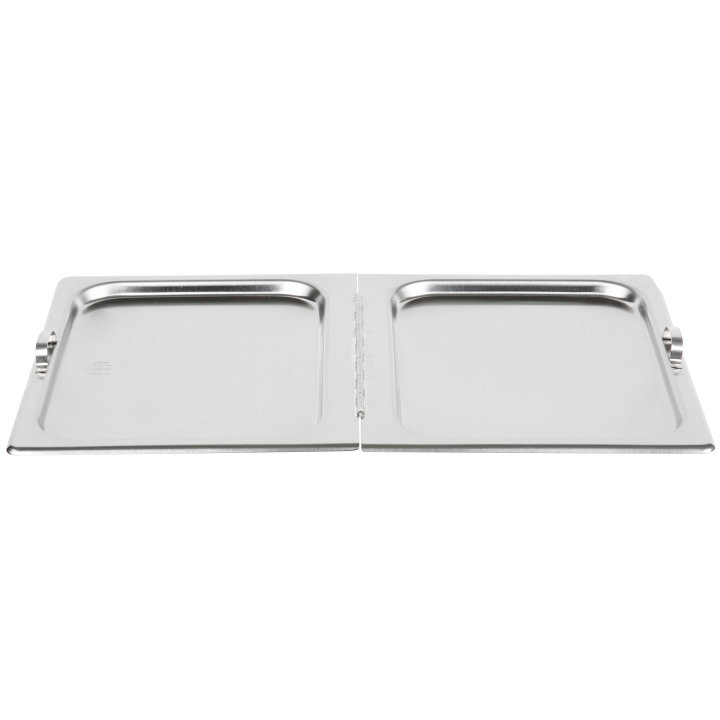

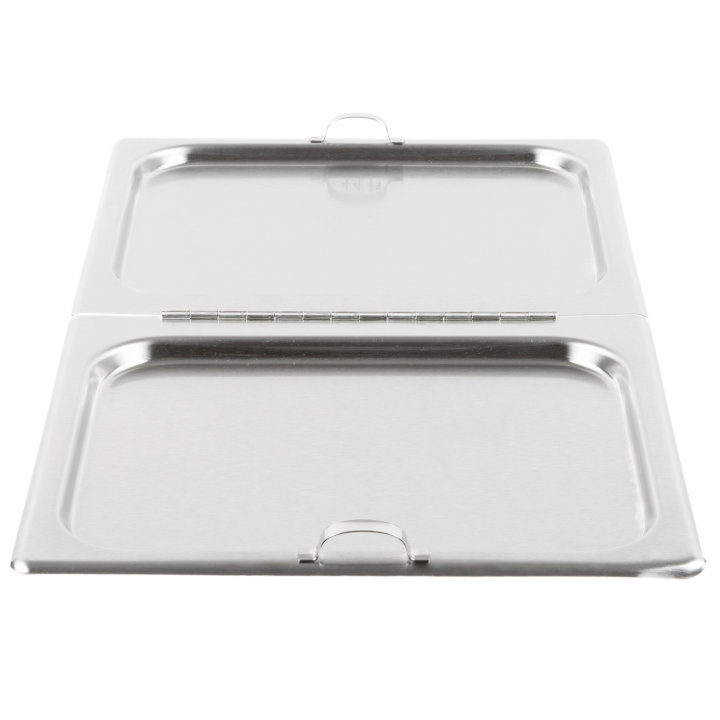

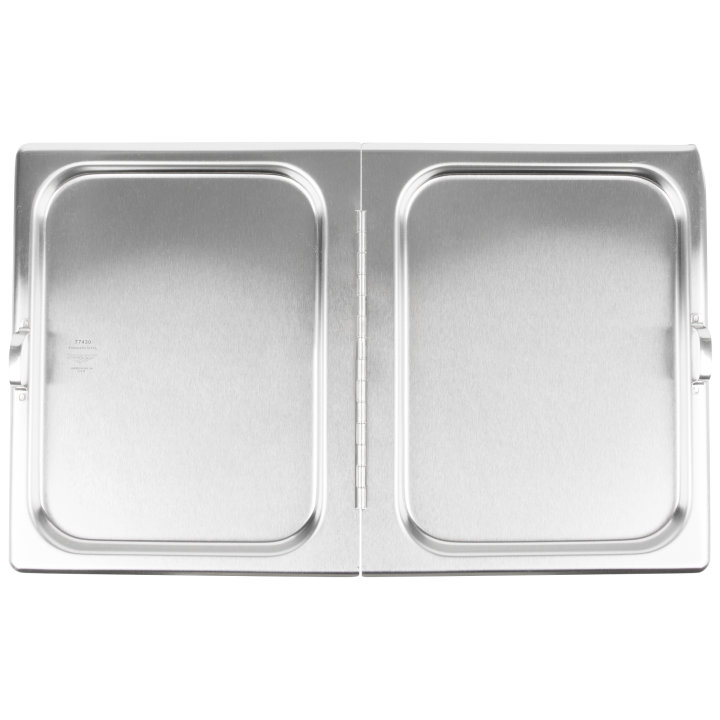

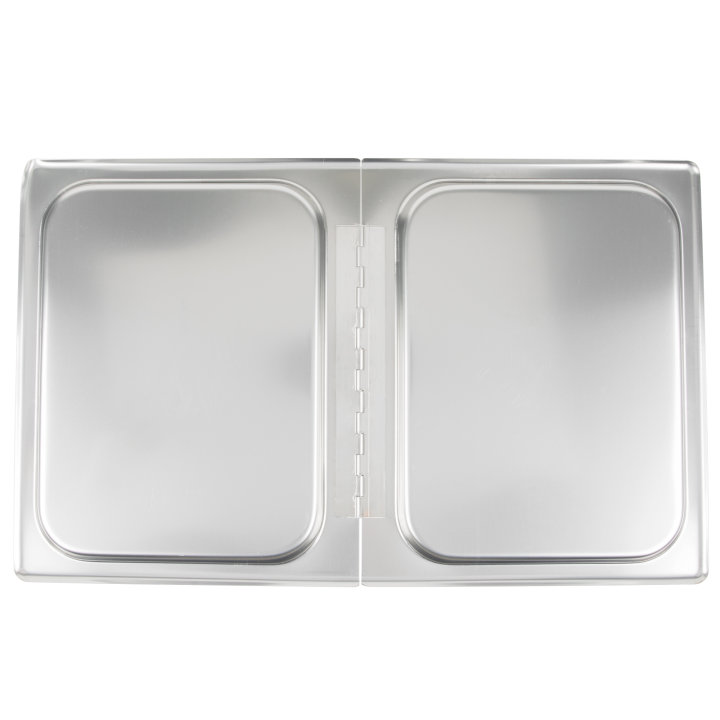

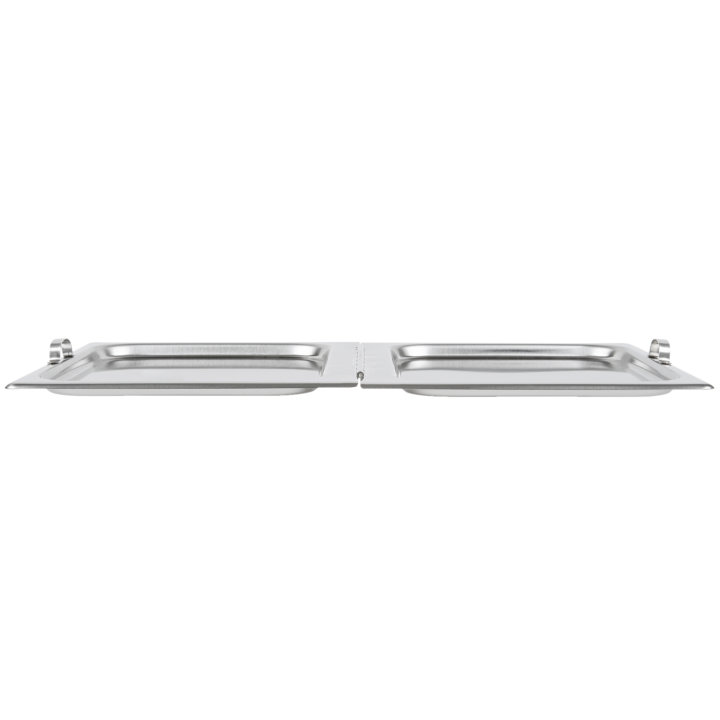

Full-size stainless steel hinged flat steam table pan cover
$74.94
MSRP
Manufacturer Suggested Retail Price (MSRP) is a predetermined percentage off of list price (shown is US Dollars) and is valid for vollrathfoodservice.com and the United States and Canada only. Dealer pricing may differ. These prices do not include potential shipping costs. Any sales tax applicable will be added to the final price upon quote or purchase.
$124.90
List Price
List price (shown is US Dollars) is valid for vollrathfoodservice.com and the United States and Canada only. Dealer pricing may differ. These prices do not include potential shipping costs. Any sales tax applicable will be added to the final price upon quote or purchase.

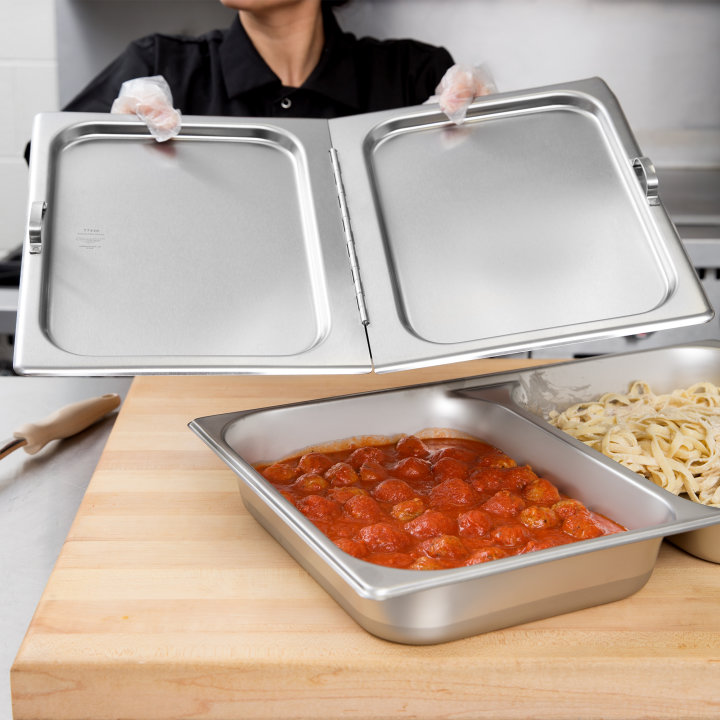

This durable 300-Series stainless steel hinged flat cover fits standard full-size steam table pans and features a center hinge that allows product to be served from either side of the pan without fully removing the cover. That helps prevent heat from escaping, keeps contaminants out and eliminates the need for extra space to set a cover. Half-circle end handles offer safe and easy access.
- Durable 300-Series stainless steel

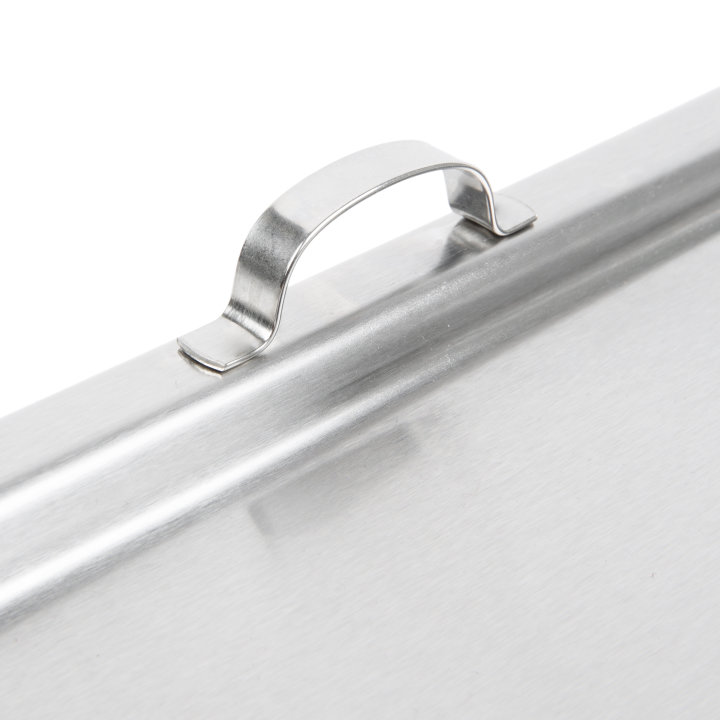

- Sturdy welded handles
- Convenient hinge allows easy access to food without having to remove entire cover
- Made in the USA
Product Specifications
Model Information
| Name | Value |
|---|---|
| UPC | 029419039166 |

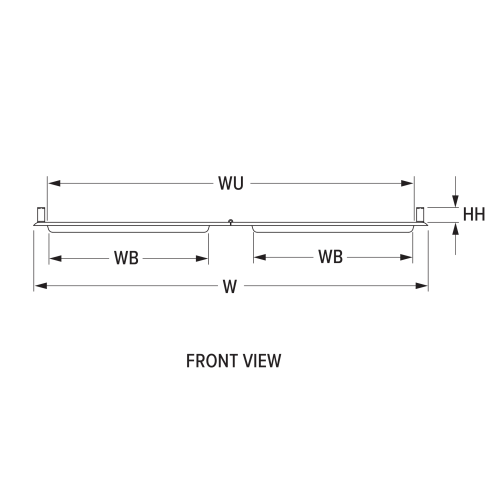

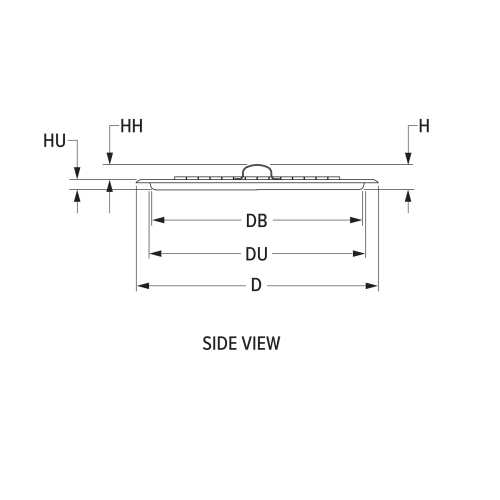

Unit Dimensions
| Name | Value |
|---|---|
| Overall Dimensions (IN) | 20.922 x 12.859 x 1.281 |
| (W) Width (IN) | 21 |
| (WU) Usable Width (IN) | 19.473 |
| (WB) Width Base (IN) | 8.396 |
| (D) Depth (IN) | 12.87 |
| (DU) Usable Depth (IN) | 11.412 |
| (DB) Depth Base (IN) | 11.186 |
| (H) Height (IN) | 1.28 |
| Usable Height (IN) | 0.5 |
| (HH) Handle Height (IN) | 0.781 |
| (DH) Handle Depth (IN) | 1.562 |
| (W) Width (CM) | 53.1 |
| (WU) Usable Width (CM) | 49.5 |
| (WB) Width Base (CM) | 21.3 |
| (D) Depth (CM) | 32.7 |
| (DU) Usable Depth (CM) | 29 |
| (DB) Depth Base (CM) | 28.4 |
| (H) Height (CM) | 3.3 |
| Usable Height (CM) | 1.3 |
| (HH) Handle Height (CM) | 2 |
| (DH) Handle Depth (CM) | 4 |
| Size | Full |
Construction
| Name | Value |
|---|---|
| Construction Feature 1 | Hinged |
| Construction Material | Stainless Steel |
| Material Type | Metals |
| Shape | Rectangle |
Case Lot Measurement
| Name | Value |
|---|---|
| Case Lot | 3 |
| Case Width | 13.5 |
| Case Height | 5.25 |
| Case Length | 21.5 |
| Case Lot Cube (ft.) | 0.88 |
| Case Lot Weight (lbs.) | 8.85 |
Product Downloads
CAD / REVIT
