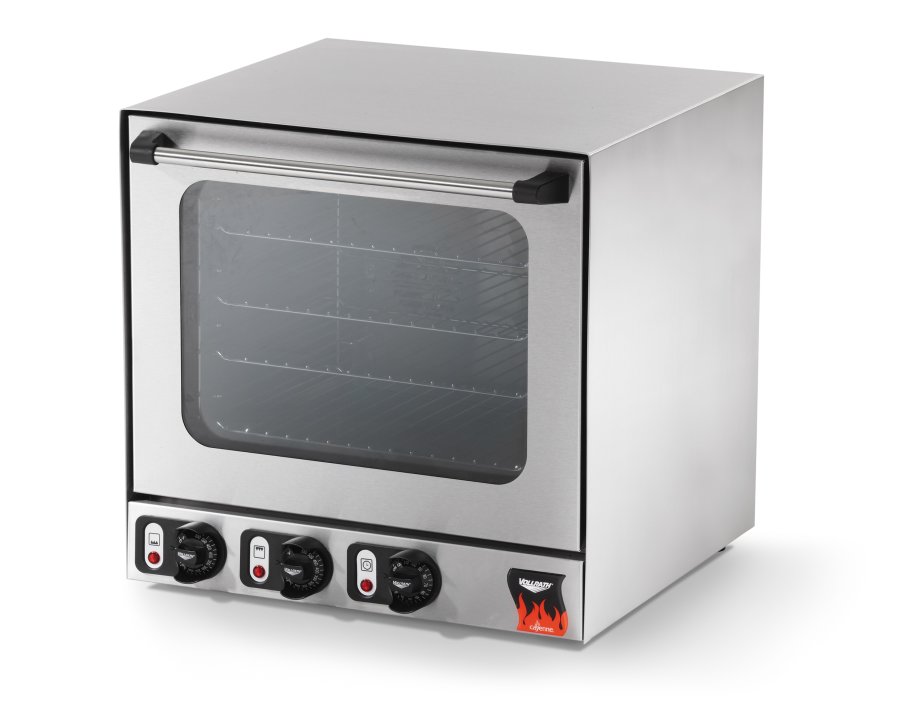

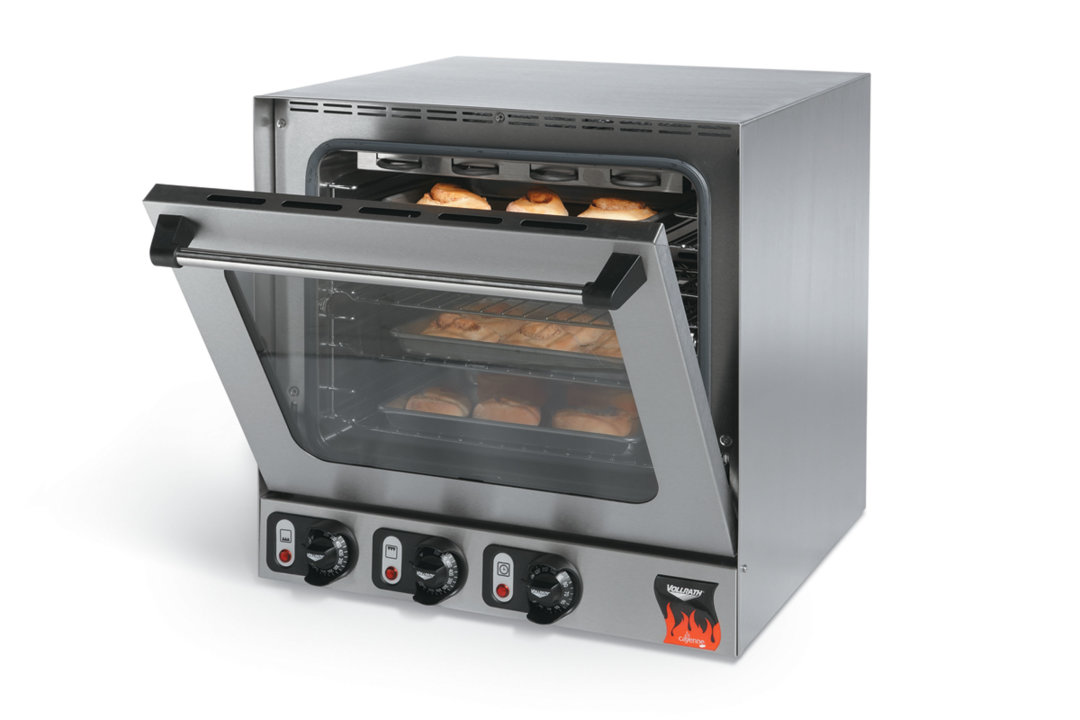

Half-size 230-volt four-shelf Cayenne® convection oven

This symbol represents products that have met the minimum requirements of prescribed product safety standards. The symbol also indicates that the manufacturer’s production site conforms to a range of compliance measures and is subject to periodic follow up inspections to verify continued conformance.

$2286.00 MSRP

$3,810.00 List Price

View New Replacement Product

Add a variety of baked goods to your menu with the Vollrath® half-size Cayenne convection oven. The custom baffle fan and diffuser plate create a consistent bake, while an interior light and no-tip chrome-plated steel shelves ensure ease of use. The timer automatically turns the unit off after the set time, and knob guards protect the thermostat and timer from accidental adjustments. For added versatility, this unit comes with a browning function, making it ideal for various meats and other dishes. The Kool-Touch® door is easily removed, and rounded interior corners make cleaning simple. With a temperature range of 150°F to 570°F, the variety of food you can prepare in this oven is endless.

Perfectly bake bread, pastries, cakes, meats, and vegetables
Durable stainless steel exterior is built to last
Four no-tip chrome-plated steel shelves accommodate half-size sheet pans
Custom baffle fan and diffuser plate ensure an even bake
120-minute bake timer turns off oven after set time
Based on independent UL testing, this product complies with NFPA96 for ventless operation using the EPA202 test method. Ventless allowance is dependent upon AHJ approval.
Please note that you should generally either lower the temperature by about 25 degrees or lower the baking time by approximately 25 percent when modifying a traditional recipe for a convection oven, due to its unique efficiency

Product Specifications

Model Information

Name	Value
Model	COA8004
UPC	029419719785

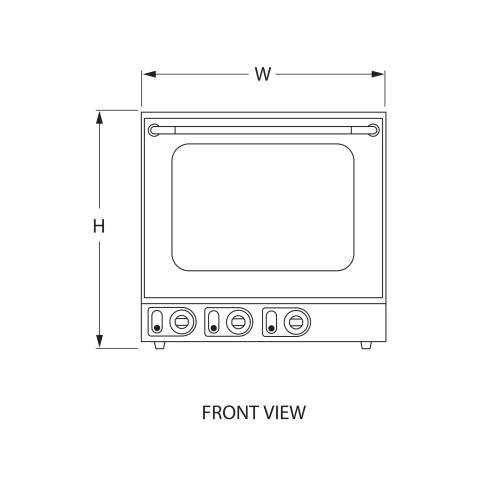

Unit Dimensions

Name	Value
Overall Dimensions (IN)	23.375 x 23.5 x 23.25
(W) Width (IN)	23.37
(D) Depth (IN)	23.5
(H) Height (IN)	23.25
(HLR) Adjustable Legs (IN)	2.5 - 3.5
(WC) Cooking Chamber Width (IN)	18.5
(DC) Cooking Chamber Depth (IN)	13
(HC) Cooking Chamber Height (IN)	13.75
Overall Dimensions (CM)	59.4 x 59.7 x 59
(W) Width (CM)	59.4
(D) Depth (CM)	59.7
(H) Height (CM)	59
(HLR) Adjustable Legs (CM)	6.4 - 7.6
(WC) Cooking Chamber Width (CM)	47
(DC) Cooking Chamber Depth (CM)	33
(HC) Cooking Chamber Height (CM)	35
Size	Half

Electrical

Name	Value
Amps	11
Cord Length (IN)	48
Cord Length (CM)	120
Plug	NEMA 6-15P
Voltage	230
Watts	2520

Construction

Name	Value
Countertop or Drop-In	Countertop

Case Lot Measurement

Name	Value
Case Lot	1
Case Width	27.25
Case Height	26.75
Case Length	28
Case Lot Cube (ft.)	11.81
Case Lot Weight (lbs.)	86.0

Product Parts

Name	Part #	Price
HINGE KIT 40701 / COA8004	XCOA0701	$125.87
TIMER KNOB COA7001(#18)/7002/8	XCOA1007	$15.04
REAR COVER COA8004 (NEW TYPE)	XCOA1034	$115.88
SHELF RUNNER COA8004 (#17)	XCOA1017	$66.44
GRILL ELEMENT COA8004 (#3)	XCOA1020	$190.65
SHELF RUNNER THUMBSCREW COA700	XCOA1018	$35.23
INNER GLASS (NEW TYPE) COA8004	XCOA1028	$133.39
POWERCORD 220V (NEMA6-15P)	XAA0006	$41.81
COMPLETE DOOR COA8004 (INCLUDE	XCOA1023	$1,325.40
CONTROL PANEL FASCIA - BLACK	XAA0009	$29.08
FAN & MOTOR COA8004 (#21) 220	XCOA1021	$413.85
STEEL HANDLE COA8004 #11	XCOA1025	$80.03
LAMP HOLDER 220V W/LAMP	XCOA1004	$78.80
DOOR GASKET COA8004 #16	XCOA1024	$80.03
BAKING ELEMENT COA8004 (#19) 1	XCOA1019	$158.72
CABLE RESTRAINT COA7001/7002/8	XCOA1013	$7.62
PILOT LIGHT 220V (RED)	XAA0002	$16.56
LIGHT BULB(25W) 220V COA8004	XCOA1041	$46.66
OUTER GLASS (NEW TYPE) COA8004	XCOA1029	$199.72
DOOR HANDLE NODE POA7002/8002	XPOA0003	$14.94
CONNECTOR BLOCK SAA8003 (#24)	XSAA1012	$10.61
RUBBER FOOT COA7001/7002/8004/	XCOA1012	$18.44
TIMER COA7001(#20)/7002(#27)/8	XCOA1003	$219.80
CONTROL KNOB BAKE	XCOA0000	$21.63
SELECTOR SWITCH COA7001(#13)/7	XCOA1001	$80.03
VOLLRATH CONTROL KNOB COA7002/	XCOA1009	$16.48
THERMOSTAT COA7001(#12)/7002(#	XCOA1002	$89.51
WIRE SHELF COA7002/8004 (#16)	XCOA1016	$87.96
