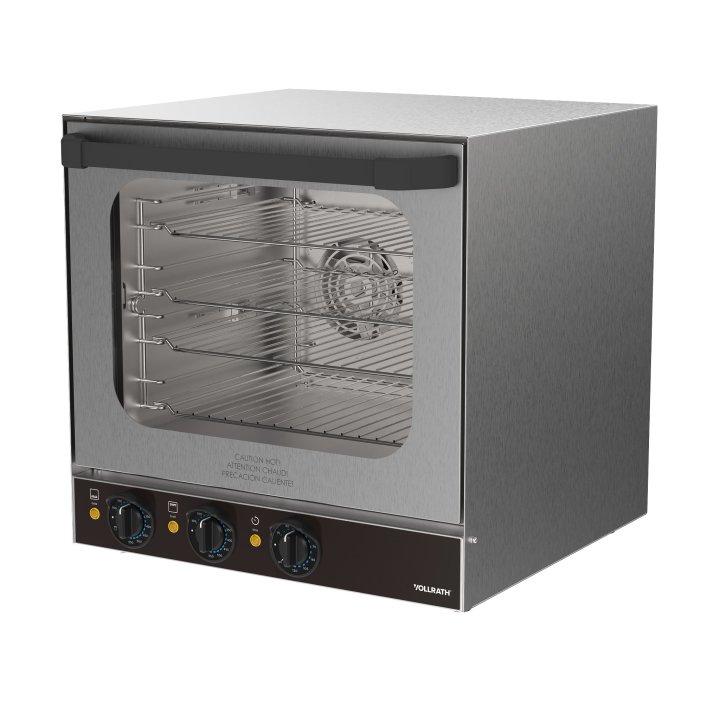

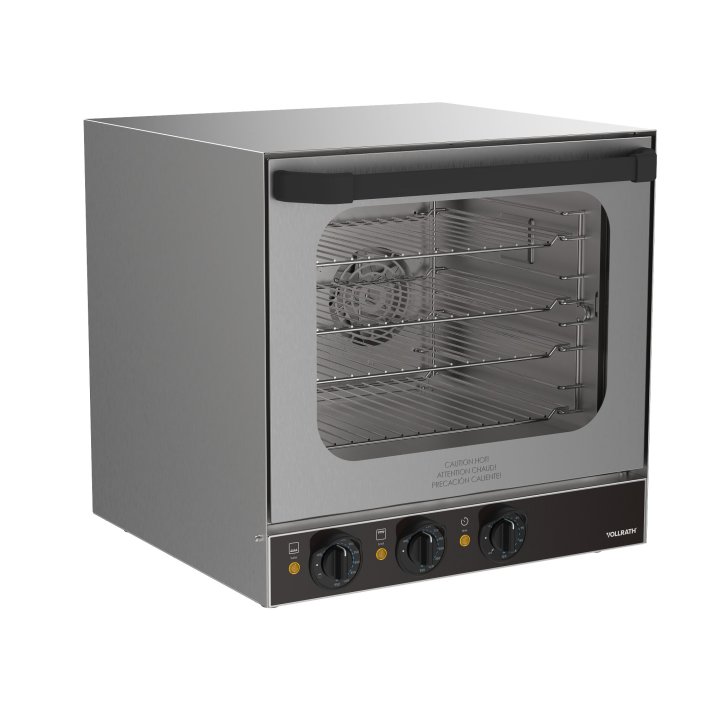

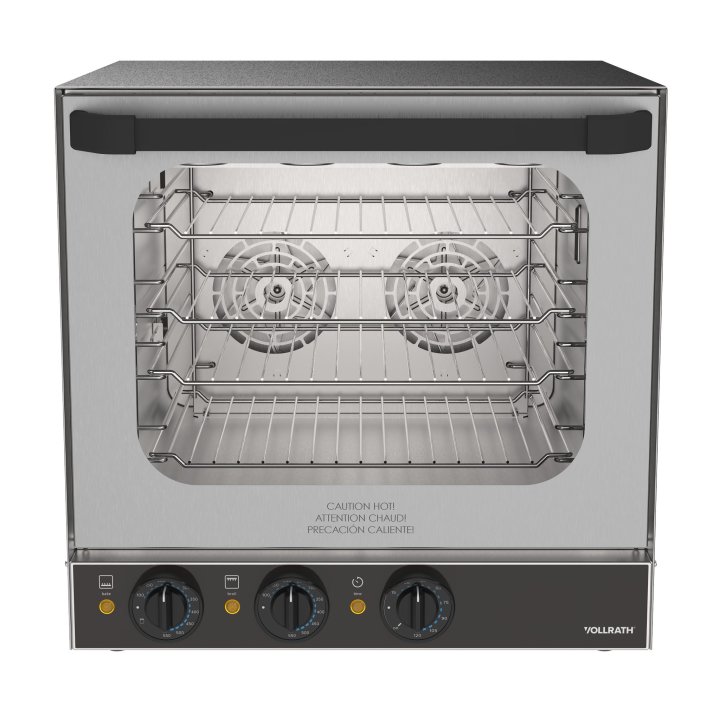

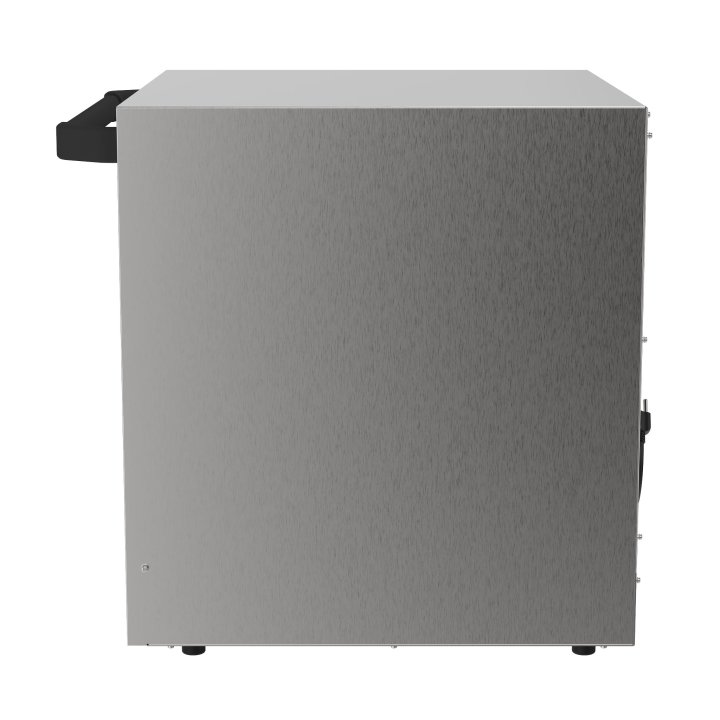

CO4-208240HS

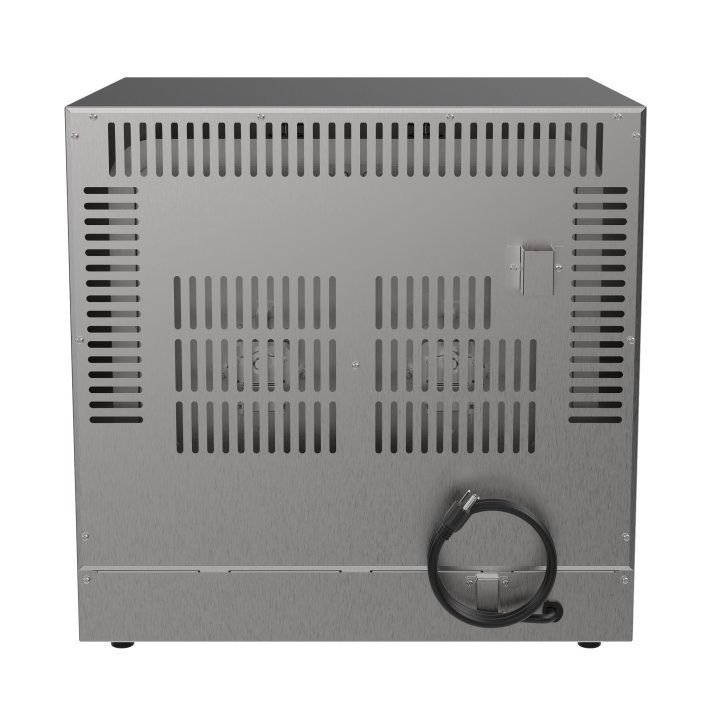

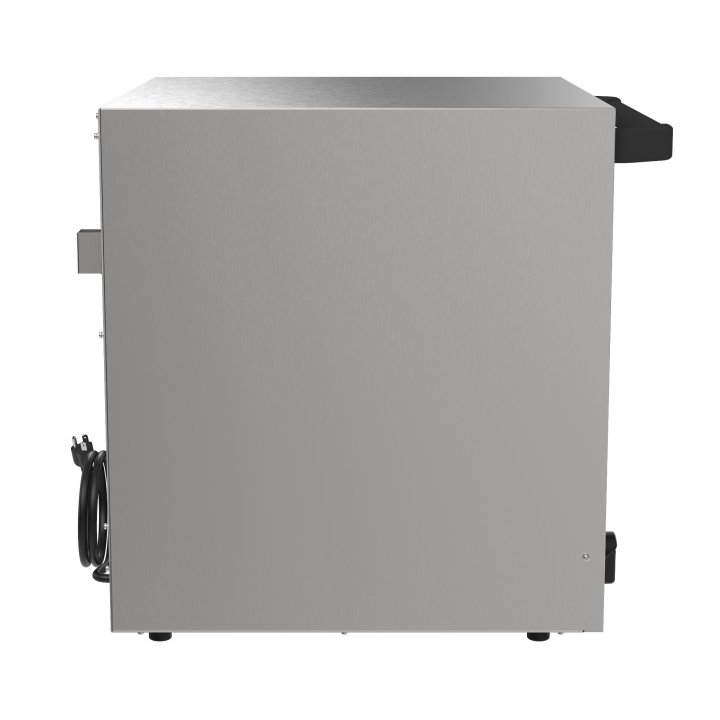

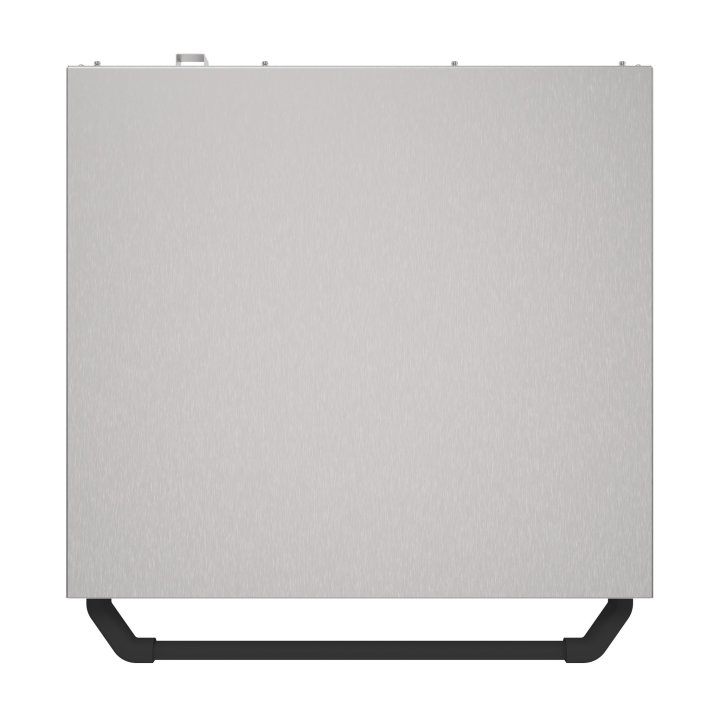

208- to 240-volt half-size convection oven
Classified by UL to NSF/ANSI 4
This symbol represents products that are certified to meet specific environmental and public health standards. The UL EPH Mark is recognized and accepted as a trusted source for assessing the sanitary design, construction and performance of commercial food equipment. If it shows the word “Classified” above the UL mark, then the product also complies with ANSI/NSF regulations.
This symbol represents products that are certified to safely perform its job as intended. This product has earned this certification by undergoing rigorous testing against standards developed by UL.
Add a variety of baked goods to your menu with the Vollrath® half-size convection oven. The custom baffle fan and diffuser plate create a consistent bake, while an interior light and steel shelves ensure ease of use. With a 120-minute bake timer and versatile browning function, this oven allows for precise control over your cooking process. Cleaning is a breeze with easily removable door and rounded interior corners, minimizing downtime and maximizing productivity. With a temperature range of 150°F to 550°F, the variety of food you can prepare in this oven is endless.
- Ideal for baking bread, pastries and cakes or cooking meats and vegetables
- Durable stainless-steel exterior is built to last
- Consistent airflow and even heating ensured with custom fan
- Half-size models offer a broil function for even more versatility
- Low-profile lights provide more space for pans and food
- Improved door gasket retains more heat in the baking chamber for energy savings and reduced operating costs
- Based on independent UL testing, this product complies with NFPA96 for ventless operation using the EPA202 test method. Ventless allowance is dependent upon AHJ approval
- Please note that you should lower the temperature by 25 degrees and check baking time about 25 percent sooner when modifying a traditional recipe for a convection oven, due to its unique efficiency
Product Videos
Product Specifications
Model Information
| Name | Value |
|---|---|
| Model | COV-208240-HS |
| UPC | 029419043453 |
Unit Dimensions
| Name | Value |
|---|---|
| Overall Dimensions (IN) | 23.31 x 25.44 x 23.25 |
| (W) Width (IN) | 23.31 |
| (D) Depth (IN) | 25.44 |
| (H) Height (IN) | 23.25 |
| (WC) Cooking Chamber Width (IN) | 18.56 |
| (DC) Cooking Chamber Depth (IN) | 14.56 |
| (HC) Cooking Chamber Height (IN) | 13.81 |
| Overall Dimensions (CM) | 59.2 x 64.6 x 58.9 |
| (W) Width (CM) | 59.2 |
| (D) Depth (CM) | 64.6 |
| (H) Height (CM) | 58.9 |
| (WC) Cooking Chamber Width (CM) | 47.1 |
| (DC) Cooking Chamber Depth (CM) | 36.9 |
| (HC) Cooking Chamber Height (CM) | 35 |
Electrical
| Name | Value |
|---|---|
| Amps | 9.9 - 11.4 |
| Cord Length (IN) | 48 |
| Cord Length (CM) | 120 |
| Plug | NEMA 6-15P & R |
| Voltage | 208-240 |
| Watts | 2061 - 2744 |
Product Parts
| Name | Part # | Price |
|---|---|---|
| Kit, Foot, 1.00" OD, 20Mm LG | 351775-1 | $8.00 |
| Control Knob | 351788-06-1 | $7.20 |
| Broil Element Bracket - CO4 HS | 354964-1 | $36.20 |
| Timer Overlay - 120 Min | 354956-1 | $9.60 |
| High Limit Cover - CO4 HS | 354963-1 | $24.10 |
| Wire Shelf - CO4 HS | 354955-1 | $108.50 |
| Knurled Thumb Screw - M6X20 | RDC0152 | $9.60 |
| Timer - Conv Oven 120 Min | 354951-1 | $24.10 |
| Power Cord, SJTO, 6-15P, 1.4M | 352771-1 | $53.00 |
| Oven Thermostat 320 C/608 F | 354952-1 | $144.60 |
| Strain Relief, Heyco 1861" | 353208-1 | $12.10 |
| Handle Extrusion - CO4 HS | 354959-1 | $56.60 |
| Oven Light 230V 25W | 353865-1 | $18.10 |
| Handle End Cap | 353868-1 | $8.40 |
| Thermostat Holding Bracket | 354965-1 | $24.10 |
| Door Hinge Receiver - Oven | 354960-1 | $30.10 |
| Multi-function Selector Switch | 354953-1 | $120.50 |
| Exhaust Pipe Assy - CO4 HS | 354961-1 | $42.20 |
| Ops Manual - Convection Ovens | 354861-1 | $9.60 |
| High Limit Thermostat 350 C˚ | 354949-1 | $156.70 |
| Thermostat Overlay - 550 F˚ | 354958-1 | $9.60 |
| Oven Bake Overlay - 550 F˚ HS | 354957-1 | $9.60 |
| Exhaust Pipe Cover Bracket | 354962-1 | $24.10 |
| KNOB GUARD BEZEL | 351788-04-1 | $5.50 |
| Oven Light Bulb 230V 25W | 353866-1 | $12.10 |
Product Downloads
CAD / REVIT
For the most updated list for Vollrath products and CAD drawings
Customer Questions
Be the first to ask a question
