40759

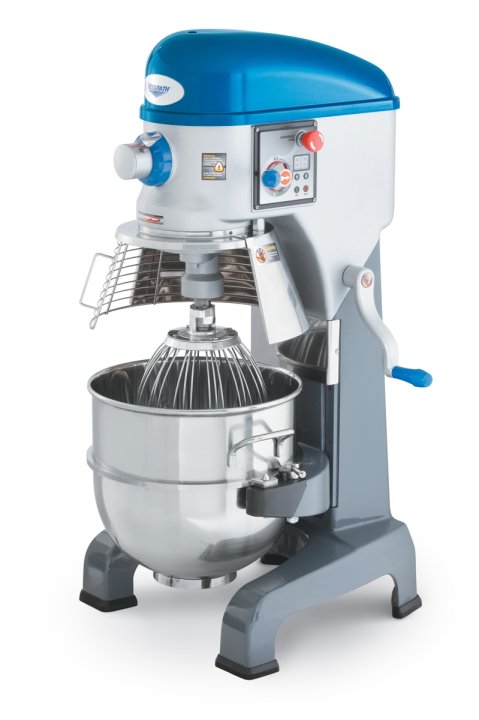

40-quart 208- to 240-volt floor mixer with safety guard
-
This symbol represents products that have met the minimum requirements of prescribed product safety standards. The symbol also indicates that the manufacturer’s production site conforms to a range of compliance measures and is subject to periodic follow up inspections to verify continued conformance.
The Vollrath® 40-quart floor mixer is built tough, promising years of reliability and durability. It features a 3-speed belt drive, allowing you to mix a variety of products at the appropriate speed. The 30-minute timer automatically turns the mixer off for ultimate convenience. This mixer comes with all the accessories required for operation, as well as a safety guard to prevent accidental injury. Strong legs maintain stability while black feet prevent movement during use. If you want to expand your mixer’s versatility to include grinding and slicing, a No. 12 hub can accommodate the appropriate Vollrath attachments.
- Efficiently mixes, whips and beats a variety of foods
- Safety cut-off interrupts power if gears are changed while the mixer is in use, preventing gear damage and extending the life of this unit
- Stainless steel mixing bowl, dough hook, wire whisk, flat beater and safety guard included
- Meat grinder and vegetable slicer attachments are available for added versatility — for best results Vollrath attachments are recommended
- International models have CE certification only
- 30-minute timer automatically stops unit
- 3-speed belt drive is built for years of service
- 40-quart mixing bowl included
Product Specifications
Model Information
Name | Value |
---|---|
Model | MIX1040 |
UPC | 029419720507 |

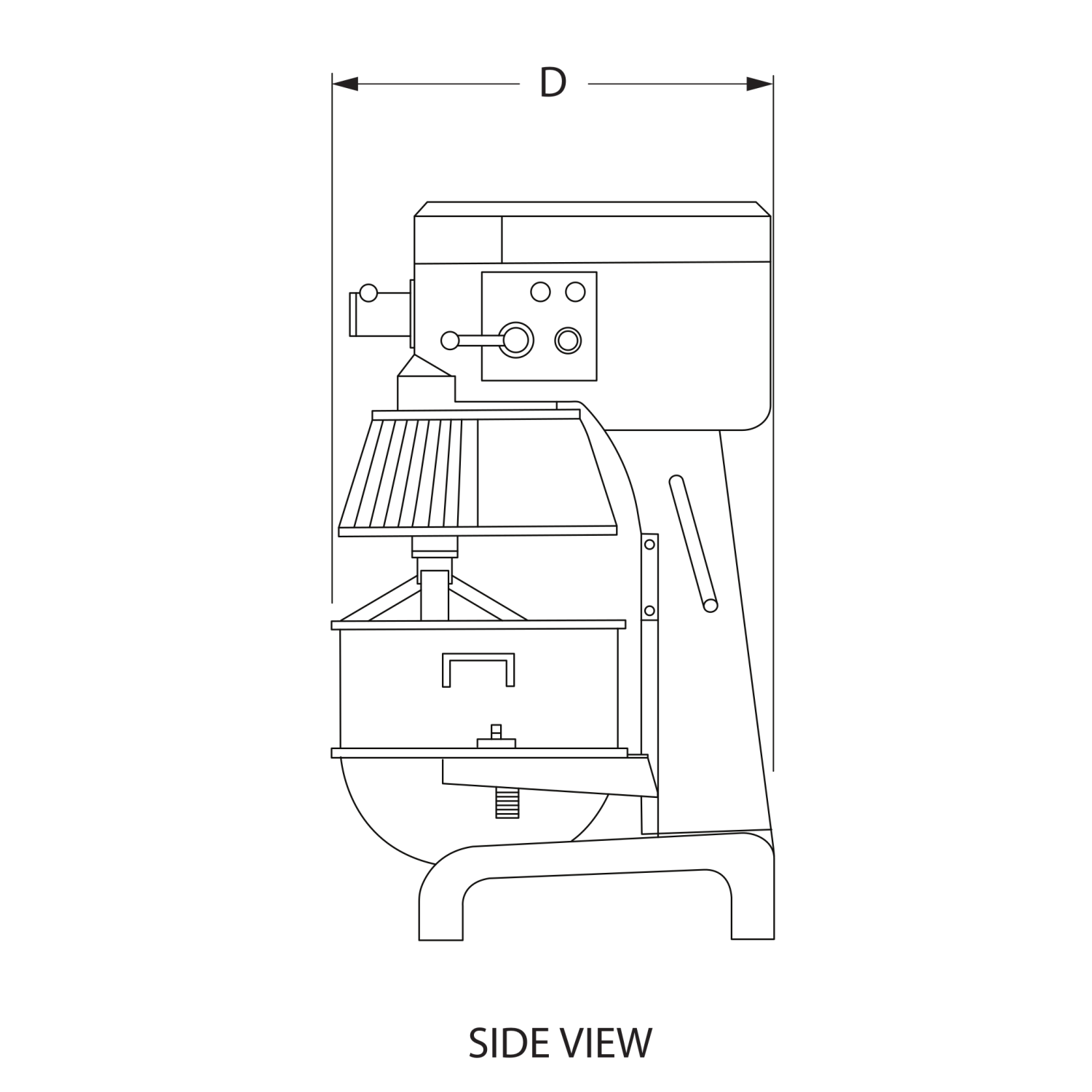

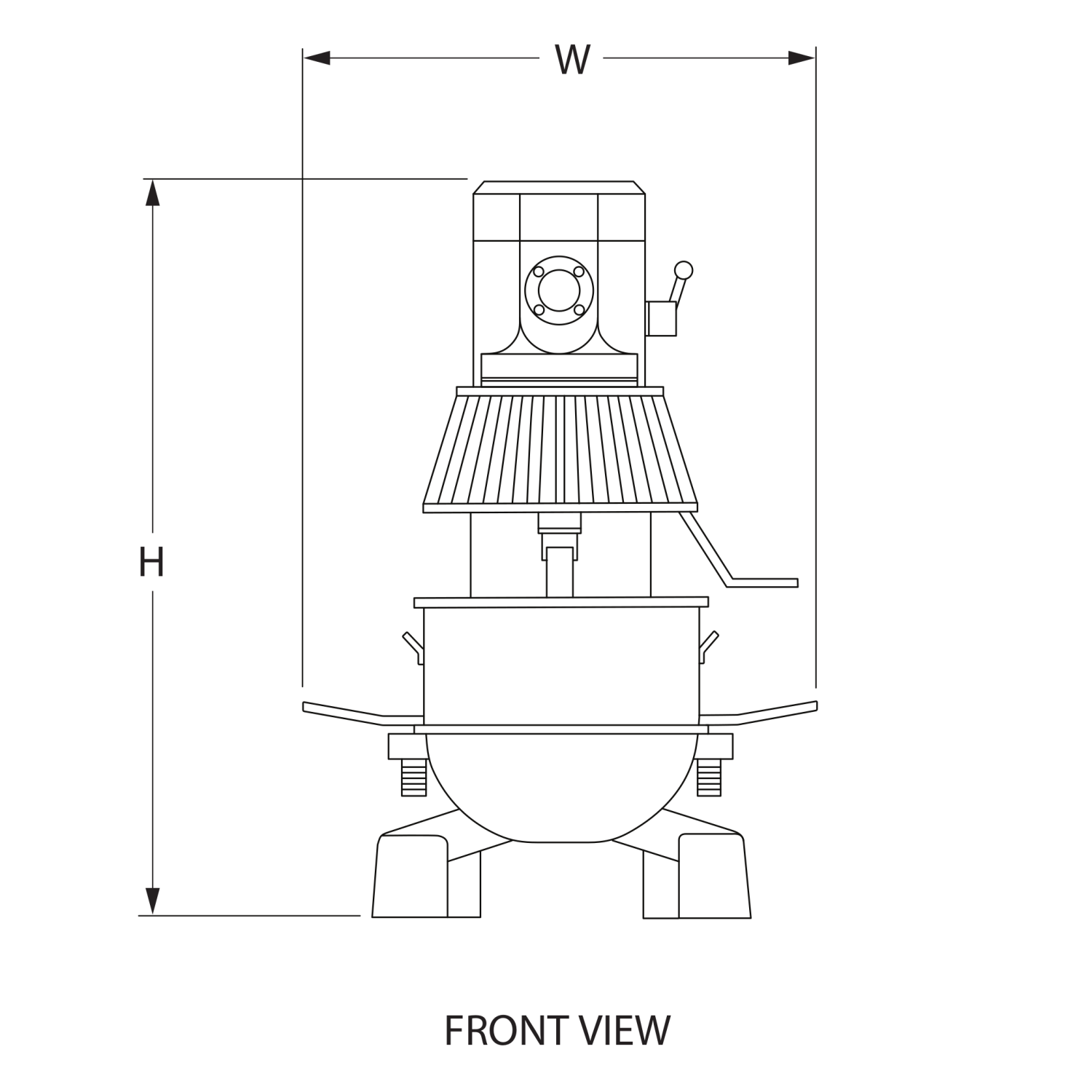

Unit Dimensions
Name | Value |
---|---|
Overall Dimensions (IN) | 26.5 x 26.562 x 47.125 |
(W) Width (IN) | 26.5 |
(D) Depth (IN) | 26.56 |
(H) Height (IN) | 47.12 |
(WL) Width between legs | 21.5 |
(DL) Depth between legs | 21.25 |
(W) Width (CM) | 67.3 |
(D) Depth (CM) | 67.5 |
(H) Height (CM) | 119.7 |
(WL) Width between legs (CM) | 54.6 |
(DL) Depth between legs (CM) | 54 |
Size | 40 |
Electrical
Name | Value |
---|---|
Amps | 12 |
Cord Length (IN) | 6" |
Cord Length (CM) | 182.9 |
hp | 1-1/2 |
Hz | 60 |
Plug | NEMA 5-15P |
Voltage | 208-240 |
Volume
Name | Value |
---|---|
Capacity (QT) | 40 |
Case Lot Measurement
Name | Value |
---|---|
Case Lot | 1 |
Case Width | 26.25 |
Case Height | 52.75 |
Case Length | 29.75 |
Case Lot Cube (ft.) | 23.84 |
Case Lot Weight (lbs.) | 560.0 |
Product Accessories
Product Parts
Name | Part # | Price |
---|---|---|
MIXER GEARBOX GREASE (17.6 OZ) | XMIX0001 | $67.00 |
MIXER PLANETARY GREASE (OMEGA | XMIX0002 | $109.80 |
MICROSWITCH (S/ GUARD MIX7110) | XMIX1013 | $42.10 |
HUB THUMBSCREW MIX7120 (NO41) | XMIX2033 | $29.50 |
FREEZE PLUG SMALL MIX7120 (#3 | XMIX2290 | $14.50 |
BEARING 6205Z (#86) | XMIX3086 | $29.30 |
GOVERNOR PLATE MIX8140 (#142) | XMIX4004 | $23.00 |
GOVERNOR MIX8140 (#143) | XMIX4005 | $35.00 |
CAPACITOR MIX8140 #148 MIX8160 | XMIX4010 | $153.70 |
AGITATOR SHAFT TAPERED PIN MIX | XMIX4034 | $13.40 |
SELECTOR FORK & SHAFT MIX8140/ | XMIX4043 | $299.50 |
AGITATOR SHAFT GEAR MIX8140/91 | XMIX4048 | $193.30 |
PLANETARY HEAD (CASTING ONLY) | XMIX4050 | $435.80 |
MICROSWITCH FOR SAFETY GUARD | XMIX4052 | $136.60 |
BEARING 6206Z (#81) | XMIX4081 | $38.20 |
AGITATOR OIL SEAL MIX8140/9140 | XMIX4087 | $22.30 |
KEY(6X6X25) (#101) | XMIX4101 | $15.00 |
EMERGENCY STOP SWITCH MIX1020 | XMIX8202 | $135.90 |
GEAR LEVER KNOB(BLUE) & SHAFT | XMIX8205 | $107.00 |
BOWL LIFT ARM CAST ALUMINUM | XMIX8207 | $169.20 |
BOWL LIFT HANDLE KNOB/BLUE | XMIX8224 | $112.00 |
RUBBER FRONT FOOT COVER MIX103 | XMIX8303 | $58.30 |
RUBBER REAR FOOT COVER LEFT MI | XMIX8304 | $58.30 |
RUBBER REAR FOOT COVER RIGHT M | XMIX8305 | $58.30 |
HUB COMPLETE MIX1040 (#57-67) | XMIX8400 | $618.50 |
CONTROL FASCIA PANEL MIX1040 ( | XMIX8402 | $214.50 |
TOP COVER MIX1040 (BLUE) | XMIX840340 | $301.80 |
RUBBER BOWL ARM COVER LEFT MIX | XMIX8404 | $35.50 |
RUBBER BOWL ARM COVER RIGHT MI | XMIX8405 | $35.50 |
PLANETARY BEARING COVER MIX914 | XMIX8406 | $66.30 |
TRANSMISSION BEARING COVER MI | XMIX8407 | $46.90 |
PULLEY SHAFT BEARING COVER MI | XMIX8408 | $46.90 |
GEARBOX COVER MIX9140/1040 (# | XMIX8409 | $301.80 |
TOP COVER BOLT MIX1040 (#7) | XMIX8410 | $3.70 |
RING GEAR MIX8140/9140/1040 (# | XMIX8411 | $502.30 |
REAR COLUMN COVER (TOP) MIX104 | XMIX8412 | $118.60 |
REAR COLUMN COVER (BOTTOM) MI | XMIX8413 | $41.50 |
BOWL CLAMP LEFT MIX1030/1040 ( | XMIX8414 | $78.50 |
BOWL CLAMP RIGHT MIX1030/1040 | XMIX8415 | $78.50 |
SAFETY GUARD COMPLETE MIX8140/ | XMIX8416 | $2,062.20 |
POWER BOARD MIX1040 (#172) | XMIX8417 | $837.30 |
PLANETARY HEAD ASSEMBLY #87-10 | XMIX8632 | $1,341.70 |
POWER CORD 15 AMP | XMIX8633 | $51.70 |
MOTOR PULLEY MIX9130/9140/1030 | XMIX9327 | $116.40 |
PLANETARY SHAFT COMPLETE MIX91 | XMIX9402 | $2,091.00 |
TRANSMISSION SHAFT COMPLETE MI | XMIX9403 | $746.40 |
PULLEY & SHAFT MIX9140/1040 ( | XMIX9404 | $440.00 |
MOTOR MIX91401040 (#50)(INCLU | XMIX9405 | $2,098.10 |
DRIVE BELT 7M750 (NEW TYPE) MI | XMIX9406 | $117.90 |
AGITATOR SHAFT MIX8140/9140/10 | XMIX9413 | $210.00 |
BOWL LIFT ASSEMBLY MIX9140/104 | XMIX9421 | $387.90 |
SHIFTER SHAFT & SELECTOR MIX91 | XMIX9439 | $303.20 |
START/RUN CAPACITORS MIXERS | XMIX9610 | $551.00 |
Product Downloads
CAD / REVIT
For the most updated list for Vollrath products and CAD drawings
Customer Questions
Be the first to ask a question
