VBBD2-37-F

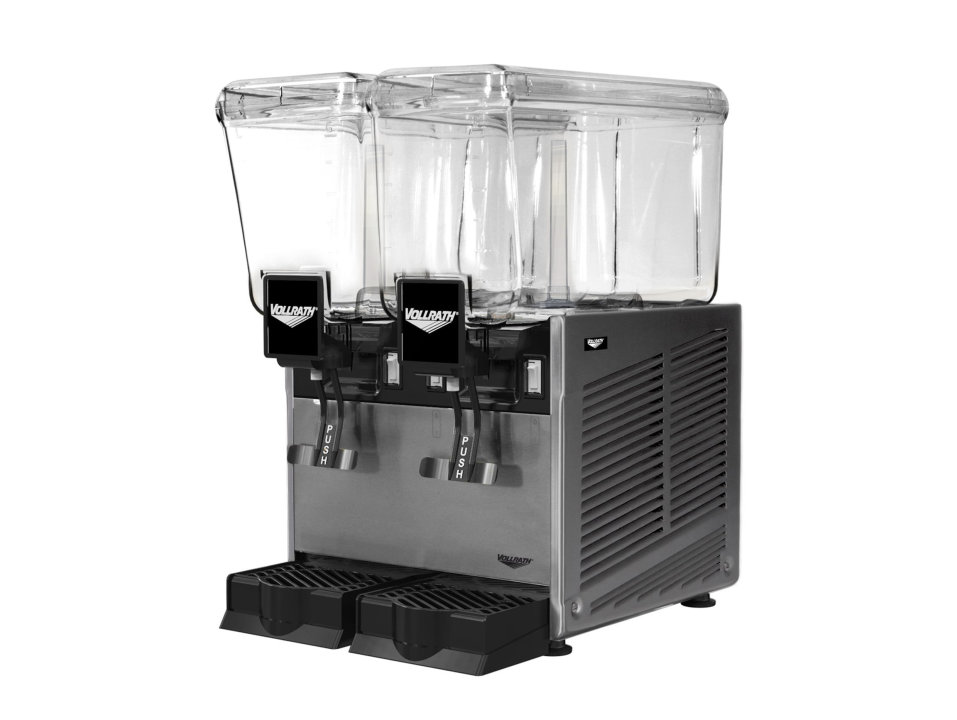

Refrigerated beverage dispenser with two 3.17-gallon bowls and fountain spray circulation

This symbol represents products that have met the minimum requirements of prescribed product safety standards. The symbol also indicates that the manufacturer’s production site conforms to a range of compliance measures and is subject to periodic follow up inspections to verify continued conformance.

$1699.08 MSRP

$2,831.80 List Price

Expand your menu offerings and add an engaging, attention-getting option to your drink area with the Vollrath® refrigerated beverage dispenser. The clear polycarbonate bowls keep your product visible, allowing it to catch your customer’s eye. Each bowl has its own thermostat that easily holds your pre-mixed cold beverage at a perfect serving temperature, while the fountain spray circulator ensures exceptional consistency and quality. With a stainless steel drip-free spigot and a plastic drip tray to contain liquid in the case of accidental spills, your counters will always stay clean. The durable stainless steel cabinet and polycarbonate food-grade bowls promise years of reliable service, and the easily-removed bowls and dispensing handles allow for quick clean up.

Designed to refrigerate and serve pre-mixed cold beverages
Fountain spray bowl circulation is suitable for many beverages, but is not recommended for beverages that can foam, such as coffee, tea and natural fruit juices
Clear bowl design keeps product visible, allowing customers to easily see and select their beverage of choice
Bowl thermostat holds beverages at a consistent temperature and quality
Magnetic-drive fountain spray bowl circulation ensures product consistency
Polycarbonate 3.17-gallon food-grade bowl and stainless steel cabinet are durable and reliable
Gravity-fed spigot quickly dispenses beverage without mechanical or electrical assistance
Stainless steel dispensing spigot features drip-free design
Plastic drip tray prevents messes and keeps countertops clean
Simple paddle switches ensure easy operation
Easily-removable bowl and dispensing handle allow for quick cleaning

Product Specifications

Model Information

Name	Value
Model	VBBD
UPC	671080959887

Unit Dimensions

Name	Value
Overall Dimensions (IN)	14.437 x 18.5 x 22.375
(W) Width (IN)	14.437
(D) Depth (IN)	18.5
(H) Height (IN)	22.375
Overall Dimensions (CM)	36.8 x 47.1 x 57
(W) Width (CM)	36.8
(D) Depth (CM)	47.1
(H) Height (CM)	57

Electrical

Name	Value
Amps	3.1
Hz	60
Plug	5-15P
Voltage	115

Volume

Name	Value
Container Capacity (GAL)	3.17
Container Capacity (L)	12
Total Container Capacity (GAL)	6.34
Total Container Capacity (L)	24

Weight

Name	Value
Weight (LB)	55.1
Weight (KG)	25

Construction

Name	Value
Construction Feature 3	Fountain Spray Circulation
Construction Feature 2	Clear polycarbonate bowls
Construction Material	Stainless Steel
Number of Bowls	2
Refrigerant	R134a
