VBBD3-37-S

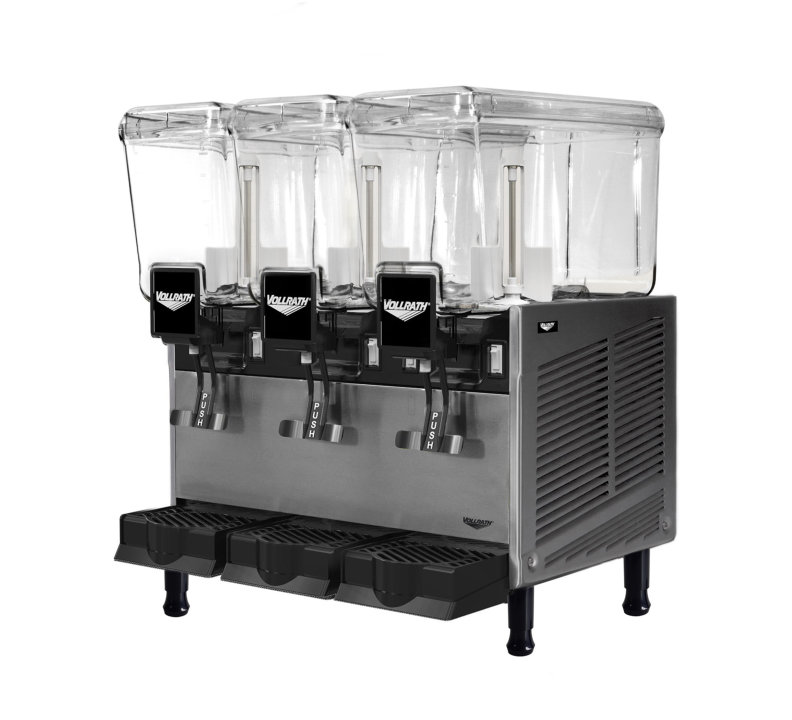

Refrigerated beverage dispenser with three 3.17-gallon bowls and stirring paddle circulation

This symbol represents products that have met the minimum requirements of prescribed product safety standards. The symbol also indicates that the manufacturer’s production site conforms to a range of compliance measures and is subject to periodic follow up inspections to verify continued conformance.

$2203.44 MSRP

$3,672.40 List Price

Keep your most popular drink offerings cold, fresh and on display with the Vollrath® refrigerated beverage dispenser. The clear polycarbonate bowls keep your product visible, allowing it to catch your customer’s eye. Each bowl has its own thermostat that easily holds your pre-mixed cold beverage at a perfect serving temperature, while the stirring paddle circulates the product to ensure exceptional consistency and quality. With a stainless steel drip-free spigot and a plastic drip tray to contain liquid in the case of accidental spills, your counters will always stay clean. The durable stainless steel cabinet and polycarbonate food-grade bowls promise years of reliable service, and the easily-removed bowls and dispensing handles allow for quick clean up.

Designed to refrigerate and serve pre-mixed cold beverages
Stirring paddle bowl circulation is suitable for most beverages and recommended for beverages that can foam, such as coffee, tea and natural fruit juices
Clear bowl design keeps product visible, allowing customers to easily see and select their beverage of choice
Each bowl has a thermostat that holds beverages at a consistent temperature and quality
Mechanical-drive stirring paddle bowl circulation ensures product consistency
Polycarbonate 3.17-gallon food-grade bowls and stainless steel cabinet are durable and reliable
Gravity-fed spigot quickly dispenses beverage without mechanical or electrical assistance
Stainless steel dispensing spigot features drip-free design
Plastic drip tray prevents messes and keeps countertops clean
Simple paddle switches ensure easy operation
Easily-removable bowls and dispensing handle allow for quick cleaning

Product Specifications

Model Information

Name	Value
Model	VBBD
UPC	671080959948

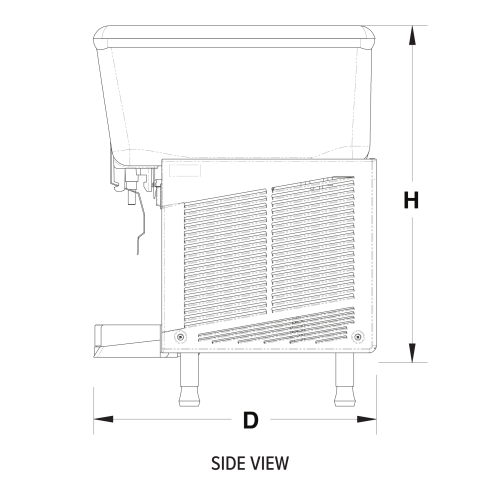

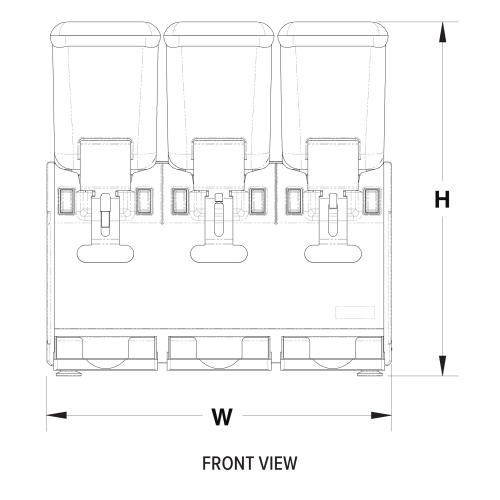

Unit Dimensions

Name	Value
Overall Dimensions (IN)	21.5 x 18.5 x 22.375
(W) Width (IN)	21.5
(D) Depth (IN)	18.5
(H) Height (IN)	22.375
Overall Dimensions (CM)	54.6 x 47.1 x 57
(W) Width (CM)	54.6
(D) Depth (CM)	47.1
(H) Height (CM)	57

Electrical

Name	Value
Amps	7.2
Hz	60
Plug	5-15P
Voltage	115

Volume

Name	Value
Container Capacity (GAL)	3.17
Container Capacity (L)	12
Total Container Capacity (GAL)	9.51
Total Container Capacity (L)	36

Weight

Name	Value
Weight (LB)	75
Weight (KG)	34

Construction

Name	Value
Construction Feature 3	Stirring Paddle Circulation
Construction Feature 2	Clear polycarbonate bowls
Construction Material	Stainless Steel
Number of Bowls	3
Refrigerant	R-448A
