CBGHD-72

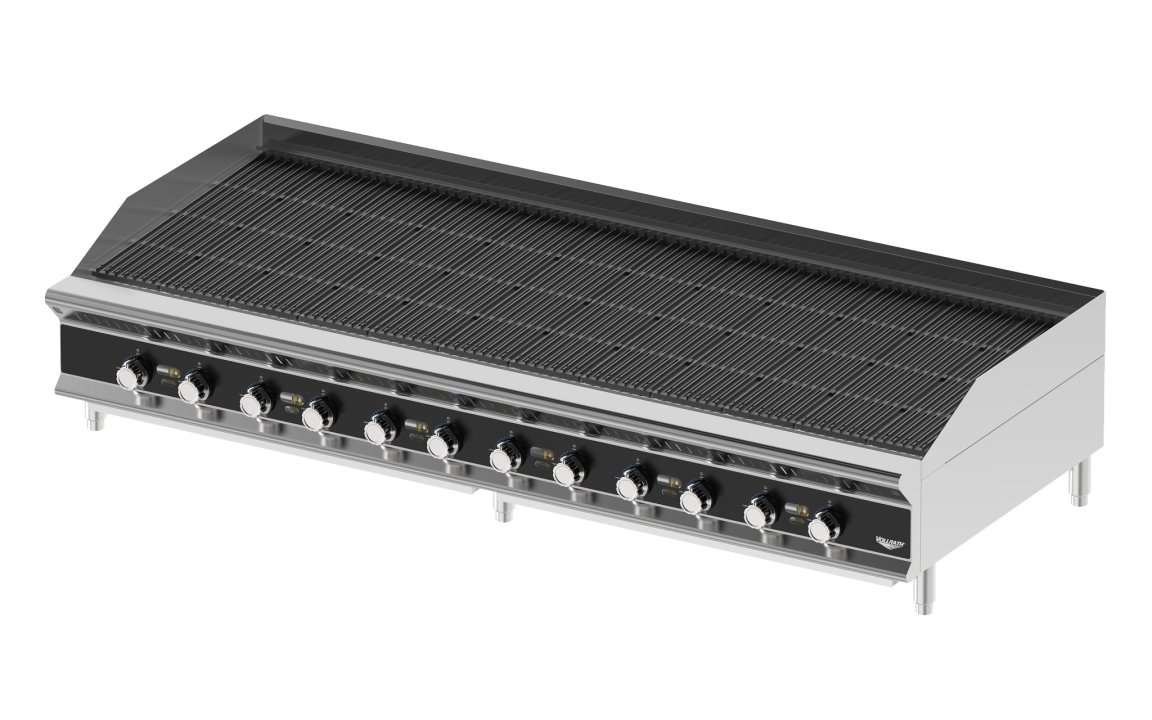

72-inch heavy duty gas radiant charbroiler

Conforms to NSF/ANSI STD 4
This symbol represents food service equipment that is certified to to use in the production of food intended for human consumption, or the equipment is certified for use in an environment where food intended for human consumption is produced.
Conforms to ANSI STD Z83.11-2016. Certified to CSA STD 1.8-2016
This symbol represents products that have met the minimum requirements of prescribed product safety standards. The symbol also indicates that the manufacturer’s production site conforms to a range of compliance measures and is subject to periodic follow up inspections to verify continued conformance.

$7416.00 MSRP

$12,360.00 List Price

Where to Buy

Our heavy-duty gas charbroiler performs like a powerhouse, thanks to high-output burners and a durable, welded stainless steel design. You’ll appreciate the versatility too, thanks to reversible grill plates — a narrow side with fat-draining channels, and a flat, wide surface for delicate items like fish. Angled adapter bars allow plate adjustment for slower cooking, fewer grease flare-ups, and food that’s grilled to perfection.

72-inch charbroiler’s 12 burners provide 240,000 BTUs
Heavy-duty cast-iron radiants heat quickly and evenly
Thick stainless steel splashes and grates are easy to clean
Valve-protecting metal knobs are guaranteed for life
Heavy-duty legs make leveling safe and simple
Ships natural-gas-ready; includes propane conversion kit
Radiant kit included; lava rock kit available separately
Heavy-duty 3mm thick back and side splashes contain splash and keep food on the unit
All metal knobs and knob guards protect gas valves from damage and won't break or crack and are guaranteed for life
3/4" NPT gas inlet

Product Specifications

Model Information

Name	Value
UPC	029419432585

Gas Specifications

Name	Value
Output (BTU)	240000
Number of Burners	12
Pilot Type	Standing

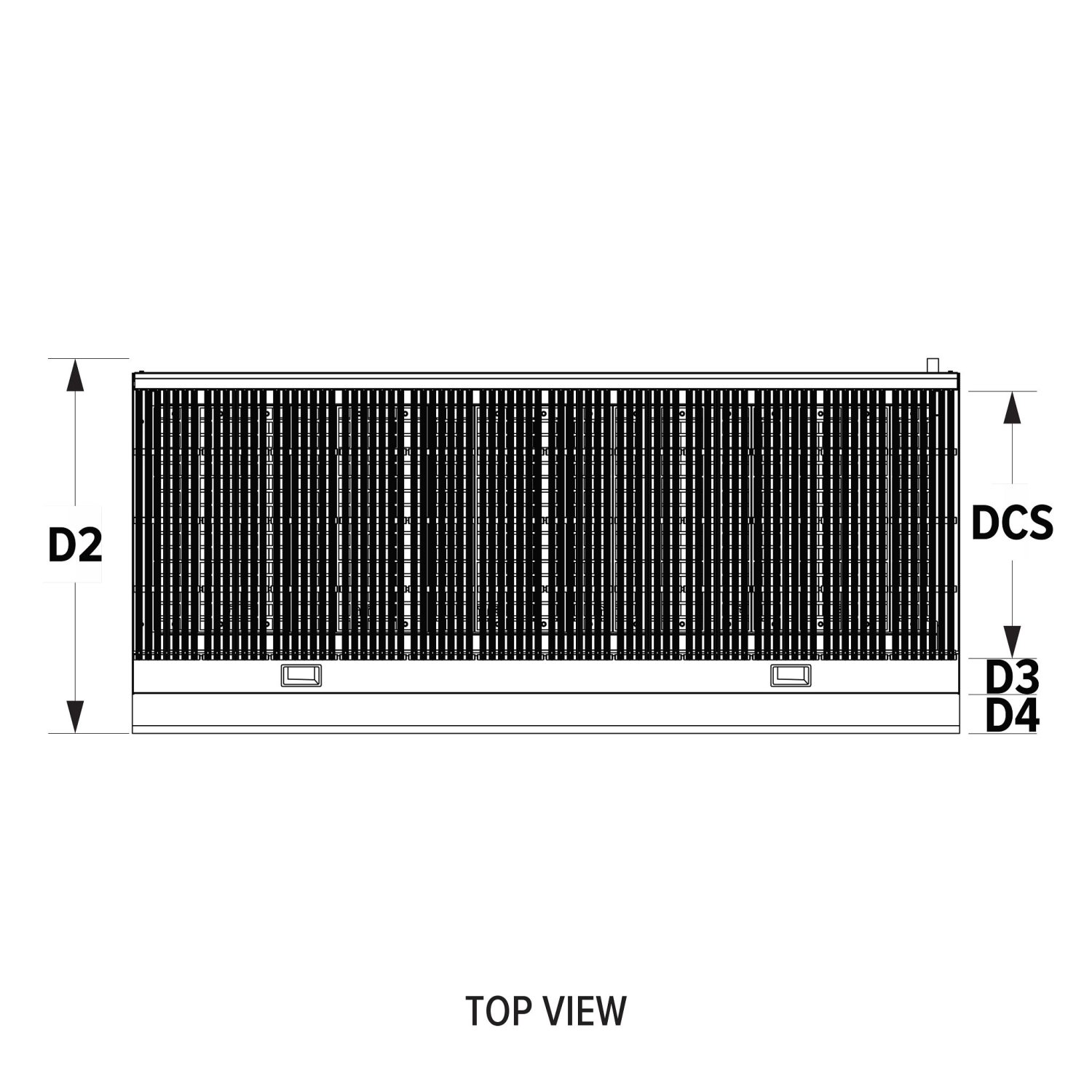

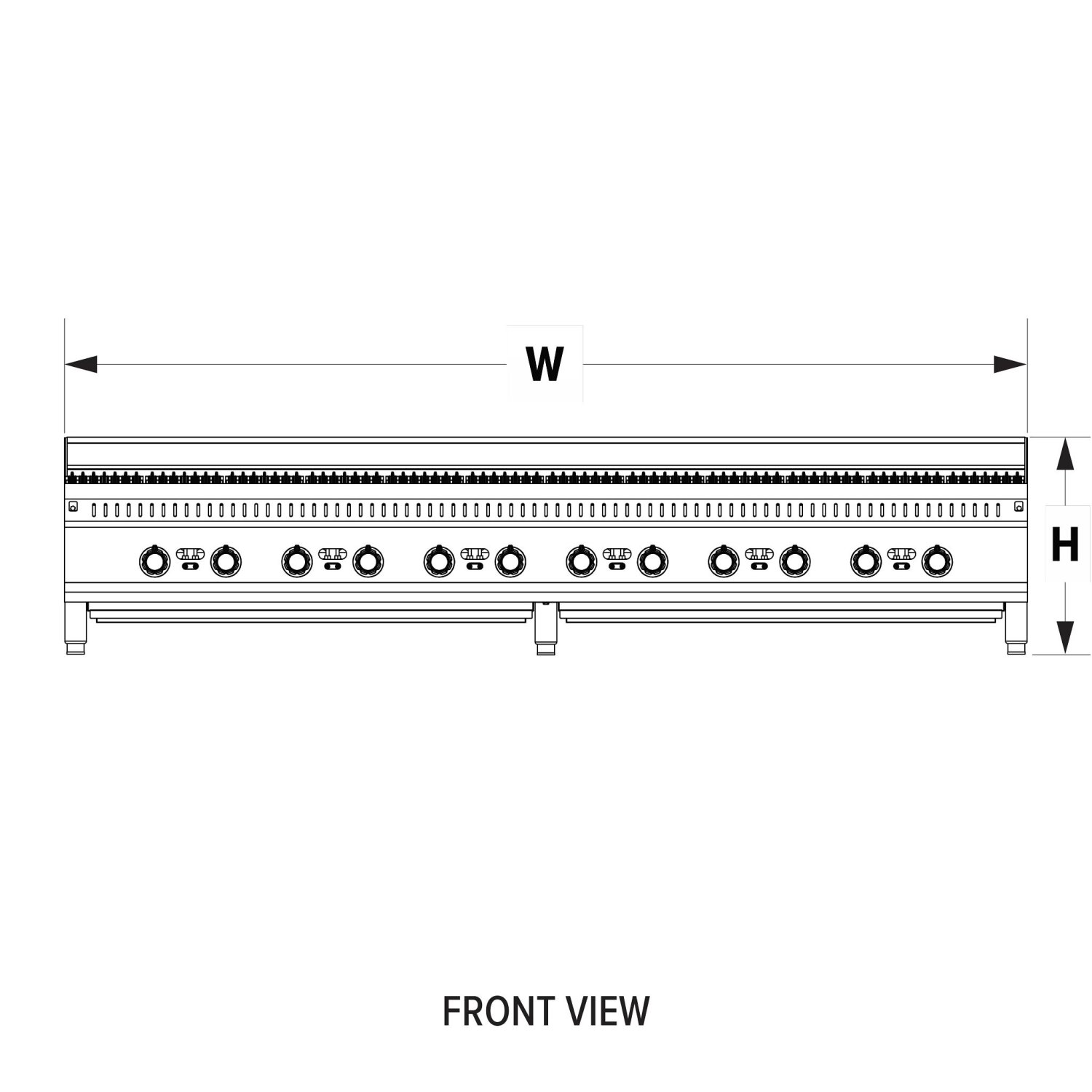

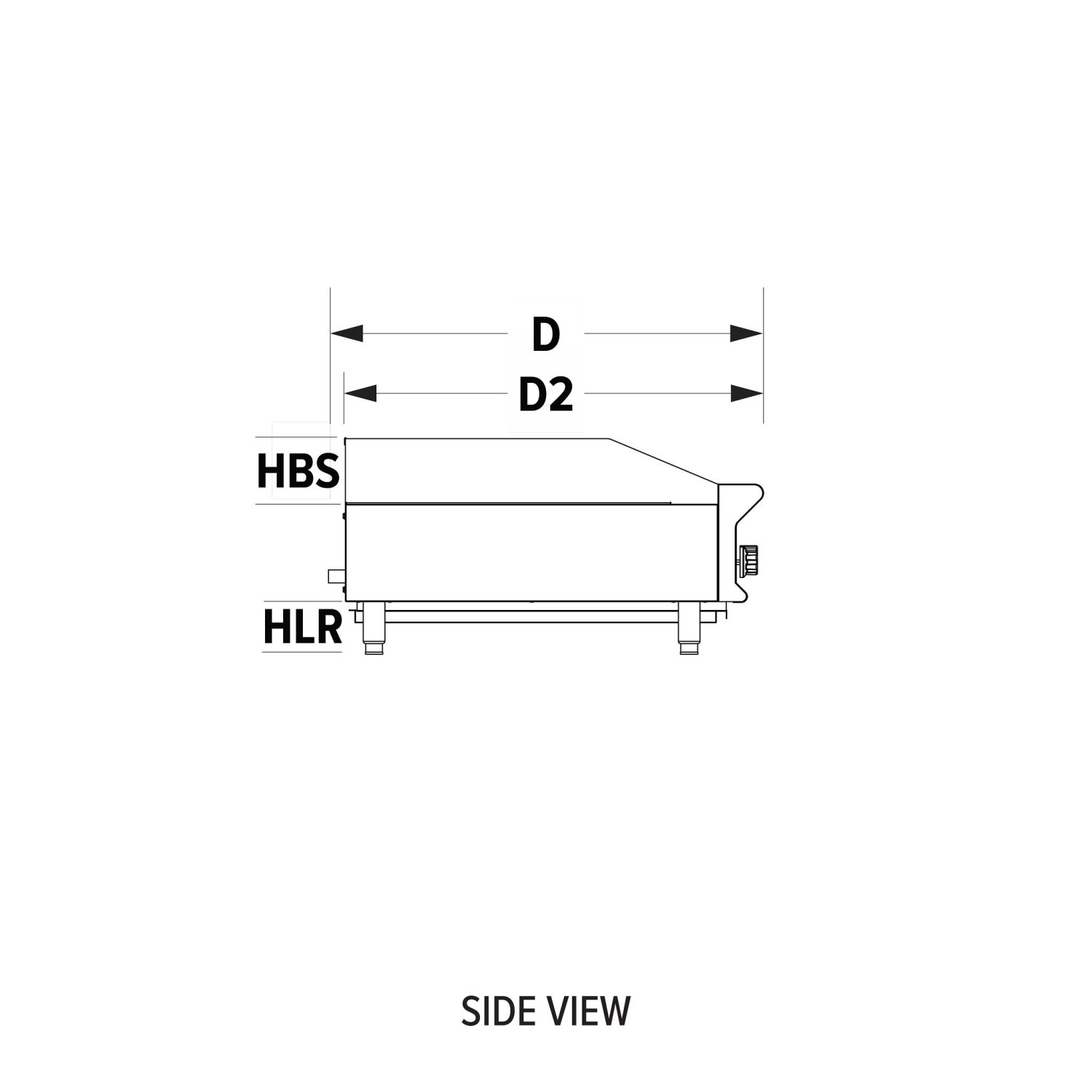

Unit Dimensions

Name	Value
(W) Width (IN)	72
(D) Depth (IN)	32.375
(D2) Secondary Depth (IN)	31.375
(D3) Additional Depth (IN)	3.25
(D4) Additional Depth (IN)	3.25
(H) Height (IN)	16.375
(HLR) Adjustable Legs (IN)	4 - 5.5
(WCS) Cooking Surface Width (IN)	71.687
(DCS) Cooking Surface Depth (IN)	24
(HBS) Backsplash Height (IN)	5
(HSS) Sidesplash Height (IN)	5
(DB) Depth of Body (IN)	24
(HB) Height of Body (IN)	7.375
(W) Width (CM)	182.9
(D) Depth (CM)	82.23
(D2) Secondary Depth (CM)	80
(D3) Additional Depth (CM)	8.3
(D4) Additional Depth (CM)	8.3
(H) Height (CM)	41.59
(HLR) Adjustable Legs (CM)	10.2 - 14
(WCS) Cooking Surface Width (CM)	182.08
(DCS) Cooking Surface Depth (CM)	61
(HBS) Backsplash Height (CM)	12.7
(HSS) Sidesplash Height (CM)	12.7
(DB) Depth of Body (CM)	61
(HB) Height of Body (CM)	18.7
Size	72

Construction

Name	Value
Number of Controls	12

Additional Specifications

Name	Value
Number of Drip Trays	2

Case Lot Measurement

Name	Value
Case Lot	1
Case Lot Weight (lbs.)	413.5872

Product Accessories

Name	Item #
Lava Rock Kit for the 72-inch heavy duty gas radiant charbroiler	352579-1

Product Parts

Name	Part #	Price
HDCB COOKING GRATE	353444-1	$185.40
DRIP TRAY SUPPORT, HDCB 48-72	353485-1	$61.80
1.85MM BRASS ORIFICE	352503-1	$5.15
BURNER/PILOT ASSY - HDCB	353439-1	$138.02
RIGHT BURNER/PILOT ASSY - HDCB	352519-1	$139.05
CONTROL KNOB LG INSERT	353373-1	$9.27
HDCB BURNER RADIANT	353445-1	$103.00
MANUAL CONTROL VALVE	353367-1	$61.80
REGULATOR 5IN WC	352509-1	$185.40
1.35MM BRASS ORIFICE	352504-1	$5.15
HDCB VALVE CONNECTION	352502-1	$24.72
LEG, GAS APPLIANCE	353376-1	$35.02
FASCIA - 72IN HD CHARBROIL	353458-1	$92.70
BURNER SUPPORT - 72IN HDCB	353459-1	$65.92
MANIFOLD - 72IN HDCB	353461-1	$566.50
DRIP TRAY - 72IN HDCB	352521-1	$360.50
GRATE SUPPORT - 72IN HDCB	353462-1	$309.00
