GGHDM-24

24-inch heavy-duty flat-top gas griddle with manual controls

Conforms to NSF/ANSI STD 4
This symbol represents food service equipment that is certified to to use in the production of food intended for human consumption, or the equipment is certified for use in an environment where food intended for human consumption is produced.
Conforms to ANSI STD Z83.11-2016. Certified to CSA STD 1.8-2016
This symbol represents products that have met the minimum requirements of prescribed product safety standards. The symbol also indicates that the manufacturer’s production site conforms to a range of compliance measures and is subject to periodic follow up inspections to verify continued conformance.

$3146.58 MSRP

$5,244.30 List Price

Where to Buy

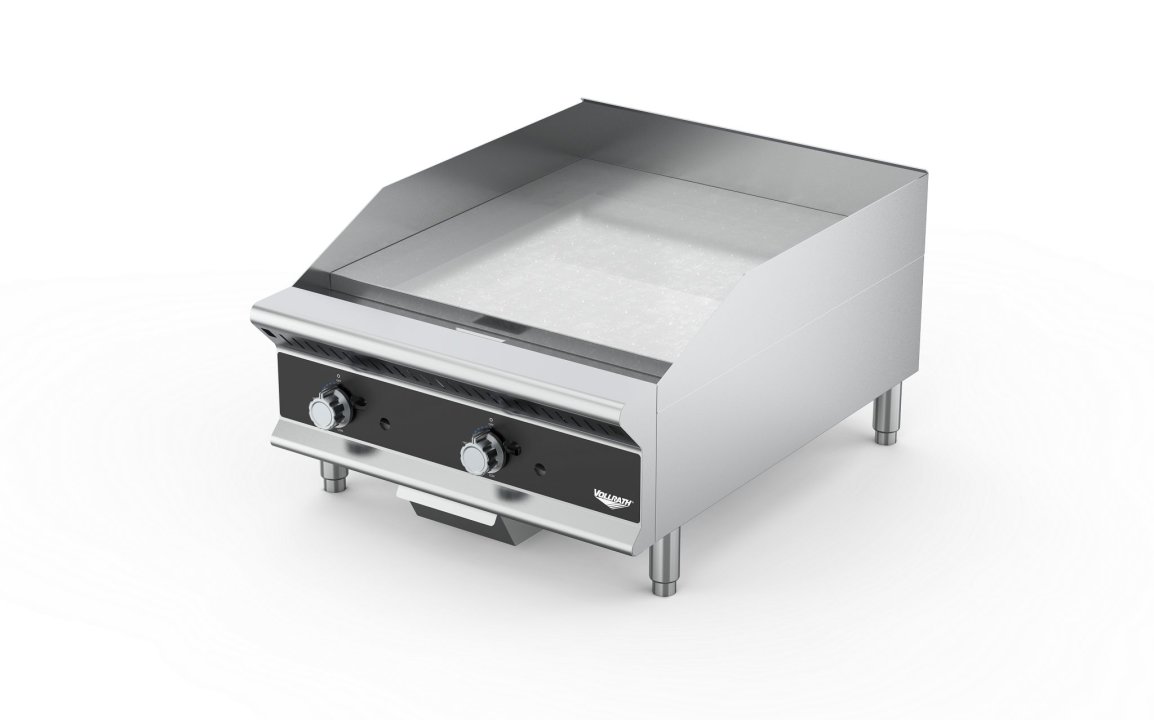

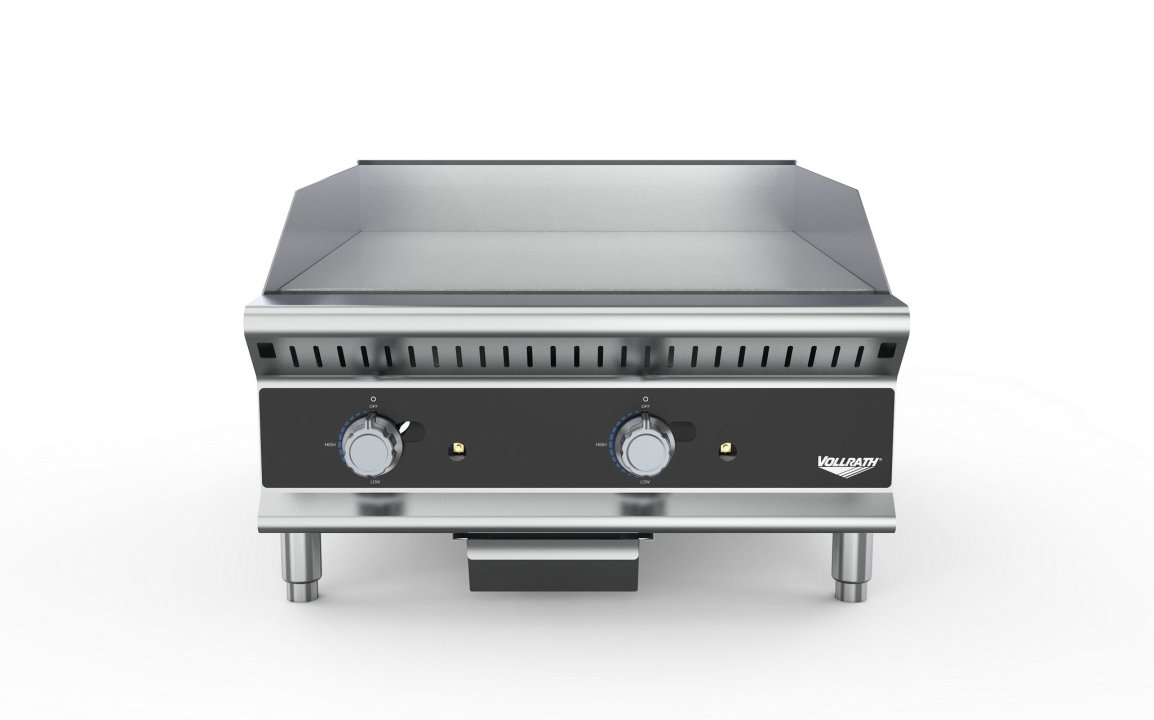

A safe and efficient way to streamline food prep, the new Vollrath® heavy-duty gas griddle elevates your kitchen’s capabilities with increased power and durability. Thicker 1-inch polished surface and U-shaped burners distribute 60,000 BTUs of heat evenly over the entire cooking surface. The manual control knob is easy to use and will never break or crack, and the thick back and sloped sides reduce mess. This heavy-duty griddle meets the demands of any kitchen.

24-inch griddle’s dual burners double the flexibility
Manual controls provide dynamic flexibility
Polished 1-inch thick steel griddle maintains even heat
Smooth, welded seams make cleaning easy
Valve-protecting metal knobs are guaranteed for life
Ships natural-gas-ready; includes propane conversion kit
Clearance and Positioning. This appliance must be installed with a minimum clearance of 6" (15.2 cm) between the left, right andback sides, and any combustible surface. The supplied 4" (10.2 cm) legs must be installed and the unit placed on a non-combustible surface.

Product Specifications

Model Information

Name	Value
Model	FTG2024
UPC	029419432646

Gas Specifications

Name	Value
Output (BTU)	60000
Number of Burners	2
Pilot Type	Standing

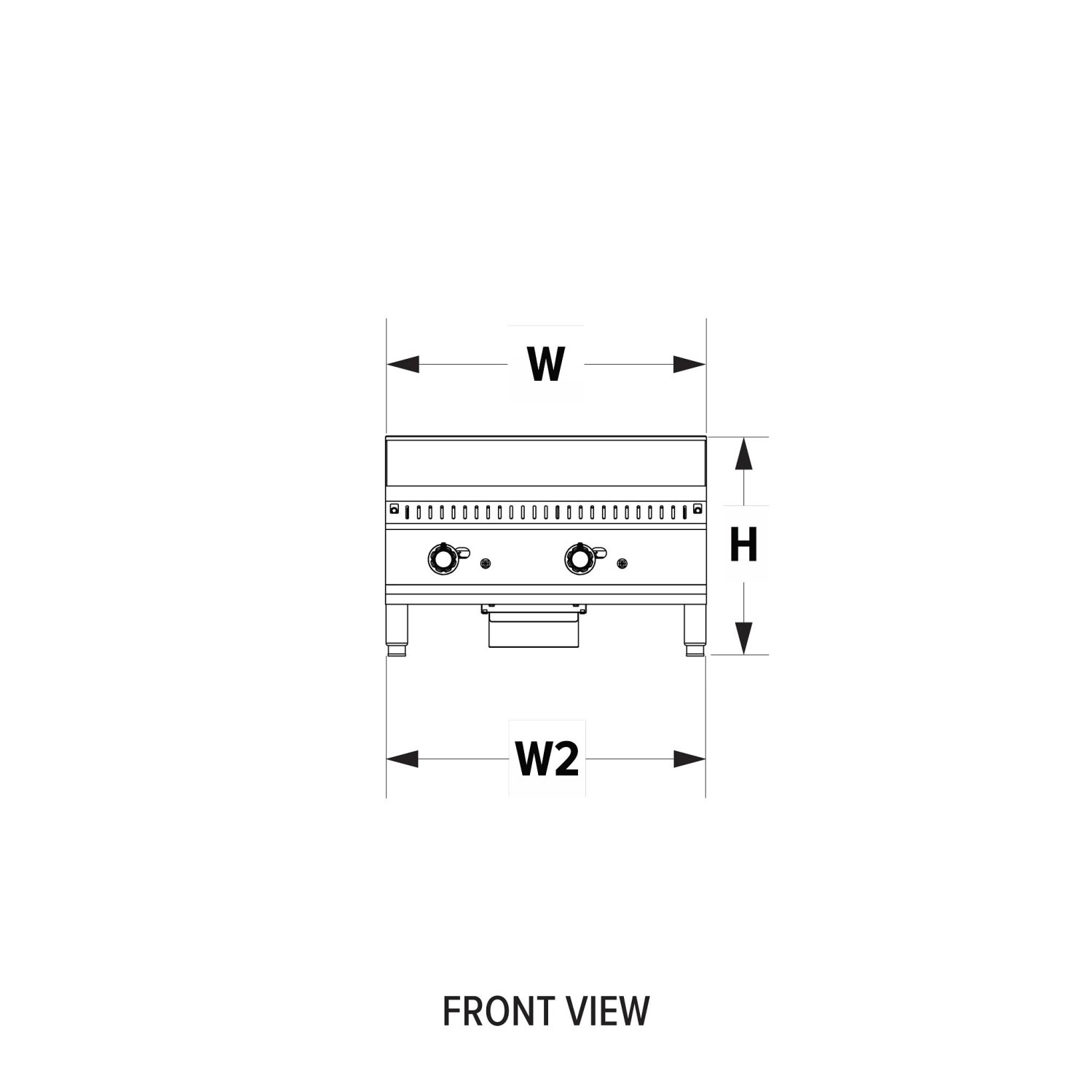

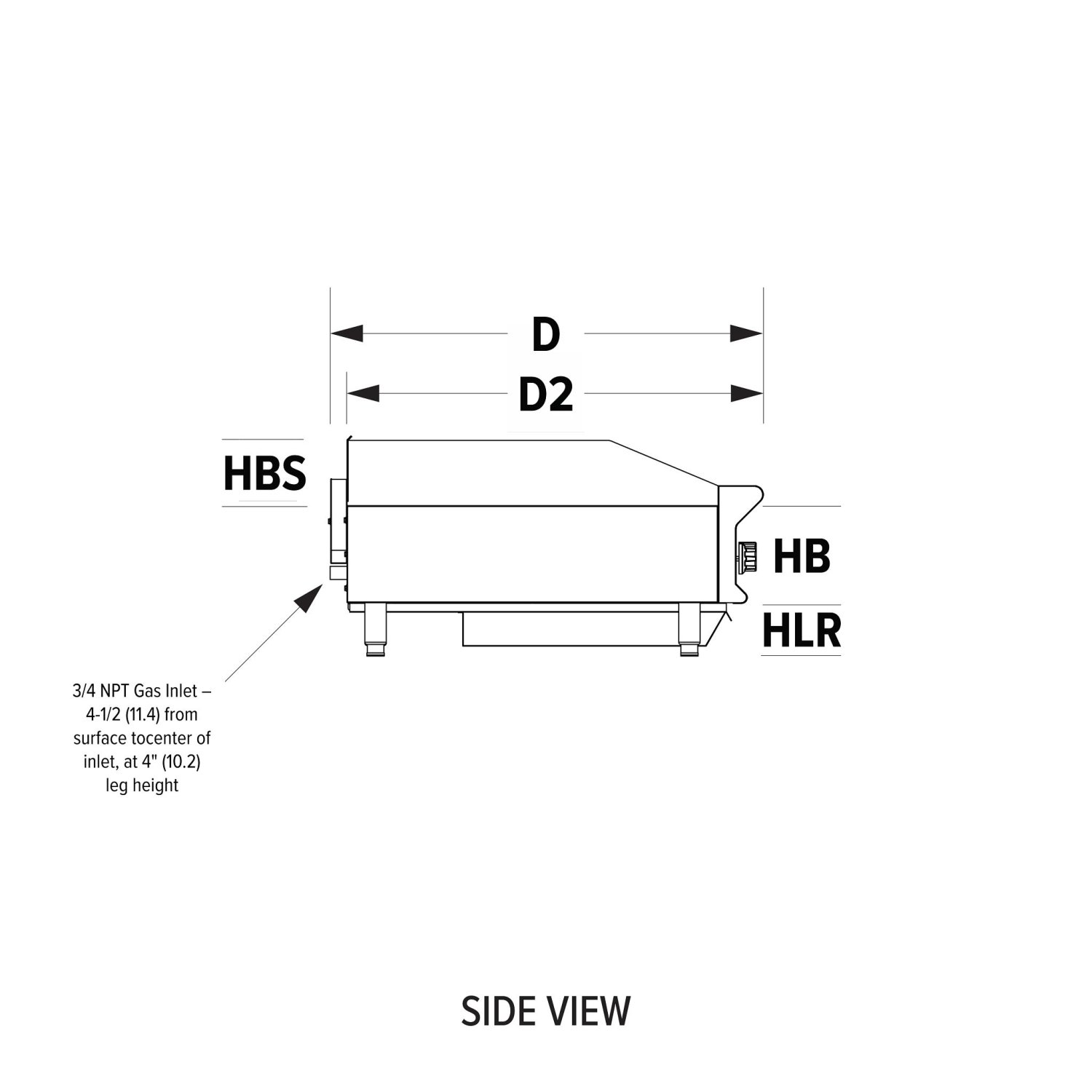

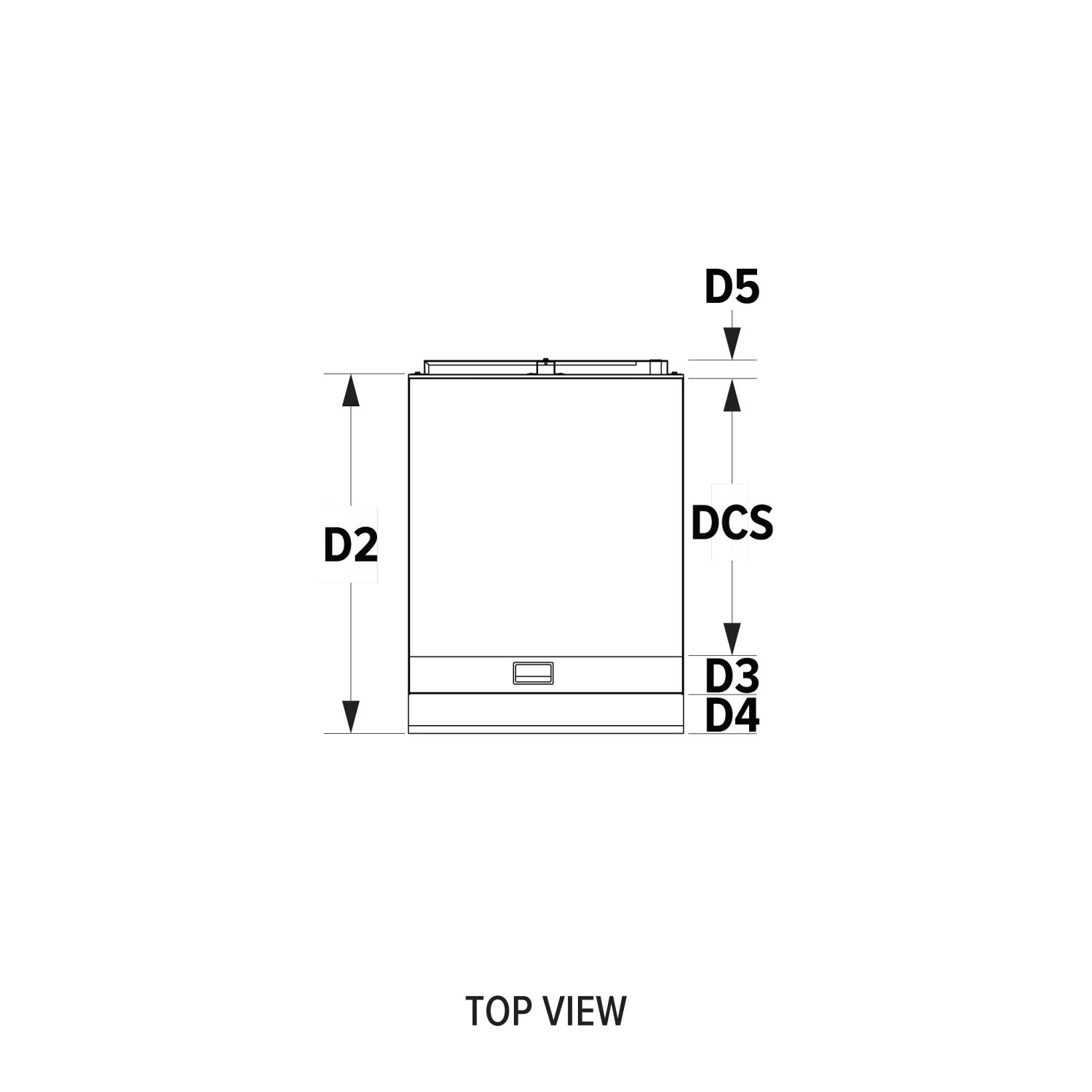

Unit Dimensions

Name	Value
(W) Width (IN)	24.1
(D) Depth (IN)	32.375
(D3) Additional Depth (IN)	3.25
(D4) Additional Depth (IN)	3.375
(H) Height (IN)	16.625
(H2) Secondary Height (IN)	6.375
(HLR) Adjustable Legs (IN)	4 - 5.5
(WCS) Cooking Surface Width (IN)	23.9
(DCS) Cooking Surface Depth (IN)	24.5
(HBS) Backsplash Height (IN)	5.375
(HSS) Sidesplash Height (IN)	5.375
(WB) Width of Body (IN)	23.9
(DB) Depth of Body (IN)	24.5
(HB) Height of Body (IN)	7.25
(W) Width (CM)	61.2
(D) Depth (CM)	82.23
(D3) Additional Depth (CM)	8.3
(D4) Additional Depth (CM)	8.6
(H) Height (CM)	42.22
(H2) Secondary Height (CM)	16.2
(HLR) Adjustable Legs (CM)	10.2 - 14
(WCS) Cooking Surface Width (CM)	60.7
(DCS) Cooking Surface Depth (CM)	62.2
(HBS) Backsplash Height (CM)	13.7
(HSS) Sidesplash Height (CM)	13.7
(WB) Width of Body (CM)	60.7
(DB) Depth of Body (CM)	62.2
(HB) Height of Body (CM)	18.42
Size	24

Construction

Name	Value
Countertop or Drop-In	Countertop
Control Type	Manual
Number of Controls	2

Additional Specifications

Name	Value
Number of Drip Trays	1

Case Lot Measurement

Name	Value
Case Lot	1
Case Lot Weight (lbs.)	224.8715

Product Accessories

Name	Item #
Griddle stone	47710
7.75- x 3.5-inch aluminum handle for griddle stone	47711
24-inch heavy-duty mobile equipment stand	4087924

Product Parts

Name	Part #	Price
HD CB ORIFICE - LP	353441-1	$6.00
BURNER SUPPORT - 24IN GRIDDLE	353394-1	$36.20
FASCIA - 24IN HDM GRIDDLE	353486-1	$48.20
DRIP TRAY SUPPORTS - HD GD	352506-1	$43.40
BURNER/PILOT ASSY - HDM GAS GR	353463-1	$159.10
MD GRIDDLE ORIFICE - NAT GAS	353387-1	$6.00
1.2MM MANUAL CONTROL VALVE	354211-1	$72.30
MANIFOLD - 24IN HDM GRIDDLE	353466-1	$337.40
CONTROL KNOB LG INSERT	353373-1	$10.80
REGULATOR 5IN WC	352509-1	$216.90
LEG, GAS APPLIANCE	353376-1	$41.00
DRIP TRAY - GRIDDLE	353386-1	$90.40
GGHDM-24 FRONT PANEL ASSY	354231-1	$263.90
