GGHDM-48

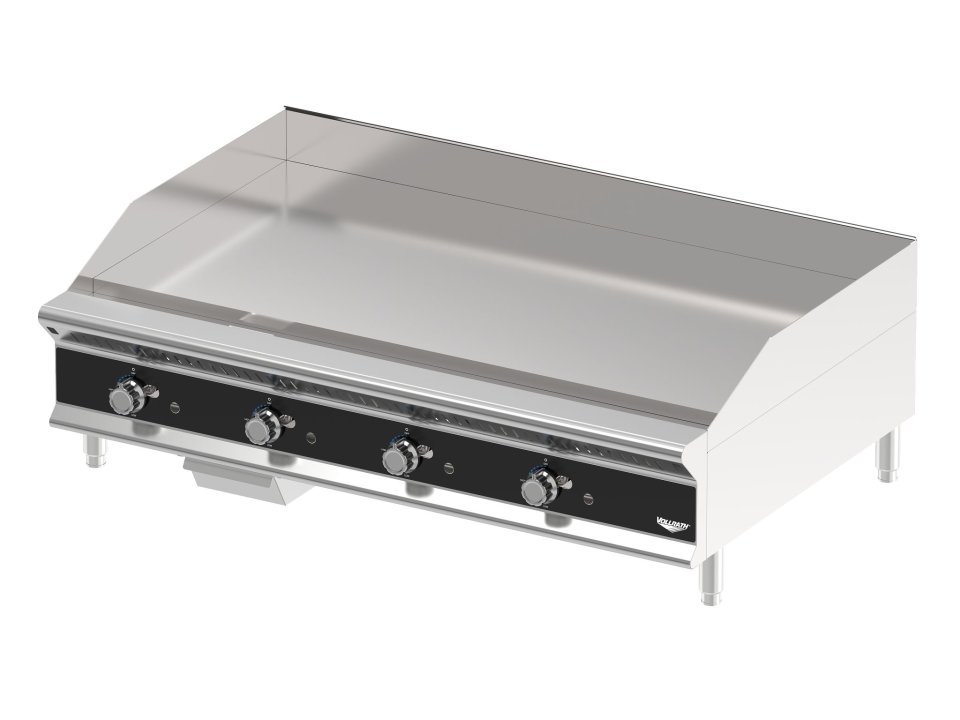

48-inch heavy-duty flat-top gas griddle with manual controls
Conforms to NSF/ANSI STD 4
This symbol represents food service equipment that is certified to to use in the production of food intended for human consumption, or the equipment is certified for use in an environment where food intended for human consumption is produced.
Conforms to ANSI STD Z83.11-2016. Certified to CSA STD 1.8-2016
This symbol represents products that have met the minimum requirements of prescribed product safety standards. The symbol also indicates that the manufacturer’s production site conforms to a range of compliance measures and is subject to periodic follow up inspections to verify continued conformance.
A safe and efficient way to streamline food prep, the new Vollrath® heavy-duty gas griddle elevates your kitchen’s capabilities with increased power and durability. Thicker 1-inch polished surface and U-shaped burners distribute 120,000 BTUs of heat evenly over the entire cooking surface. The manual control knob is easy to use and will never break or crack, and the thick back and sloped sides reduce mess. This heavy-duty griddle meets the demands of any kitchen.
- 48-inch griddle is perfect for pleasing crowds
- Manual controls provide dynamic flexibility
- Polished 1-inch thick steel griddle maintains even heat
- Smooth, welded seams make cleaning easy
- Valve-protecting metal knobs are guaranteed for life
- Ships natural-gas-ready; includes propane conversion kit
Product Specifications
Model Information
| Name | Value |
|---|---|
| Model | FTG2048 |
| UPC | 029419432660 |
Gas Specifications
| Name | Value |
|---|---|
| Output (BTU) | 120000 |
| Number of Burners | 4 |
| Pilot Type | Standing |

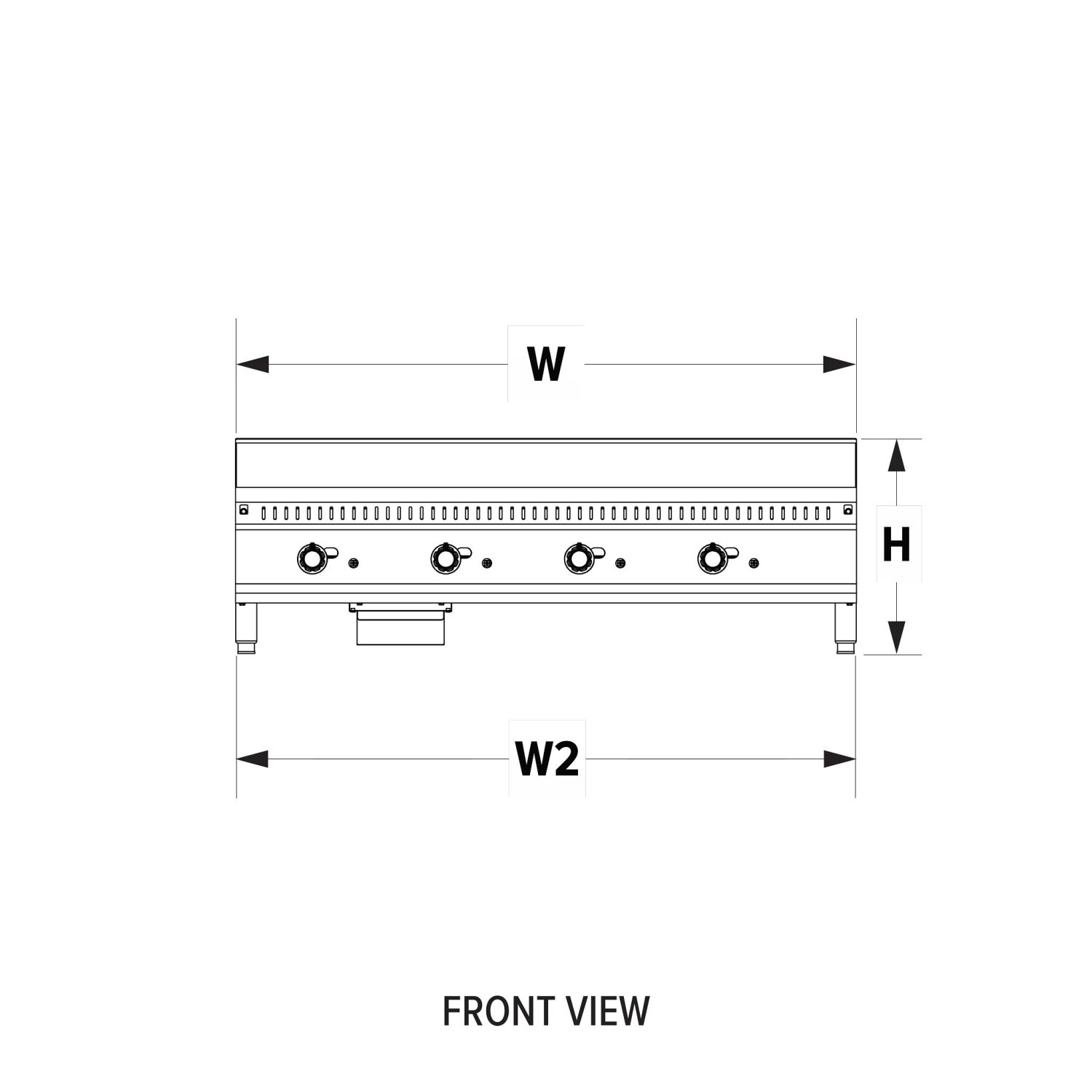

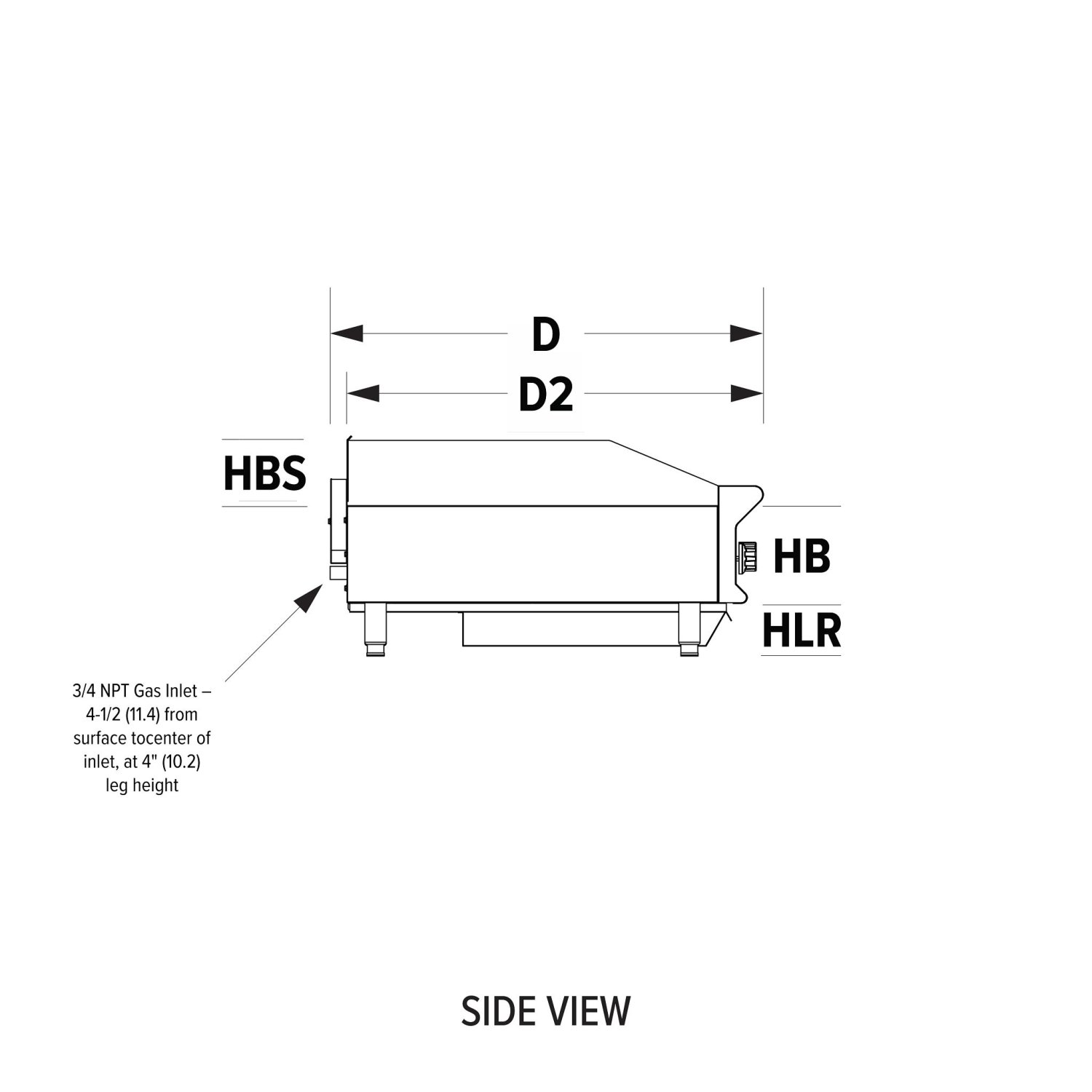

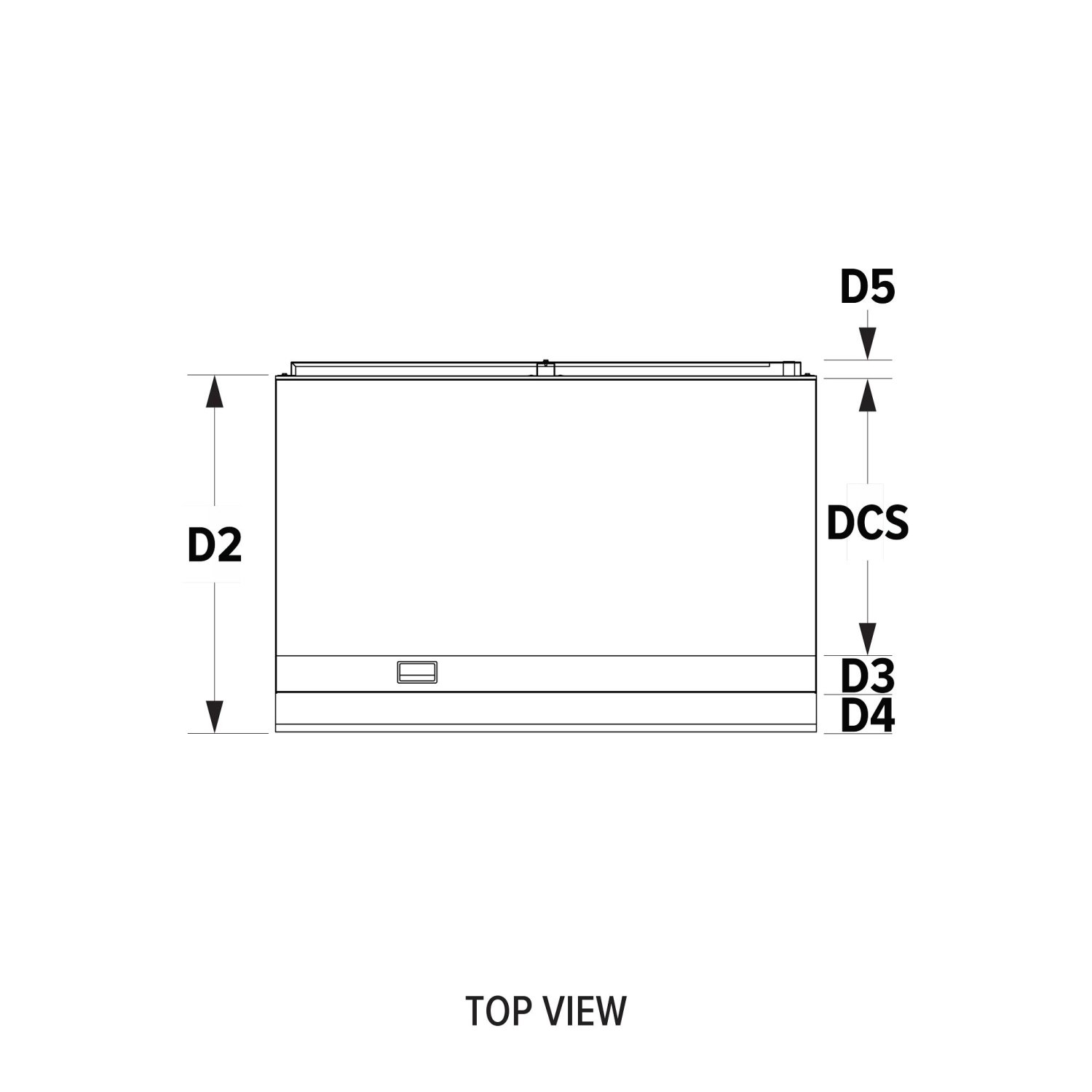

Unit Dimensions
| Name | Value |
|---|---|
| (W) Width (IN) | 47.7 |
| (D) Depth (IN) | 32.375 |
| (D3) Additional Depth (IN) | 3.25 |
| (D4) Additional Depth (IN) | 3.375 |
| (H) Height (IN) | 16.625 |
| (H2) Secondary Height (IN) | 6.375 |
| (HLR) Adjustable Legs (IN) | 4 - 5.5 |
| (WCS) Cooking Surface Width (IN) | 47.6 |
| (DCS) Cooking Surface Depth (IN) | 24.5 |
| (HBS) Backsplash Height (IN) | 5.375 |
| (HSS) Sidesplash Height (IN) | 5.375 |
| (WB) Width of Body (IN) | 47.6 |
| (DB) Depth of Body (IN) | 24.5 |
| (HB) Height of Body (IN) | 7.25 |
| (W) Width (CM) | 121.1 |
| (D) Depth (CM) | 82.23 |
| (D3) Additional Depth (CM) | 8.3 |
| (D4) Additional Depth (CM) | 8.6 |
| (H) Height (CM) | 42.22 |
| (H2) Secondary Height (CM) | 16.2 |
| (HLR) Adjustable Legs (CM) | 10.2 - 14 |
| (WCS) Cooking Surface Width (CM) | 120.9 |
| (DCS) Cooking Surface Depth (CM) | 62.2 |
| (HBS) Backsplash Height (CM) | 13.7 |
| (HSS) Sidesplash Height (CM) | 13.7 |
| (WB) Width of Body (CM) | 120.9 |
| (DB) Depth of Body (CM) | 62.2 |
| (HB) Height of Body (CM) | 18.42 |
| Size | 48 |
Construction
| Name | Value |
|---|---|
| Countertop or Drop-In | Countertop |
| Control Type | Manual |
| Number of Controls | 4 |
Additional Specifications
| Name | Value |
|---|---|
| Number of Drip Trays | 1 |
Case Lot Measurement
| Name | Value |
|---|---|
| Case Lot | 1 |
| Case Lot Weight (lbs.) | 394.6274 |
Product Accessories
Product Parts
| Name | Part # | Price |
|---|---|---|
| BURNER SUPPORT - 48IN GRIDDLE | 353400-1 | $46.35 |
| BURNER/PILOT ASSY - HDM GAS GR | 353463-1 | $135.96 |
| MD GRIDDLE ORIFICE - NAT GAS | 353387-1 | $5.15 |
| MANIFOLD - 48IN HDM GRIDDLE | 353468-1 | $350.20 |
| HD CB ORIFICE - LP | 353441-1 | $5.15 |
| DRIP TRAY SUPPORTS - HD GD | 352506-1 | $37.08 |
| DRIP TRAY - GRIDDLE | 353386-1 | $77.25 |
| FASCIA - 48IN HDM GRIDDLE | 353488-1 | $72.10 |
| 1.2MM MANUAL CONTROL VALVE | 354211-1 | $61.80 |
| CONTROL KNOB LG INSERT | 353373-1 | $9.27 |
| REGULATOR 5IN WC | 352509-1 | $185.40 |
| LEG, GAS APPLIANCE | 353376-1 | $35.02 |
