12-inch Cayenne® medium-duty radiant / lava rock charbroiler

This symbol represents products that are certified to safely perform its job as intended. This product has earned this certification by undergoing rigorous testing against standards developed by UL.

$1133.58 MSRP

$1,889.30 List Price

View New Replacement Product

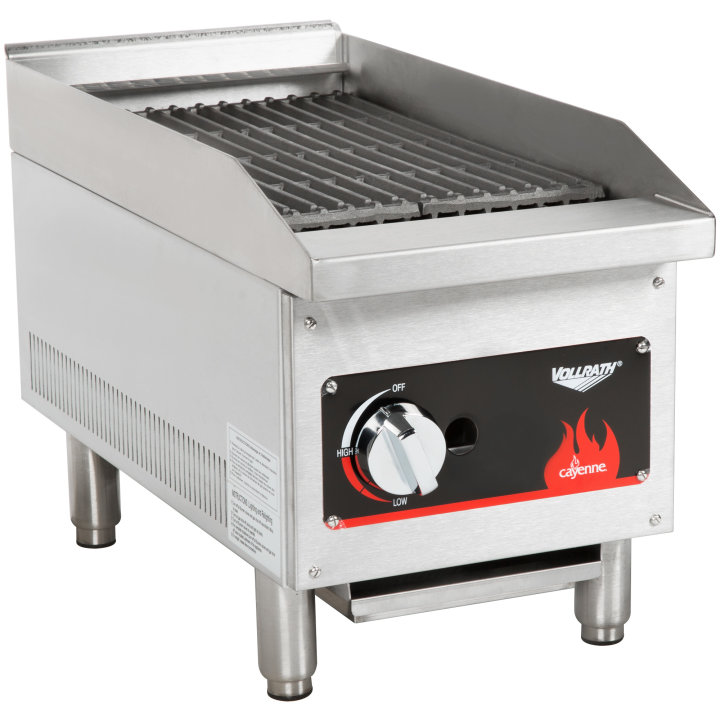

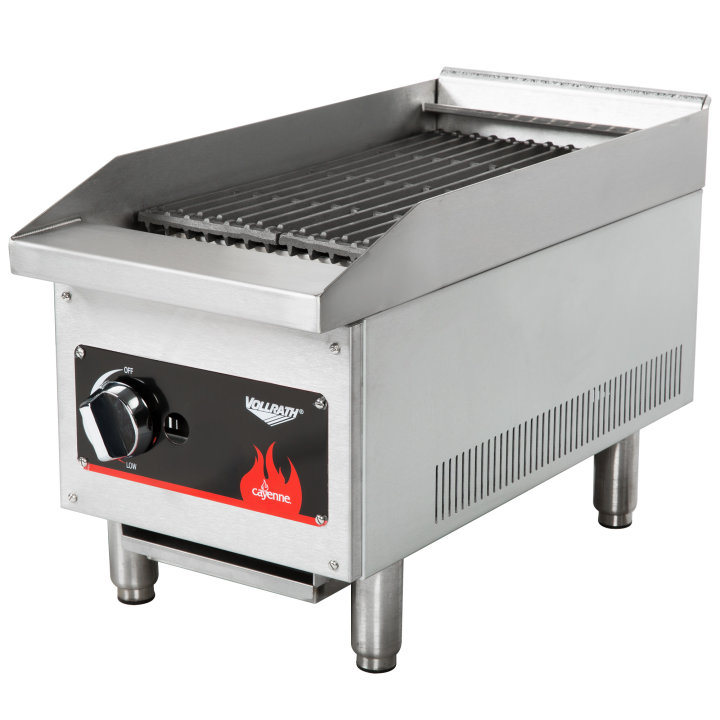

The Vollrath® Cayenne medium-duty charbroiler is built to last. One side of the versatile grill plate features narrow surfaces with integral channels designed to dispense excess fat, while the other side has flatter and wider grill surfaces for more delicate items like fish. Angled adapter bars enable the grill plates to be angled away from heat sources for slower cooking, directing grease away and minimizing flare-ups. The strong metal knobs won’t break or crack, protecting the interior gas valves. Fullywelded stainless and aluminized steel construction prevents grease and dirt buildup, while back and side splashes minimize messes. A full-width stainless steel drip pan keeps cleaning simple, and heavy-duty legs allow leveling adjustments to provide maximum stability. Now with even more BTUs, this compact charbroiler is sure to impress.

Versatile two-sided grill plate is ideal for a variety of meats as well as delicate items like fish
Bullnose design prevents burns
Strong metal knobs and knob guards won’t break or crack and are guaranteed for life
Includes kit for both radiant and lava rock setup
Shipped setup for natural gas — includes kit with regulator for field conversion to propane
19-inch cooking surface depth
2¾-inch backsplash and 2¼-inch side splashes prevent messes
28,000 BTU output

Product Specifications

Model Information

Name	Value
Model	CBL90122
UPC	029419719235

Gas Specifications

Name	Value
Output (BTU)	28000
Number of Burners	1

Unit Dimensions

Name	Value
Overall Dimensions (IN)	12 x 27 x 16
(W) Width (IN)	12
(D) Depth (IN)	27
(H) Height (IN)	16
(HLR) Adjustable Legs (IN)	4 - 5.5
(DCS) Cooking Surface Depth (IN)	19
(HBS) Backsplash Height (IN)	2.75
(HSS) Sidesplash Height (IN)	2.25
Overall Dimensions (CM)	30.5 x 68.6 x 40.6
(W) Width (CM)	30.5
(D) Depth (CM)	68.6
(H) Height (CM)	40.6
(HLR) Adjustable Legs (CM)	10.2 - 14
(DCS) Cooking Surface Depth (CM)	48.2
(HBS) Backsplash Height (CM)	7
(HSS) Sidesplash Height (CM)	5.7
Size	12

Construction

Name	Value
Construction Material	Stainless Steel
Construction Material 2	Aluminized Steel
Countertop or Drop-In	Countertop

Additional Specifications

Name	Value
Number of Drip Trays	1

Case Lot Measurement

Name	Value
Case Lot	1
Case Width	13.25
Case Height	19
Case Length	28.5
Case Lot Cube (ft.)	4.15
Case Lot Weight (lbs.)	95.0

Product Parts

Name	Part #	Price
BURNER COVER RADIANT END GAS	XCBR9003	$17.10
LEG GAS APPLIANCE	XFTG9012	$115.10
WAFFLE GRATE BOTTOM / LARGE	XCBL9003	$84.50
CONTROL SAFETY VALVE FTG/CBL/	XFTG9002	$70.00
TOP GRATE CBL/CBR GAS NEW TYPE	XCBR9001	$186.70
PILOT VALVE FTG/CBL/CBR (#22)	XFTG9003	$45.10
DRIP TRAY CBL9012/CBR9012	XCBR9012	$107.30
LAVA ROCK 5LB	XCBL0005	$29.60
BURNER COVER RADIANT GAS NEW T	XCBR9002	$107.00
GAS MANIFOLD FTG9012 (#23) CBL	XFTG1201	$45.20
BURNER COVER LAVA ROCK END CB	XCBL9002	$19.80
GRATE ADJUSTMENT SUPPORT	XCBL9012	$100.63
3/4" NPT MANUAL BALL VALVE	XCGC0018	$53.35
CONTROL KNOB - GAS FTG/CB	XFTG9010	$28.90
REGULATOR 4IN WC	353374-1	$216.90
JET NAT 2.40 #40	XFTG9007	$18.70
BURNER FTG (#27) CBL/CBR (#31)	XFTG9005	$175.30
