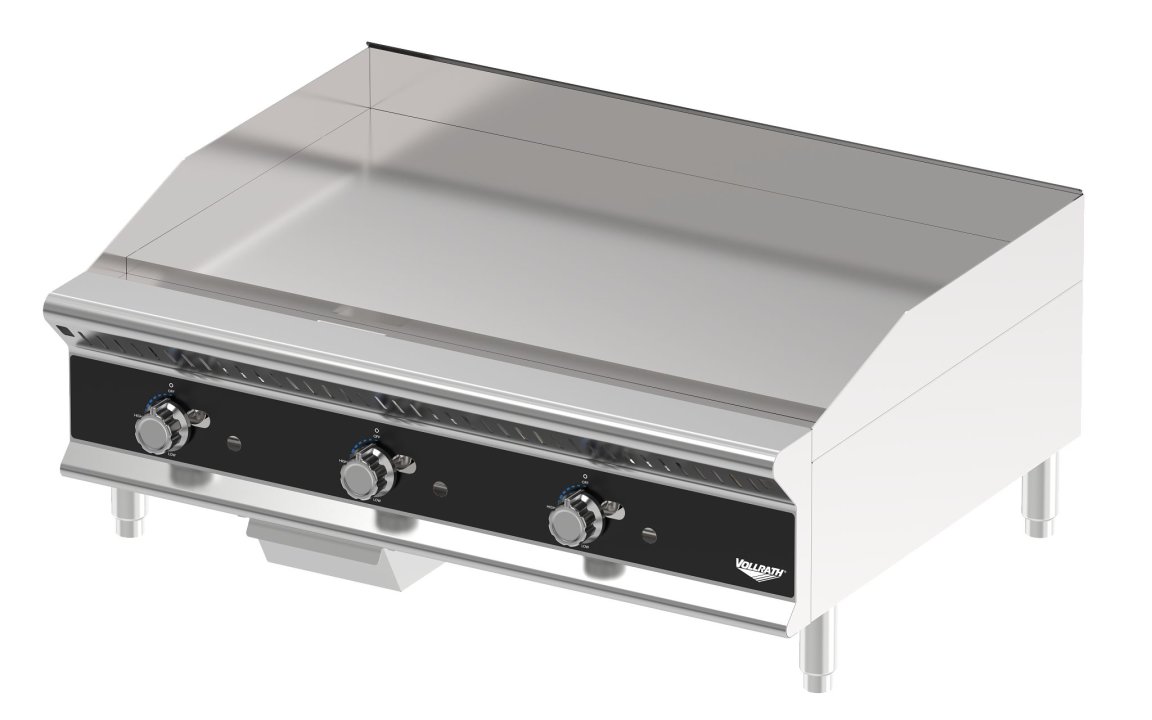

GGMDM-36
36-inch medium-duty flat-top gas griddle with manual controls
Conforms to NSF/ANSI STD 4
This symbol represents food service equipment that is certified to to use in the production of food intended for human consumption, or the equipment is certified for use in an environment where food intended for human consumption is produced.
Conforms to ANSI STD Z83.11-2016. Certified to CSA STD 1.8-2016
This symbol represents products that have met the minimum requirements of prescribed product safety standards. The symbol also indicates that the manufacturer’s production site conforms to a range of compliance measures and is subject to periodic follow up inspections to verify continued conformance.
The Vollrath® gas griddle adds powerful versatility to your kitchen. A simple, safe and economical way to streamline food prep, the thick, polished surface and U-shaped burners distribute heat evenly over the entire cooking surface. The manual control knob is easy to use and will never break or crack, and the back and sloped sides reduce mess. With 84,000 BTUs of heating power, this impressive griddle is a great choice for any kitchen.
- 36-inch griddle’s triple burners increase efficiency
- Manual controls provide dynamic flexibility
- Polished ¾-inch thick steel griddle maintains even heat
- Smooth, welded seams make cleaning easy
- Valve-protecting metal knobs are guaranteed for life
- Ships natural-gas-ready; includes propane conversion kit
Product Specifications
Model Information
| Name | Value |
|---|---|
| Model | FTG9036 |
| UPC | 029419432837 |
Gas Specifications
| Name | Value |
|---|---|
| Output (BTU) | 84000 |
| Number of Burners | 3 |
| Pilot Type | Standing |

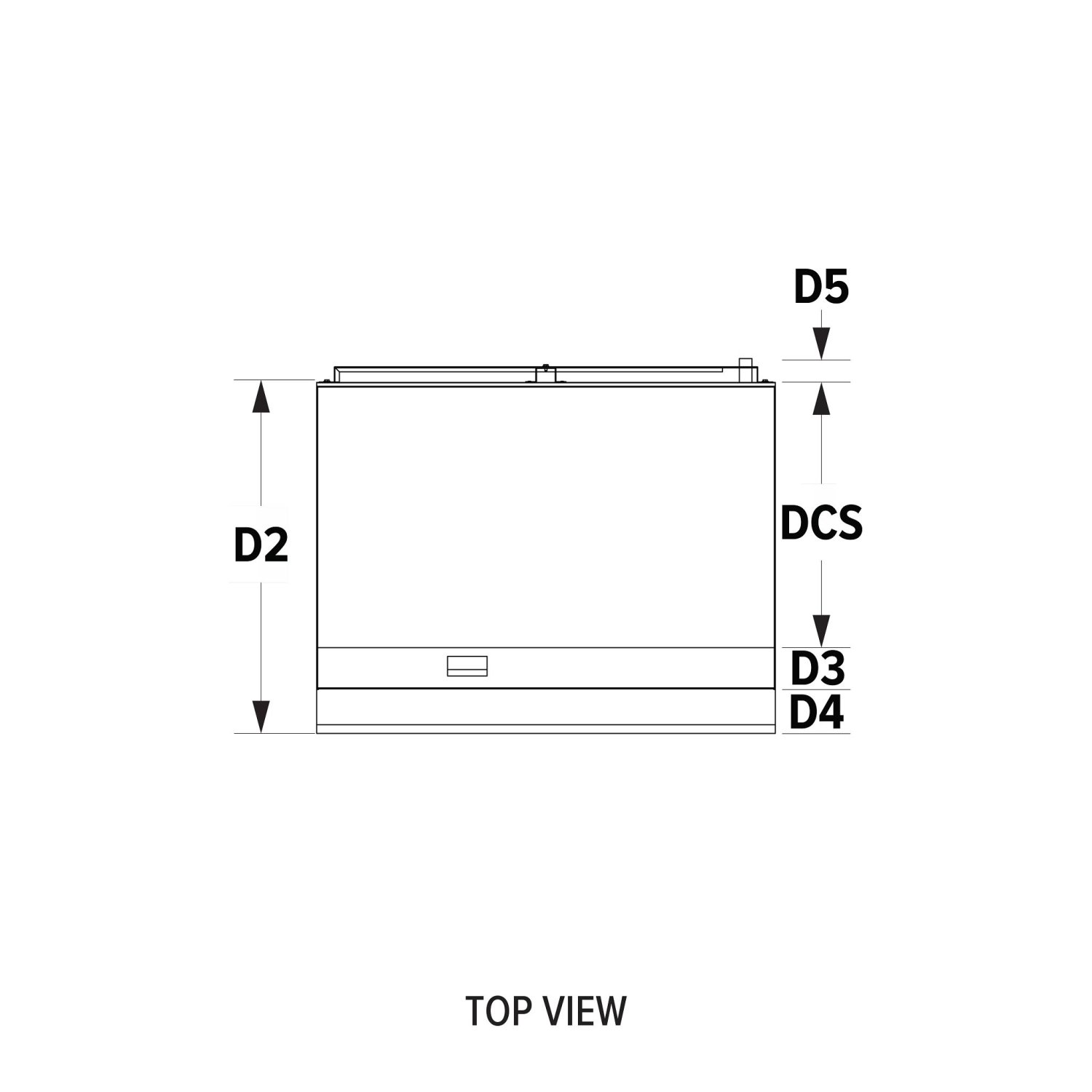

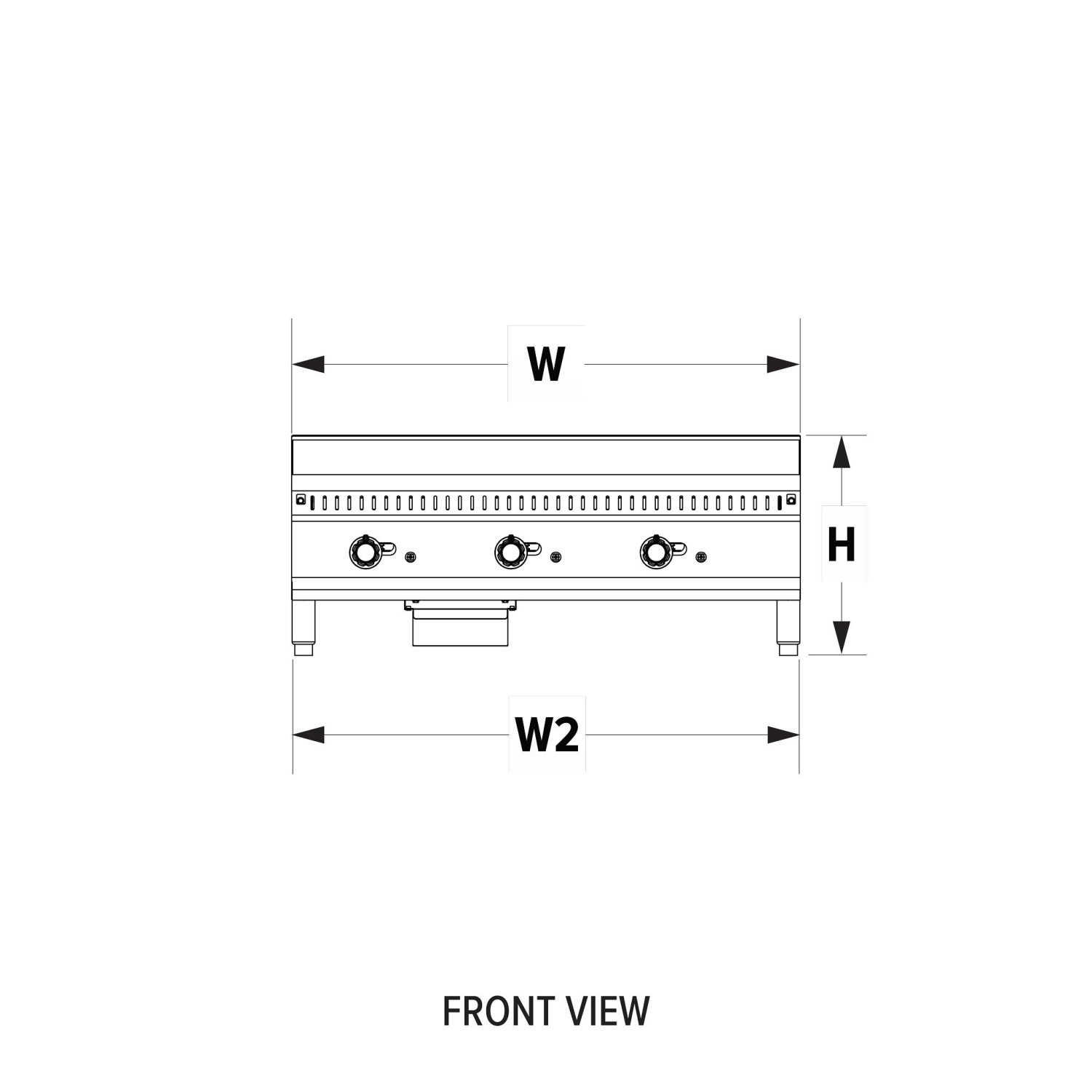

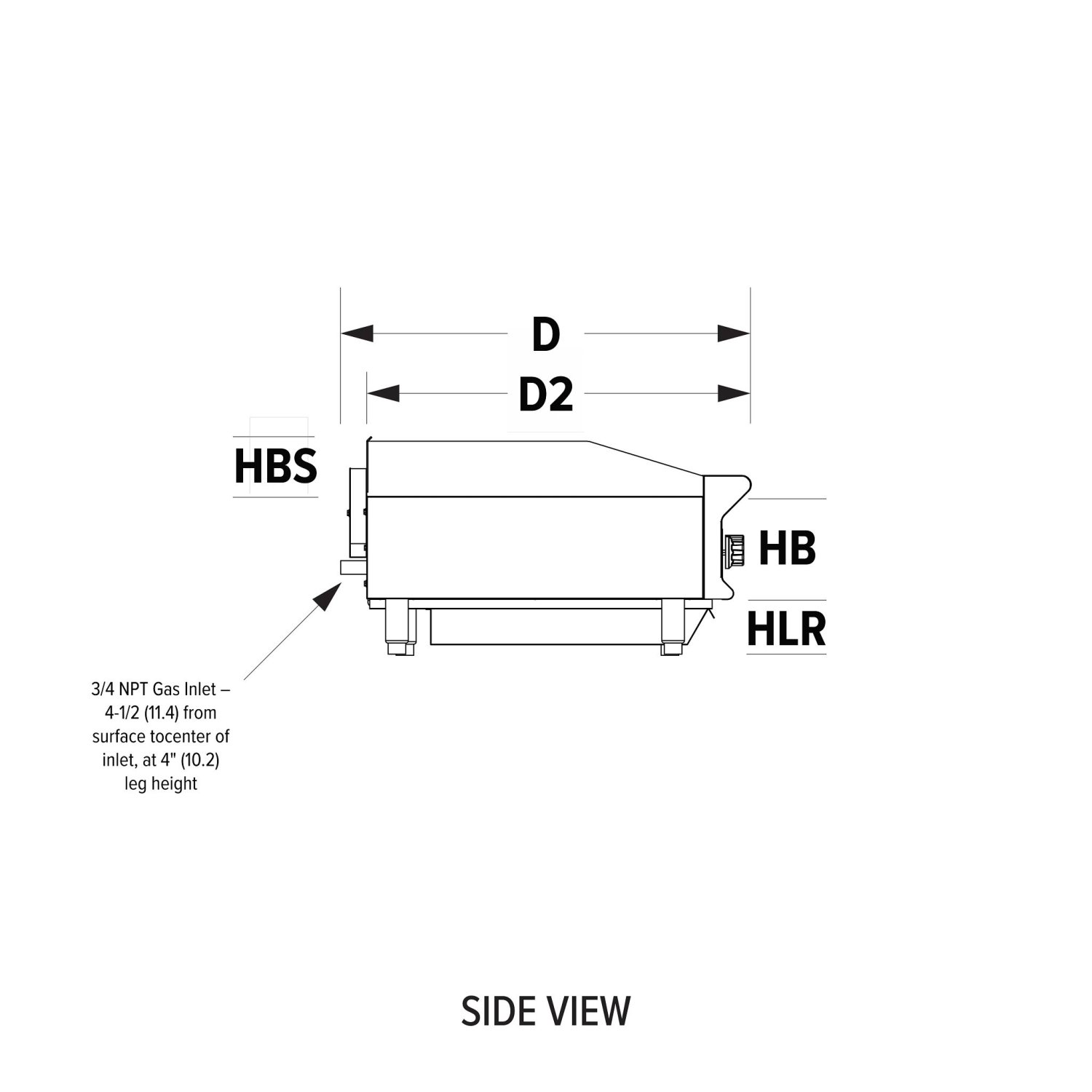

Unit Dimensions
| Name | Value |
|---|---|
| (W) Width (IN) | 36 |
| (D) Depth (IN) | 29.375 |
| (H) Height (IN) | 16 |
| (HLR) Adjustable Legs (IN) | 4 - 5.5 |
| (WCS) Cooking Surface Width (IN) | 35.687 |
| (DCS) Cooking Surface Depth (IN) | 20.5 |
| (HBS) Backsplash Height (IN) | 2.75 |
| (HSS) Sidesplash Height (IN) | 2.75 |
| (HB) Height of Body (IN) | 9.25 |
| (W) Width (CM) | 91.4 |
| (D) Depth (CM) | 74.61 |
| (H) Height (CM) | 40.6 |
| (HLR) Adjustable Legs (CM) | 10.2 - 14 |
| (WCS) Cooking Surface Width (CM) | 90.7 |
| (DCS) Cooking Surface Depth (CM) | 52 |
| (HBS) Backsplash Height (CM) | 7 |
| (HSS) Sidesplash Height (CM) | 7 |
| (HB) Height of Body (CM) | 23.5 |
| Size | 36 |
Construction
| Name | Value |
|---|---|
| Construction Material | Stainless Steel Aluminized |
| Countertop or Drop-In | Countertop |
| Number of Controls | 3 |
Additional Specifications
| Name | Value |
|---|---|
| Number of Drip Trays | 1 |
Case Lot Measurement
| Name | Value |
|---|---|
| Case Lot | 1 |
| Case Lot Weight (lbs.) | 284.3963 |
Product Accessories
Product Parts
| Name | Part # | Price |
|---|---|---|
| CONTROL KNOB LG INSERT | 353373-1 | $10.80 |
| MANUAL CONTROL VALVE | 353367-1 | $72.30 |
| LEG, GAS APPLIANCE | 353376-1 | $41.00 |
| REGULATOR 4IN WC | 353374-1 | $216.90 |
| MD GRIDDLE ORIFICE - LP | 353388-1 | $6.00 |
| MANIFOLD - 36IN MDM GRIDDLE | 353398-1 | $331.40 |
| DRIP TRAY - GRIDDLE | 353386-1 | $90.40 |
| BURNER SUPPORT - 36IN GRIDDLE | 353397-1 | $45.80 |
| BURNER/PILOT ASSY - MDM GAS GR | 353385-1 | $132.60 |
| DRIP TRAY SUPPORTS - GD | 353375-1 | $90.40 |
| MD GRIDDLE ORIFICE - NAT GAS | 353387-1 | $6.00 |
| FASCIA - 36IN MDM GRIDDLE | 353396-1 | $66.30 |
| GGMDM-36 FRONT PANEL ASSY | 354221-1 | $318.10 |
