PO4-24018L-R
18-inch 240-volt conveyor pizza oven with left-to-right operation
This symbol represents products that are certified to safely perform its job as intended. This product has earned this certification by undergoing rigorous testing against standards developed by UL.
The Vollrath® 18-inch conveyor pizza oven is ideal for fresh or par-baked pizzas and flatbreads. This 18-inch-wide conveyor fits a variety of foods and moves from left to right. The adjustable 1½- to 4-inch product opening accommodates foods of varying heights. Variable-speed controls allow quick adjustments during baking if needed. The energy-efficient quartz heating elements are fast and powerful, while individual top and bottom thermostatic controls ensure desired results. The ventless design allows flexibility in placement and lowers installation costs. Loading and receiving trays make it easy to keep products moving in and out, speeding up your service. A maintenance-free drive system simplifies operation and servicing, and the durable stainless and aluminized steel exterior is built to last.
- Designed for medium-volume operations that regularly produce fresh or par-baked pizza or flatbreads, not pizzerias
- Save valuable countertop space by stacking two units together with the stacker spacer accessory (sold separately).
- Not intended to bake frozen pizza, or cook raw food or raw toppings
- Quartz heating elements respond quickly and save energy
- UL-tested and verified for ventless operation – meets or surpasses EPA 202. (Local codes may apply. Contact your local authority having jurisdiction for more information.)
- 18” x 68” conveyor fits a variety of products and moves from left to right
- Adjustable 1½- to 4-inch product opening
Product Specifications
Model Information
| Name | Value |
|---|---|
| Model | JPO18 |
| UPC | 671080718217 |

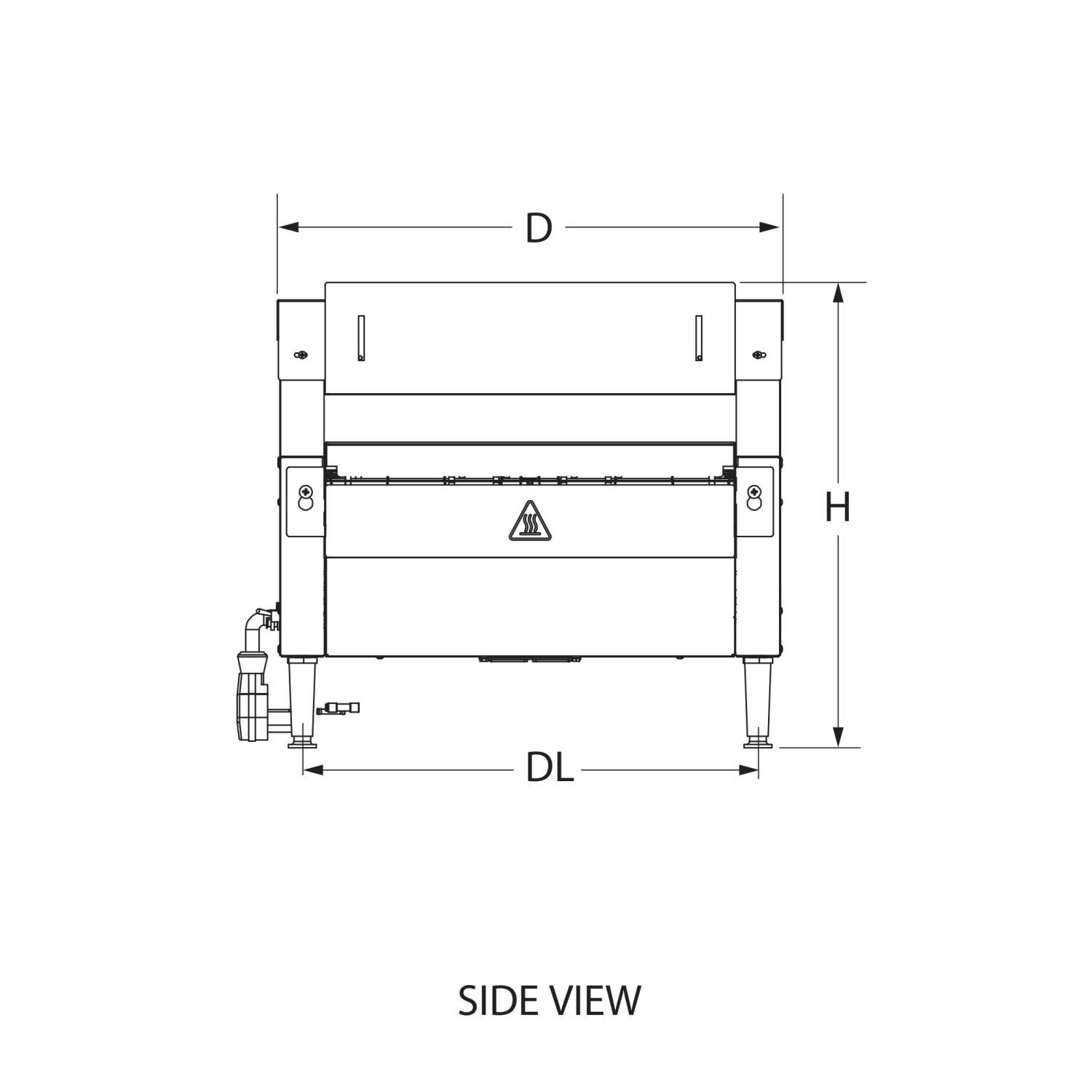

Unit Dimensions
| Name | Value |
|---|---|
| Overall Dimensions (IN) | 22.875 x 20.5 x 21 |
| (W) Width (IN) | 68 |
| (D) Depth (IN) | 22.87 |
| (H) Height (IN) | 21 |
| (WL) Width between legs | 25.5 |
| (DL) Depth between legs | 20.5 |
| Product Opening Dimensions (IN) | 1.5 - 4 |
| Conveyor Width (IN) | 18 |
| Overall Dimensions (CM) | 57.7 x 52.1 x 53.3 |
| (W) Width (CM) | 172.7 |
| (D) Depth (CM) | 57.7 |
| (H) Height (CM) | 53.3 |
| (WL) Width between legs (CM) | 64.8 |
| (DL) Depth between legs (CM) | 52.1 |
| Product Opening Dimensions (CM) | 3.8 - 10.2 |
| Conveyor Width (CM) | 45.7 |
| Size | 18 |
Electrical
| Name | Value |
|---|---|
| Amps | 26 |
| Cord Length (IN) | 72 |
| Cord Length (CM) | 180 |
| Hz | 60 |
| Plug | NEMA 6-50P |
| Voltage | 240 |
| Watts | 6200 |
Construction
| Name | Value |
|---|---|
| Countertop or Drop-In | Countertop |
Case Lot Measurement
| Name | Value |
|---|---|
| Case Lot | 1 |
| Case Width | 30 |
| Case Height | 26 |
| Case Length | 58 |
| Case Lot Cube (ft.) | 26.18 |
| Case Lot Weight (lbs.) | 240 |
Product Accessories
| Name | Item # |
|---|---|
| JPO18/MGD18 Dual Oven Stacking Spacer | 351037 |
Product Parts
| Name | Part # | Price |
|---|---|---|
| CORD FAN HP-75.24-A | B401060 | $11.90 |
| PO4 18" CRUMB TRAY ASSM | B205106 | $144.70 |
| SILVER PUSH-ON KNOB W/SET SCRW | B405019 | $14.70 |
| COLLAR SHAFT .375 X .750 | B401347 | $7.00 |
| 30 AMP CONTROL | B401121 | $413.30 |
| SHAFT IDLER | B401378 | $181.50 |
| UNLOAD TRAY | B305754 | $63.70 |
| SPRING | B400263 | $10.10 |
| CLASS B 240V FAN MOTOR | B405011 | $89.10 |
| KNOB STUD PHENOLIC | B401188 | $5.50 |
| UNLOAD TRAY | B305761 | $57.60 |
| SPROCKET 25B24 X 3/8 | B401304 | $68.20 |
| BEARING SPRING LOADED | B401353 | $50.50 |
| CHAIN LADDER 29.75" LONG | B401460 | $30.00 |
| SWITCH FAN CERAMIC | B401107 | $40.80 |
| POT ASSEMBLY | B401122 | $46.30 |
| 68C RESET SWITCH | B405028 | $30.30 |
| 50A 10/3 72" POWER CORD | B401088 | $164.70 |
| PO4 18" UNLOAD TRAY ASSM | B205107 | $176.80 |
| LOADUP TRAY | B305744 | $98.20 |
| TERMINAL BLOCK 5 POSITION | B401033 | $15.40 |
| GUARD FAN | B401220 | $8.50 |
| 5A CIRCUIT BREAKER | B405014 | $28.70 |
| PO 18" WIRE BELT | B205109 | $417.70 |
| 2PK HEAT ELEM 19-3/8 240V 690W | 59899 | $144.50 |
| MOTOR DRIVE 208/240V REVERSED | B401203 | $188.00 |
| HEYCO 1" SNAP BUSHING 2140 | B400334 | $0.70 |
| 11-TOOTH SPROCKET | B401301 | $38.10 |
| SHAFT DRIVE | B401377 | $180.00 |
| BEARING ASSEMBLY 3/8" | B201101 | $20.50 |
| THERMISTOR PROBE | B401120 | $137.70 |
| TERMINAL BLOCK 2 POSITION | B401034 | $5.60 |
| CONTROL SPEED 1000 OHM | B200918 | $87.90 |
| LEG METAL PLATED 4" ADJ | B400301 | $35.50 |
| BEARING, TEFLON 3/8 REV C | B401357 | $9.40 |
| 7/8 WIRE CLAMP | B400331 | $1.10 |
| 18" BELT SUPPORT | B401370 | $122.10 |
| CONTROL SIDE PANEL ANALOG | B305835 | $25.60 |
| PO4 CONTROL OVERLAY | B405020 | $64.80 |
| BLANK POWER SIDE PANEL | B305856 | $73.50 |
| 1 AMP MAX LABEL | B405054 | $9.20 |
| LONG BLANK SIDE PANEL | B305797 | $108.90 |
| SMALL BLANK SIDE PANEL | B305796 | $22.60 |
| TERMINAL STRIP, 3 CIRC, 15MM | B401014 | $13.00 |
