SO2-12010.5

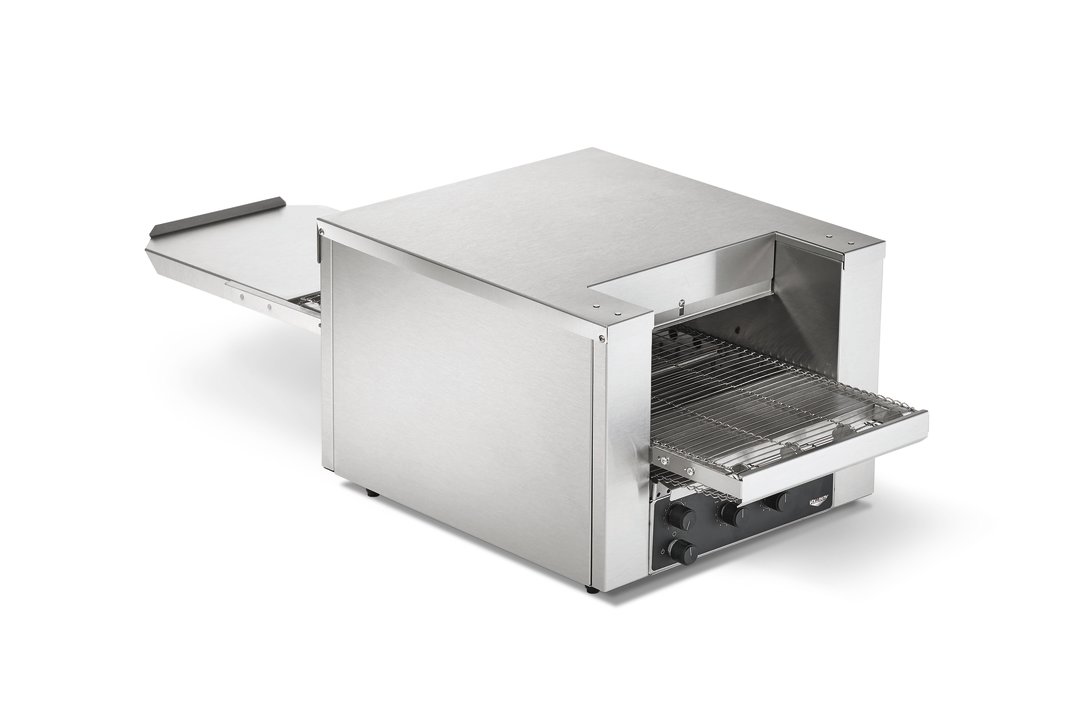

10 ½-inch 120-volt conveyor sandwich oven
This symbol represents products that are certified to safely perform its job as intended. This product has earned this certification by undergoing rigorous testing against standards developed by UL.
The Vollrath® conveyor sandwich oven is perfect for toasting sandwich bread, cheese melting and more. The 10½-inch-wide conveyor fits a variety of foods, and the adjustable 1½- to 3-inch product opening accommodates foods of varying heights. Variable-speed controls allow quick adjustments during toasting if needed. The energy-efficient quartz heating elements are fast and powerful, while individual top and bottom controls ensure desired results. Forced convection saves energy while providing consistent heating for uniform toasting. The ventless design allows flexibility in placement and lowers installation costs. The extended conveyor on both the front and rear make it easy to keep products moving in and out, speeding up your service. A maintenance-free drive system simplifies operation and servicing, and the durable stainless and aluminized steel exterior is built to last.
- Designed to toast sandwiches and melt cheese, not intended to cook raw food
- Save valuable countertop space by stacking two units together with the stacker spacer accessory (sold separately).
- Quartz heating elements respond quickly and save energy
- Forced convection toasting achieves consistent results and improves energy efficiency
- UL-certified for ventless operation, meets or surpasses EPA 202 (Local codes may apply. Contact your local authority having jurisdiction for more information.)
- 10½” x 40” conveyor fits a variety of products
- Adjustable 1½- to 3-inch product opening for added heat control
Product Specifications
Model Information
| Name | Value |
|---|---|
| Model | JB2H |
| UPC | 671080720470 |
Unit Dimensions
| Name | Value |
|---|---|
| Overall Dimensions (IN) | 16.125 x 40.875 x 12.5 |
| (W) Width (IN) | 16.12 |
| (D) Depth (IN) | 40.87 |
| (H) Height (IN) | 12.5 |
| (WL) Width between legs | 13.312 |
| (DL) Depth between legs | 13.875 |
| Product Opening Dimensions (IN) | 1.5 - 3 |
| Conveyor Width (IN) | 10.5 |
| Overall Dimensions (CM) | 40.9 x 103.6 x 31.8 |
| (W) Width (CM) | 40.9 |
| (D) Depth (CM) | 103.6 |
| (H) Height (CM) | 31.8 |
| (WL) Width between legs (CM) | 33.8 |
| (DL) Depth between legs (CM) | 35.3 |
| Product Opening Dimensions (CM) | 3.8 - 7.6 |
| Conveyor Width (CM) | 26.7 |
| Size | 10.5 |
Electrical
| Name | Value |
|---|---|
| Amps | 14.2 |
| Cord Length (IN) | 54 |
| Cord Length (CM) | 140 |
| Hz | 60 |
| Plug | NEMA 5-15 |
| Voltage | 120 |
| Watts | 1700 |
Construction
| Name | Value |
|---|---|
| Countertop or Drop-In | Countertop |
Case Lot Measurement
| Name | Value |
|---|---|
| Case Lot | 1 |
| Case Width | 25.5 |
| Case Height | 16 |
| Case Length | 36 |
| Case Lot Cube (ft.) | 8.5 |
| Case Lot Weight (lbs.) | 63.95 |
Product Accessories
| Name | Item # |
|---|---|
| Dual Stacking Spacer for JB2H | 351038 |
Product Parts
| Name | Part # | Price |
|---|---|---|
| CORD FAN HP-75.24-A | B401060 | $11.90 |
| SPROCKET 25B17-8MM | B401300 | $26.80 |
| SILVER PUSH-ON KNOB W/SET SCRW | B405019 | $14.70 |
| LABEL CONTROL CT4 | B401401 | $19.00 |
| WIRE CONVEYOR BELT 10.5" X 57" | B205132 | $498.00 |
| 14 Ga Straight Strain Relief | B400320 | $6.60 |
| SILVER PUSH-ON KNOB | B405018 | $8.00 |
| BELLECO JB RIGHT BRACKET | B305861 | $18.90 |
| BELLECO JB LEFT BRACKET | B305862 | $18.90 |
| SWITCH 120 V | B401101 | $45.00 |
| SWITCH FAN CERAMIC | B401107 | $40.80 |
| SHAFT DRIVE | B401366 | $47.70 |
| TRAY UNLOAD | B300806 | $38.00 |
| MOTOR DRIVE 120V REVERSED 346 | B401202 | $193.70 |
| CORD POWER 14/3 60" 5-15 PLUG | B401052 | $56.30 |
| MOTOR FAN | B401209 | $100.00 |
| SO2 10.5" UNLOAD TRAY ASSM | B205130 | $115.40 |
| TERMINAL BLOCK 5 POSITION | B401033 | $15.40 |
| SPRING PIN 5/16 " X 1 1/4" SS | B400259 | $3.40 |
| GUARD FAN | B401220 | $8.50 |
| SHAFT IDLER 10.625" CT2 | B401344 | $78.70 |
| FRONT BEARING SPRING-LOADED | B401352 | $23.70 |
| SO2 10.5" CRUMB TRAY ASSM | B205128 | $101.60 |
| JB2H BELLECO UNLOAD TRAY ASSM | B200504 | $81.80 |
| SPRING .038" DIA 1.500" LENGTH | B400261 | $3.00 |
| RESET SWITCH | B401100 | $40.80 |
| SPROCKET 25B17-3/8 | B401303 | $35.50 |
| CONTROL SPEED 250 OHM | B200909 | $79.00 |
| LEGS BLACK 1" 1/4-20 | B400300 | $15.60 |
| BEARING ASSEMBLY 3/8" | B201101 | $20.50 |
| SWITCH ROTARY POWER SAVER | B401103 | $56.30 |
| CHAIN LADDER 13.25." | B401386 | $24.50 |
| TERMINAL BLOCK 2 POSITION | B401034 | $5.60 |
| SO2 SIDE PANEL | B300802 | $47.70 |
| BEARING, TEFLON 3/8 REV C | B401357 | $9.40 |
| 7/8 WIRE CLAMP | B400331 | $1.10 |
| SO2 10.5" NOSE GUARD | B300804 | $26.20 |
| CT4H HEAT SHUTTER | B300058 | $14.20 |
| CORD WARNING LABEL | B401404 | $0.40 |
| 1 1/4" SNAP BUSHING | B400330 | $0.60 |
| 5/8 SNAP BUSHING | B400332 | $0.10 |
