SO4-20814L-R

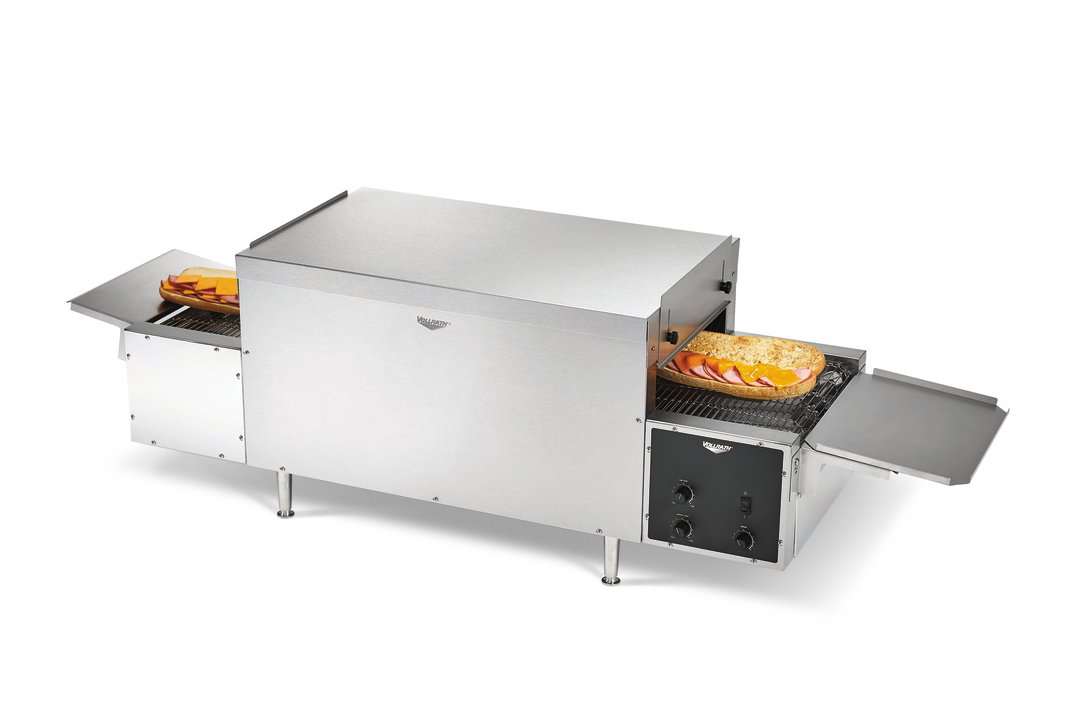

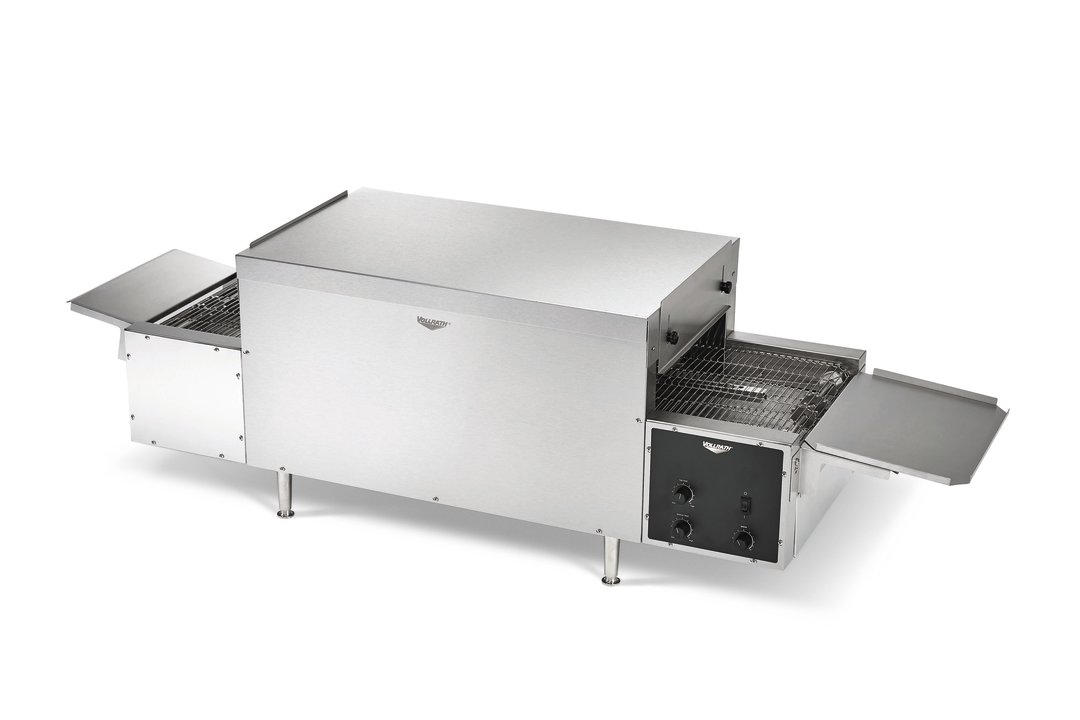

Discontinued14-inch 208-volt conveyor sandwich oven with left-to-right operation
This symbol represents products that are certified to safely perform its job as intended. This product has earned this certification by undergoing rigorous testing against standards developed by UL.
$3559.50
MSRP
Manufacturer Suggested Retail Price (MSRP) is a predetermined percentage off of list price (shown is US Dollars) and is valid for vollrathfoodservice.com and the United States and Canada only. Dealer pricing may differ. These prices do not include potential shipping costs. Any sales tax applicable will be added to the final price upon quote or purchase.
$5,932.50
List Price
List price (shown is US Dollars) is valid for vollrathfoodservice.com and the United States and Canada only. Dealer pricing may differ. These prices do not include potential shipping costs. Any sales tax applicable will be added to the final price upon quote or purchase.
Vollrath's conveyor sandwich ovens deliver consistently toasted bread while melting cheese and warming meat.
- 208V
- 14" wide conveyor
- Belt moves left-to-right, please specify when ordering
- Adjustable 1 ½”-4” product opening for added heat control
- Phased top and bottom heat controls
- Intended for operations that regularly produce high volumes of toasted sandwiches
- Includes loading and receiving trays
- Variable speed control allows for real-time adjustments
- Forced convection toasting promotes uniform results and energy efficiency
- Energy efficient, fast-reacting, quartz heaters
- Intended to toast sandwiches and melt cheese. Not intended to cook raw food.
- Infinite top and bottom heat controls
- UL tested and verified for ventless operation – meets or surpasses EPA 202. (Local codes may apply. Contact your local Authority Having Jurisdiction for more information.)
Product Specifications
Model Information
Name | Value |
---|---|
Model | JSO14 |
UPC | 671080718262 |
Unit Dimensions
Name | Value |
---|---|
Overall Dimensions (IN) | 68 x 18.875 x 21 |
(W) Width (IN) | 68 |
(D) Depth (IN) | 18.87 |
(H) Height (IN) | 21 |
(WL) Width between legs | 25.5 |
(DL) Depth between legs | 16.5 |
Product Opening Dimensions (IN) | 1.5 - 4 |
Conveyor Width (IN) | 14 |
Overall Dimensions (CM) | 172.7 x 47.5 x 53.3 |
(W) Width (CM) | 172.7 |
(D) Depth (CM) | 47.5 |
(H) Height (CM) | 53.3 |
(WL) Width between legs (CM) | 64.8 |
(DL) Depth between legs (CM) | 41.9 |
Product Opening Dimensions (CM) | 3.8 - 10.2 |
Conveyor Width (CM) | 35.6 |
Size | 14 |
Electrical
Name | Value |
---|---|
Amps | 27 |
Cord Length (IN) | 72 |
Cord Length (CM) | 180 |
Hz | 60 |
Plug | NEMA 6-50P |
Voltage | 208 |
Watts | 5600 |
Construction
Name | Value |
---|---|
Countertop or Drop-In | Countertop |
Case Lot Measurement
Name | Value |
---|---|
Case Lot | 1 |
Case Width | 30 |
Case Height | 26 |
Case Length | 58 |
Case Lot Cube (ft.) | 26.18 |
Case Lot Weight (lbs.) | 215 |
Product Accessories
Name | Item # |
---|---|
JSO/JPO14 Dual Oven Stacking Spacer | 351036 |
Product Parts
Name | Part # | Price |
---|---|---|
SILVER PUSH-ON KNOB W/SET SCRW | B405019 | $15.29 |
COLLAR SHAFT .375 X .750 | B401347 | $7.28 |
PO4 14" UNLOAD TRAY ASSM | B205104 | $199.16 |
CORD FAN HP-75.24-A | B401060 | $12.38 |
BEARING SPRING LOADED | B401353 | $52.52 |
SWITCH FAN CERAMIC | B401107 | $42.43 |
SPRING | B400263 | $10.50 |
CLASS B 240V FAN MOTOR | B405011 | $92.66 |
32-TOOTH SPROCKET | B401302 | $85.90 |
KNOB STUD PHENOLIC | B401188 | $5.72 |
GUARD FAN | B401220 | $8.84 |
5A CIRCUIT BREAKER | B405014 | $29.85 |
SHAFT BELT SUPPORT - 15.75" | B401374 | $81.54 |
HEYCO 1" SNAP BUSHING 2140 | B400334 | $0.73 |
2PK HEAT ELEM15-3/8 69.3V 600W | 59881 | $158.91 |
50A 10/3 72" POWER CORD | B401088 | $171.29 |
TERMINAL BLOCK 5 POSITION | B401033 | $16.02 |
PO4 14" WIRE BELT | B205108 | $349.02 |
SPROCKET 25B17-3/8 | B401303 | $36.92 |
CONTACTOR MANUAL 208/240 | B401175 | $96.51 |
UNLOAD TRAY UPPER | B305769 | $45.66 |
68C RESET SWITCH | B405028 | $31.51 |
14" LOAD TRAY | B305772 | $63.75 |
14" UNLOAD TRAY - LOWER | B305771 | $61.78 |
SHAFT DRIVE | B401379 | $204.26 |
SHAFT ILDER | B401380 | $198.64 |
LEG METAL PLATED 4" ADJ | B400301 | $36.92 |
BEARING ASSEMBLY 3/8" | B201101 | $21.32 |
MOTOR DRIVE 208/240V REVERSED | B401203 | $195.52 |
TERMINAL BLOCK 2 POSITION | B401034 | $5.82 |
PHASE CONTROL 240V | B401125 | $217.05 |
