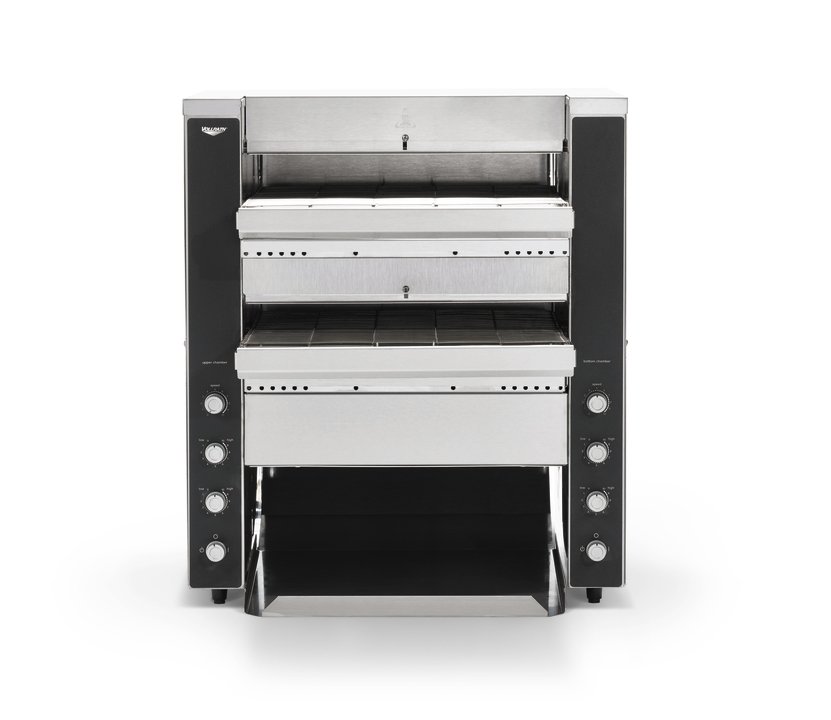

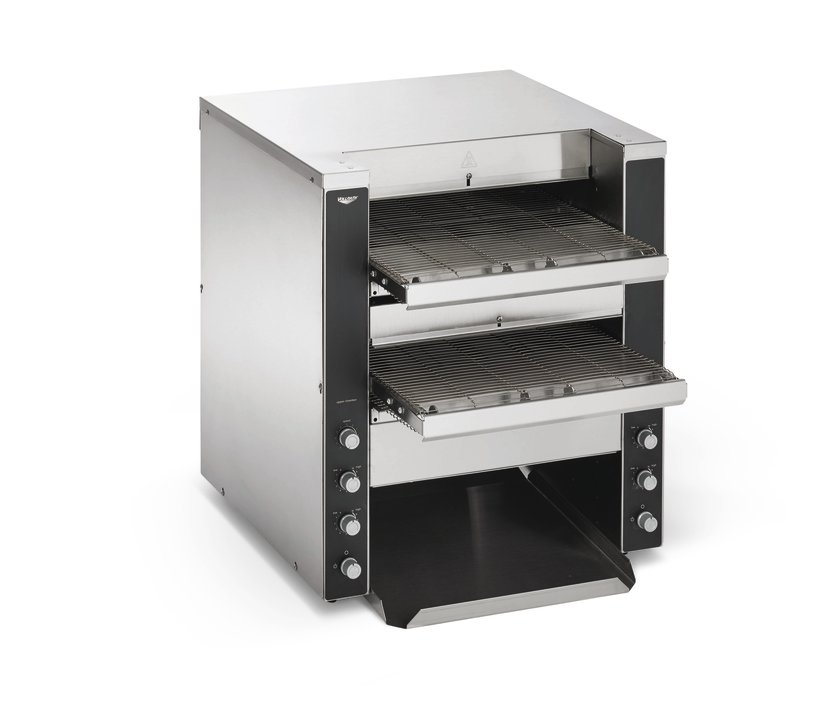

208-volt JT4HC convertible conveyor toaster

CVT4-208DUAL

208-volt JT4HC convertible conveyor toaster

  • 2 Year Parts
  • 1 Year Labor
  • Made in USA
  • Underwriter Laboratories

    This symbol represents products that are certified to safely perform its job as intended. This product has earned this certification by undergoing rigorous testing against standards developed by UL.

$3662.88 MSRP Manufacturer Suggested Retail Price (MSRP) is a predetermined percentage off of list price (shown is US Dollars) and is valid for vollrathfoodservice.com and the United States and Canada only. Dealer pricing may differ. These prices do not include potential shipping costs. Any sales tax applicable will be added to the final price upon quote or purchase.
$6,104.80 List Price List price (shown is US Dollars) is valid for vollrathfoodservice.com and the United States and Canada only. Dealer pricing may differ. These prices do not include potential shipping costs. Any sales tax applicable will be added to the final price upon quote or purchase.

Double your capabilities and increase versatility with the convertible conveyor toaster by Vollrath, which converts from a standard toaster to a pass-through toaster easily and efficiently. Powerful quartz heating elements respond quickly, while forced convection ensures consistent toasting. The variable-speed control and variable top and bottom heat controls help you achieve desired results. Standby mode reduces energy use up to 75 percent during slow periods and quickly returns the unit to full power when needed. The adjustable 1 ½- to 3-inch product opening fits a variety of items, making this toaster ideal for bread, buns, bagels and more. This convertible conveyor toaster fits up to 1100 items per hour, and the convertible design helps you save space without sacrificing quality.

  • Designed for medium-volume establishments
  • Quick, easy conversion between standard and pass-through toasting, allowing you to toast bread and bagels as well as toast sandwiches and melt cheese
  • Variable-speed control and variable top and bottom heat controls help you achieve desired results
  • Forced convection ensures even toasting
  • Quartz heating elements respond quickly and save energy
  • Standby mode saves up to 75 percent energy during slow periods when unit is not in use and allows it to quickly return to full power
  • Durable stainless and aluminized steel is built to last
  • Accommodates up to 1100 items per hour
  • 1 ½- to 3-inch adjustable product opening easily fits bread, buns, bagels and other high-clearance items

Product Specifications

Model Information
Name Value
Model JT4HC
UPC 671080720449
Unit Dimensions
Name Value
Overall Dimensions (IN) 21.25 x 46.187 x 23.5
(W) Width (IN) 46.18
(W2) Secondary Width (IN) 29.375
(D) Depth (IN) 21.25
(H) Height (IN) 23.5
(WL) Width between legs 17.375
(DL) Depth between legs 25.5
Product Opening Dimensions (IN) 1.5 - 3
Overall Dimensions (CM) 53.8 x 117.3 x 59.7
(W) Width (CM) 117.3
(W2) Secondary Width (CM) 74.6
(D) Depth (CM) 53.8
(H) Height (CM) 59.7
(WL) Width between legs (CM) 44.1
(DL) Depth between legs (CM) 39.4
Product Opening Dimensions (CM) 3.8 - 7.6
Electrical
Name Value
Amps 23.6
Cord Length (IN) 54
Cord Length (CM) 140
Hz 60
Plug NEMA 6-30P
Voltage 208
Watts 4950
Construction
Name Value
Countertop or Drop-In Countertop
Food Type Standard Breads, Specialty Breads, Buns, Bagels
Case Lot Measurement
Name Value
Case Width 34
Case Height 28.25
Case Length 26
Product Parts
Name Part # Price
CORD FAN HP-75.24-A B401060 $12.38
SPROCKET 25B17-8MM B401300 $27.87
SHAFT IDLER B401349 $62.50
SILVER PUSH-ON KNOB W/SET SCRW B405019 $15.29
MOTOR DRIVE 208/240V RMS 344 B401201 $204.78
SILVER PUSH-ON KNOB B405018 $8.32
CHAIN LADDER 26" B401387 $32.66
TERMINAL BLOCK 5 POSITION B401033 $16.02
GUARD FAN B401220 $8.84
SWITCH 240 V B401102 $46.80
FRONT BEARING SPRING-LOADED B401352 $24.65
CT4-2000 NOSE GUARD B300807 $49.61
MOTOR DRIVE 208/240V REVERSED B401203 $195.52
LOWER CHAMBER LABEL B401424 $60.11
SWITCH FAN CERAMIC B401107 $42.43
CT4-DUAL SIDE PANEL B300230 $96.10
UPPER CHAMBER LABEL B401423 $57.93
CORD POWER 12/3 60" 6-30P B401051 $59.59
SHAFT DRIVE 14.5" B401342 $53.98
SPRING .038" DIA 1.500" LENGTH B400261 $3.12
CT4 18" TOAST CHUTE B300013 $100.78
WIRE CONVEYOR BELT 14.5" X 42" B205138 $188.45
MOTOR FAN B401211 $93.10
SO2 14.5" CRUMB TRAY ASSM B205129 $111.07
BEARING ASSEMBLY 5/16 B201100 $24.86
SWITCH ROTARY POWER SAVER B401103 $58.55
CONTROL SPEED 500 OHM CT4 B200901 $70.93
RESET SWITCH B401100 $42.43
CORD WARNING LABEL B401404 $0.42
CHAIN LADDER 13.25." B401386 $25.48
BEARING, TEFLON 5/16 B401355 $8.84
7/8 WIRE CLAMP B400331 $1.14
CT4H 18" HEAT SHUTTER B300059 $18.72
1 1/4" SNAP BUSHING B400330 $0.62
STRGHT 12 GA STRAIN RLF BSHNG B400321 $0.73
2PK HEAT ELEM15-3/8 69.3V 413W 59851 $152.98
LEGS BLACK 1" 1/4-20 B400300 $16.22
