CVT4-220550
DiscontinuedConvertible Toasters
This symbol represents products that are certified to safely perform its job as intended. This product has earned this certification by undergoing rigorous testing against standards developed by UL.
$1319.34
MSRP
Manufacturer Suggested Retail Price (MSRP) is a predetermined percentage off of list price (shown is US Dollars) and is valid for vollrathfoodservice.com and the United States and Canada only. Dealer pricing may differ. These prices do not include potential shipping costs. Any sales tax applicable will be added to the final price upon quote or purchase.
$2,198.90
List Price
List price (shown is US Dollars) is valid for vollrathfoodservice.com and the United States and Canada only. Dealer pricing may differ. These prices do not include potential shipping costs. Any sales tax applicable will be added to the final price upon quote or purchase.

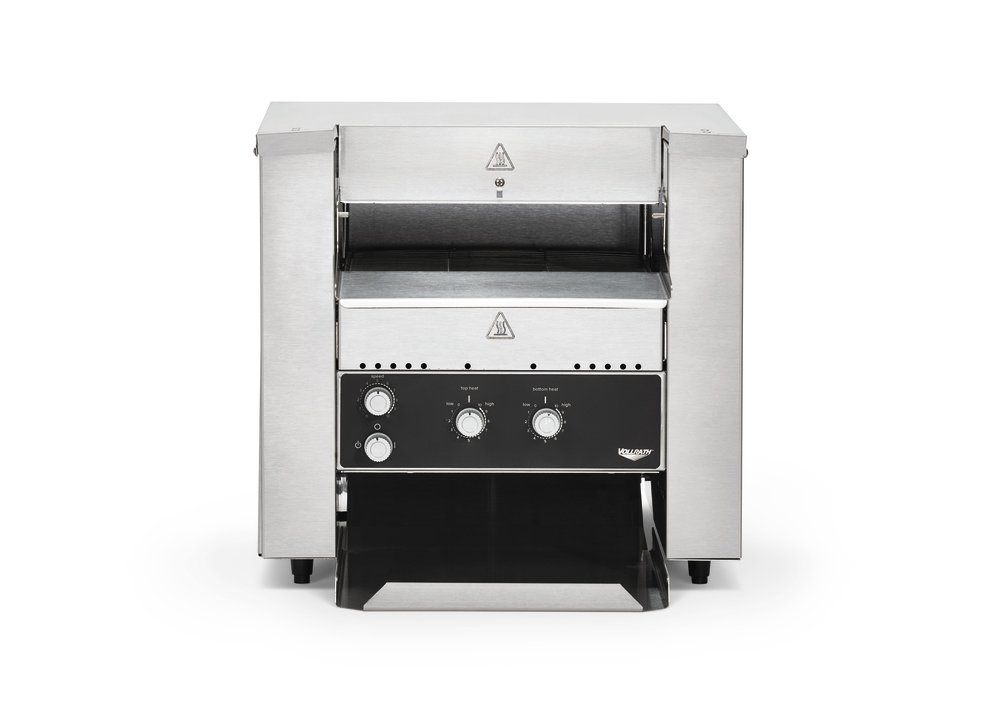

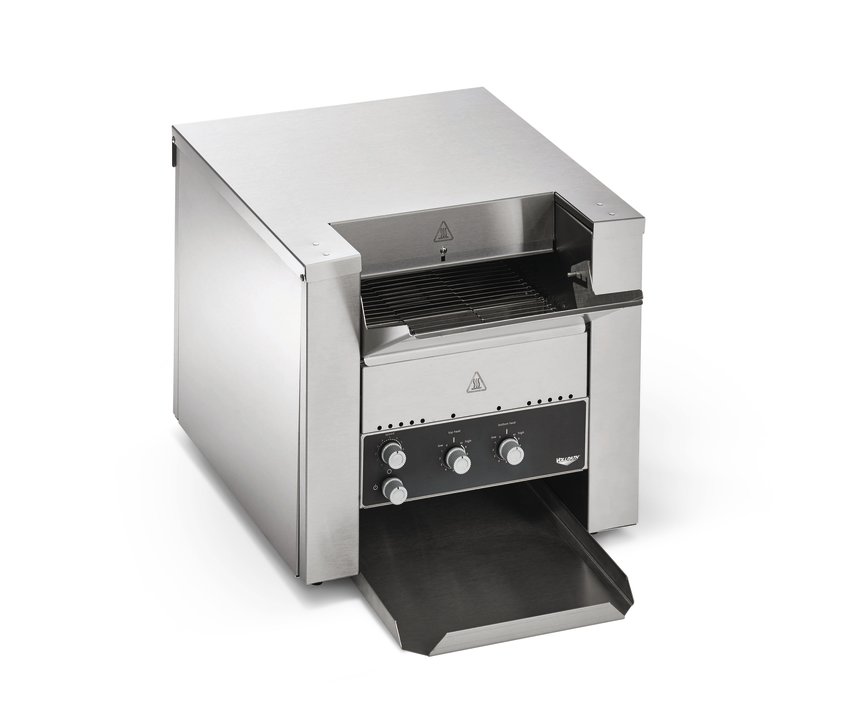

Vollrath's Convertible Conveyor Toasters quickly and easily convert from standard toaster to pass-through, offering the benefits of two units in the footprint of one. They provide the flexibility for medium volume restaurants to toast bread and bagels as well as toast sandwiches and melt cheese in one unit.
- Forced convection promotes uniform results and energy efficiency
- Energy efficient, fast reacting, quartz heaters
- Standby mode saves up to 75 percent energy during slow periods when unit is not in use and allows unit to quickly return to full power
- Variable speed control to achieve desired color
- Variable top and bottom heat controls
- Provides flexibility to toast bread and bagels as well as toast sandwiches and melt cheese in one unit
- Quickly and easily converts from standard toaster to pass-through
Product Specifications
Model Information
| Name | Value |
|---|---|
| Model | JT2HC |
| UPC | 671080705897 |
Unit Dimensions
| Name | Value |
|---|---|
| Overall Dimensions (IN) | 15.875 x 43.125 x 15 |
| (W) Width (IN) | 15.87 |
| (D) Depth (IN) | 43.12 |
| (D2) Secondary Depth (IN) | 24.3125 |
| (H) Height (IN) | 15 |
| (WL) Width between legs | 13.25 |
| (DL) Depth between legs | 14 |
| Product Opening Dimensions (IN) | 1.5 - 3 |
| Conveyor Width (IN) | 10.5 |
| Overall Dimensions (CM) | 40.3 x 109.5 x 12.7 |
| (W) Width (CM) | 40.3 |
| (D) Depth (CM) | 109.5 |
| (D2) Secondary Depth (CM) | 61.7 |
| (H) Height (CM) | 12.7 |
| (WL) Width between legs (CM) | 33.7 |
| (DL) Depth between legs (CM) | 35.6 |
| Product Opening Dimensions (CM) | 3.8 - 7.6 |
| Conveyor Width (CM) | 26.7 |
Electrical
| Name | Value |
|---|---|
| Amps | 12.7 |
| Cord Length (IN) | 48 |
| Cord Length (CM) | 140 |
| Hz | 60 |
| Plug | NEMA 6-20P |
| Voltage | 220 |
| Watts | 2800 |
Construction
| Name | Value |
|---|---|
| Countertop or Drop-In | Countertop |
| Food Type | Standard Breads, Specialty Breads, Buns, Bagels |
Product Parts
| Name | Part # | Price |
|---|---|---|
| SILVER PUSH-ON KNOB W/SET SCRW | B405019 | $15.29 |
| LABEL CONTROL CT4 | B401401 | $19.76 |
| CORD FAN HP-75.24-A | B401060 | $12.38 |
| SPROCKET 25B17-8MM | B401300 | $27.87 |
| SWITCH FAN CERAMIC | B401107 | $42.43 |
| SILVER PUSH-ON KNOB | B405018 | $8.32 |
| SPRING .038" DIA 2.462" LENGTH | B400260 | $8.84 |
| CVT4 14" LOAD-UP TRAY | B300054 | $52.62 |
| MOTOR DRIVE 208/240V RMS 344 | B401201 | $204.78 |
| 14 Ga Straight Strain Relief | B400320 | $6.86 |
| GUARD FAN | B401220 | $8.84 |
| LABEL RESET CT4 | B401425 | $8.22 |
| SHAFT DRIVE 10.5" | B401340 | $71.66 |
| SHAFT IDLER 10.5" | B401341 | $71.34 |
| BELT WIRE CONVEYOR 10.5"X30" | B204273 | $252.72 |
| CVT4 14" UNLOAD TRAY | B300053 | $65.83 |
| MOTOR FAN | B401211 | $93.10 |
| CT4 TOAST CHUTE | B300012 | $68.43 |
| 11-TOOTH SPROCKET | B401301 | $39.62 |
| CORD POWER 14/3 60" 6-20 PLUG | B401050 | $58.55 |
| SWITCH 240 V | B401102 | $46.80 |
| BEARING ASSEMBLY 5/16 | B201100 | $24.86 |
| SWITCH ROTARY POWER SAVER | B401103 | $58.55 |
| 2PK HEAT ELEM 11-3/8 110V 700W | 59838 | $155.06 |
| LADDER CHAIN 14.5" | B401398 | $26.21 |
| LEGS BLACK 1" 1/4-20 | B400300 | $16.22 |
| CONTROL SPEED 500 OHM CT4 | B200901 | $70.93 |
| BEARING FRONT SPRING LOADED | B401350 | $16.02 |
| RESET SWITCH | B401100 | $42.43 |
| TERMINAL BLOCK 2 POSITION | B401034 | $5.82 |
Product Downloads
CAD / REVIT
