CT4H-208550

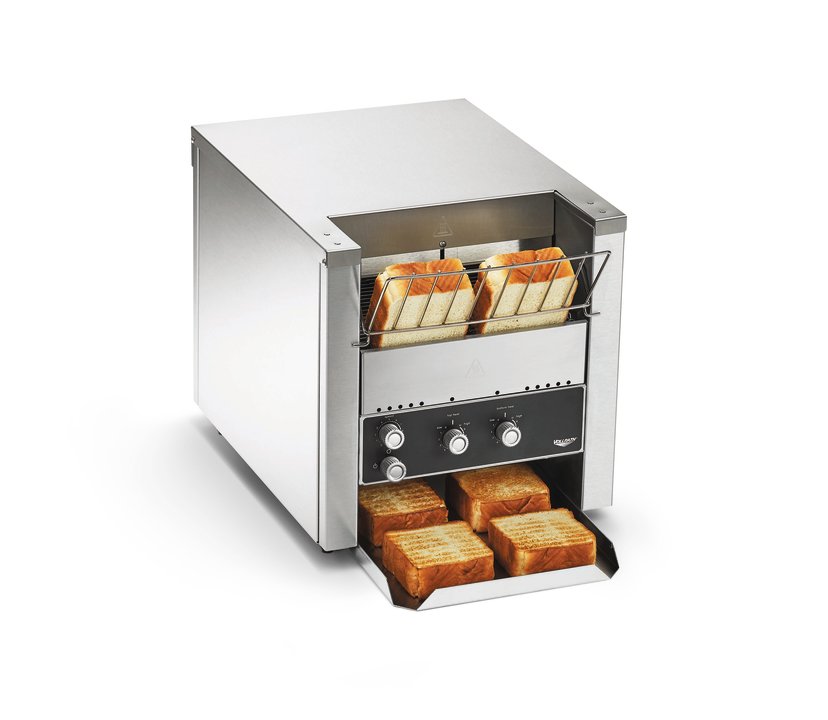

208-volt JT2H bread conveyor toaster
-
This symbol represents products that are certified to safely perform its job as intended. This product has earned this certification by undergoing rigorous testing against standards developed by UL.
This Vollrath® JT2H bread conveyor toaster is consistent, reliable and energy-efficient. Powerful quartz heating elements respond quickly, while forced convection ensures consistent toasting. The variable-speed control and variable top and bottom heat controls help you achieve desired results. Standby mode reduces energy use up to 75 percent during slow periods and quickly returns the unit to full power when needed. The 3-inch product opening fits a variety of items, making this toaster ideal for bread, buns, bagels and more. The 10½-inch-wide conveyor can fit up to 550 items per hour. The durable stainless and aluminized steel exterior is built to last, and heavy-duty legs allow leveling adjustments to provide maximum stability on any countertop.
- Designed for bread slices, bun halves and bagel halves
- Variable-speed control and variable top and bottom heat controls help you achieve desired results
- Forced convection ensures even toasting
- Quartz heating elements respond quickly and save energy
- Durable stainless and aluminized steel is built to last
- Maintenance-free drive system simplifies operation and servicing
- 10½-inch-wide conveyor fits up to 550 items per hour
- 3-inch product opening easily fits bread, buns, bagels and other high-clearance items
Product Specifications
Model Information
Name | Value |
---|---|
Model | JT2H |
UPC | 671080683386 |
Unit Dimensions
Name | Value |
---|---|
Overall Dimensions (IN) | 14.125 x 23.75 x 15.125 |
(W) Width (IN) | 14.12 |
(D) Depth (IN) | 23.75 |
(H) Height (IN) | 15.12 |
(WL) Width between legs | 12.187 |
(DL) Depth between legs | 14.062 |
Product Opening Dimensions (IN) | 1.5 - 3 |
(DB) Depth of Body (IN) | 18.25 |
Conveyor Width (IN) | 10.5 |
Overall Dimensions (CM) | 35.9 x 60.3 x 38.4 |
(W) Width (CM) | 35.9 |
(D) Depth (CM) | 60.3 |
(H) Height (CM) | 38.4 |
(WL) Width between legs (CM) | 31 |
(DL) Depth between legs (CM) | 35.7 |
Product Opening Dimensions (CM) | 3.8 - 7.6 |
(DB) Depth of Body (CM) | 46.4 |
Conveyor Width (CM) | 26.7 |
Electrical
Name | Value |
---|---|
Amps | 13.5 |
Cord Length (IN) | 54 |
Cord Length (CM) | 140 |
Hz | 60 |
Plug | NEMA 6-20P |
Voltage | 208 |
Watts | 2800 |
Construction
Name | Value |
---|---|
Countertop or Drop-In | Countertop |
Food Type | Standard Breads, Specialty Breads, Buns, Bagels |
Case Lot Measurement
Name | Value |
---|---|
Case Lot | 1 |
Case Width | 24 |
Case Height | 19 |
Case Length | 19 |
Case Lot Cube (ft.) | 5.01 |
Case Lot Weight (lbs.) | 55 |
Product Parts
Name | Part # | Price |
---|---|---|
2PK HEAT ELEM11-3/8 104V 700W | 59836 | $137.20 |
CONTROL SPEED 500 OHM CT4 | B200901 | $68.20 |
BEARING ASSEMBLY 5/16 | B201100 | $23.90 |
BELT WIRE CONVEYOR 10.5"X30" | B204273 | $243.00 |
CT4 TOAST CHUTE | B300012 | $65.80 |
CT4H HEAT SHUTTER | B300058 | $14.20 |
SPRING .038" DIA 2.462" LENGTH | B400260 | $8.50 |
LEGS BLACK 1" 1/4-20 | B400300 | $15.60 |
14 Ga Straight Strain Relief | B400320 | $6.60 |
1 1/4" SNAP BUSHING | B400330 | $0.60 |
7/8 WIRE CLAMP | B400331 | $1.10 |
5/8 SNAP BUSHING | B400332 | $0.10 |
LOAD-UP RACK WIRE CT4 | B400381 | $29.50 |
TERMINAL BLOCK 5 POSITION | B401033 | $15.40 |
TERMINAL BLOCK 2 POSITION | B401034 | $5.60 |
CORD POWER 14/3 60" 6-20 PLUG | B401050 | $56.30 |
CORD FAN HP-75.24-A | B401060 | $11.90 |
RESET SWITCH | B401100 | $40.80 |
SWITCH 240 V | B401102 | $45.00 |
SWITCH ROTARY POWER SAVER | B401103 | $56.30 |
SWITCH FAN CERAMIC | B401107 | $40.80 |
MOTOR DRIVE 208/240V RMS 344 | B401201 | $196.90 |
MOTOR FAN | B401211 | $76.50 |
GUARD FAN | B401220 | $8.50 |
SPROCKET 25B17-8MM | B401300 | $26.80 |
SHAFT DRIVE 10.5" | B401340 | $68.90 |
SHAFT IDLER 10.5" | B401341 | $68.60 |
BEARING FRONT SPRING LOADED | B401350 | $15.40 |
BEARING, TEFLON 5/16 | B401355 | $8.50 |
CHAIN LADDER DRIVE 15" | B401388 | $45.20 |
LABEL CONTROL CT4 | B401401 | $19.00 |
CORD WARNING LABEL | B401404 | $0.40 |
LABEL RESET CT4 | B401425 | $7.90 |
SILVER PUSH-ON KNOB | B405018 | $8.00 |
SILVER PUSH-ON KNOB W/SET SCRW | B405019 | $14.70 |
