CT2-23035002

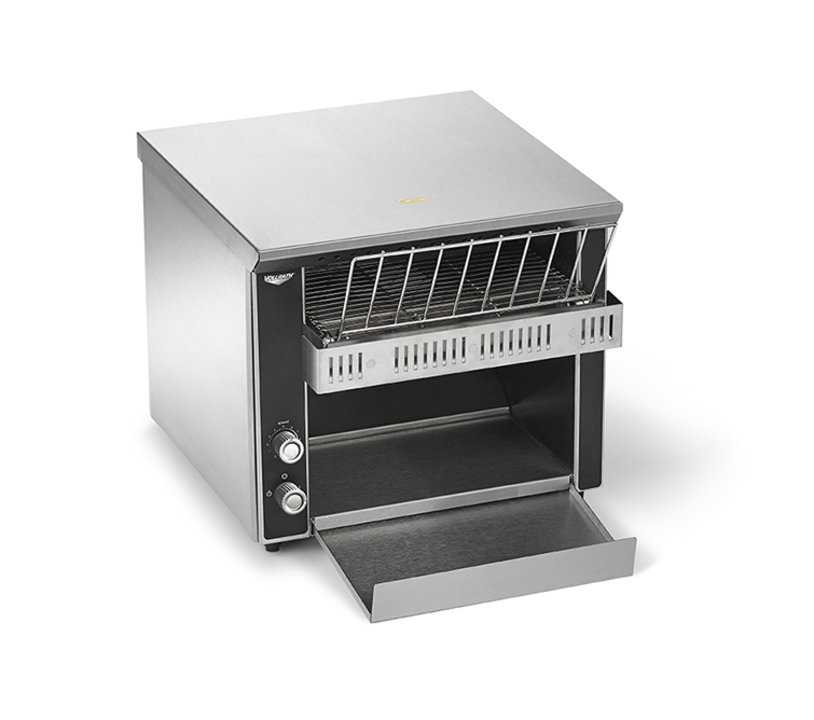

Conveyor toaster
This symbol represents products that are certified to safely perform its job as intended. This product has earned this certification by undergoing rigorous testing against standards developed by UL.
Vollrath Conveyor Toasters feature industry-leading design technology and are made in the USA. Forced convection and energy-efficient quartz heaters provide consistent toasting of bread products.
- Forced convection toasting promotes uniform results and energy efficiency.
- Energy efficient, fast reacting, quartz heaters.
- Standby mode saves up to 75 percent energy during slow periods when unit is not in use and allows unit to quickly return to full power.
- Variable speed control to achieve desired color.
- Stainless steel and aluminized steel construction.
- Variable speed control allows for real-time adjustments.
- 10½" (26.7 cm) 2-slice wide conveyor is larger than industry standard for better toasting results.
- High-quality, insulated wires help prevent against dry rotting and cracking.
Product Specifications
Model Information
Name | Value |
---|---|
Model | JT1 |
UPC | 671080844305 |
Unit Dimensions
Name | Value |
---|---|
Overall Dimensions (IN) | 14.5 x 16.5 x 13.125 |
(W) Width (IN) | 14.5 |
(D) Depth (IN) | 16.5 |
(H) Height (IN) | 13.12 |
(WL) Width between legs | 12.437 |
(DL) Depth between legs | 11.312 |
Product Opening Dimensions (IN) | 1.375 |
(DB) Depth of Body (IN) | 14.75 |
Conveyor Width (IN) | 10.5 |
Overall Dimensions (CM) | 36.8 x 41.9 x 33.3 |
(W) Width (CM) | 36.8 |
(D) Depth (CM) | 41.9 |
(H) Height (CM) | 33.3 |
(WL) Width between legs (CM) | 31.6 |
(DL) Depth between legs (CM) | 28.7 |
Product Opening Dimensions (CM) | 3.2 |
(DB) Depth of Body (CM) | 37.5 |
Conveyor Width (CM) | 26.7 |
Electrical
Name | Value |
---|---|
Amps | 7.6 |
Hz | 50/60 |
Plug | EU |
Domestic / International | Europe |
Voltage | 220-240 |
Watts | 1900 |
Construction
Name | Value |
---|---|
Construction Material | Stainless Steel |
Countertop or Drop-In | Countertop |
Food Type | Standard Breads |
Case Lot Measurement
Name | Value |
---|---|
Case Width | 19.5 |
Case Height | 16 |
Case Length | 22.25 |
Product Parts
Name | Part # | Price |
---|---|---|
SILVER PUSH-ON KNOB W/SET SCRW | B405019 | $15.29 |
2PK HEAT ELEM 11-3/8 | 59893 | $268.53 |
14 Ga Straight Strain Relief | B400320 | $6.86 |
SHAFT DRIVE 10.5" | B401340 | $71.66 |
MOTOR DRIVE 230/240V 50 HZ R | B401206 | $197.18 |
GUARD FAN | B401220 | $8.84 |
CORD FAN HP-75.24-A | B401060 | $12.38 |
SPROCKET 25B17-8MM | B401300 | $27.87 |
CHAIN LADDER DRIVE 18.5" | B401389 | $44.93 |
CONTROL SPEED 500 OHM | B200906 | $74.46 |
LABEL CONTROL CT2 | B401400 | $15.29 |
TERMINAL BLOCK 5 POSITION | B401033 | $16.02 |
SPRING .038" DIA 1.500" LENGTH | B400261 | $3.12 |
CURVED FRONT CT2/CT2H | B300133 | $29.85 |
RESET SWITCH | B401100 | $42.43 |
SHAFT IDLER 10.625" CT2 | B401344 | $81.85 |
FRONT BEARING SPRING-LOADED | B401352 | $24.65 |
BEARING ASSEMBLY 5/16 | B201100 | $24.86 |
SILVER PUSH-ON KNOB | B405018 | $8.32 |
TRAY SLIDE OUT | B300115 | $26.62 |
MOTOR FAN | B401211 | $79.56 |
SWITCH ROTARY POWER SAVER | B401103 | $58.55 |
TERMINAL BLOCK 2 POSITION | B401034 | $5.82 |
CT2 RIGHT SIDE LABEL | B204274 | $6.55 |
SIDE PANEL, CT2 | B300111 | $43.47 |
1 1/4" SNAP BUSHING | B400330 | $0.62 |
CT2 RESET LABEL | B401093 | $5.93 |
BELT WIRE CONVEYOR 10.5"X25" | B204272 | $135.41 |
LEGS BLACK 1" 1/4-20 | B400300 | $16.22 |
BEARING, TEFLON 5/16 | B401355 | $8.84 |
CORD WARNING LABEL | B401404 | $0.42 |
Product Downloads
CAD / REVIT
