CT2-23035003

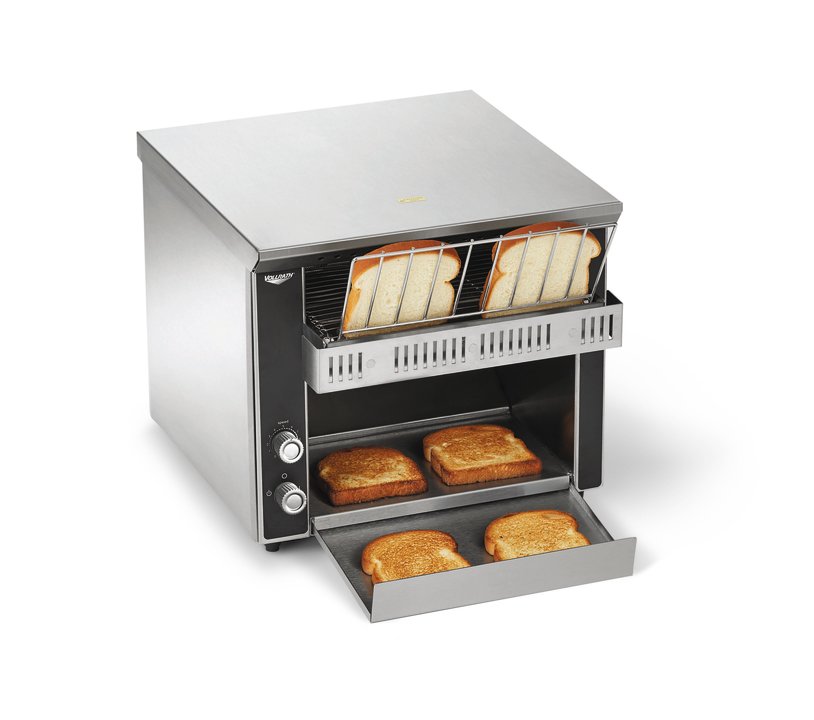

Conveyor toaster
This symbol represents products that are certified to safely perform its job as intended. This product has earned this certification by undergoing rigorous testing against standards developed by UL.
$996.34
MSRP
Manufacturer Suggested Retail Price (MSRP) is a predetermined percentage off of list price (shown is US Dollars) and is valid for vollrathfoodservice.com and the United States and Canada only. Dealer pricing may differ. These prices do not include potential shipping costs. Any sales tax applicable will be added to the final price upon quote or purchase.
$1,660.57
List Price
List price (shown is US Dollars) is valid for vollrathfoodservice.com and the United States and Canada only. Dealer pricing may differ. These prices do not include potential shipping costs. Any sales tax applicable will be added to the final price upon quote or purchase.
Vollrath Conveyor Toasters feature industry-leading design technology and are made in the USA. Forced convection and energy-efficient quartz heaters provide consistent toasting of bread products.
- Forced convection toasting promotes uniform results and energy efficiency.
- Energy efficient, fast reacting, quartz heaters.
- Standby mode saves up to 75 percent energy during slow periods when unit is not in use and allows unit to quickly return to full power.
- Variable speed control to achieve desired color.
- Variable speed control allows for real-time adjustments.
- Up to 350 slices or bun halves/hour
- 10½" (26.7 cm) 2-slice wide conveyor is larger than industry standard for better toasting results.
- Stainless steel and aluminized steel construction.
- High-quality, insulated wires help prevent against dry rotting and cracking.
Product Specifications
Model Information
| Name | Value |
|---|---|
| Model | JT1 |
| UPC | 671080827841 |
Unit Dimensions
| Name | Value |
|---|---|
| Overall Dimensions (IN) | 14.5 x 16.5 x 13.125 |
| (W) Width (IN) | 14.5 |
| (D) Depth (IN) | 16.5 |
| (H) Height (IN) | 13.12 |
| (WL) Width between legs | 12.437 |
| (DL) Depth between legs | 11.312 |
| Product Opening Dimensions (IN) | 1.375 |
| (DB) Depth of Body (IN) | 14.75 |
| Conveyor Width (IN) | 10.5 |
| Overall Dimensions (CM) | 36.8 x 41.9 x 33.3 |
| (W) Width (CM) | 36.8 |
| (D) Depth (CM) | 41.9 |
| (H) Height (CM) | 33.3 |
| (WL) Width between legs (CM) | 31.6 |
| (DL) Depth between legs (CM) | 28.7 |
| Product Opening Dimensions (CM) | 3.2 |
| (DB) Depth of Body (CM) | 37.5 |
| Conveyor Width (CM) | 26.7 |
Electrical
| Name | Value |
|---|---|
| Amps | 7.6 |
| Hz | 50/60 |
| Plug | UK |
| Domestic / International | United Kingdom |
| Voltage | 220-240 |
| Watts | 1900 |
Construction
| Name | Value |
|---|---|
| Construction Material | Stainless Steel |
| Countertop or Drop-In | Countertop |
| Food Type | Standard Breads |
Case Lot Measurement
| Name | Value |
|---|---|
| Case Width | 19 |
| Case Height | 16 |
| Case Length | 23 |
Product Parts
| Name | Part # | Price |
|---|---|---|
| SILVER PUSH-ON KNOB W/SET SCRW | B405019 | $15.29 |
| 2PK HEAT ELEM 11-3/8 | 59893 | $268.53 |
| 14 Ga Straight Strain Relief | B400320 | $6.86 |
| CORD FAN HP-75.24-A | B401060 | $12.38 |
| SPROCKET 25B17-8MM | B401300 | $27.87 |
| CHAIN LADDER DRIVE 18.5" | B401389 | $44.93 |
| SILVER PUSH-ON KNOB | B405018 | $8.32 |
| TRAY SLIDE OUT | B300115 | $26.62 |
| LABEL CONTROL CT2 | B401400 | $15.29 |
| SHAFT DRIVE 10.5" | B401340 | $71.66 |
| MOTOR DRIVE 230/240V 50 HZ R | B401206 | $197.18 |
| TERMINAL BLOCK 5 POSITION | B401033 | $16.02 |
| GUARD FAN | B401220 | $8.84 |
| SHAFT IDLER 10.625" CT2 | B401344 | $81.85 |
| FRONT BEARING SPRING-LOADED | B401352 | $24.65 |
| CONTROL SPEED 500 OHM | B200906 | $74.46 |
| SPRING .038" DIA 1.500" LENGTH | B400261 | $3.12 |
| CORD UK 13 AMP FUSE | B401054 | $48.98 |
| BEARING ASSEMBLY 5/16 | B201100 | $24.86 |
| SWITCH ROTARY POWER SAVER | B401103 | $58.55 |
| TERMINAL BLOCK 2 POSITION | B401034 | $5.82 |
| BELT WIRE CONVEYOR 10.5"X25" | B204272 | $135.41 |
| LEGS BLACK 1" 1/4-20 | B400300 | $16.22 |
| CT2 RIGHT SIDE LABEL | B204274 | $6.55 |
| CURVED FRONT CT2/CT2H | B300133 | $29.85 |
| RESET SWITCH | B401100 | $42.43 |
| CORD WARNING LABEL | B401404 | $0.42 |
| MOTOR FAN | B401211 | $93.10 |
| BEARING, TEFLON 5/16 | B401355 | $8.84 |
| SIDE PANEL, CT2 | B300111 | $43.47 |
| 1 1/4" SNAP BUSHING | B400330 | $0.62 |
| CT2 RESET LABEL | B401093 | $5.93 |
Product Downloads
CAD / REVIT
