CT4-23080003

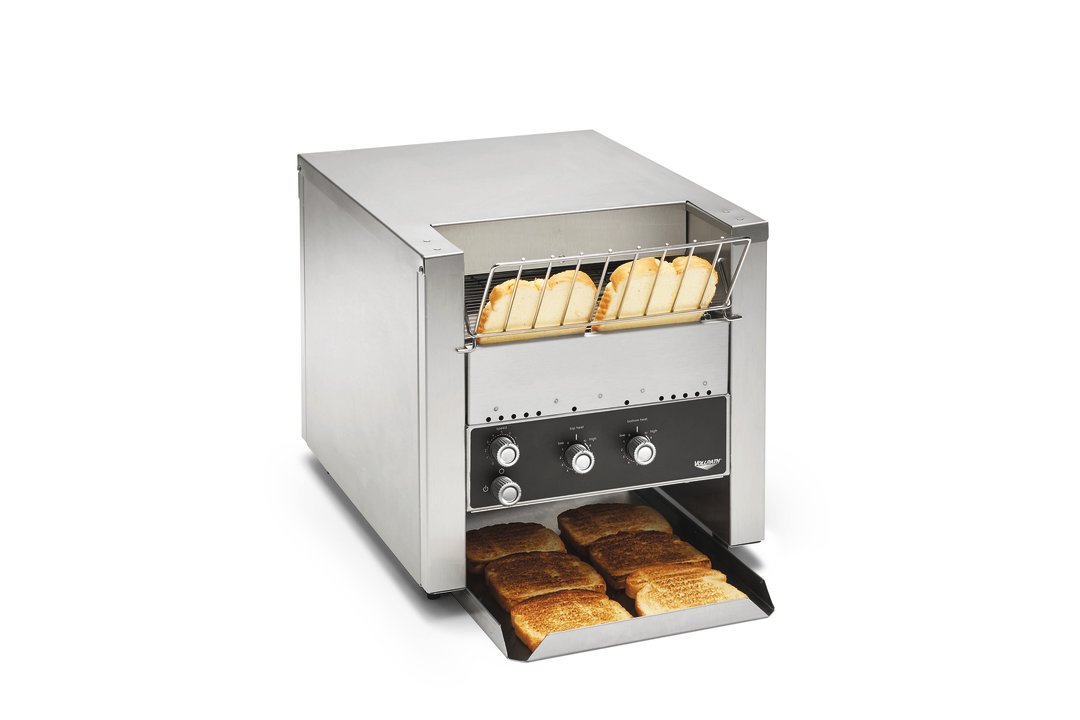

Conveyor toaster
This symbol represents products that are certified to safely perform its job as intended. This product has earned this certification by undergoing rigorous testing against standards developed by UL.
$1676.75
MSRP
Manufacturer Suggested Retail Price (MSRP) is a predetermined percentage off of list price (shown is US Dollars) and is valid for vollrathfoodservice.com and the United States and Canada only. Dealer pricing may differ. These prices do not include potential shipping costs. Any sales tax applicable will be added to the final price upon quote or purchase.
$2,794.58
List Price
List price (shown is US Dollars) is valid for vollrathfoodservice.com and the United States and Canada only. Dealer pricing may differ. These prices do not include potential shipping costs. Any sales tax applicable will be added to the final price upon quote or purchase.
Vollrath Conveyor Toasters feature industry-leading design technology and are made in the USA. Forced convection and energy-efficient quartz heaters provide consistent toasting of bread products.
- Forced convection toasting promotes uniform results and energy efficiency.
- Energy efficient, fast reacting, quartz heaters.
- Standby mode saves up to 75 percent energy during slow periods when unit is not in use and allows unit to quickly return to full power.
- Variable speed control to achieve desired color.
- Stainless steel and aluminized steel construction.
- 10-1/2” (26.7 cm) 2-slice wide conveyor is larger than industry standard for better toasting results.
- High-temperature bearings ensure smooth operation and do not require lubrication.
- High-quality, insulated wires help prevent against dry rotting and cracking.
Product Specifications
Model Information
| Name | Value |
|---|---|
| Model | JT2 |
| UPC | 671080844367 |
Unit Dimensions
| Name | Value |
|---|---|
| Overall Dimensions (IN) | 14.125 x 23.75 x 14 |
| (W) Width (IN) | 14.12 |
| (D) Depth (IN) | 23.75 |
| (H) Height (IN) | 14 |
| (WL) Width between legs | 12.187 |
| (DL) Depth between legs | 14.062 |
| Product Opening Dimensions (IN) | 1.5 |
| (DB) Depth of Body (IN) | 18.25 |
| Conveyor Width (IN) | 10.5 |
| Overall Dimensions (CM) | 35.9 x 60.3 x 35.6 |
| (W) Width (CM) | 35.9 |
| (D) Depth (CM) | 60.3 |
| (H) Height (CM) | 35.6 |
| (WL) Width between legs (CM) | 31 |
| (DL) Depth between legs (CM) | 35.7 |
| Product Opening Dimensions (CM) | 3.8 |
| (DB) Depth of Body (CM) | 46.4 |
| Conveyor Width (CM) | 26.7 |
Electrical
| Name | Value |
|---|---|
| Amps | 11.2 |
| Cord Length (IN) | 54 |
| Cord Length (CM) | 140 |
| Hz | 50/60 |
| Plug | UK |
| Domestic / International | United Kingdom |
| Voltage | 220-240 |
| Watts | 2800 |
Construction
| Name | Value |
|---|---|
| Construction Material | Stainless Steel |
| Countertop or Drop-In | Countertop |
| Food Type | Standard Breads |
Case Lot Measurement
| Name | Value |
|---|---|
| Case Width | 18.5 |
| Case Height | 17.5 |
| Case Length | 24 |
Product Parts
| Name | Part # | Price |
|---|---|---|
| SILVER PUSH-ON KNOB W/SET SCRW | B405019 | $15.29 |
| LABEL CONTROL CT4 | B401401 | $19.76 |
| CORD FAN HP-75.24-A | B401060 | $12.38 |
| SPROCKET 25B17-8MM | B401300 | $27.87 |
| 2PK HEAT ELEM 11-3/8 120V 700W | 59854 | $155.06 |
| LABEL RESET CT4 | B401425 | $8.22 |
| SHAFT DRIVE 10.5" | B401340 | $71.66 |
| TERMINAL BLOCK 5 POSITION | B401033 | $16.02 |
| MOTOR DRIVE 208/240V RMS 344 | B401201 | $204.78 |
| 14 Ga Straight Strain Relief | B400320 | $6.86 |
| CT4 SIDE PANEL | B300037 | $52.52 |
| SILVER PUSH-ON KNOB | B405018 | $8.32 |
| SPRING .038" DIA 2.462" LENGTH | B400260 | $8.84 |
| SHAFT IDLER 10.5" | B401341 | $71.34 |
| GUARD FAN | B401220 | $8.84 |
| SWITCH 240 V | B401102 | $46.80 |
| LOAD-UP RACK WIRE CT4 | B400381 | $30.68 |
| CT4 TOAST CHUTE | B300012 | $68.43 |
| CORD UK 13 AMP FUSE | B401054 | $48.98 |
| CONTROL SPEED 500 OHM CT4 | B200901 | $70.93 |
| SWITCH FAN CERAMIC | B401107 | $42.43 |
| BELT WIRE CONVEYOR 10.5"X30" | B204273 | $252.72 |
| BEARING ASSEMBLY 5/16 | B201100 | $24.86 |
| SWITCH ROTARY POWER SAVER | B401103 | $58.55 |
| TERMINAL BLOCK 2 POSITION | B401034 | $5.82 |
| CORD WARNING LABEL | B401404 | $0.42 |
| 1 1/4" SNAP BUSHING | B400330 | $0.62 |
| 5/8 SNAP BUSHING | B400332 | $0.10 |
| MOTOR FAN | B401211 | $93.10 |
| BEARING, TEFLON 5/16 | B401355 | $8.84 |
| 7/8 WIRE CLAMP | B400331 | $1.14 |
| BEARING FRONT SPRING LOADED | B401350 | $16.02 |
| RESET SWITCH | B401100 | $42.43 |
| CHAIN LADDER DRIVE 15" | B401388 | $47.01 |
| LEGS BLACK 1" 1/4-20 | B400300 | $16.22 |
