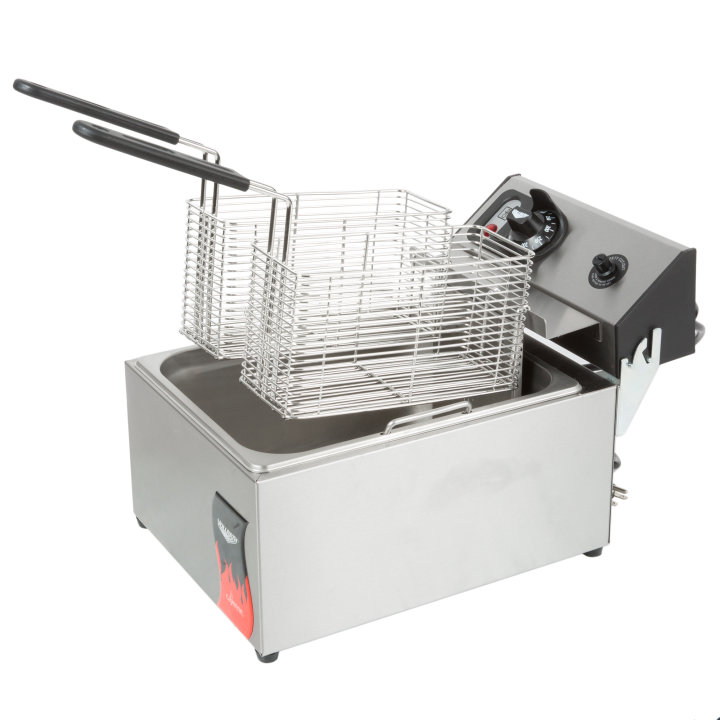

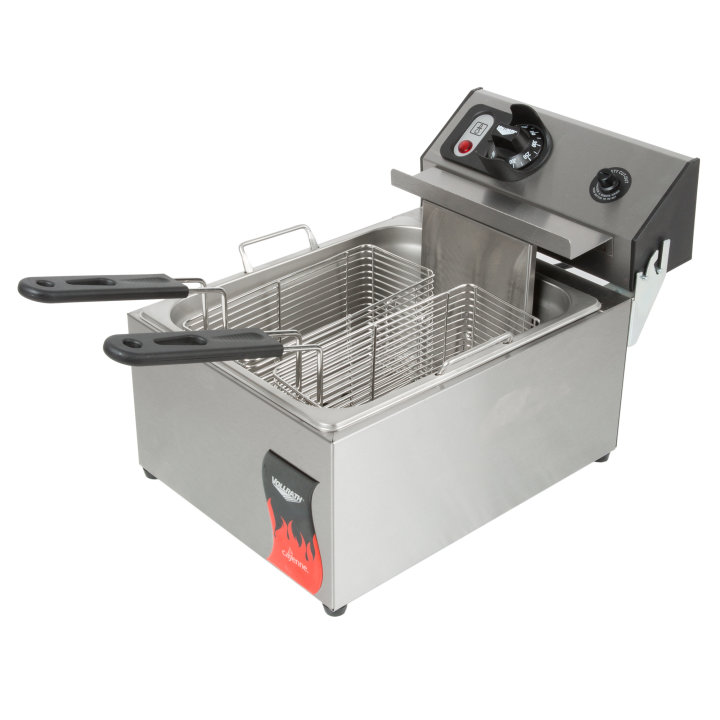

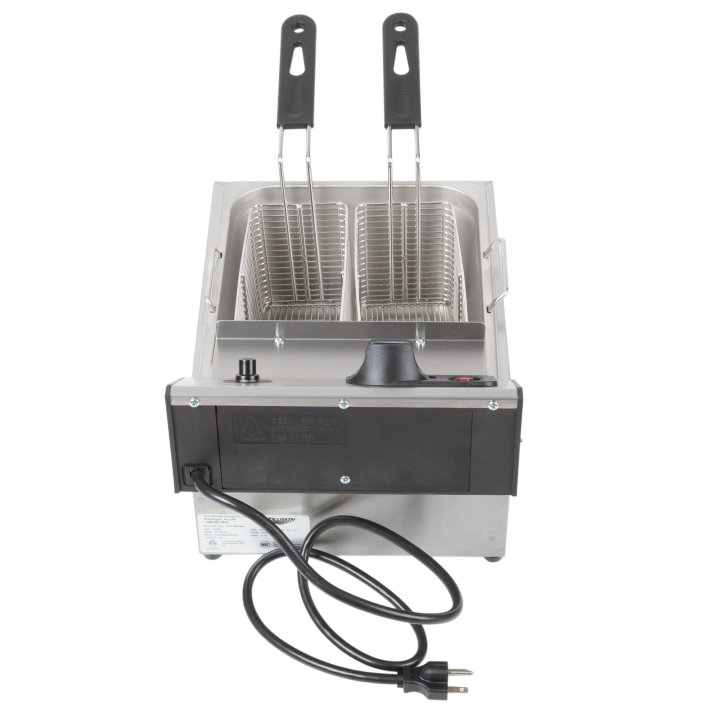

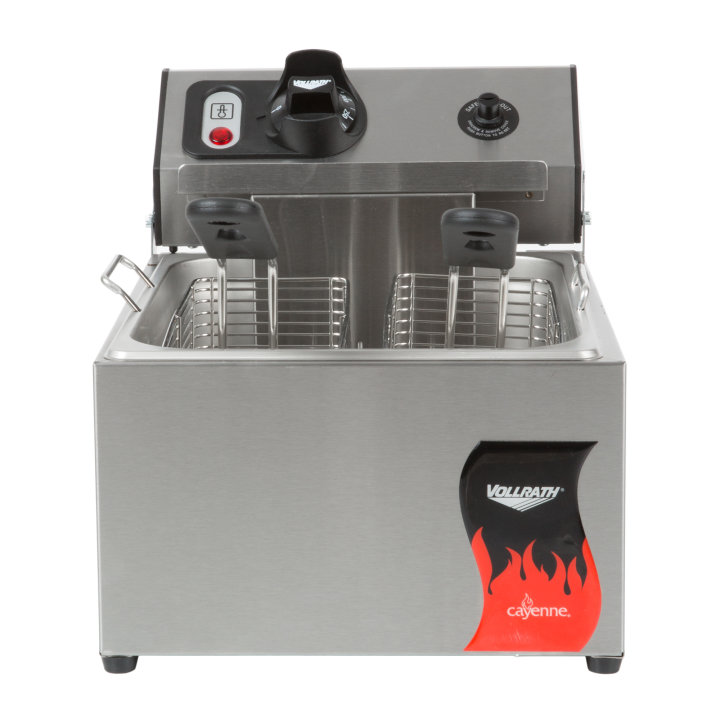

208- to 240-volt 10-lb standard-duty Cayenne® countertop deep fryer

This symbol represents products that have met the minimum requirements of prescribed product safety standards. The symbol also indicates that the manufacturer’s production site conforms to a range of compliance measures and is subject to periodic follow up inspections to verify continued conformance.

$597.36 MSRP

$995.60 List Price

View New Replacement Product

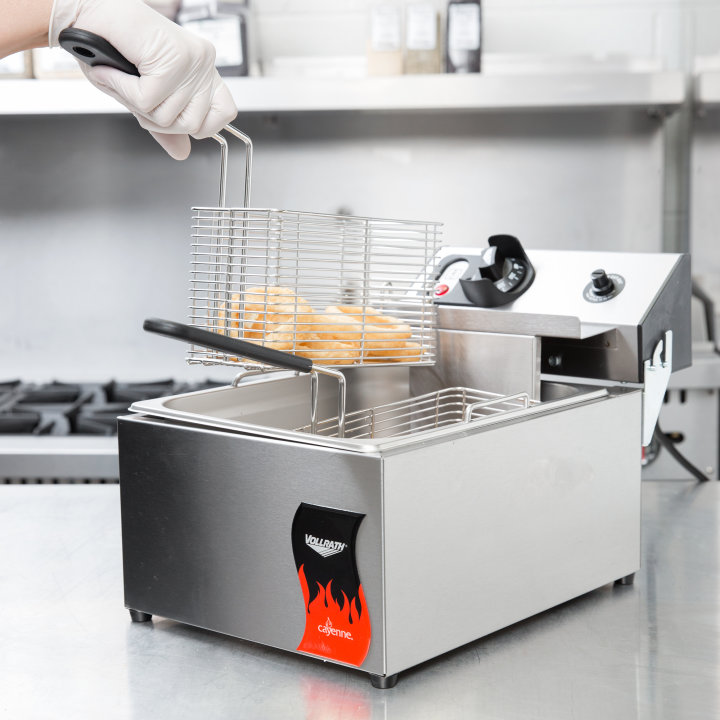

The Vollrath® 10-lb Cayenne countertop deep fryer efficiently prepares a variety of fried foods while saving precious counter space. This fryer is thermostatically controlled to 375°F and has quick heating and recovery times. Two nickel-plated steel fryer baskets have Kool-Touch® handles for your safety and comfort. The one-piece stainless steel tank simply lifts out by its handles, making cleaning easy and efficient, while nonskid rubber feet prevent the unit from moving during use. Thanks to its compact size, this unit fits nicely on any countertop.

Quickly fry chicken, french fries, seafood, and more
One-piece stainless steel tank with carrying handles is durable and easy to clean
Microswitch safely shuts off unit when element box is removed
Automatic shutoff feature at 390°F maintains safety of operation
Thermostatic controls maintain a temperature of 375°F for more accurate heating
Two 4- x 10- x 4-inch fryer baskets fit a variety of products

208- to 240-volt 10-lb standard-duty Cayenne® countertop deep fryer Inspiration

Product Specifications

Model Information

Name	Value
Model	FFA8110
UPC	029419718863

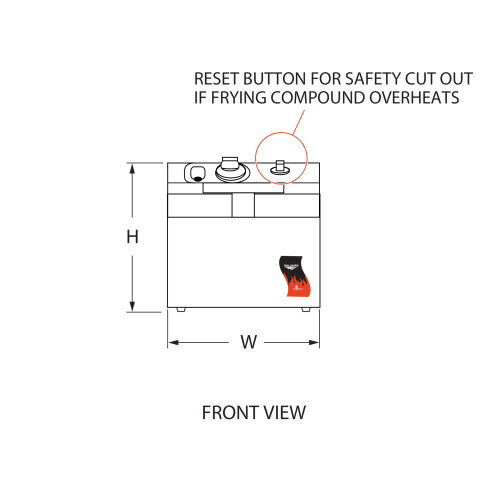

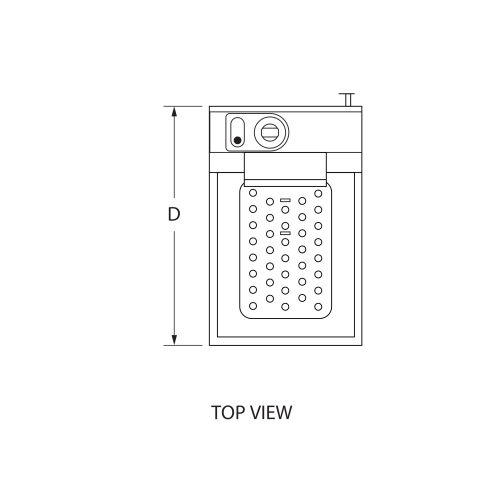

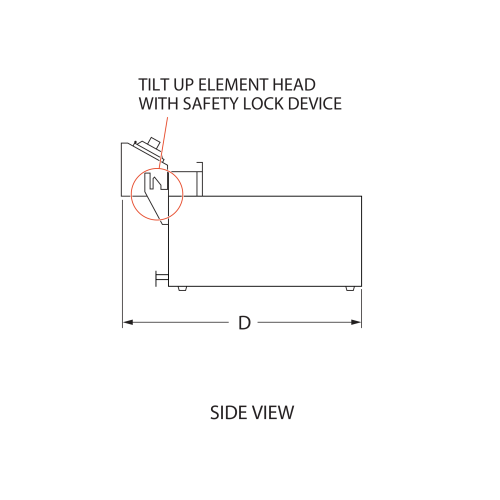

Unit Dimensions

Name	Value
Overall Dimensions (IN)	11 x 17.625 x 11
(W) Width (IN)	11
(D) Depth (IN)	17.62
(H) Height (IN)	11
Overall Dimensions (CM)	27.9 x 44.7 x 27.9
(W) Width (CM)	27.9
(D) Depth (CM)	44.7
(H) Height (CM)	27.9
Size	10

Electrical

Name	Value
Amps	10.8 - 12.5
Cord Length (IN)	60
Cord Length (CM)	150

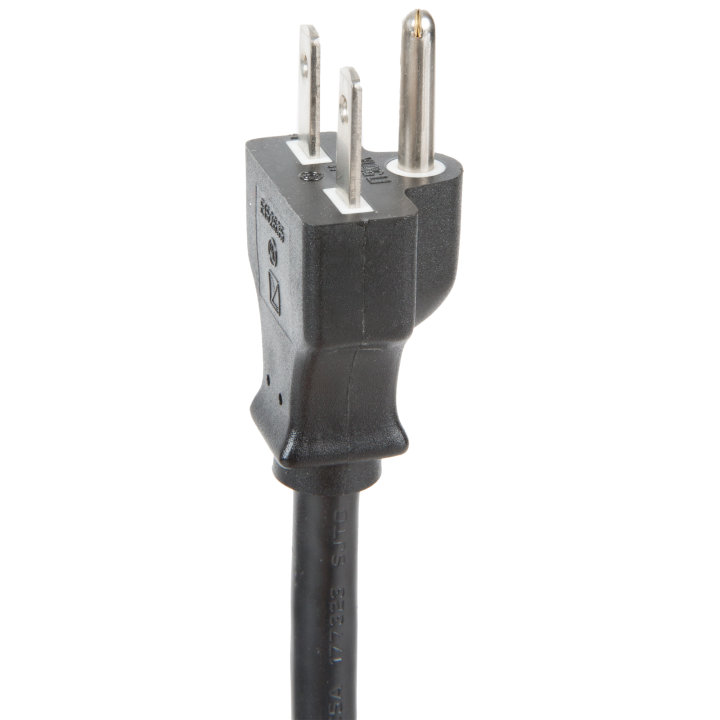

Plug	NEMA 6-15P
Voltage	208-240
Watts	2253-3000

Weight

Name	Value
Weight (LB)	15
Weight (KG)	6.8

Construction

Name	Value
Construction Material	Stainless Steel
Construction Material 2	Electrical Components
Countertop or Drop-In	Countertop
Number of Wells	1

Case Lot Measurement

Name	Value
Case Lot	1
Case Width	15
Case Height	14.5
Case Length	22
Case Lot Cube (ft.)	2.41
Case Lot Weight (lbs.)	15.0

Product Accessories

Name	Item #
4-inch-wide fryer basket	40711
8-inch-wide fryer basket	40712
Large fryer basket night cover for standard-duty Cayenne® countertop deep fryer	40713
Small fryer basket night cover for standard-duty Cayenne® countertop deep fryer	40714

Product Parts

Name	Part #	Price
POWERCORD 220V (NEMA6-15P)	XAA0006	$40.40
CONTROL PANEL FASCIA - BLACK	XAA0009	$28.10
RUBBER FOOT TSA(ALL) (#40/41)	XTSA0004	$5.70
MICROSWITCH SAFETY FFA7110/811	XFFA0011	$31.60
MICROSWITCH PUSH PIN FFA7110/8	XFFA0012	$13.00
FEB0006 ELEMENT BOX COMPLETE 2	FFEB200	$532.30
CABLE RESTRAINT COA7001/7002/8	XCOA1013	$7.40
PILOT LIGHT 220V (RED)	XAA0002	$16.00
ELEMENT 220V FFA8110/8020 (#27	XFFA0003	$170.60
RELAY DPST 200-240V COIL	XFFA0005	$54.30
OVER-TEMP THERMOSTAT FFA7110	XFFA0009	$209.70
SAFETY CUT OUT PLASTIC CAP FF	XFFA0013	$6.90
S/STEEL INSERT FFA7010/7110/8	XFEIN001	$179.40
THERMOSTAT FFA(ALL)(#19)	XFFA0008	$88.30
VOLLRATH CONTROL KNOB FFA7110/	XFFA0004	$15.80
