CF4-3600DUAL

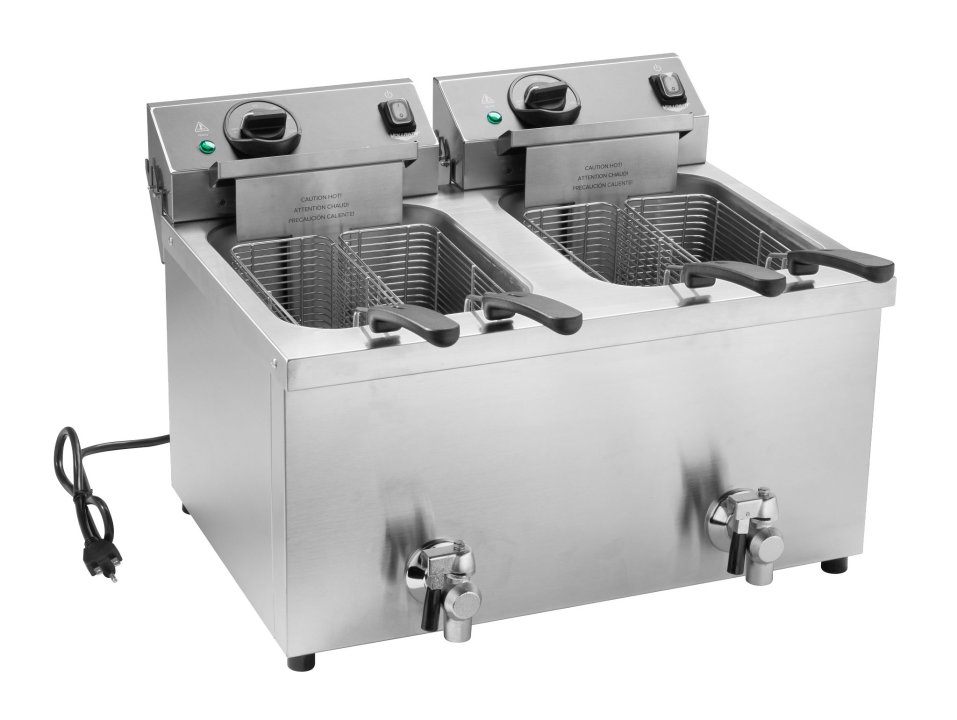

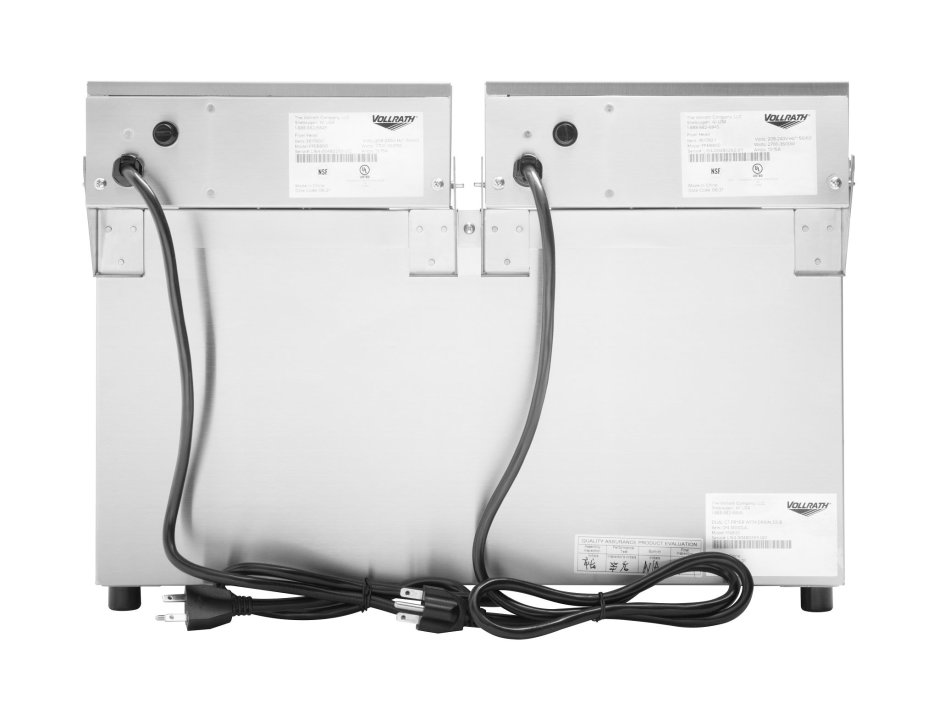

208-280-Volt 15 lb. medium-duty double-well countertop fryer with drain
This symbol represents products that are certified to safely perform its job as intended. This product has earned this certification by undergoing rigorous testing against standards developed by UL.
$1715.63
MSRP
Manufacturer Suggested Retail Price (MSRP) is a predetermined percentage off of list price (shown is US Dollars) and is valid for vollrathfoodservice.com and the United States and Canada only. Dealer pricing may differ. These prices do not include potential shipping costs. Any sales tax applicable will be added to the final price upon quote or purchase.
$2,859.38
List Price
List price (shown is US Dollars) is valid for vollrathfoodservice.com and the United States and Canada only. Dealer pricing may differ. These prices do not include potential shipping costs. Any sales tax applicable will be added to the final price upon quote or purchase.
The Vollrath® medium-duty fryer takes durability and performance to a new level. Dual fryer features 2 fully welded oil tanks, keeping foods separate and preventing flavor transfer from oil. Increased power is perfect for frying frozen products and more, with excellent recovery time between batches. Medium-duty dual fryer ships with 2 night covers and 4 stainless steel wire baskets with cool-touch handles.
- Medium-duty dual fryer delivers 2700 - 3600 watts of power per well
- Dual tanks with drainage valves empty and clean with ease
- New components deliver quality, safety and durability
- Lighted power switch and oil-ready indicators
- Thermostatically controlled to 375°F; auto shutoff at 500°F
- 3-position fryer head enables easy pan removal and cleaning
- Optional accessories sold separately include large basket
Product Specifications
Model Information
| Name | Value |
|---|---|
| Model | FFA8130 |
| UPC | 671080969435 |
Unit Dimensions
| Name | Value |
|---|---|
| (D) Depth (IN) | 20.875 |
| (H) Height (IN) | 16 |
| (DB) Depth of Body (IN) | 14.75 |
| (HB) Height of Body (IN) | 17.375 |
| (D) Depth (CM) | 53.02 |
| (H) Height (CM) | 40.8 |
| (DB) Depth of Body (CM) | 37.5 |
| (HB) Height of Body (CM) | 43.5 |
Electrical
| Name | Value |
|---|---|
| Amps | 13 - 15 per well |
| Cord Length (IN) | 48 |
| Cord Length (CM) | 121.9 |
| Plug | NEMA 6-15P |
| Voltage | 208-240 |
| Watts | 2700 - 3600 per well |
Construction
| Name | Value |
|---|---|
| Construction Material | Stainless Steel |
| Construction Material 2 | Electrical Components |
| Material Type | Metals |
| Number of Wells | 2 |
| Product Function | Fryer |
Product Accessories
Product Parts
| Name | Part # | Price |
|---|---|---|
| 240V HEATING ELEMENT KIT | 351813-02-1 | $57.06 |
| RUBBER GASKET | 351788-09-1 | $1.24 |
| INTERLOCK SWITCH KIT | 351814-1 | $15.04 |
| 240V RELAY KIT | 351815-02-1 | $69.11 |
| DRAIN VALVE KIT | 351808-1 | $43.05 |
| FRYER HEAD OVERLAY | 351788-01-1 | $13.39 |
| FRYER INTERLOCK MAGNET | 351792-04-1 | $9.99 |
| FRYER HEAD 208-240V | 351790-1 | $375.13 |
| REGULATING THERMOSTAT | 351788-12-1 | $10.82 |
| HI-LIMIT THERMOSTAT COVER | 351788-03-1 | $8.86 |
| 240V PILOT LIGHT | 351788-18-1 | $25.75 |
| RECTANGULAR POWER SWITCH 240V | 352740-1 | $9.06 |
| Control Knob | 351788-06-1 | $6.18 |
| HI-LIMIT THERMOSTAT | 351788-02-1 | $10.82 |
| 30LB BODY ASSM | 351816-04-1 | $643.54 |
| Kit, Foot, 1.00" OD, 20Mm LG | 351775-1 | $6.87 |
| Kit, Foot, 1.00" OD, 20Mm LG | 351775-1 | $6.87 |
