6951020
Discontinued120-volt Commercial-Series countertop induction range
This device complies with Part 18 of the FCC Rules
This symbol represents products that are certified to meet safe levels of radiofrequency radiation based on FCC regulations.
This symbol represents products that are certified to safely perform its job as intended. This product has earned this certification by undergoing rigorous testing against standards developed by UL.
The Vollrath® Commercial-Series induction range is designed for low-volume usage. The 9-setting digital display is versatile, easy to use and even easier to clean. And, without knobs, you don’t have to worry about accidental temperature adjustments. Automatic shutoff safety features save energy and extend the life of the unit. The rear bracket protects the cord and provides ample countertop ventilation, and the durable stainless steel body is built to last. This compact, low-wattage induction range is perfect for your restaurant, cafe or hotel, and it comes with a 1-year parts and labor limited warranty.
- Designed for presentation cooking, omelet stations, warming stations and other low-wattage applications
- FCC Part 18-approved; ETL approval on all models
- 9-setting digital display provides versatility
- Fits pans with a bottom diameter of 10¼ inch or less
- 6-foot cord and plug
- Maximum pan diameter is provided as a guideline for achieving maximum performance. Other factors impact performance including pan construction material, the density and volume of the food in the pan, ambient temperature and food temperature.
Product Specifications
Model Information
| Name | Value |
|---|---|
| UPC | 029419630943 |
Unit Dimensions
| Name | Value |
|---|---|

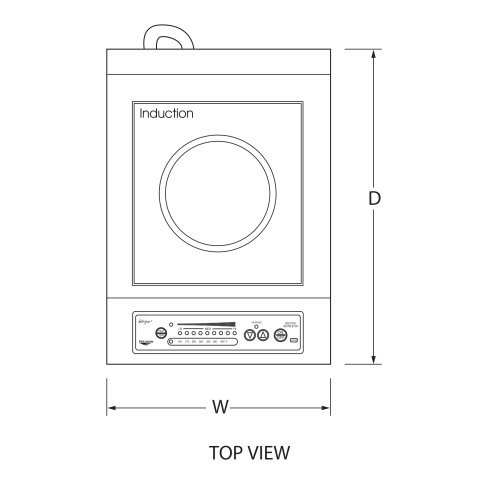

| Overall Dimensions (IN) | 13.125 x 16.5 x 4 |
| (W) Width (IN) | 13.12 |
| (D) Depth (IN) | 16.5 |

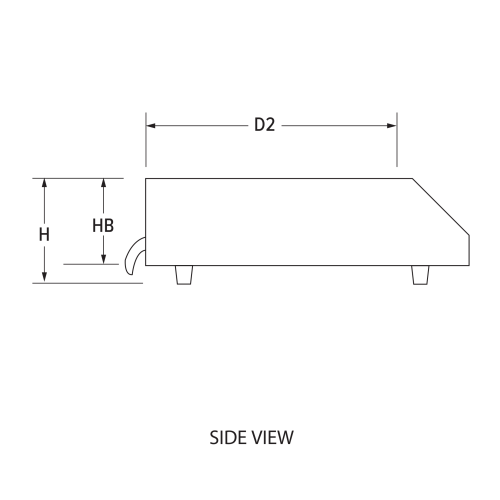

| (D2) Secondary Depth (IN) | 13.875 |
| (H) Height (IN) | 4 |
| (MPD) Minimum Pan Bottom Diameter (IN) | 4.75 |
| (HB) Height of Body (IN) | 3.12 |
| Overall Dimensions (CM) | 33.3 x 41.9 x 10.2 |
| (W) Width (CM) | 33.3 |
| (D) Depth (CM) | 41.9 |
| (D2) Secondary Depth (CM) | 34.6 |
| (H) Height (CM) | 10.2 |
| (MPD) Minimum Pan Bottom Diameter (CM) | 12.1 |
| (HB) Height of Body (CM) | 8.3 |
Electrical
| Name | Value |
|---|---|
| Amps | 12 |
| Cord Length (IN) | 72 |
| Cord Length (CM) | 183 |
| Hz | 60 |
| kW | 1.4 |
| Plug | NEMA 5-15P |
| Voltage | 120 |
| Watts | 1400 |
Construction
| Name | Value |
|---|---|
| Construction Material | Stainless Steel |
| Construction Material 2 | Electrical Components |
| Countertop or Drop-In | Countertop |
Case Lot Measurement
| Name | Value |
|---|---|
| Case Lot | 1 |
| Case Width | 16.5 |
| Case Height | 7.75 |
| Case Length | 21 |
| Case Lot Cube (ft.) | 1.4 |
| Case Lot Weight (lbs.) | 16.64 |
Product Downloads
CAD / REVIT
For the most updated list for Vollrath products and CAD drawings
