40822
Discontinued24-hot dog 120-volt Cayenne® roller grill
This symbol represents products that have met the minimum requirements of prescribed product safety standards. The symbol also indicates that the manufacturer’s production site conforms to a range of compliance measures and is subject to periodic follow up inspections to verify continued conformance.
The Vollrath® Cayenne roller grill has a 360-degree rotation that consistently cooks and heats a variety of food items. Front and rear temperature controls allow for multiple products to be cooked at one time. The stainless steel body, nine stainless steel rollers, and removable drip pan all make cleaning easy and efficient. The compact size saves valuable counter space.
- Ideal for hot dogs, brats, taquitos, and more
- Durable stainless steel rollers provide years of quality service
- Breath guards are available, sold separately
- 360-degree rotation evenly heats and cooks food
- Nine rollers easily fit up to 24 hot dogs
Product Specifications
Model Information
| Name | Value |
|---|---|
| Model | HDR5009 |
| UPC | 029419720378 |

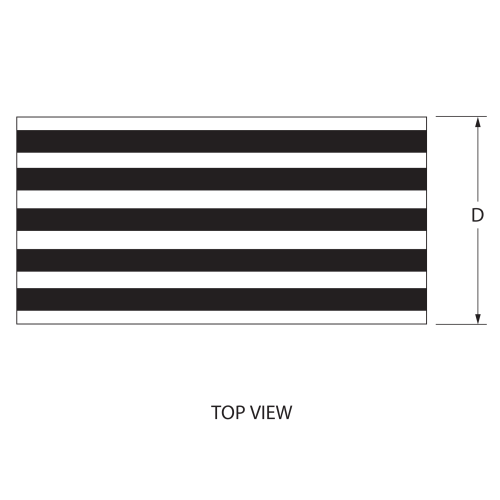

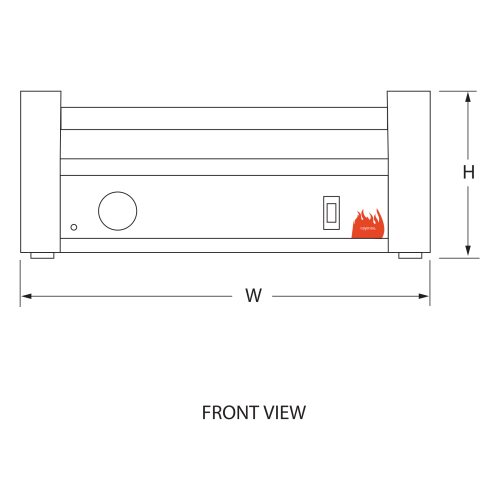

Unit Dimensions
| Name | Value |
|---|---|
| Overall Dimensions (IN) | 23 x 16 x 10 |
| (W) Width (IN) | 23 |
| (D) Depth (IN) | 16 |
| (H) Height (IN) | 10 |
| Overall Dimensions (CM) | 58.4 x 40.6 x 25.4 |
| (W) Width (CM) | 58.4 |
| (D) Depth (CM) | 40.6 |
| (H) Height (CM) | 25.4 |
| Size | 24 |
Electrical
| Name | Value |
|---|---|
| Amps | 6 |
| Cord Length (IN) | 48 |
| Cord Length (CM) | 120 |
| Plug | NEMA 5-15P |
| Voltage | 120 |
| Watts | 720 |
Construction
| Name | Value |
|---|---|
| Countertop or Drop-In | Countertop |
Case Lot Measurement
| Name | Value |
|---|---|
| Case Lot | 1 |
| Case Width | 17.75 |
| Case Height | 10.25 |
| Case Length | 25.25 |
| Case Lot Cube (ft.) | 2.66 |
| Case Lot Weight (lbs.) | 34.46 |
Product Accessories
| Name | Item # |
|---|---|
| Breath Guards for Hot Dog Roller Grills | 40825 |
Product Parts
| Name | Part # | Price |
|---|---|---|
| MOTOR HDR5005/HDR5007/HDR5009 | XHDR5010 | $332.79 |
| DRIVE SPROCKET HOT DOG GRILLRS | XHDR5009 | $28.00 |
| ROLLER SEAL | XHDR5031 | $12.20 |
| ENERGY REGULATOR SKA7011 (#14) | XSKA0011 | $92.50 |
| CONNECTOR BLOCK | XHDR5033 | $7.90 |
| CABLE RESTRAINT (FMA SKA FFA) | XAA0012 | $11.70 |
| PILOT LIGHT 110V (YELLOW) | XAA0011 | $9.94 |
| CONTROL KNOB OUTER RING (0-3) | XHDR5011 | $10.70 |
| POWERCORD 120V (NEMA5-15P) | XAA0005 | $50.20 |
| ELEMENT HDR5007/HDR5007/HDR500 | XHDR5007 | $37.40 |
| RUBBER FOOT FFA8115/FFA8130 ( | XFFA8011 | $10.70 |
