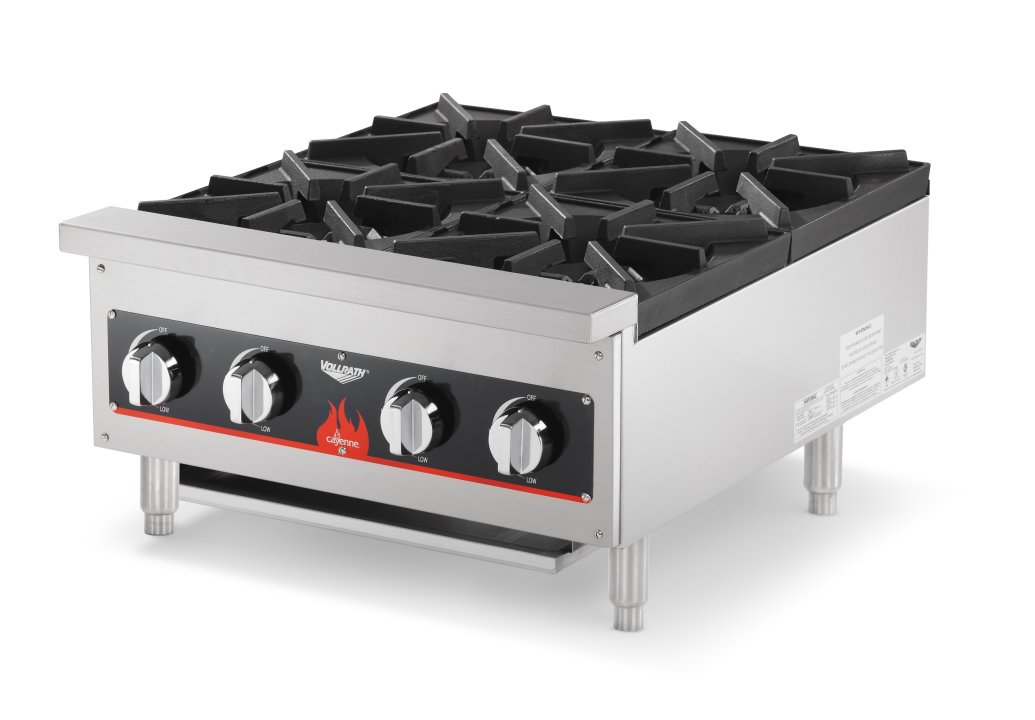

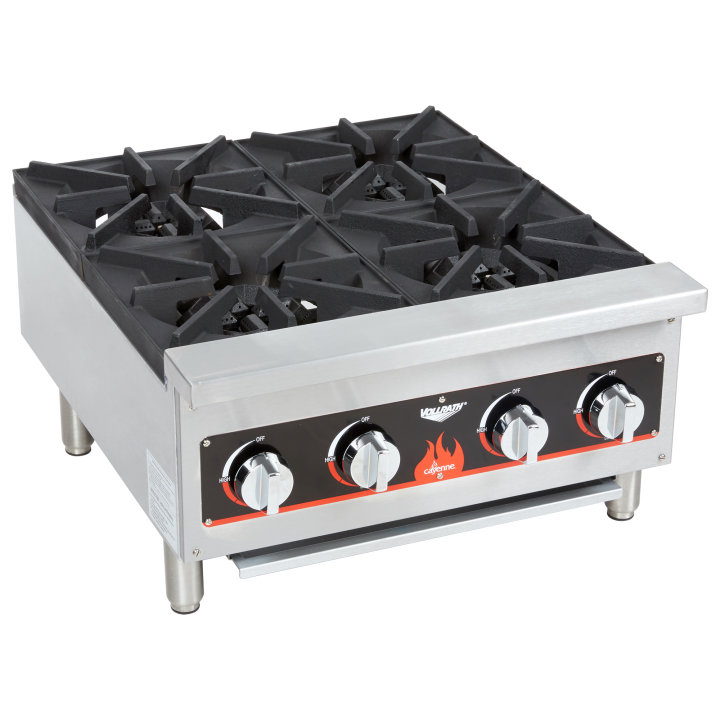

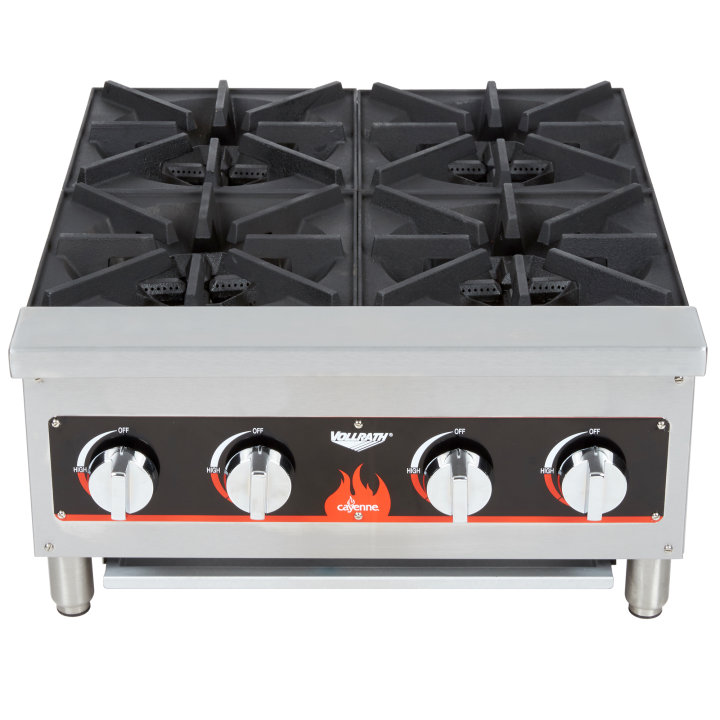

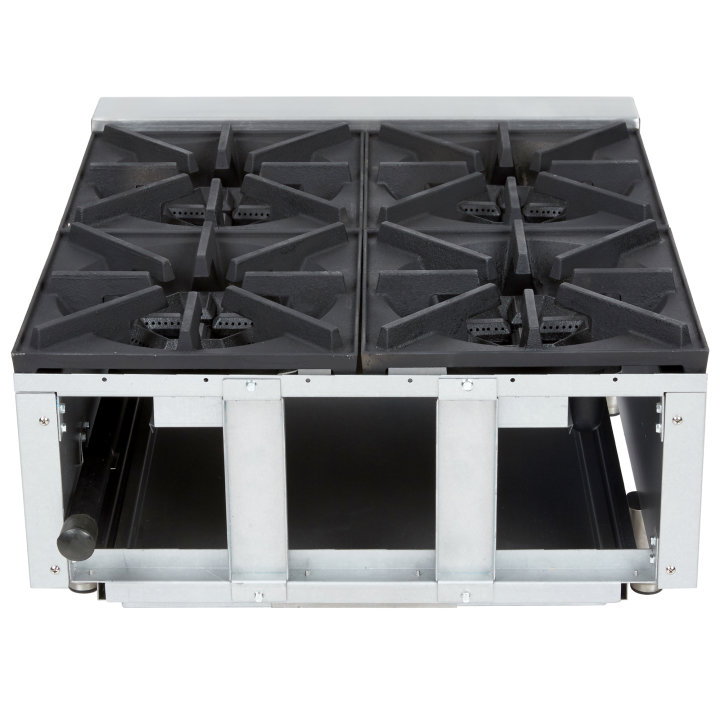

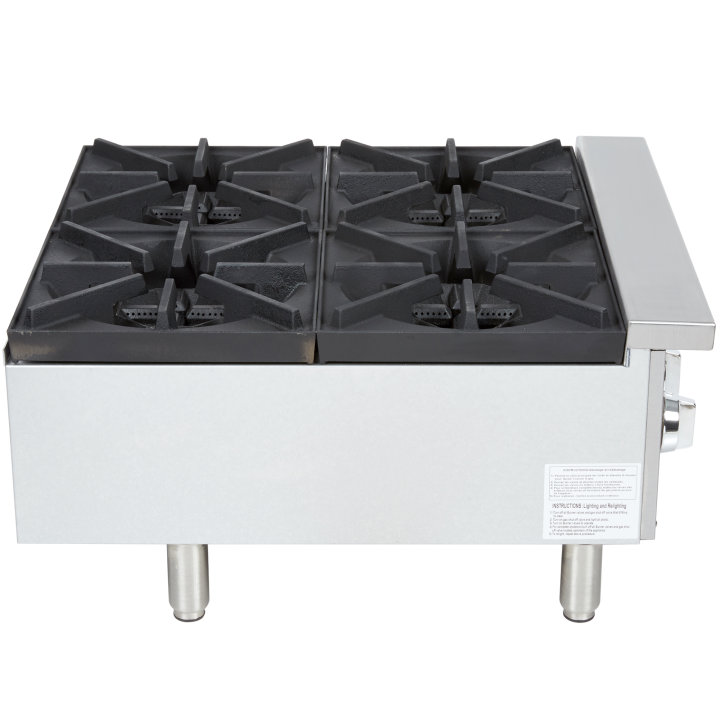

24-inch 4-burner Cayenne® countertop gas hot plate

This symbol represents products that have met the minimum requirements of prescribed product safety standards. The symbol also indicates that the manufacturer’s production site conforms to a range of compliance measures and is subject to periodic follow up inspections to verify continued conformance.

$1537.74 MSRP

$2,562.90 List Price

View New Replacement Product

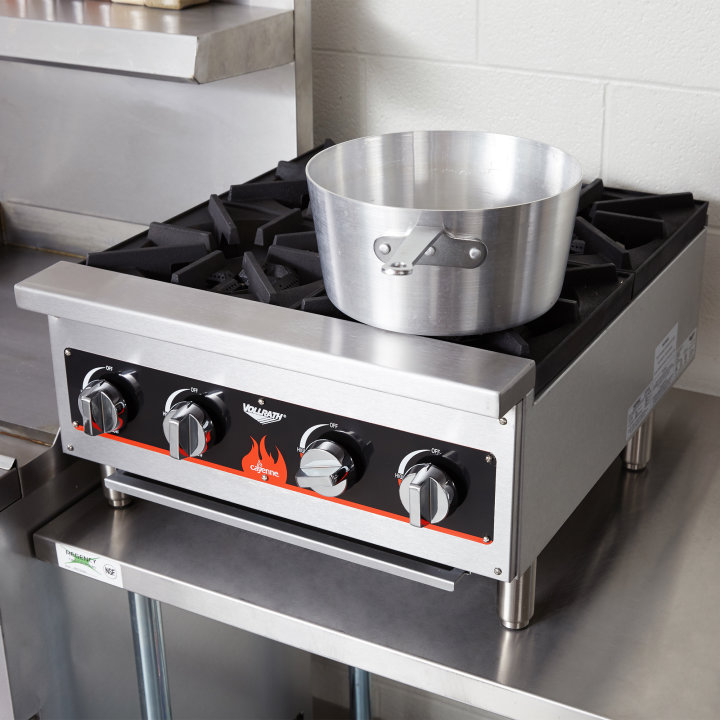

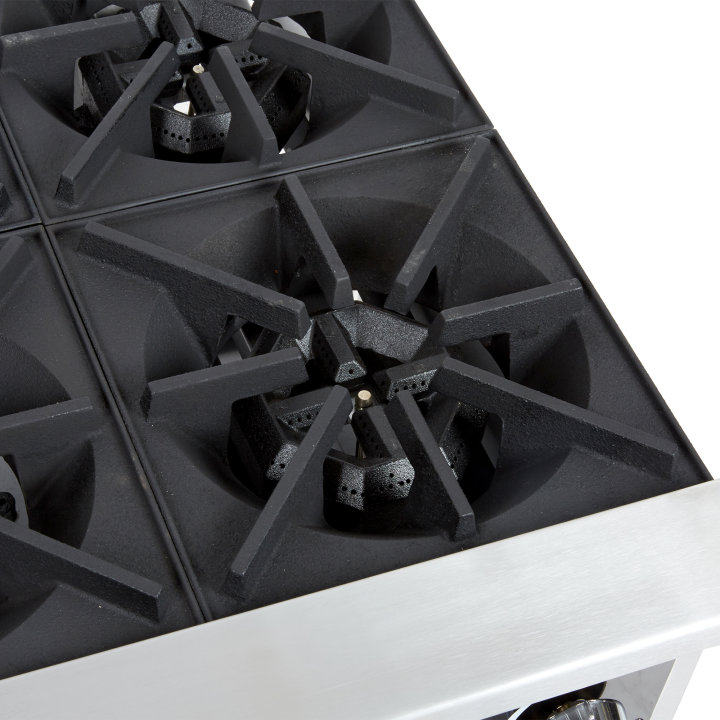

The Vollrath® Cayenne gas hot plate is powerful, compact and convenient. The body of this unit is constructed of durable stainless and aluminized steel. It features four burners with separate grates for easier cleaning. Each burner has an independent control knob, allowing you to cook multiple foods at one time. The metal knobs are made to resist cracking, protecting the interior gas valves. This powerful unit works quickly, evenly distributing heat for superior cooking. A front opening makes lighting pilot lights easy, and a full-width stainless steel drip pan simplifies the cleaning process. With 26,000-BTU per burner, this hot plate is sure to impress.

Designed for a variety of foods, stews, and sauces
Durable stainless and aluminized steel body is built to last
Bullnose design prevents burns
Strong metal knobs are guaranteed for life
Heavy-duty legs allow leveling adjustments to provide maximum stability
Shipped setup for natural gas — includes kit with regulator for field conversion to propane
26,000-BTU per burner

24-inch 4-burner Cayenne® countertop gas hot plate Inspiration

Product Specifications

Model Information

Name	Value
Model	HPA1004
UPC	029419719402

Gas Specifications

Name	Value
Output (BTU)	104000
Number of Burners	4
Pilot Type	Standing

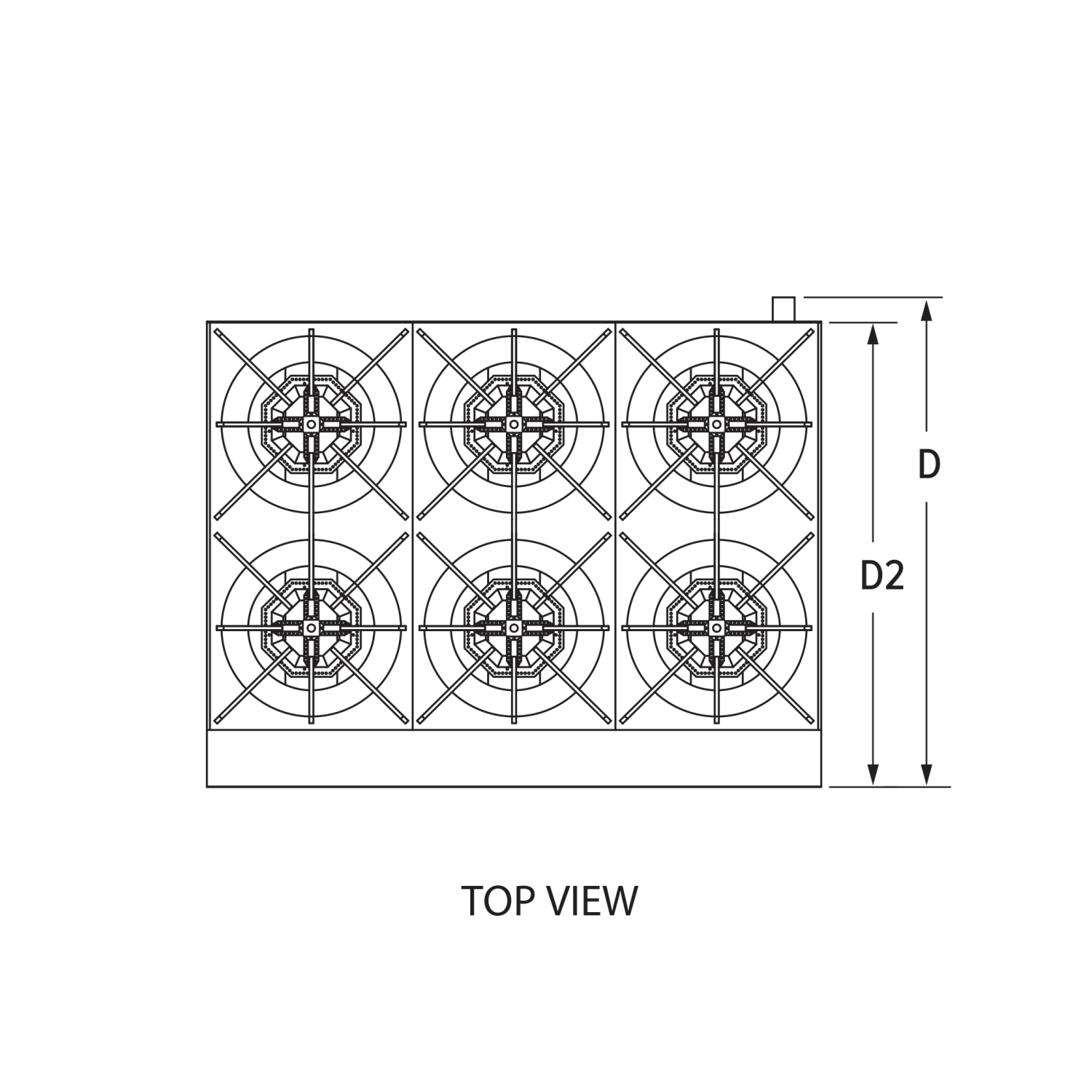

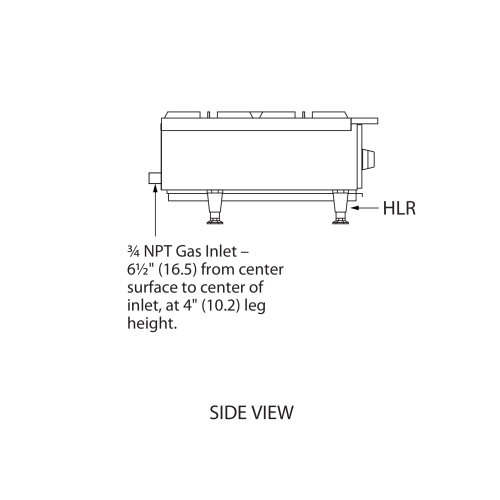

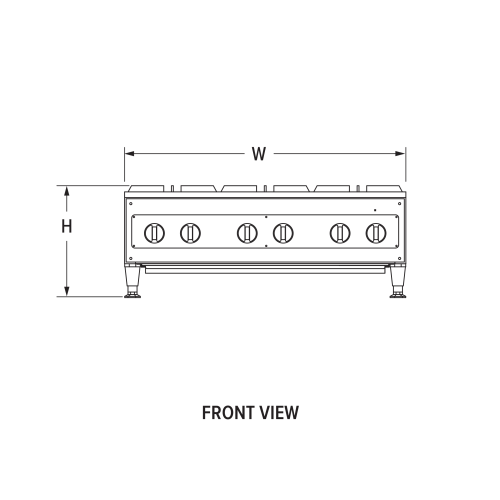

Unit Dimensions

Name	Value
Overall Dimensions (IN)	23.625 x 27 x 13.375
(W) Width (IN)	23.62
(D) Depth (IN)	29.25
(D2) Secondary Depth (IN)	27
(H) Height (IN)	13.25
(HLR) Adjustable Legs (IN)	4 - 5.5
Overall Dimensions (CM)	60 x 68.6 x 34
(W) Width (CM)	60
(D) Depth (CM)	74.3
(D2) Secondary Depth (CM)	68.6
(H) Height (CM)	33.66
(HLR) Adjustable Legs (CM)	10.2 - 14
Size	24

Construction

Name	Value
Countertop or Drop-In	Countertop
Control Type	Manual
Number of Controls	4

Additional Specifications

Name	Value
Number of Drip Trays	1

Case Lot Measurement

Name	Value
Case Lot	1
Case Width	29.75
Case Height	18.5
Case Length	32.5
Case Lot Cube (ft.)	10.35
Case Lot Weight (lbs.)	169.0

Product Accessories

Name	Item #
24-inch heavy-duty mobile equipment stand	4087924

Product Parts

Name	Part #	Price
LEG GAS APPLIANCE	XFTG9012	$98.37
PILOT W/TUBING (FRONT BURNER)	XHPA0004	$24.21
DRIP TRAY	XHPA0015	$131.84
PILOT W/TUBING (REAR BURNER) H	XHPA0005	$50.47
CONTROL SAFETY VALVE FTG/CBL/	XFTG9002	$59.84
JET NAT 2.40 #40	XFTG9007	$15.97
3/4" NPT MANUAL BALL VALVE	XCGC0018	$53.35
CONTROL KNOB - GAS FTG/CB	XFTG9010	$24.72
PILOT VALVE HPA1002/1004/1006	XHPA0003	$36.26
HPA BURNER (LONG VENTURE)	XHPA0007	$319.40
TOP GRATE OVER BURNER FR 40738	XHPA0009	$165.42
REGULATOR 4IN WC	353374-1	$185.40
HPA BURNER (SHORT VENTURE)	XHPA0006	$237.72
