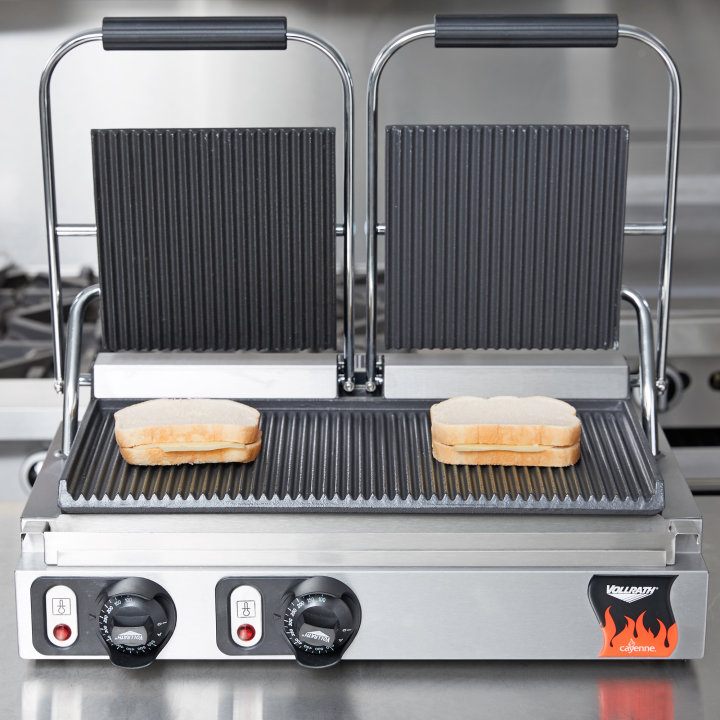

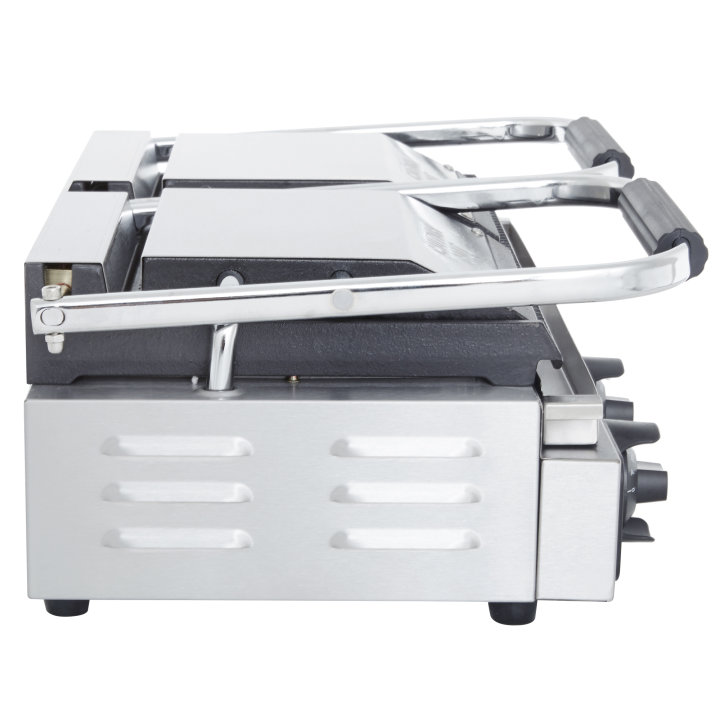

Double 208- to 240-volt Cayenne® sandwich press with panini-style, cast-iron plates
Double 208- to 240-volt Cayenne® sandwich press with panini-style, cast-iron plates
Double 208- to 240-volt Cayenne® sandwich press with panini-style, cast-iron plates
Double 208- to 240-volt Cayenne® sandwich press with panini-style, cast-iron plates
Double 208- to 240-volt Cayenne® sandwich press with panini-style, cast-iron plates

40795-C

Discontinued

Double 208- to 240-volt Cayenne® sandwich press with panini-style, cast-iron plates

  • National Sanitation Foundation
  • Intertek ETL

    This symbol represents products that have met the minimum requirements of prescribed product safety standards. The symbol also indicates that the manufacturer’s production site conforms to a range of compliance measures and is subject to periodic follow up inspections to verify continued conformance.

$1366.62 MSRP Manufacturer Suggested Retail Price (MSRP) is a predetermined percentage off of list price (shown is US Dollars) and is valid for vollrathfoodservice.com and the United States and Canada only. Dealer pricing may differ. These prices do not include potential shipping costs. Any sales tax applicable will be added to the final price upon quote or purchase.
$2,277.70 List Price List price (shown is US Dollars) is valid for vollrathfoodservice.com and the United States and Canada only. Dealer pricing may differ. These prices do not include potential shipping costs. Any sales tax applicable will be added to the final price upon quote or purchase.

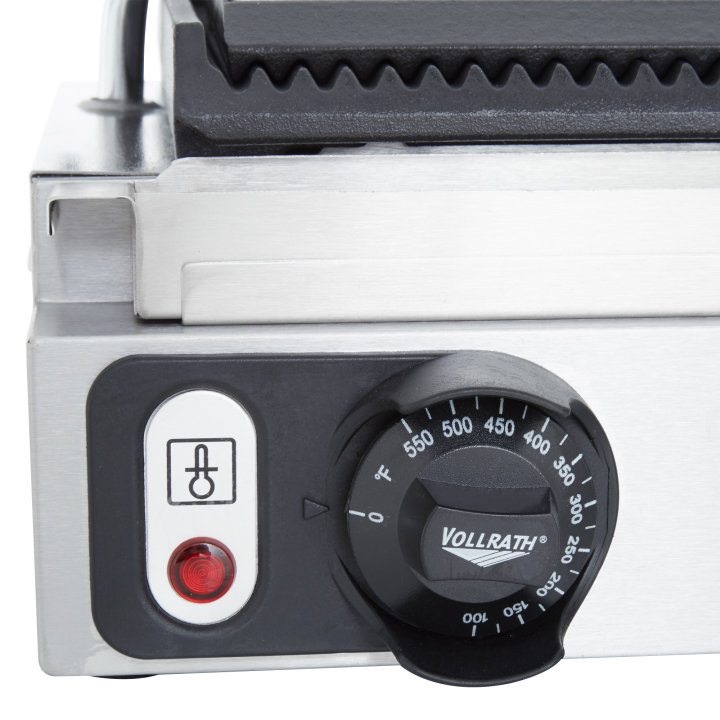

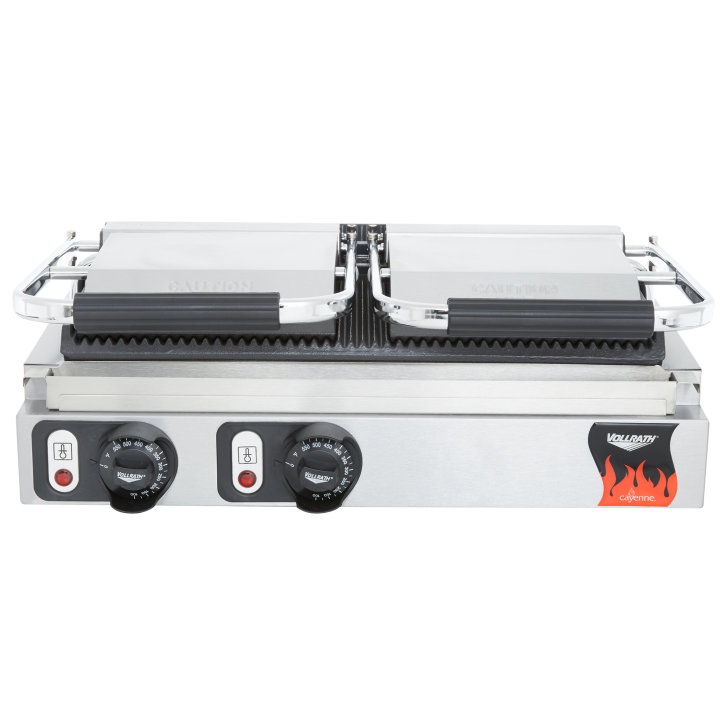

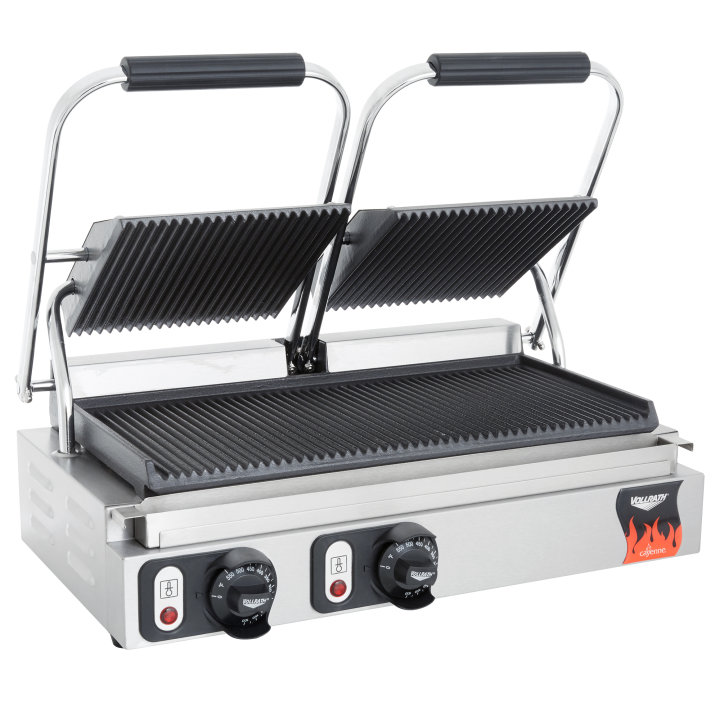

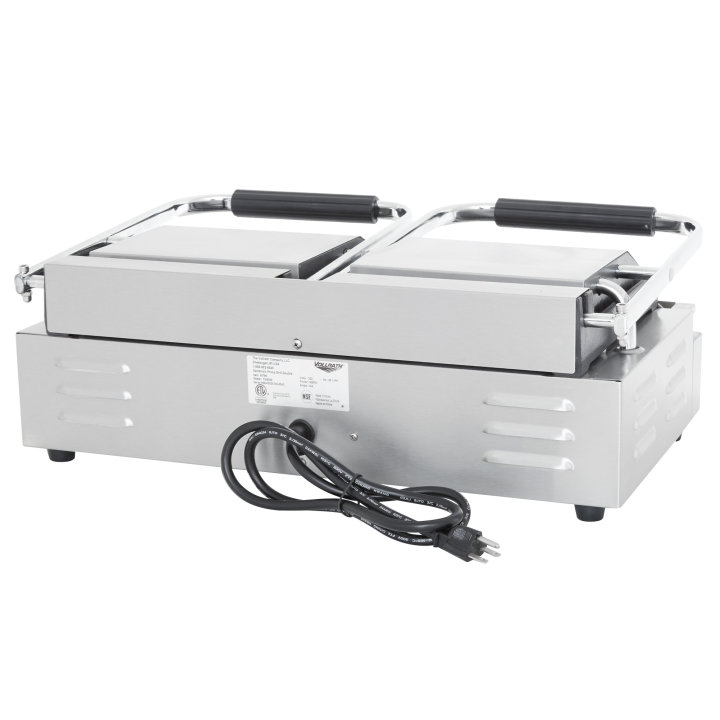

The Vollrath® Cayenne sandwich press quickly and evenly cooks a variety of food items. Made out of heavy-duty cast iron to maintain heat, both the top and bottom plates have grooves that create mouthwatering grill lines. This sandwich press has a high power output and is built to last. It is a versatile addition to your kitchen, as both sides of this press can be operated independently. This allows you to cook two different foods at once, and the thermostatic controls ensure consistent results. Inset heating element channels create greater heating efficiency, and the stainless steel exterior gives everything a smooth finish.

  • Excellent choice for sandwiches, paninis, meats, vegetables and more
  • Double unit features separate controls for each side, increasing productivity by allowing you to cook two foods at one time
  • Ribbed top and bottom plates create panini-style presentation
  • Adjustable handle changes press height, so you can evenly cook any order
  • Brush included to make cleaning easy and efficient
  • 120°F to 470°F temperature range
Double 208- to 240-volt Cayenne® sandwich press with panini-style, cast-iron plates Inspiration
Double 208- to 240-volt Cayenne® sandwich press with panini-style, cast-iron plates Inspiration

Product Specifications

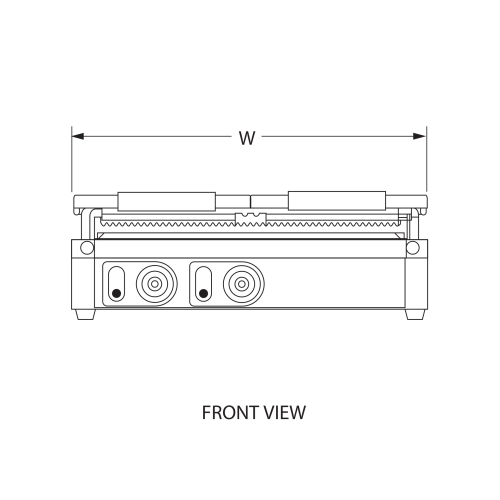

Engineering front view
Engineering side view
Engineering top view
Model Information
Name Value
Model TSI8002-C
UPC 029419917662
Unit Dimensions
Name Value
Overall Dimensions (IN) 22.5 x 15 x 8.062
(W) Width (IN) 22.5
(D) Depth (IN) 15
(D2) Secondary Depth (IN) 14.5
(H) Height (IN) 8.06
Overall Dimensions (CM) 57.2 x 38.1 x 20.6
(W) Width (CM) 57.2
(D) Depth (CM) 38.1
(D2) Secondary Depth (CM) 36.8
(H) Height (CM) 20.6
Electrical
Name Value
Amps 13 - 15
Cord Length (IN) 48
Cord Length (CM) 120
Hz 60
Plug NEMA 6-20P
Voltage 208-240
Watts 2700 - 3600
Construction
Name Value
Countertop or Drop-In Countertop
Case Lot Measurement
Name Value
Case Lot 1
Case Width 17.75
Case Height 10
Case Length 26
Case Lot Cube (ft.) 2.67
Case Lot Weight (lbs.) 62.0
Product Parts
Name Part # Price
BRASS CLAMPING SADDLE TSI7001 XTSI2023 $16.10
THERMOSTAT TSI; TSA(ALL) (#43 XTSA0007 $253.40
POWERCORD 220V (NEMA6-15P) XAA0006 $40.40
CONTROL PANEL FASCIA - BLACK XAA0009 $28.10
HINGE AXLE FRONT TSI8002 (#5) XTSI3022 $38.90
PLUG-250V 20A NEMA 6-20P 26604-1 $37.60
HINGE AXLE REAR (WITH BOLTS) T XTSI3021 $37.30
VOLLRATH CONTROL KNOB TSI7001/ XTSI2015 $16.10
BOTTOM PLATE TSI8002 (#23) XTSI3006 $626.90
HINGE AXLE CIRCLIP TSI7001 (#2 XTSI2020 $3.10
PILOT LIGHT 220V (RED) XAA0002 $16.00
HANDLE SPRING TSI7001/TSI8002 XTSI2018 $29.70
RUBBER FOOT TSI7001(#3)TSI8002 XTSI2004 $3.50
PLASTIC HANDLE GRIP TSI8002 (# XTSI3020 $23.80
WIRE BRUSH TSI7009/TSI8012 (# XTSI0031 $30.30
CONNECTOR BLOCK TSA(ALL) SAA(A XTSA0005 $20.00
TOP ELEMENT(NEW TYPE) TSI8002 XTSI3007 $85.70
AXLE REAR COVER XTSI3024 $36.70
BOTTOM ELEMENT(NEW TYPE) TSI80 XTSI3008 $98.90
CABLE RESTRAINT (FMA SKA FFA) XAA0012 $9.70
DRIP TRAY XTSI3004 $54.90
TOP PLATE TSI8002 (#2) XTSI3005 $250.60
WIRING TUBE RIGHT TSI8002 XTSI2038 $40.30
STEEL HANDLE TSI8002 (#19) XTSI3019 $71.50
WIRING TUBE TSI8002 XTSI2037 $40.30
