DiscontinuedSupersized 120-volt Cayenne® sandwich press with smooth, natural-finish plates
This symbol represents products that have met the minimum requirements of prescribed product safety standards. The symbol also indicates that the manufacturer’s production site conforms to a range of compliance measures and is subject to periodic follow up inspections to verify continued conformance.

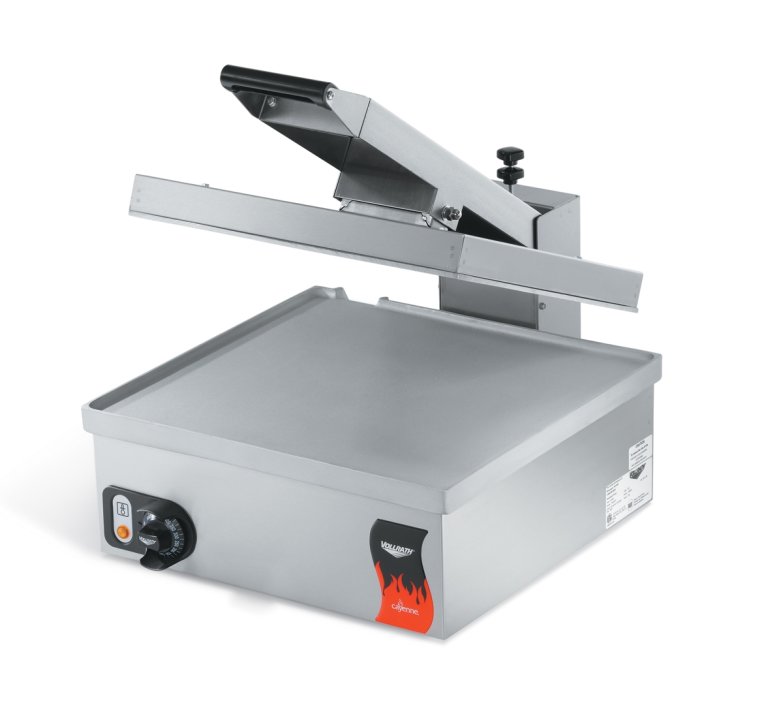

The Vollrath® supersized Cayenne sandwich press is a versatile addition to your kitchen. With an impressive cooking area of 17- x 15-inches, your options are endless. Made out of triple-layered aluminum, the flat plates are smooth and durable. While the plates quickly heat up and recover, the handle always stays cool to the touch. The handle is also adjustable, allowing you to change the press height, so you can evenly cook any order. Thermostatically controlled for consistent results, this sandwich press provides high-quality results every time.
- Excellent choice for sandwiches, paninis, meats, vegetables, tortillas, and more
- Durable aluminum plates heat and recover quickly for more efficient cooking
- Inset heating element channels create greater heating efficiency
- Smooth natural-finish plates are easy to wipe down and clean
- Adjustable handle changes press height, so you can evenly cook any order
- 17- x 15-inch cooking area is ideal for high-volume output
- 120°F to 470°F temperature range
Product Specifications
Model Information
| Name | Value |
|---|---|
| Model | TSA7012 |
| UPC | 029419719877 |
Unit Dimensions
| Name | Value |
|---|---|
| Overall Dimensions (IN) | 18.125 x 23.5 x 15.5 |
| (W) Width (IN) | 18.12 |
| (D) Depth (IN) | 23.5 |
| (H) Height (IN) | 15.5 |
| (WCS) Cooking Surface Width (IN) | 17.4375 |
| (DCS) Cooking Surface Depth (IN) | 15.625 |
| Overall Dimensions (CM) | 46 x 59.7 x 39.4 |
| (W) Width (CM) | 46 |
| (D) Depth (CM) | 59.7 |
| (H) Height (CM) | 39.4 |
| (WCS) Cooking Surface Width (CM) | 44.3 |
| (DCS) Cooking Surface Depth (CM) | 39.7 |
Electrical
| Name | Value |
|---|---|
| Amps | 15 |
| Cord Length (IN) | 48 |
| Cord Length (CM) | 120 |
| Hz | 60 |
| Plug | NEMA 5-15P |
| Voltage | 120 |
| Watts | 1800 |
Construction
| Name | Value |
|---|---|
| Construction Material | Stainless Steel |
| Construction Material 2 | Cast Aluminum Plates |
| Construction Material 3 | Electrical Components |
| Countertop or Drop-In | Countertop |
Case Lot Measurement
| Name | Value |
|---|---|
| Case Lot | 1 |
| Case Width | 21 |
| Case Height | 15.5 |
| Case Length | 26 |
| Case Lot Cube (ft.) | 5.28 |
| Case Lot Weight (lbs.) | 51.94 |
Product Parts
| Name | Part # | Price |
|---|---|---|
| HANDLE TOP ARM ONLY TSA7012/8 | XTSA0037 | $193.10 |
| HEIGHT ADJUSTER SCREW & KNOB( | XTSA0032 | $13.40 |
| THERMOSTAT TSI; TSA(ALL) (#43 | XTSA0007 | $253.40 |
| CONTROL PANEL FASCIA - BLACK | XAA0009 | $28.10 |
| TOP PLATE TSA7012/8012 (#17) | XTSA0044 | $861.40 |
| DRIP CUP TSA(ALL) (#26) | XTSA0002 | $50.40 |
| PLATED EYE BOLT M5 X 85MM | XTSA0016 | $10.10 |
| WIRING KIT 110V TSA(ALL) | XTSA0054 | $65.30 |
| CABLE RESTRAINT COA7001/7002/8 | XCOA1013 | $7.40 |
| BOTTOM PLATE COATED TSA7012/80 | XTSA2004 | $955.60 |
| PLATED EYE BOLT TSA7012/8012 ( | XTSA2003 | $7.90 |
| HANDLE SCREW M5-10 THREAD CUT | XTSA0051 | $10.00 |
| CONNECTOR BLOCK TSA(ALL) SAA(A | XTSA0005 | $20.00 |
| RUBBER GROMMET | XTSA1009 | $14.00 |
| POWERCORD 120V (NEMA5-15P) | XAA0005 | $48.50 |
| HINGE AXEL M8 | XTSA1007 | $7.00 |
| CONTROL KNOB(0-570F) TSA(NON C | XTSA0010 | $15.80 |
| TOP ELEMENT 110V TSA7012 (#19 | XTSA0040 | $111.20 |
| PILOT LIGHT 110V (YELLOW) | XAA0011 | $9.60 |
| PLASTIC HANDLE GRIP TSA(ALL) | XTSA0003 | $54.10 |
| RUBBER FOOT COA7001/7002/8004/ | XCOA1012 | $17.90 |
| BOTTOM ELEMENT 110V TSA7012 ( | XTSA0038 | $129.50 |
| VOLLRATH CONTROL KNOB TSA7009/ | XTSA0015 | $16.00 |
| 12 SLICE TOASTER HANDLE | XTSA1008 | $22.60 |
| HANDLE SPRING TSA(ALL) (# 30) | XTSA0001 | $10.70 |
