PSG4-SSF120-C
120-volt super-size panini sandwich grill with aluminum flat plates and NEMA 5-20P Plug
Classified by UL to NSF/ANSI 4
This symbol represents products that are certified to meet specific environmental and public health standards. The UL EPH Mark is recognized and accepted as a trusted source for assessing the sanitary design, construction and performance of commercial food equipment. If it shows the word “Classified” above the UL mark, then the product also complies with ANSI/NSF regulations.
This symbol represents products that are certified to safely perform its job as intended. This product has earned this certification by undergoing rigorous testing against standards developed by UL.

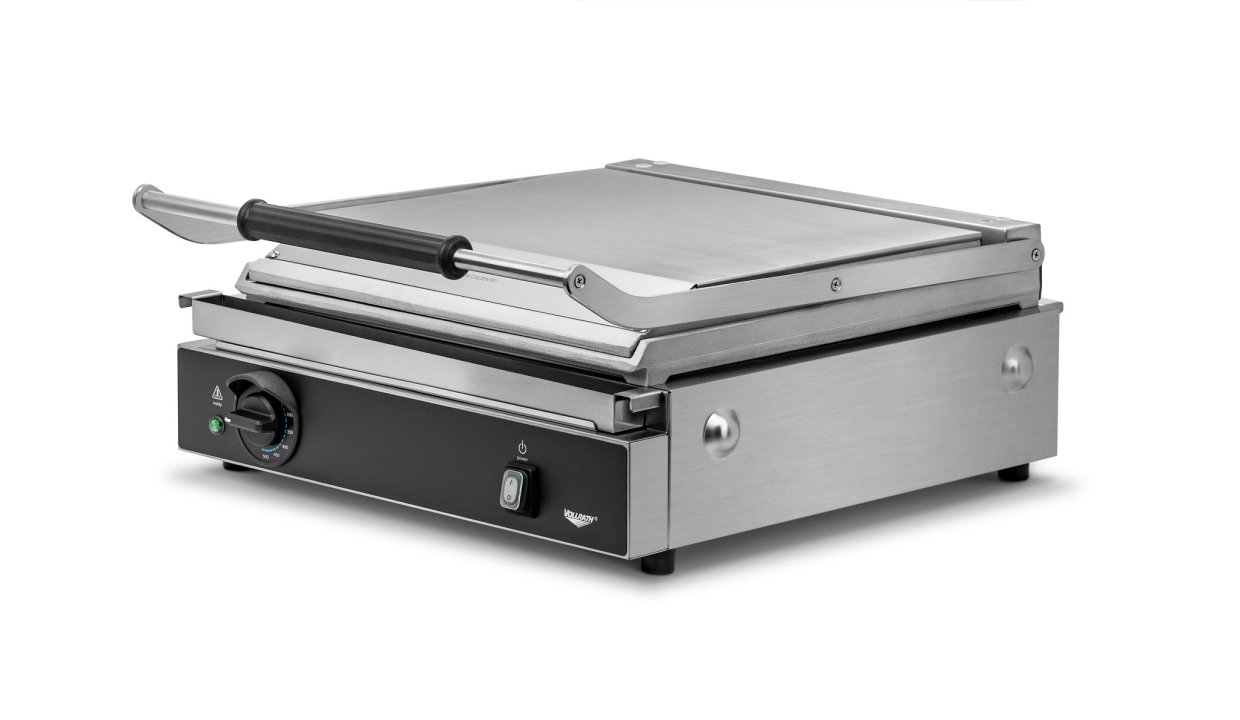

Take sandwiches to the next level with this Vollrath® panini sandwich grill. Its super-sized cooking area with smooth aluminum plates heats quickly, evenly and precisely for consistently amazing results. The pivot-action top plate adjusts to food thickness for an even press - perfect for warming tortillas, flatbread, pitas, and naan. And it doubles as a grill for fish, chicken, meats and vegetables, bringing outstanding versatility to your commercial kitchen.
- High-power heating element is efficient and consistent
- Natural-finish aluminum plates heat up quickly and evenly
- Thermostatically controlled temperature range is 125°F to 500°F
- Power switch and ready lights remove the guesswork
- Low-profile brushed stainless design fits seamlessly in any kitchen
- Cooking area is 17- x 16-in (43.18- x 40.64-cm)
Product Specifications
Model Information
| Name | Value |
|---|---|
| Model | TS17021-C |
| UPC | 029419520541 |
Unit Dimensions
| Name | Value |
|---|---|
| (W) Width (IN) | 21 |
| (D) Depth (IN) | 22.625 |
| (H) Height (IN) | 9.875 |
| Product Opening Dimensions (IN) | 27.875 |
| (WCS) Cooking Surface Width (IN) | 17 |
| (DCS) Cooking Surface Depth (IN) | 16 |
| (W) Width (CM) | 53.3 |
| (D) Depth (CM) | 57.4 |
| (H) Height (CM) | 24.9 |
| Product Opening Dimensions (CM) | 70.8 |
| (WCS) Cooking Surface Width (CM) | 43.1 |
| (DCS) Cooking Surface Depth (CM) | 40.6 |
Electrical
| Name | Value |
|---|---|
| Amps | 15 |
| Hz | 50/60 |
| Plug | NEMA 5-20P |
| Voltage | 120 |
| Watts | 1800 |
Construction
| Name | Value |
|---|---|
| Product Function | Sandwich press |
Product Parts
| Name | Part # | Price |
|---|---|---|
| SSSHP HANDLE KIT | 354094-1 | $216.30 |
| 5-20 POWER CORD W/ STRN RELIEF | 354096-1 | $60.30 |
| SSSHP PANINI BEZEL & OVERLAY | 354195-1 | $50.60 |
| 350C HIGH LIMIT THERMOSTAT | 352751-1 | $48.20 |
| M6X25 PIN | 352775-1 | $30.10 |
| SHAFT SLEEVE | 352776-1 | $12.10 |
| 300C REGULATING THERMOSTAT | 352750-1 | $48.20 |
| SSSHP TOP HEATING ELEMENT | 352756-1 | $180.80 |
| SSSHP FLAT TOP PLATE | 352749-05-1 | $361.50 |
| TENSIONER SILICONE PLUG | 352764-1 | $37.40 |
| HANDLE SPRING | 352761-1 | $48.20 |
| SSSHP HINGE AXLE BACK | 352747-09-1 | $108.50 |
| HI-LIMIT THERMOSTAT COVER | 351788-03-1 | $10.40 |
| Control Knob | 351788-06-1 | $7.20 |
| TENSIONER | 352759-1 | $72.30 |
| SSSHP DRIP TRAY | 352747-07-1 | $96.40 |
| SSSHP BTM HEATING ELEMENT | 352755-1 | $192.80 |
| SSSHP FLAT BOTTOM PLATE | 352747-13-1 | $325.40 |
| 120V PILOT LIGHT | 351788-17-1 | $30.10 |
| Kit, Foot, 1.00" OD, 20Mm LG | 351775-1 | $8.00 |
| Kit, Foot, 1.00" OD, 20Mm LG | 351775-1 | $8.00 |
| SSSHP OVERLAY | 352747-01-1 | $48.20 |
| LEFT WIRE TUBE | 352758-1 | $72.30 |
| RECT POWER SWITCH 120V DPST -P | 354099-1 | $11.90 |
