40700
Discontinued208- to 240-volt Cayenne® countertop cheese melter
This symbol represents products that are certified to safely perform its job as intended. This product has earned this certification by undergoing rigorous testing against standards developed by UL.

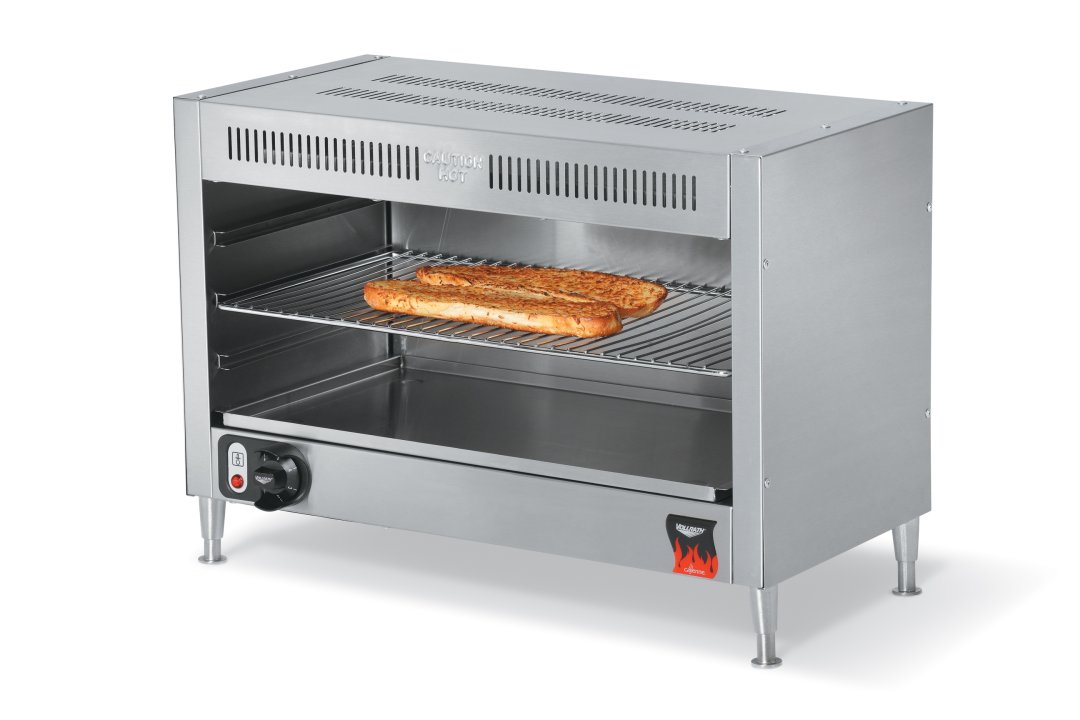

The Vollrath® Cayenne countertop cheese melter is ideal for any medium-volume restaurant or bar, thanks to its versatility. With cheese melting, grilling, roasting, browning, and warming functions, this unit helps prepare a variety of foods. Three optional shelf heights allow you to fit foods of different sizes, as well as control the distance between the plate and the heating elements. Whether you want to prepare nachos, garlic bread, sandwiches or something else, this compact cheese melter will help you perfect any dish.
- Ideal for nachos, garlic bread, sandwiches, and more
- Durable stainless steel exterior built to last
- Crumb tray slides out for easy cleaning
- Optional removable back creates a pass-through unit for increased versatility
- Three shelf heights allow for a variety of foods and control distance between plate and heating elements
Product Specifications
Model Information
| Name | Value |
|---|---|
| Model | SAA8003 |

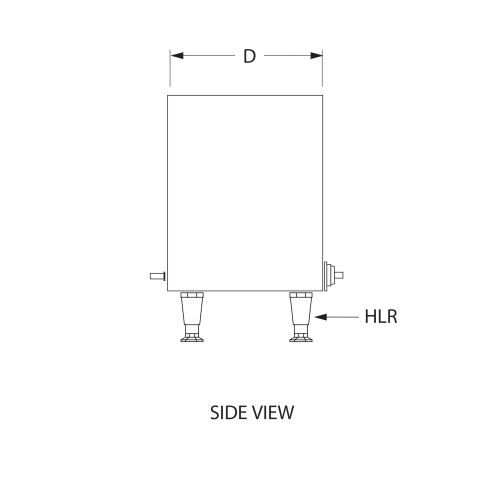

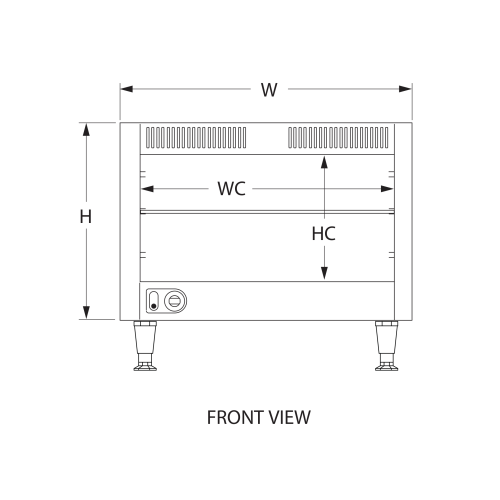

Unit Dimensions
| Name | Value |
|---|---|
| Overall Dimensions (IN) | 28.125 x 14 x 17.25 |
| (W) Width (IN) | 28.12 |
| (D) Depth (IN) | 14 |
| (H) Height (IN) | 17.25 |
| (HLR) Adjustable Legs (IN) | 4 - 5.5 |
| (WC) Cooking Chamber Width (IN) | 25.5 |
| (DC) Cooking Chamber Depth (IN) | 13 |
| (HC) Cooking Chamber Height (IN) | 10.5 |
| Overall Dimensions (CM) | 74 x 35.6 x 43.8 |
| (W) Width (CM) | 74 |
| (D) Depth (CM) | 35.6 |
| (H) Height (CM) | 43.8 |
| (HLR) Adjustable Legs (CM) | 10.2 - 14 |
| (WC) Cooking Chamber Width (CM) | 64.8 |
| (DC) Cooking Chamber Depth (CM) | 33 |
| (HC) Cooking Chamber Height (CM) | 26.7 |
Electrical
| Name | Value |
|---|---|
| Amps | 10.1 - 11.7 |
| Cord Length (IN) | 48 |
| Cord Length (CM) | 120 |
| Plug | NEMA 6-15P |
| Voltage | 208 - 240 |
| Watts | 2100 - 2800 |
Construction
| Name | Value |
|---|---|
| Countertop or Drop-In | Countertop |
Case Lot Measurement
| Name | Value |
|---|---|
| Case Lot | 1 |
| Case Width | 21 |
| Case Height | 18 |
| Case Length | 32.5 |
| Case Lot Cube (ft.) | 6.84 |
| Case Lot Weight (lbs.) | 37.0 |
Product Accessories
| Name | Item # |
|---|---|
| 36-inch equipment stand | 40741 |
Product Parts
| Name | Part # | Price |
|---|---|---|
| ENERGY REGULATOR WHITE SAA8003 | XSAA1011 | $75.71 |
| LEG-ADJUSTABLE 1060-0631-1120 | 26673-1 | $37.10 |
| POWERCORD 220V (NEMA6-15P) | XAA0006 | $41.81 |
| CONTROL PANEL FASCIA - BLACK | XAA0009 | $29.08 |
| CABLE RESTRAINT COA7001/7002/8 | XCOA1013 | $7.62 |
| PILOT LIGHT 220V (RED) | XAA0002 | $16.56 |
| CONNECTOR BLOCK TSA(ALL) SAA(A | XTSA0005 | $20.60 |
| INCOLLOY ELEMENT SAA8003 (#1) | XSAA0006 | $250.70 |
| CRUMB TRAY SAA8003 (#2) | XSAA0008 | $106.50 |
| SHELF SAA8003 (#6) | XSAA0007 | $76.01 |
Product Downloads
CAD / REVIT
For the most updated list for Vollrath products and CAD drawings
