CM2-12020
20-inch 120-volt cheese melter
This symbol represents products that are certified to safely perform its job as intended. This product has earned this certification by undergoing rigorous testing against standards developed by UL.
$967.38
MSRP
Manufacturer Suggested Retail Price (MSRP) is a predetermined percentage off of list price (shown is US Dollars) and is valid for vollrathfoodservice.com and the United States and Canada only. Dealer pricing may differ. These prices do not include potential shipping costs. Any sales tax applicable will be added to the final price upon quote or purchase.
$1,612.30
List Price
List price (shown is US Dollars) is valid for vollrathfoodservice.com and the United States and Canada only. Dealer pricing may differ. These prices do not include potential shipping costs. Any sales tax applicable will be added to the final price upon quote or purchase.

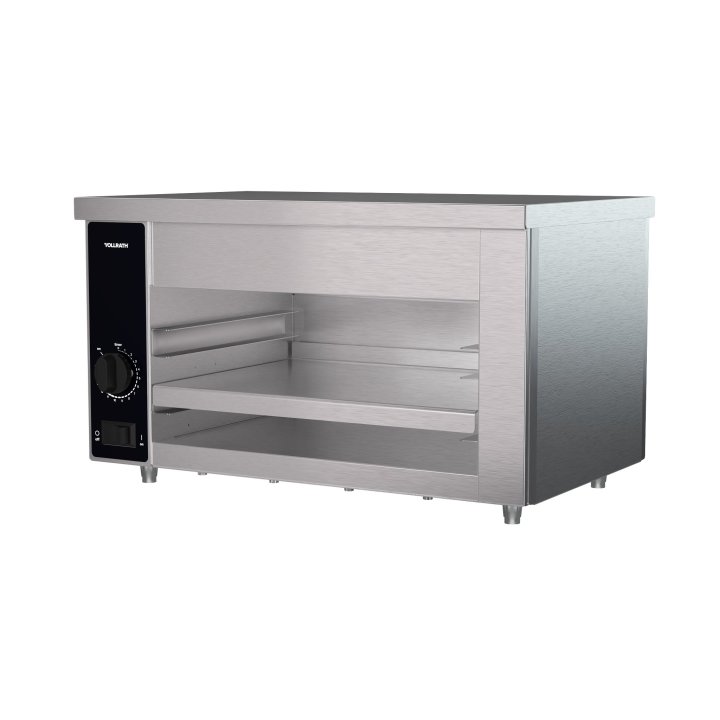

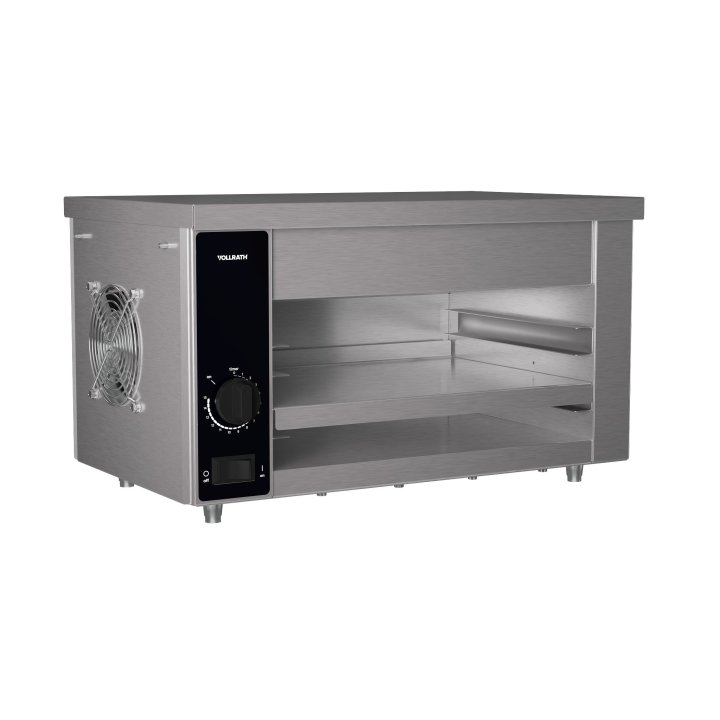

The 20-inch cheese melter by Vollrath is ideal for any medium-volume restaurant or bar. The energy-efficient quartz heating elements are fast and powerful, while the standby mode saves energy when the unit is not in use. Optional shelf heights fit a variety of foods, as well as control the distance between the plate and the heating elements, and the 13-inch opening fits one 10- or 12-inch plate.
- Finish or melt cheese on top of a variety of items like garlic bread, sandwiches or nachos
- Durable stainless steel exterior is built to last
- Energy efficient quartz heaters react to changes quickly
- Standby mode reduces energy use up to 50 percent
- 13-inch-wide opening easily fits one 10- or 12-inch plate
- Shelf can be placed in any of 5 positions to adapt to the needs of different dishes
Product Specifications
Model Information
| Name | Value |
|---|---|
| Model | JW1 |
| UPC | 671080720357 |

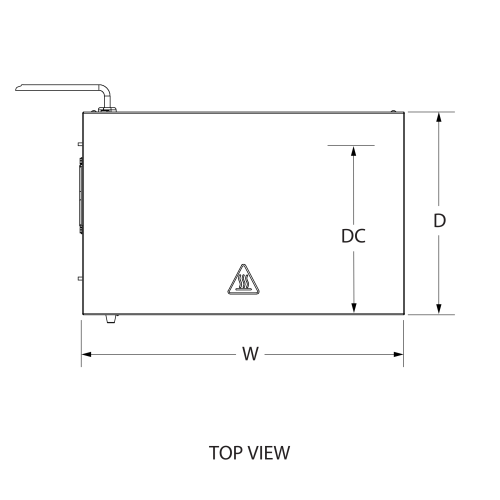

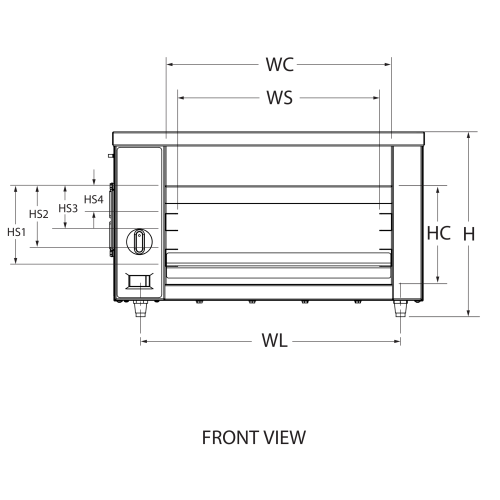

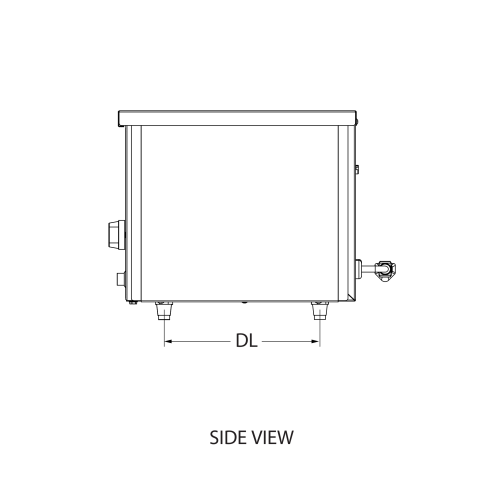

Unit Dimensions
| Name | Value |
|---|---|
| Overall Dimensions (IN) | 19.25 x 12.125 x 11.375 |
| (W) Width (IN) | 19.25 |
| (D) Depth (IN) | 12.12 |
| (H) Height (IN) | 11.37 |
| Product Opening Width (IN) | 12.375 |
| Overall Dimensions (CM) | 48.8 x 30.7 x 29.0 |
| (W) Width (CM) | 48.8 |
| (D) Depth (CM) | 30.7 |
| (H) Height (CM) | 29 |
| Product Opening Width (CM) | 31.4 |
Electrical
| Name | Value |
|---|---|
| Amps | 10 |
| Cord Length (IN) | 48 |
| Cord Length (CM) | 120 |
| Hz | 60 |
| Plug | NEMA 5-15 |
| Voltage | 120 |
| Watts | 1200 |
Construction
| Name | Value |
|---|---|
| Countertop or Drop-In | Countertop |
Case Lot Measurement
| Name | Value |
|---|---|
| Case Lot | 1 |
| Case Width | 17.5 |
| Case Height | 13.5 |
| Case Length | 23 |
| Case Lot Cube (ft.) | 3.14 |
| Case Lot Weight (lbs.) | 28.84 |
Product Accessories
| Name | Item # |
|---|---|
| Wall Mount Bracket for Cheese Melters | 351035 |
Product Parts
| Name | Part # | Price |
|---|---|---|
| CORD FAN HP-75.24-A | B401060 | $11.90 |
| 14 Ga Straight Strain Relief | B400320 | $6.60 |
| SLIDE TRAY | B300507 | $64.10 |
| CORD POWER 14/3 60" 5-15 PLUG | B401052 | $56.30 |
| MOTOR FAN | B401209 | $100.00 |
| TERMINAL BLOCK 5 POSITION | B401033 | $15.40 |
| GUARD FAN | B401220 | $8.50 |
| KNOB CONTROL | B401185 | $10.90 |
| RESET SWITCH | B401100 | $40.80 |
| 2PK HEAT ELEM 15-3/8 120V 640W | 59842 | $138.90 |
| SWITCH ROCKER SINGLE ON/OFF | B401110 | $46.30 |
| LEGS BLACK 1" 1/4-20 | B400300 | $15.60 |
| TERMINAL BLOCK 2 POSITION | B401034 | $5.60 |
| CM2 LEFT SIDE PANEL | B300511 | $50.70 |
| CM2 RIGHT SIDE PANEL | B300510 | $36.70 |
| CORD WARNING LABEL | B401404 | $0.40 |
Product Downloads
CAD / REVIT
For the most updated list for Vollrath products and CAD drawings
