![15-Bird 208- to 240-Volt Countertop Chicken Rotisserie Oven](https://images.salsify.com/image/upload/s--O2FtrjEX--/h_720,q_85/bsoygu8bkvorjskd8wyo.jpg)
RO4-208240-15

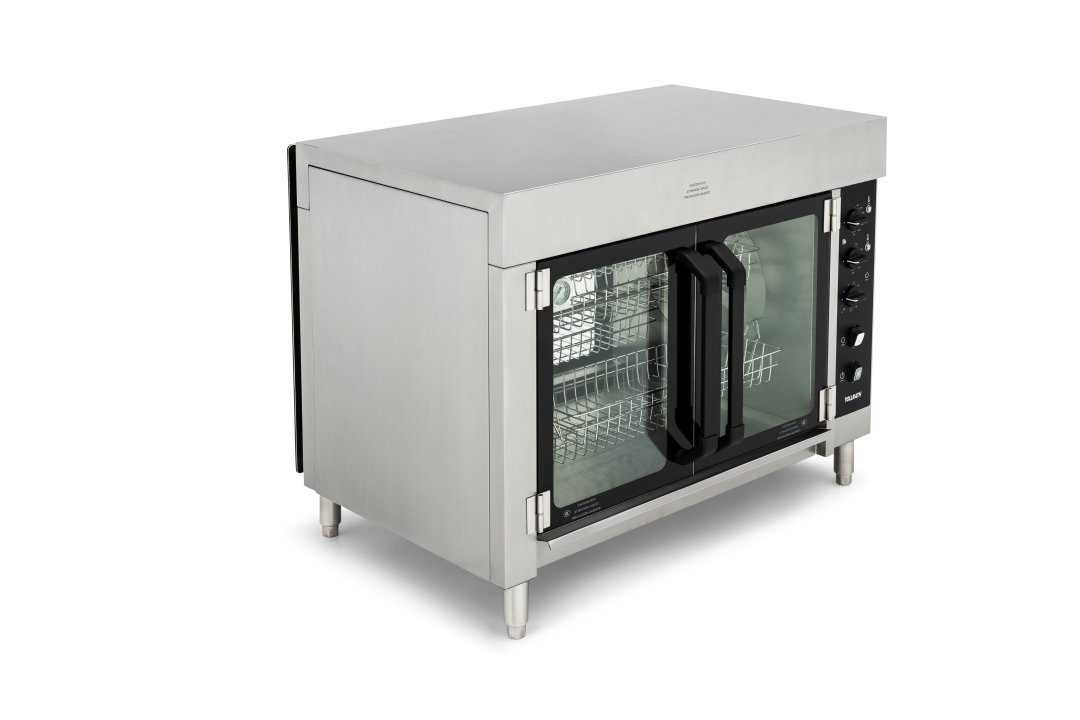

15-Bird 208- to 240-Volt Countertop Chicken Rotisserie Oven
-
-
Classified by UL to NSF/ANSI 4
This symbol represents products that are certified to meet specific environmental and public health standards. The UL EPH Mark is recognized and accepted as a trusted source for assessing the sanitary design, construction and performance of commercial food equipment. If it shows the word “Classified” above the UL mark, then the product also complies with ANSI/NSF regulations.
-
This symbol represents products that are certified to safely perform its job as intended. This product has earned this certification by undergoing rigorous testing against standards developed by UL.
The Vollrath® 15-Bird Chicken Rotisserie oven is ideal for any convenience store, deli or supermarket. This oven offers unmatched stability and placement flexibility, making it a perfect fit for any kitchen setup. The glass front and back allow exceptional product visibility. Prepare up to 15 chickens at once with consistent, precise results, thanks to the thermostatically controlled cooking temperature range of 150°F to 450°F. With separate heating modes, you can cook, then keep the food warm for as long as you need. A special circulation fan evenly distributes heat for better cooking and browning. The wire baskets are easily loaded and can be used for a variety of products. The removable drip tray makes cleaning easy and efficient, while the stainless steel exterior is a sleek addition to your countertop.
- Thermostatically-controlled cooking temperature from 150 °F (66 °C)–450 °F (232 °C) creates precise results.
- Cook, then keep food warm with two separate modes.
- Customer-facing glass panel provides clear product visibility.
- Instant carousel braking allows seamless filling and serving
- Chrome-plated wire baskets are extremely durable, easy to clean, and provide more versatility than spit-style ovens
- Removable full-size drip tray makes cleaning simple and efficient
- Stacking Kit sold separately for valuable space saving
- Based on independent UL testing, this product complies with NFPA96 for ventless operation using the EPA202 test method. Ventless allowance is dependent upon AHJ approval.
![15-Bird 208- to 240-Volt Countertop Chicken Rotisserie Oven Inspiration](https://images.salsify.com/image/upload/s--0xURvj6Y--/c_fill,w_320,h_310,q_85/u8mwfekhatkhckpd6j2i.jpg 1x, https://images.salsify.com/image/upload/s--0xURvj6Y--/c_fill,w_640,h_620,q_85/u8mwfekhatkhckpd6j2i.jpg 2x)
![15-Bird 208- to 240-Volt Countertop Chicken Rotisserie Oven Inspiration](https://images.salsify.com/image/upload/s--mGp2NP5t--/c_fill,w_320,h_310,q_85/lqaz2mnle7vpsy8ynrza.jpg 1x, https://images.salsify.com/image/upload/s--mGp2NP5t--/c_fill,w_640,h_620,q_85/lqaz2mnle7vpsy8ynrza.jpg 2x)
![15-Bird 208- to 240-Volt Countertop Chicken Rotisserie Oven Inspiration](https://images.salsify.com/image/upload/s--aMWJm_F9--/c_fill,w_320,h_310,q_85/dgchrqlp3xzlvqkmntjj.jpg 1x, https://images.salsify.com/image/upload/s--aMWJm_F9--/c_fill,w_640,h_620,q_85/dgchrqlp3xzlvqkmntjj.jpg 2x)
Product Specifications
Model Information
Name | Value |
---|---|
Model | ROV-15 |
UPC | 029419600038 |

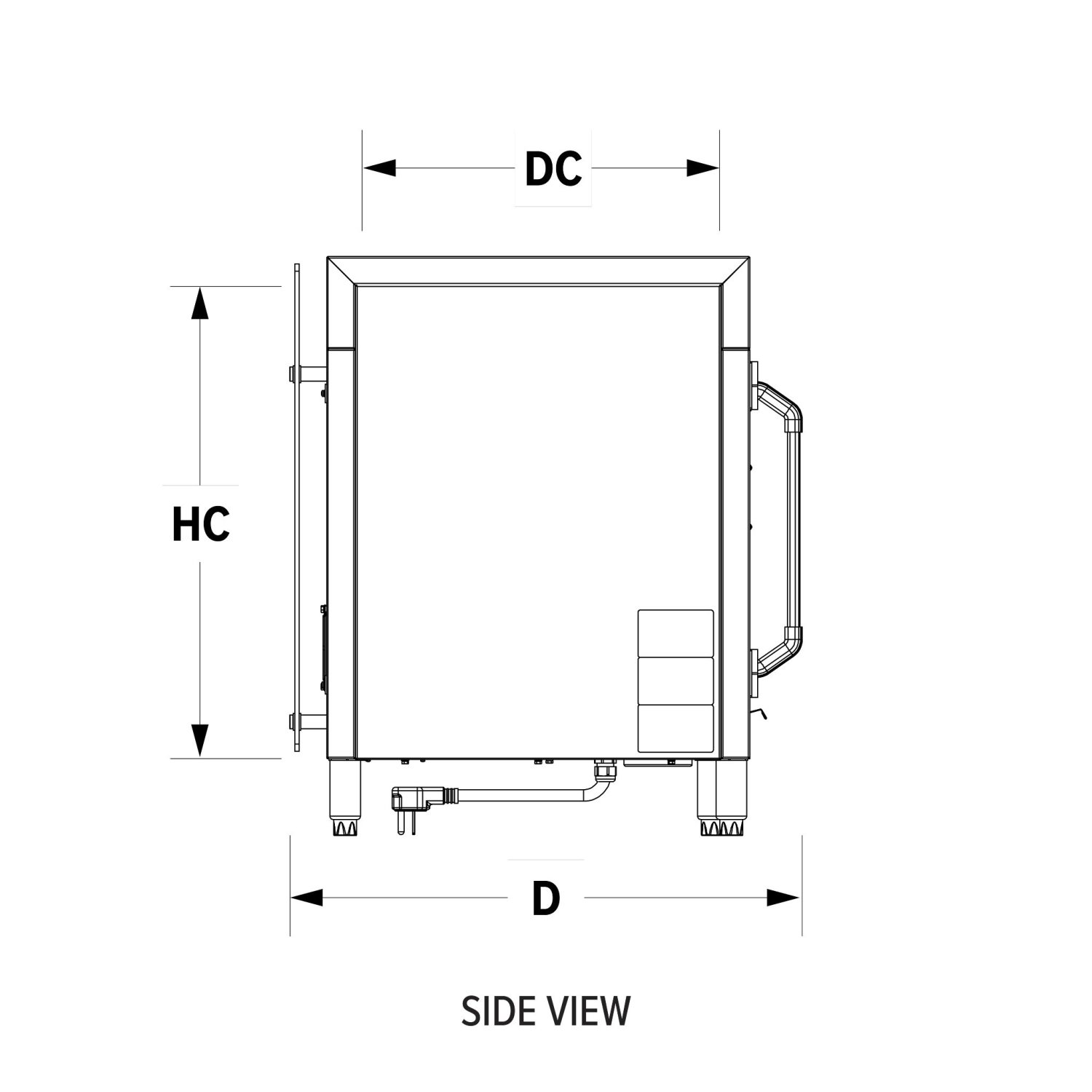

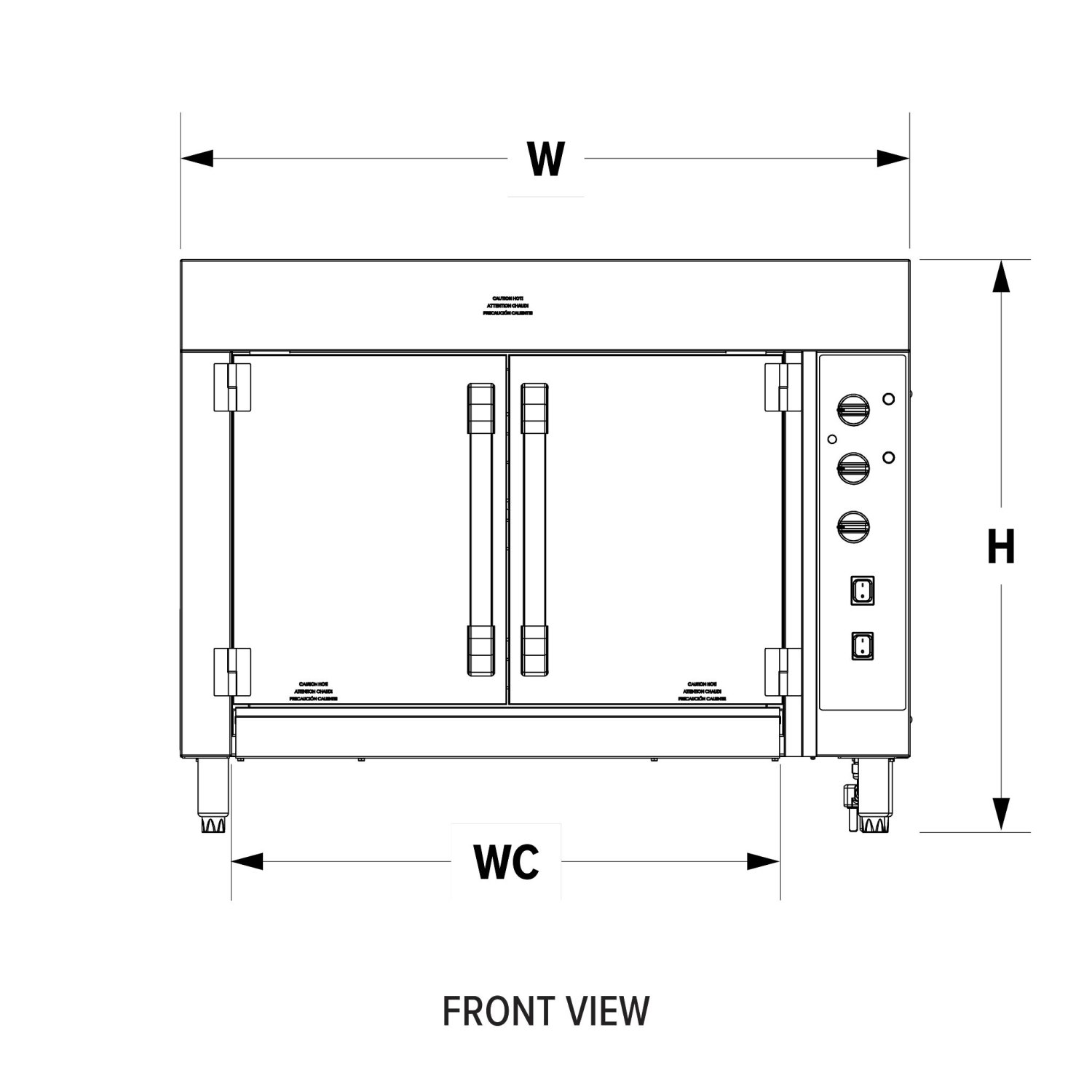

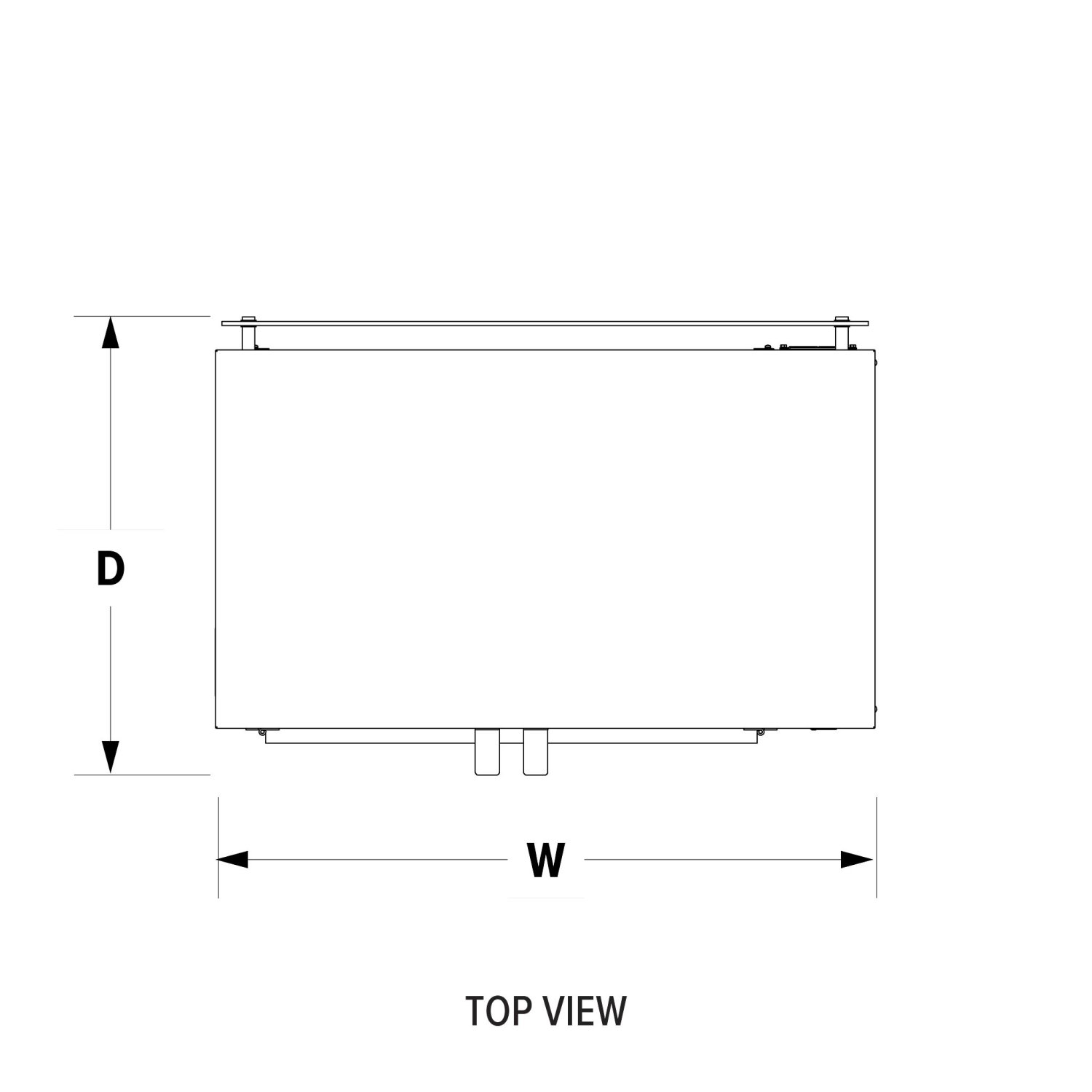

Unit Dimensions
Name | Value |
---|---|
Overall Dimensions (IN) | 39.25 x 27.28 x 30.81 |
(W) Width (IN) | 39.25 |
(D) Depth (IN) | 27.28 |
(H) Height (IN) | 30.81 |
(WC) Cooking Chamber Width (IN) | 27.8 |
(DC) Cooking Chamber Depth (IN) | 21.3 |
(HC) Cooking Chamber Height (IN) | 20.5 |
Overall Dimensions (CM) | 997 x 692.8 x 782.6 |
(W) Width (CM) | 997 |
(D) Depth (CM) | 692.8 |
(H) Height (CM) | 782.6 |
(WC) Cooking Chamber Width (CM) | 70.61 |
(DC) Cooking Chamber Depth (CM) | 54.1 |
(HC) Cooking Chamber Height (CM) | 52.07 |
Size | 15 |
Electrical
Name | Value |
---|---|
Amps | 20.8 - 24.0 |
Cord Length (IN) | 72 |
Cord Length (CM) | 182.9 |
Plug | NEMA 6-30P |
Voltage | 208 - 240 |
Watts | 4326 - 5760 |
Product Accessories
Product Parts
Name | Part # | Price |
---|---|---|
Heavy Duty 4" Leg | 2351601-1 | $24.10 |
65-0175 Lock Nut 3/4 | 250263-1 | $5.00 |
65-9123 Strain Re. 3/4 | 250811-1 | $10.00 |
Control Knob | 351788-06-1 | $6.00 |
Rect Power Switch 240V Dpst | 352774-1 | $40.00 |
Rotisserie Motor Assy | 353839-1 | $690.00 |
Rotisserie Overlay | 353840-1 | $20.00 |
Cooling Fan | 353846-1 | $23.00 |
Convection Fan | 353847-1 | $71.00 |
Pilot Light Small Lh680 | 353853-1 | $5.00 |
Pilot Light Large Lh580 | 353854-1 | $5.00 |
Dc Switch Gold-Plated | 353855-1 | $6.00 |
Hold Thermostat 150C/300F | 353856-1 | $10.00 |
Cook Thermostat 230C/450F | 353857-1 | $10.00 |
Timer | 353858-1 | $10.00 |
High Limit Thermostat 270C | 353859-1 | $64.00 |
High Limit Thermostat 82C | 353860-1 | $64.00 |
Terminal Block And Relay Assy | 353861-1 | $78.00 |
Relay Mount | 353862-1 | $10.00 |
Relay | 353863-1 | $19.00 |
Oven Light 230V 25W | 353865-1 | $15.00 |
Oven Light Bulb 230V 25W | 353866-1 | $10.00 |
Left Hinge | 353867-1 | $20.00 |
Handle End Cap | 353868-1 | $7.00 |
Round Magnet | 353869-1 | $5.00 |
Handle Extrusion | 353870-1 | $20.00 |
24Hp-01-1 Thermometer | 353871-1 | $36.00 |
Left Carousel Holder | 353883-1 | $65.00 |
Right Carousel Holder | 353884-1 | $18.00 |
Cooling Fan Thermostat 50C | 353885-1 | $10.00 |
Meanwell Rs-50-24 Power Supply | 353886-1 | $56.00 |
MOTOR CONTROL PCB ASSY | 353887-1 | $15.00 |
ROTISSERIE MANUAL | 354185-1 | $4.00 |
Fan Cover Support Assy | 354775-1 | $18.00 |
Basket Retaining Pin | 354776-1 | $16.00 |
