RO4-208240-8

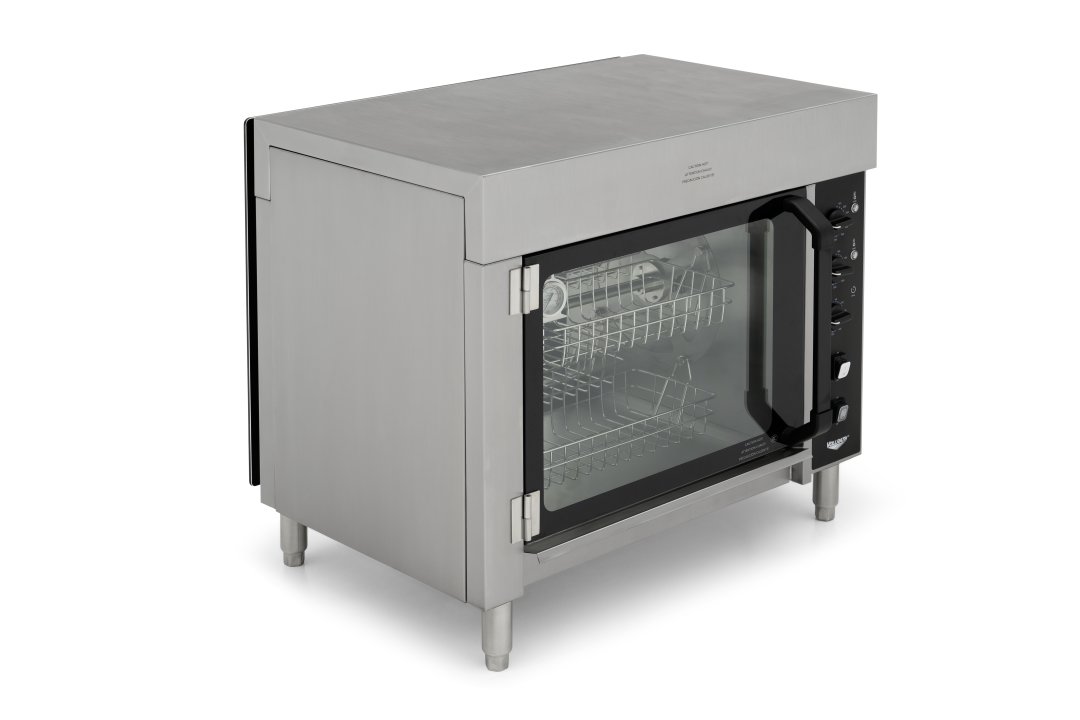

8-Bird 208- to 240-Volt Countertop Chicken Rotisserie Oven
Classified by UL to NSF/ANSI 4
This symbol represents products that are certified to meet specific environmental and public health standards. The UL EPH Mark is recognized and accepted as a trusted source for assessing the sanitary design, construction and performance of commercial food equipment. If it shows the word “Classified” above the UL mark, then the product also complies with ANSI/NSF regulations.
This symbol represents products that are certified to safely perform its job as intended. This product has earned this certification by undergoing rigorous testing against standards developed by UL.
This 8-Bird Countertop Chicken Rotisserie Oven by Vollrath is your all-in-one culinary solution that elevates your foodservice experience to new heights. This oven offers unmatched stability and placement flexibility, making it a perfect fit for any kitchen setup. With enhanced power for improved cooking performance, the oven ensures even heat distribution, resulting in consistently perfect cooking and browning. Cleanup is a breeze with easily removable carousel, doors, drip tray, and baskets. The Vollrath Chicken Rotisserie Oven combines cooking, holding, and merchandising in one, setting new standards in your kitchen.
- Thermostatically-controlled cooking temperature from 150 °F (66 °C)–450 °F (232 °C) creates precise results.
- Cook, then keep food warm with two separate modes.
- Enhanced structural design improves stability and durability.
- Customer-facing glass panel provides clear product visibility.
- 6' cord with plug allows placement flexibility.
- Based on independent UL testing, this product complies with NFPA96 for ventless operation using the EPA202 test method. Ventless allowance is dependent upon AHJ approval.
Product Specifications
Model Information
| Name | Value |
|---|---|
| Model | ROV-08 |
| UPC | 029419600045 |
Unit Dimensions
| Name | Value |
|---|---|
| Overall Dimensions (IN) | 31.9 x 24.6 x 28.7 |
| (W) Width (IN) | 31.9 |
| (D) Depth (IN) | 24.8 |
| (H) Height (IN) | 28.7 |
| (WC) Cooking Chamber Width (IN) | 20.6 |
| (DC) Cooking Chamber Depth (IN) | 18.8 |
| (HC) Cooking Chamber Height (IN) | 18.3 |
| Overall Dimensions (CM) | 81.0 x 63.0 x 72.9 |
| (W) Width (CM) | 81.0 |
| (D) Depth (CM) | 63.0 |
| (H) Height (CM) | 72.9 |
| (WC) Cooking Chamber Width (CM) | 52.3 |
| (DC) Cooking Chamber Depth (CM) | 47.8 |
| (HC) Cooking Chamber Height (CM) | 46.5 |
| Size | 8 |
Electrical
| Name | Value |
|---|---|
| Amps | 13.9 - 16.0 |
| Cord Length (IN) | 72 |
| Cord Length (CM) | 182.88 |
| Plug | NEMA 6-20P & R |
| Voltage | 208 - 240 |
| Watts | 2884 - 3840 |
Product Accessories
Product Parts
| Name | Part # | Price |
|---|---|---|
| 14 Ga Straight Strain Relief | B400320 | $6.60 |
| Heavy Duty 4" Leg | 2351601-1 | $24.10 |
| Control Knob | 351788-06-1 | $6.00 |
| Rect Power Switch 240V Dpst | 352774-1 | $40.00 |
| 8-Bird Heating Element | 353851-1 | $59.00 |
| Pilot Light Small Lh680 | 353853-1 | $5.00 |
| 8-Bird External Glass | 353850-1 | $81.00 |
| Fan Motor Cover Assy 8-Bird | 353852-1 | $53.00 |
| Pilot Light Large Lh580 | 353854-1 | $5.00 |
| Relay Mount | 353862-1 | $10.00 |
| ROTISSERIE MANUAL | 354185-1 | $4.00 |
| High Limit Thermostat 270C | 353859-1 | $64.00 |
| Drip Tray Assy 8-Bird | 353844-1 | $123.00 |
| Rotisserie Overlay | 353840-1 | $20.00 |
| Convection Fan | 353847-1 | $71.00 |
| 8-Bird Internal Glass | 353849-1 | $65.00 |
| MOTOR CONTROL PCB ASSY | 353887-1 | $15.00 |
| Carousel Assy 8-Bird | 353842-1 | $400.00 |
| Dc Switch Gold-Plated | 353855-1 | $6.00 |
| Left Carousel Holder | 353883-1 | $65.00 |
| Meanwell Rs-50-24 Power Supply | 353886-1 | $56.00 |
| 8-Bird Glass Door Assy | 353845-1 | $240.00 |
| Rotisserie Motor Assy | 353839-1 | $690.00 |
| Basket Retaining Pin | 354776-1 | $16.00 |
| Round Magnet | 353869-1 | $5.00 |
| 8-Bird Basket | 353843-1 | $91.00 |
| Relay | 353863-1 | $19.00 |
| Element Contactor (2 Pole) | 353864-1 | $23.00 |
| Cook Thermostat 230C/450F | 353857-1 | $10.00 |
| Right Carousel Holder | 353884-1 | $18.00 |
| Hold Thermostat 150C/300F | 353856-1 | $10.00 |
| Cord 8-Bird | 353841-1 | $20.00 |
| Oven Light 230V 25W | 353865-1 | $15.00 |
| Fan Cover Support Assy | 354775-1 | $18.00 |
| 24Hp-01-1 Thermometer | 353871-1 | $36.00 |
| Timer | 353858-1 | $10.00 |
| High Limit Thermostat 82C | 353860-1 | $64.00 |
| Handle Extrusion | 353870-1 | $20.00 |
| Cooling Fan Thermostat 50C | 353885-1 | $10.00 |
| Handle End Cap | 353868-1 | $7.00 |
| Oven Light Bulb 230V 25W | 353866-1 | $10.00 |
| Cooling Fan | 353846-1 | $23.00 |
| Terminal Block And Relay Assy | 353861-1 | $78.00 |
| Left Hinge | 353867-1 | $20.00 |
Product Downloads
CAD / REVIT
Customer Questions
Be the first to ask a question
