CO4-120HS

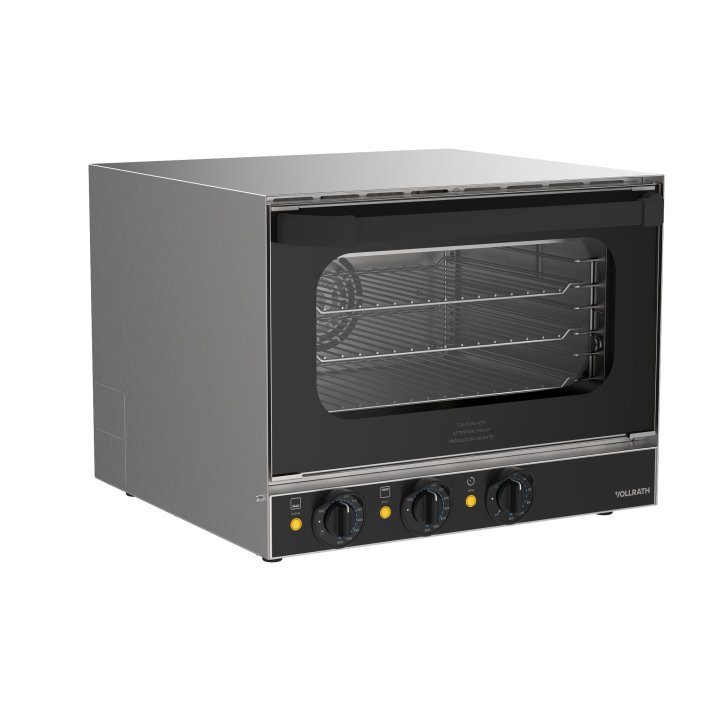

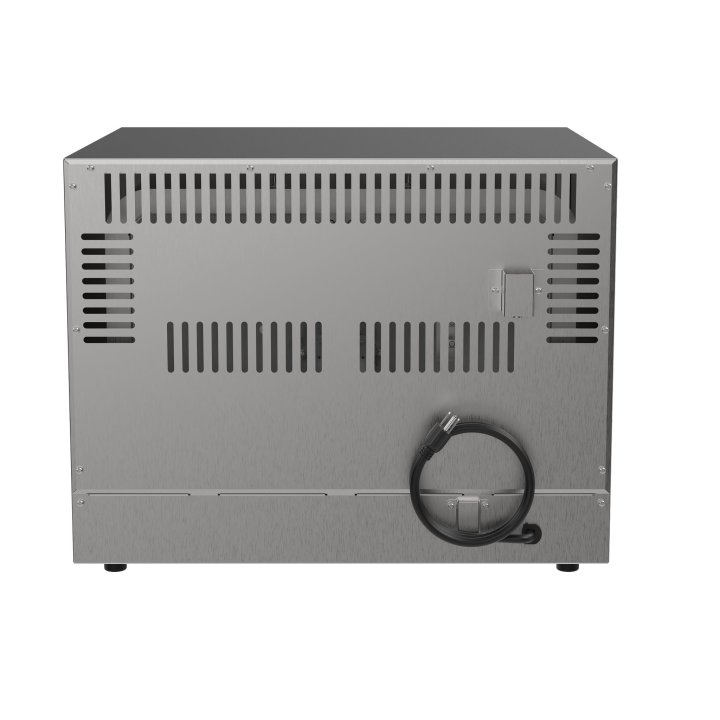

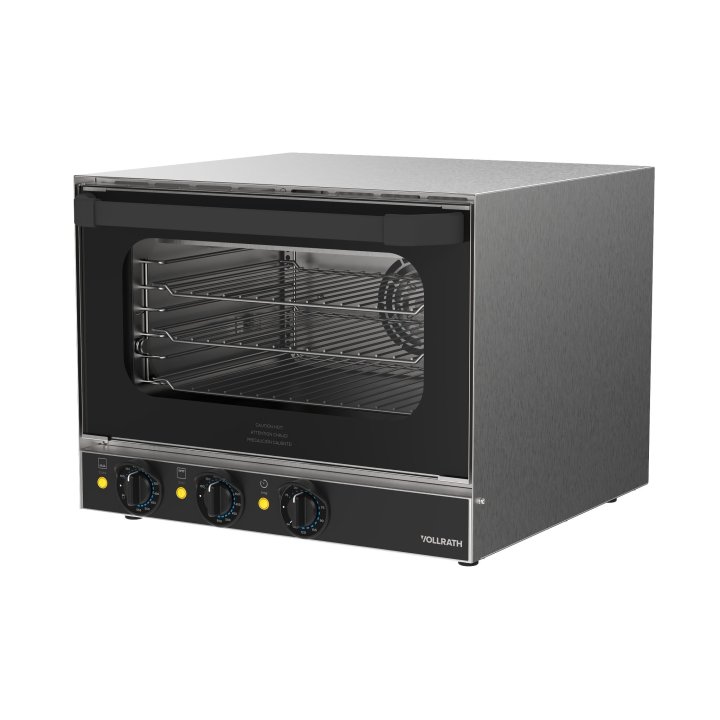

120-volt half-size convection oven
Classified by UL to NSF/ANSI 4
This symbol represents products that are certified to meet specific environmental and public health standards. The UL EPH Mark is recognized and accepted as a trusted source for assessing the sanitary design, construction and performance of commercial food equipment. If it shows the word “Classified” above the UL mark, then the product also complies with ANSI/NSF regulations.
This symbol represents products that are certified to safely perform its job as intended. This product has earned this certification by undergoing rigorous testing against standards developed by UL.
Add a variety of baked goods to your menu with the Vollrath® half-size convection oven. The custom baffle fan and diffuser plate create a consistent bake, while an interior light and steel shelves ensure ease of use. With a 120-minute bake timer and versatile browning function, this oven allows for precise control over your cooking process. Cleaning is a breeze with easily removable door and rounded interior corners, minimizing downtime and maximizing productivity. With a temperature range of 150°F to 550°F, the variety of food you can prepare in this oven is endless.
- Ideal for baking bread, pastries and cakes or cooking meats and vegetables
- Durable stainless-steel exterior is built to last
- Consistent airflow and even heating ensured with custom fan
- Half-size models offer a broil function for even more versatility
- Low-profile lights provide more space for pans and food
- Improved door gasket retains more heat in the baking chamber for energy savings and reduced operating costs
- Ideal size for portable catering
- Based on independent UL testing, this product complies with NFPA96 for ventless operation using the EPA202 test method. Ventless allowance is dependent upon AHJ approval.
- Please note that you should generally either lower the temperature by about 25 degrees or lower the baking time by approximately 25 percent when modifying a traditional recipe for a convection oven, due to its unique efficiency
Product Specifications
Model Information
| Name | Value |
|---|---|
| Model | COV-120-HS |
| UPC | 029419043415 |
Unit Dimensions
| Name | Value |
|---|---|
| Overall Dimensions (IN) | 23.31 x 25.44 x 18.44 |
| (W) Width (IN) | 23.31 |
| (D) Depth (IN) | 25.44 |
| (H) Height (IN) | 18.44 |
| (WC) Cooking Chamber Width (IN) | 18.56 |
| (DC) Cooking Chamber Depth (IN) | 14.5 |
| (HC) Cooking Chamber Height (IN) | 9.44 |
| Overall Dimensions (CM) | 59.2 x 64.6 x 46.7 |
| (W) Width (CM) | 59.2 |
| (D) Depth (CM) | 64.6 |
| (H) Height (CM) | 46.7 |
| (WC) Cooking Chamber Width (CM) | 47.1 |
| (DC) Cooking Chamber Depth (CM) | 36.7 |
| (HC) Cooking Chamber Height (CM) | 23.9 |
Electrical
| Name | Value |
|---|---|
| Amps | 12 |
| Cord Length (IN) | 48 |
| Cord Length (CM) | 120 |
| Plug | NEMA 5-15P & R |
| Voltage | 120 |
| Watts | 1440 |
Product Parts
| Name | Part # | Price |
|---|---|---|
| Kit, Foot, 1.00" OD, 20Mm LG | 351775-1 | $6.70 |
| Control Knob | 351788-06-1 | $6.00 |
| Pilot Light 110V - Amber LH580 | 354073-1 | $2.00 |
| Handle End Cap | 353868-1 | $7.00 |
| Hinge - CO4-120HS (Yellow) | 354991-1 | $116.00 |
| Door Outer Glass - 120HS | 354988-1 | $124.00 |
| Broil Element Bracket - CO4 HS | 354964-1 | $30.00 |
| Timer Overlay - 120 Min | 354956-1 | $8.00 |
| High Limit Cover - CO4 HS | 354963-1 | $20.00 |
| Door Hinge Kit - CO4-120HS | 354990-1 | $257.00 |
| Door Assy - CO4-120HS | 354987-1 | $600.00 |
| Wire Shelf Rack - 120HS Right | 354983-1 | $90.00 |
| Wire Shelf Rack - 120HS Left | 354982-1 | $90.00 |
| Door Inner Glass - 120HS | 354989-1 | $117.00 |
| Wire Shelf - CO4 HS | 354955-1 | $90.00 |
| Knurled Thumb Screw - M6X20 | RDC0152 | $8.00 |
| Timer - Conv Oven 120 Min | 354951-1 | $20.00 |
| Oven Thermostat 320 C/608 F | 354952-1 | $120.00 |
| Oven Light 120V 25W | 354984-1 | $22.00 |
| Fan Shroud - CO4-120HS | 354981-1 | $114.00 |
| Strain Relief, Heyco 1861" | 353208-1 | $10.00 |
| Oven Overlay - CO4-120HS | 354986-1 | $38.00 |
| Handle Extrusion - CO4 HS | 354959-1 | $47.00 |
| Thermostat Holding Bracket | 354965-1 | $20.00 |
| Oven Light Bulb 120V 25W | 354985-1 | $22.00 |
| Door Hinge Receiver - Oven | 354960-1 | $25.00 |
| Oven Broil Element - 120V HS | 354980-1 | $150.00 |
| Multi-function Selector Switch | 354953-1 | $100.00 |
| Oven Convection Fan - 120V HS | 354979-1 | $140.00 |
| Oven Gasket - CO4 HS | 354992-1 | $58.00 |
| Exhaust Pipe Assy - CO4 HS | 354961-1 | $35.00 |
| Ops Manual - Convection Ovens | 354861-1 | $8.00 |
| FMA Power Cord, 120V 15P | 353116-1 | $44.00 |
| High Limit Thermostat 350 C˚ | 354949-1 | $130.00 |
| Thermostat Overlay - 550 F˚ | 354958-1 | $8.00 |
| Oven Bake Overlay - 550 F˚ HS | 354957-1 | $8.00 |
| Exhaust Pipe Cover Bracket | 354962-1 | $20.00 |
| Oven Bake Element - 120V HS | 354978-1 | $100.00 |
