40819

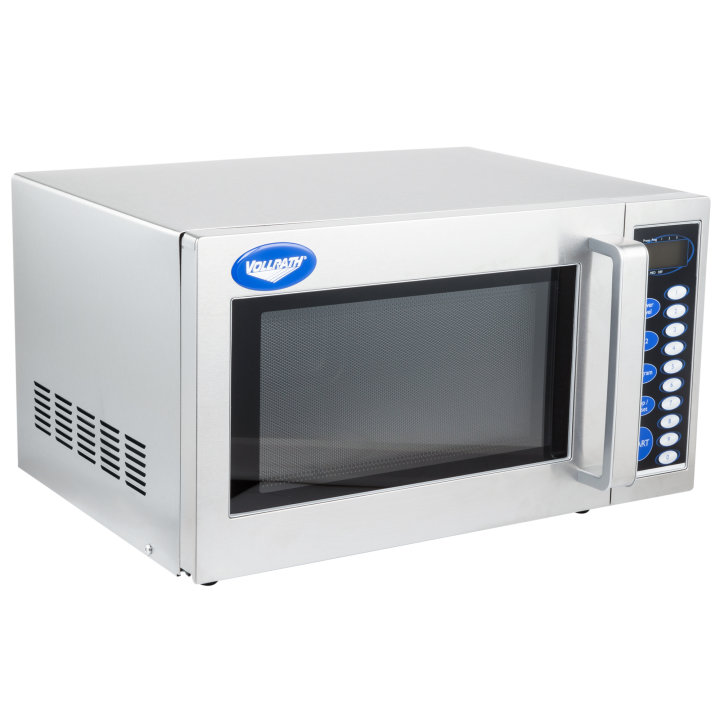

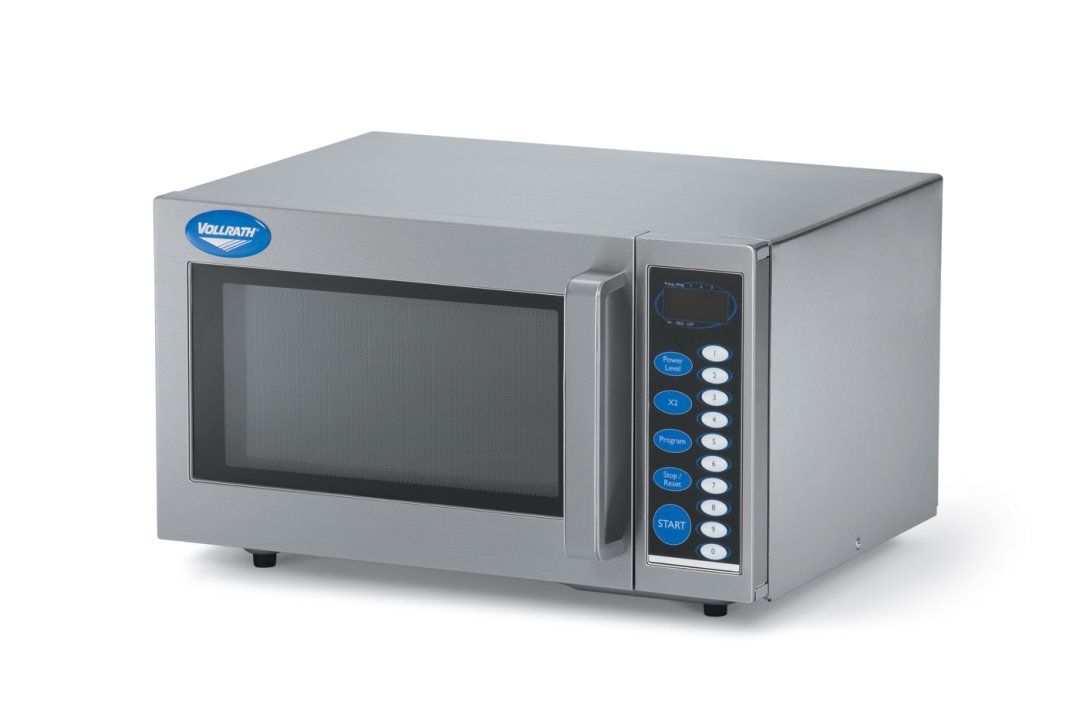

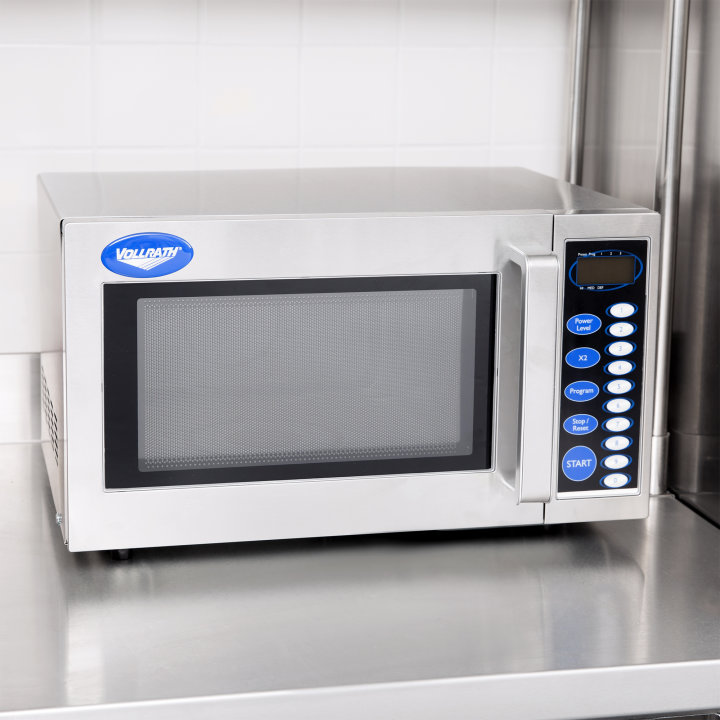

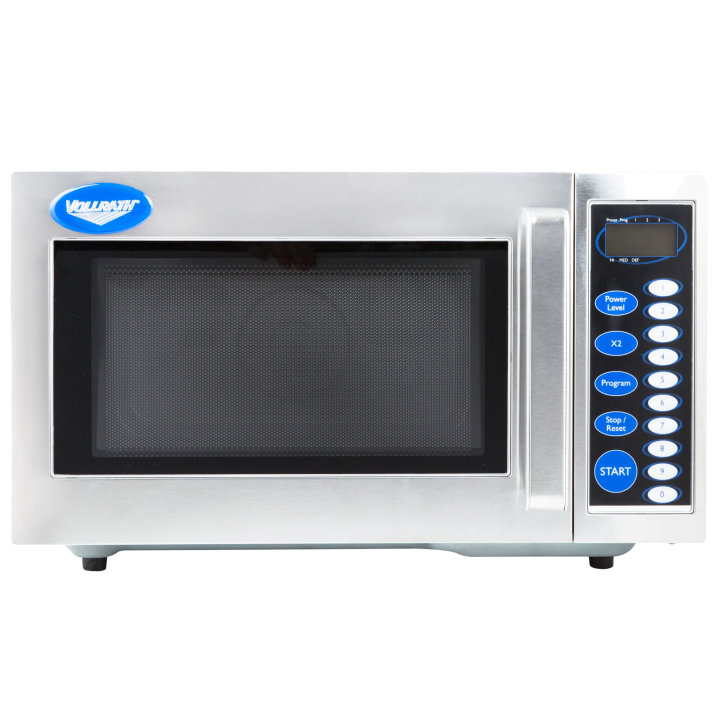

120-volt microwave oven with digital controls
This symbol represents products that are certified to safely perform its job as intended. This product has earned this certification by undergoing rigorous testing against standards developed by UL.
The Vollrath® microwave oven is compact, reliable and built to last. Three power levels and 20 programmable settings provide versatility for a wide variety of foods, while the intuitive control pad keeps things simple. Easily track heating time with the digital display and timer to ensure high-quality results. The 0.9-cubic-feet interior is roomy, and the door is see-through for your convenience. The durable stainless steel body and the ceramic bottom plate are easy to clean, making this the ideal microwave for any kitchen or break area.
- Quickly and easily heat a wide variety of foods

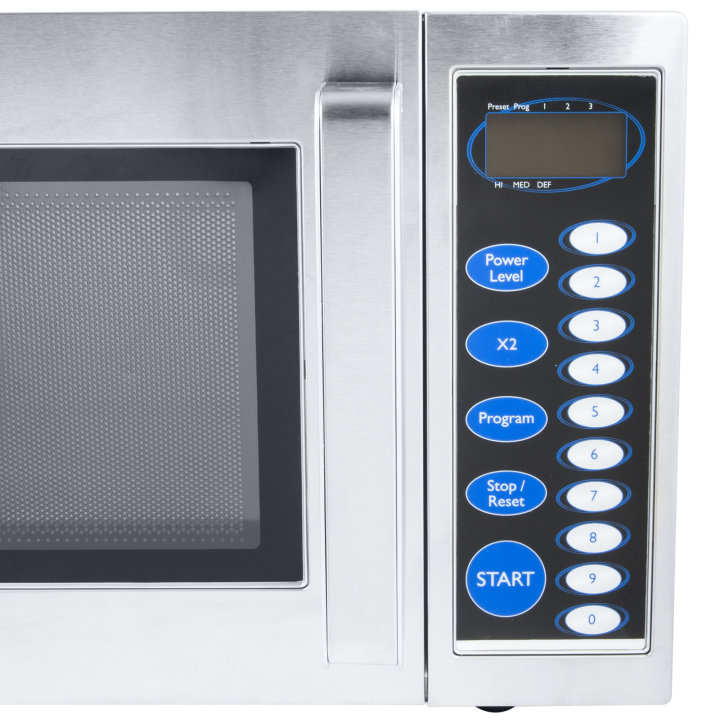

- Digital display and simple control pad ensure ease of use
- Compact design saves counter space
- Three power levels and 20 programmable settings add versatility
- 0.9-cubic-feet capacity fits large food items
- 1,000-watt output
Product Specifications
Model Information
Name | Value |
---|---|
Model | MWA7025 |
UPC | 029419719822 |

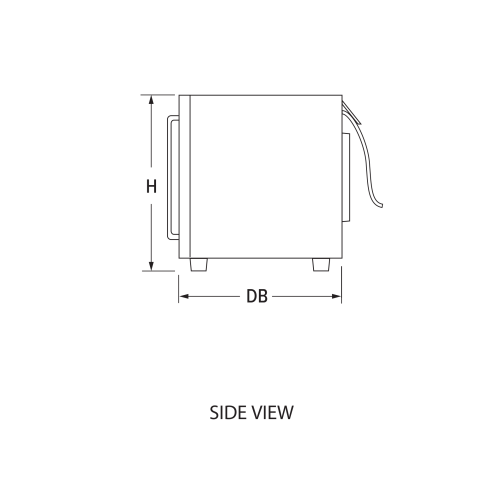

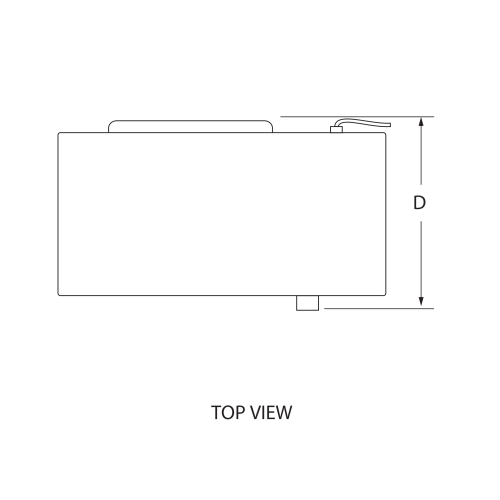

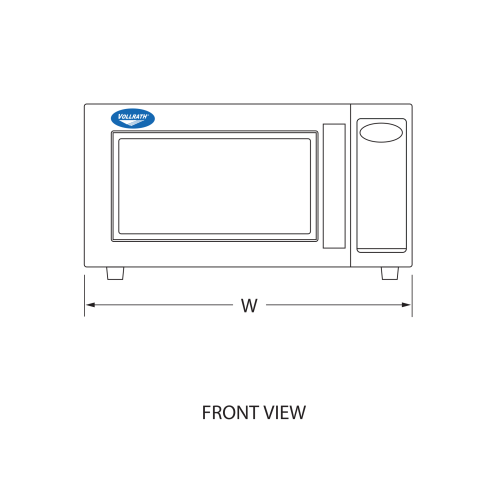

Unit Dimensions
Name | Value |
---|---|
Overall Dimensions (IN) | 20.5 x 18.125 x 12.25 |
(W) Width (IN) | 20.5 |
(D) Depth (IN) | 18.12 |
(H) Height (IN) | 12.25 |
(WC) Cooking Chamber Width (IN) | 13.125 |
(DC) Cooking Chamber Depth (IN) | 14.375 |
(HC) Cooking Chamber Height (IN) | 7.8125 |
(DB) Depth of Body (IN) | 17 |
Overall Dimensions (CM) | 52.1 x 46 x 31.1 |
(W) Width (CM) | 52.1 |
(D) Depth (CM) | 46 |
(H) Height (CM) | 31.1 |
(WC) Cooking Chamber Width (CM) | 33.3 |
(DC) Cooking Chamber Depth (CM) | 36.5 |
(HC) Cooking Chamber Height (CM) | 19.8 |
(DB) Depth of Body (CM) | 43.2 |
Electrical
Name | Value |
---|---|
Amps | 12.1 |
Cord Length (IN) | 36 |
Cord Length (CM) | 90 |
Hz | 60 |
Plug | NEMA 5-15P |
Voltage | 120 |
Watts | 1000 (output), 1450 (input) |
Construction
Name | Value |
---|---|
Countertop or Drop-In | Countertop |
Case Lot Measurement
Name | Value |
---|---|
Case Lot | 1 |
Case Width | 19.25 |
Case Height | 14.25 |
Case Length | 22.75 |
Case Lot Cube (ft.) | 3.61 |
Case Lot Weight (lbs.) | 41.0 |
Product Downloads
CAD / REVIT
For the most updated list for Vollrath products and CAD drawings
