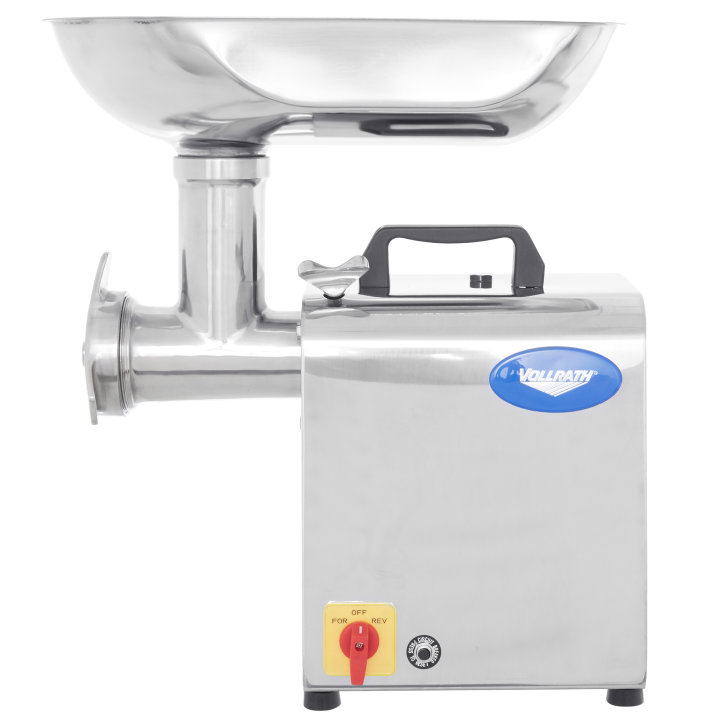

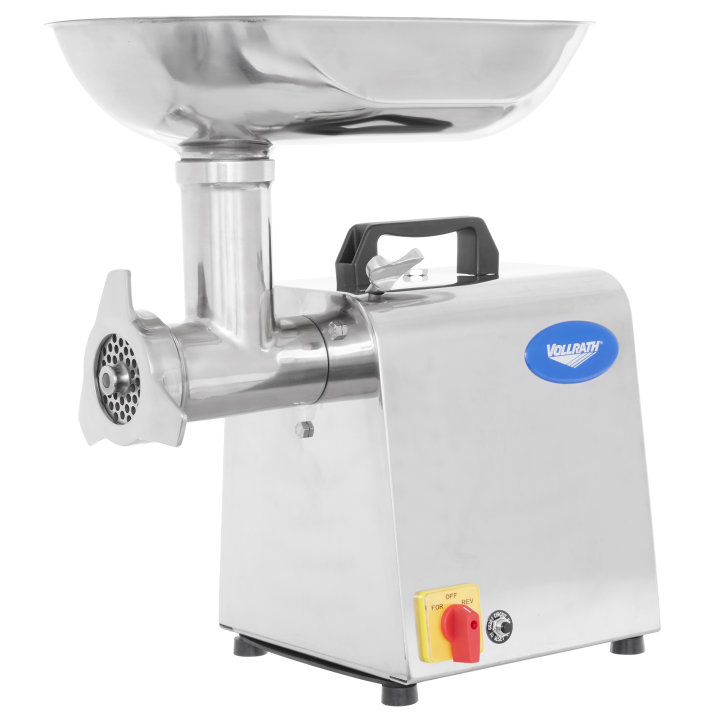

1-HP No. 12 meat grinder
-
-
-
This symbol represents products that have met the minimum requirements of prescribed product safety standards. The symbol also indicates that the manufacturer’s production site conforms to a range of compliance measures and is subject to periodic follow up inspections to verify continued conformance.
Efficient and reliable under demanding conditions, the No. 12 meat grinder by Vollrath is the ideal product for butchers, supermarkets, restaurants, delis and more. This grinder has a stainless steel body with no sharp corners or seams, and the feed tray holds large amounts of meat at once, while the pusher helps you feed the product down the chute. The 1-HP energy-efficient motor and precision gear drive easily grind 264 pounds of meat per hour, and a forward and reverse switch allows for higher-quality grinding. Nonskid feet maintain stability, and the grinding head, pan and attachments are dishwasher safe, ensuring a quick cleanup.
- Quickly grinds a variety of meats
- Durable stainless steel body, cylinder, and worm gear provide years of service
- Top-mounted carrying handle allows you to easily transport the entire unit
- Heavy-gauge product tray holds a large amount of food at one time
- 2 ¼-inch-diameter food chute quickly moves it through the grinder
- 1/8-inch and 5/16-inch grinder plates included for increased versatility
- 1-HP motor grinds 264 pounds of meat per hour
- Sausage stuffer and feed stick accessories included
- Replacement grinder knives and plates sold separately
- NSF-certified
- No. 22 unit features 1.5 HP motor to grind 528 lb (240 kg) of meat per hour
- Heavy gauge product tray with 2 1/4" diameter food chute
- Stainless steel body, cylinder, worm gear and ring
Product Specifications
Model Information
| Name | Value |
|---|---|
| Model | MIN0012 |
| UPC | 029419719297 |
Unit Dimensions
| Name | Value |
|---|---|
| Overall Dimensions (IN) | 16 x 9 x 18 |
| (W) Width (IN) | 16 |
| (D) Depth (IN) | 9 |
| (H) Height (IN) | 18 |
| (W) Width (CM) | 40.6 |
| (D) Depth (CM) | 22.9 |
| (H) Height (CM) | 45.7 |
| Size | 12 |
Electrical
| Name | Value |
|---|---|
| Amps | 6 |
| Cord Length (IN) | 6" |
| Cord Length (CM) | 182.9 |
| hp | 1 |
| Plug | NEMA 5-15P |
| Voltage | 110 |
Construction
| Name | Value |
|---|---|
| Construction Material | Stainless Steel |
| Construction Material 2 | Electrical Components |
Case Lot Measurement
| Name | Value |
|---|---|
| Case Lot | 1 |
| Case Width | 12.5 |
| Case Height | 17 |
| Case Length | 17.25 |
| Case Lot Cube (ft.) | 2.12 |
| Case Lot Weight (lbs.) | 57.74 |
Product Accessories
Product Parts
| Name | Part # | Price |
|---|---|---|
| POWERCORD 120V (NEMA5-15P) | XAA0005 | $48.50 |
| CABLE RESTRAINT (FMA SKA FFA) | XAA0012 | $9.70 |
| COUPLING COVER NUT MIN0012 | XMIN1203 | $174.70 |
| GRINDING CHAMBER HEAD MIN0012 | XMIN1204 | $681.60 |
| WORM (SPIRAL PROPELLER ASSEMBL | XMIN1205 | $359.60 |
| GEARBOX COMPLETE MIN0012 (#11A | XMIN1210 | $786.10 |
| SPACER MIN0012/MIN0022 (# 53) | XMIN1211 | $6.40 |
| CAPACITOR(START) MIN0012 #23 2 | XMIN1212 | $48.00 |
| THUMBSCREW MIN0012 (# 27) | XMIN1213 | $45.90 |
| GOVERNOR MIN0012 (# 29) | XMIN1215 | $26.50 |
| ON/OFF SWITCH MIN0012/MIN0022 | XMIN1216 | $147.80 |
| MEAT FUNNEL MIN0012 (# 37) | XMIN1217 | $15.00 |
| BRASS WORM GEAR MIN0012 (# 15 | XMIN1218 | $153.60 |
| PLASTIC BASE PLATE MIN0012 (# | XMIN1219 | $24.20 |
| FEET MIN0012/MIN0022 (# 45) | XMIN1220 | $12.70 |
| MOTOR MIN0012 (#18 A) | XMIN1221 | $894.40 |
| WORM DRIVE GEAR SPIRAL MIN0012 | XMIN1222 | $170.10 |
| GREASE TRAPPER BOLT MIN0012 | XMIN1223 | $16.10 |
| FEEDER PAN (NEW SHAPE) MIN0012 | XMIN1224 | $243.40 |
| RESET SWITCH MIN0012 (# 32) | XMIN1225 | $38.60 |
| BRASS BUSH FOR CHAMBER (# 03) | XMIN1226 | $27.00 |
| HANDLE HEXBOLT MIN0012 (#52) | XMIN1228 | $5.80 |
| PLASTIC HANDLE MIN0012/MIN0022 | XMIN1229 | $15.20 |
| KEY(6X6X15) MIN0012/MIN0022 | XMIN1230 | $7.00 |
| WORM SHAFT REAR MIN0012 (#10 | XMIN1231 | $37.10 |
| HOLDER | XMIN1232 | $36.20 |
| CAPACITOR(RUN) MIN0012 #18A | XMIN1233 | $48.10 |
| CHAMBER LOCATING PIN MIN0012/0 | XMIN1234 | $12.20 |
| MEAT PUSHER MIN0012/MIN0022 ( | XMIN2202 | $14.60 |
| GEARBOX OIL SEAL (TC30X45X8) ) | XMIN2230 | $13.80 |
| GOVERNOR PLATE MIX7120/9120/71 | XMIX2004 | $15.30 |
| FREEZE PLUG SMALL MIX7120 (#3 | XMIX2290 | $14.50 |
| BEARING 6205Z (#86) | XMIX3086 | $29.30 |
| BEARING 6203 2RS (ITALIAN SLI | XSLS6203 | $59.80 |
