¼-inch-slice fruit slicer
¼-inch-slice fruit slicer
¼-inch-slice fruit slicer
¼-inch-slice fruit slicer
¼-inch-slice fruit slicer

403NH

¼-inch-slice fruit slicer

  • 2 Year
$699.06 MSRP Manufacturer Suggested Retail Price (MSRP) is a predetermined percentage off of list price (shown is US Dollars) and is valid for vollrathfoodservice.com and the United States and Canada only. Dealer pricing may differ. These prices do not include potential shipping costs. Any sales tax applicable will be added to the final price upon quote or purchase.
$1,165.10 List Price List price (shown is US Dollars) is valid for vollrathfoodservice.com and the United States and Canada only. Dealer pricing may differ. These prices do not include potential shipping costs. Any sales tax applicable will be added to the final price upon quote or purchase.

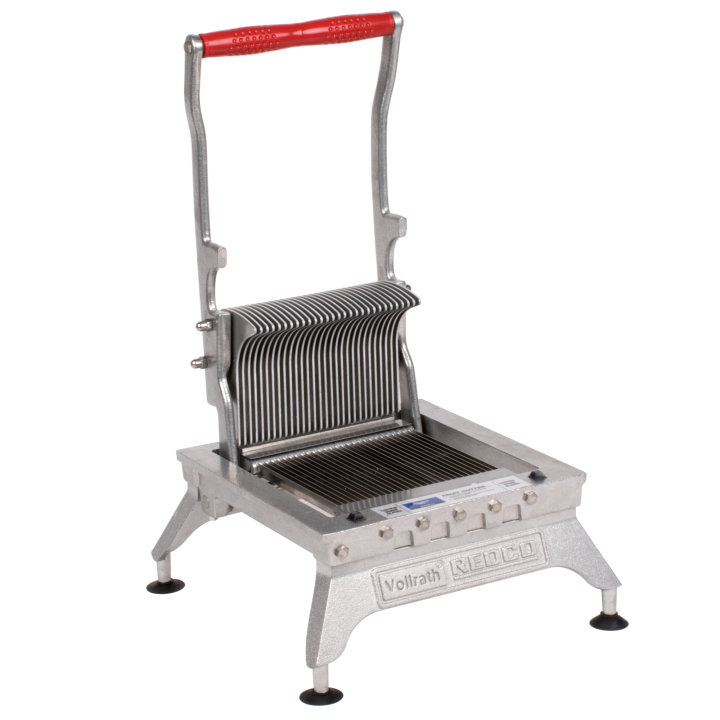

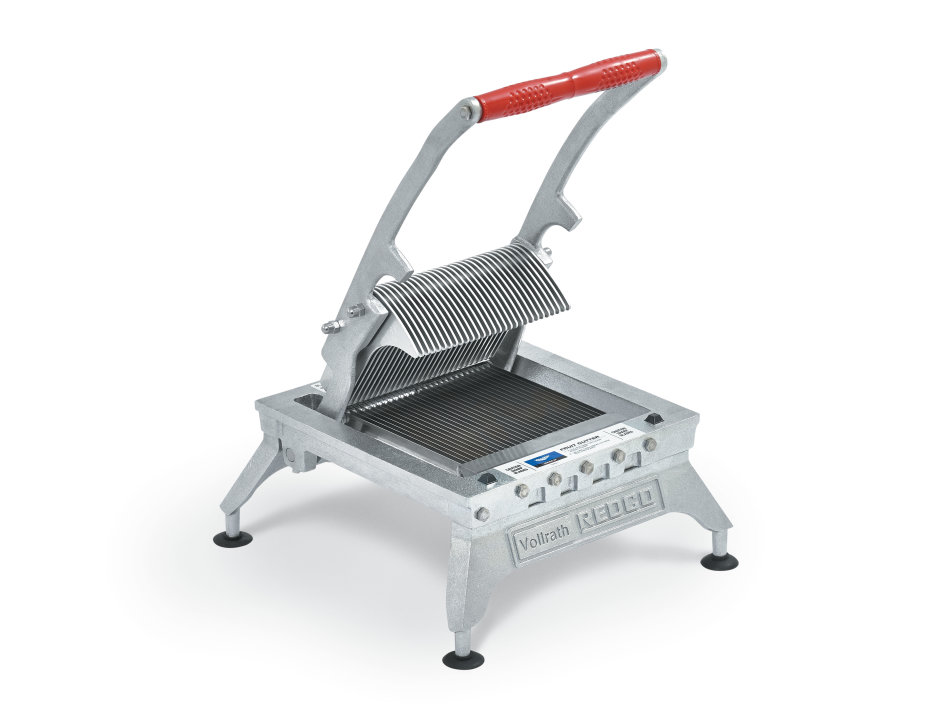

Save time and energy with the Vollrath® fruit slicer. This sturdy countertop unit makes accurate ¼-inch-cuts with one stroke of the textured handle, without causing bruising or waste. The 28 blades have a 5-inch-cutting surface, slicing large amounts of fruits at once. With a durable body and strong blades, this fruit slicer is perfect for any prep kitchen.

  • Easily cuts a variety of fruits
  • Sharp blades create clean, consistent slices
  • Textured handle allows for a steady grip
  • Suction cup feet prevent movement during use
  • Wash thoroughly after using to prevent corrosion
  • 5-inch slicing area cuts through large amounts of fruit in one stroke
¼-inch-slice fruit slicer Inspiration
¼-inch-slice fruit slicer Inspiration
¼-inch-slice fruit slicer Inspiration
¼-inch-slice fruit slicer Inspiration

Product Specifications

Engineering front view

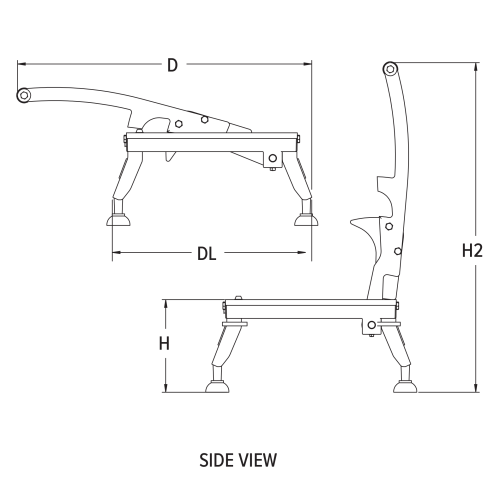

Engineering side view

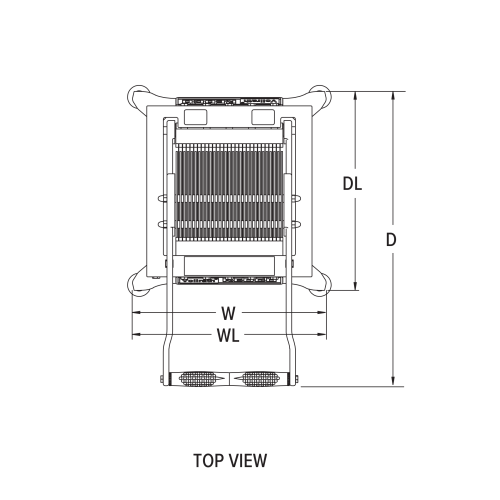

Engineering top view
Model Information
Name Value
UPC 029419141586
Unit Dimensions
Name Value
Overall Dimensions (IN) 12.89 x 19.59 x 9.19
(W) Width (IN) 12.89
Product Overall Width - Open (IN) 12.89
Product Overall Width - Closed (IN) 12.89
(D) Depth (IN) 19.59
Product Overall Depth - Open (IN) 13.24
Product Overall Depth - Closed (IN) 19.59
(H) Height (IN) 9.19
(H2) Secondary Height (IN) 21.95
Product Overall Height - Open (IN) 21.95
Product Overall Height - Closed (IN) 9.19
(WL) Width between legs 12.89
(DL) Depth between legs 13.24
Cut Size (IN) 0.25
(W) Width (CM) 32.7
Product Overall Width - Open (CM) 32.8
Product Overall Width - Closed (CM) 32.8
(D) Depth (CM) 49.8
Product Overall Depth - Open (CM) 33.6
Product Overall Depth - Closed (CM) 49.8
(H) Height (CM) 23.3
(H2) Secondary Height (CM) 55.8
Product Overall Height - Open (CM) 55.8
Product Overall Height - Closed (CM) 23.3
(WL) Width between legs (CM) 32.7
(DL) Depth between legs (CM) 33.6
Cut Size (CM) 0.6
Size 0.25
Case Lot Measurement
Name Value
Case Lot 1
Case Width 14.75
Case Height 8.25
Case Length 21.75
Case Lot Cube (ft.) 1.34
Case Lot Weight (lbs.) 7.83
Product Accessories
Name Item #
¼-inch-cut replacement blade assembly for Lettuce King™ I lettuce cutter 485
Food Processor Blade Cleaning Brush 4425
Product Parts
Name Part # Price
RUBBER BUMP-ON 506 $3.50
SCR FH 1/4-20 X 3/4 414 $5.20
SCREW HANDLE MOUNTING 415 $1.50
RUBBER SEAL 0655 $3.20
PUSHERHEAD LOCKNG COLLAR 453 $26.40
WASHER NYLON 490 $1.80
NUT ACORN 1/4 519 $5.90
FRAME CASTING 468 $257.20
BLADE BLOCK SCREW 427 $3.10
HEX KEY SHORTARM 3/16 855133 $1.30
SCREW SQUARE HEAD 4422R $4.40
PUSHERHEAD 1/4 483 $295.10
PUSHERHEAD PIVOT ROD 454 $25.60
HANDLE PUSHER HEAD 455 $63.40

Product Downloads

CAD / REVIT

For the most updated list for Vollrath products and CAD drawings

Visit VOLLRATH.KCLCAD.COM
