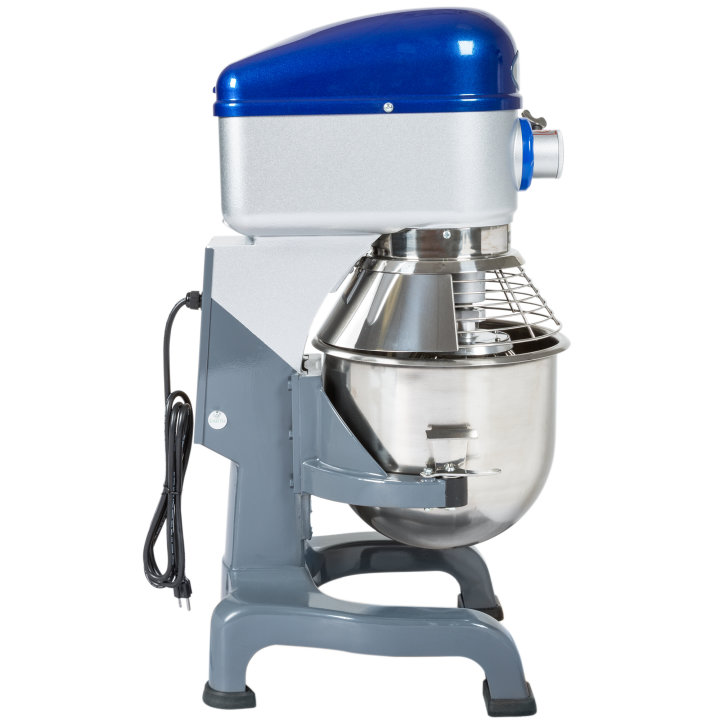

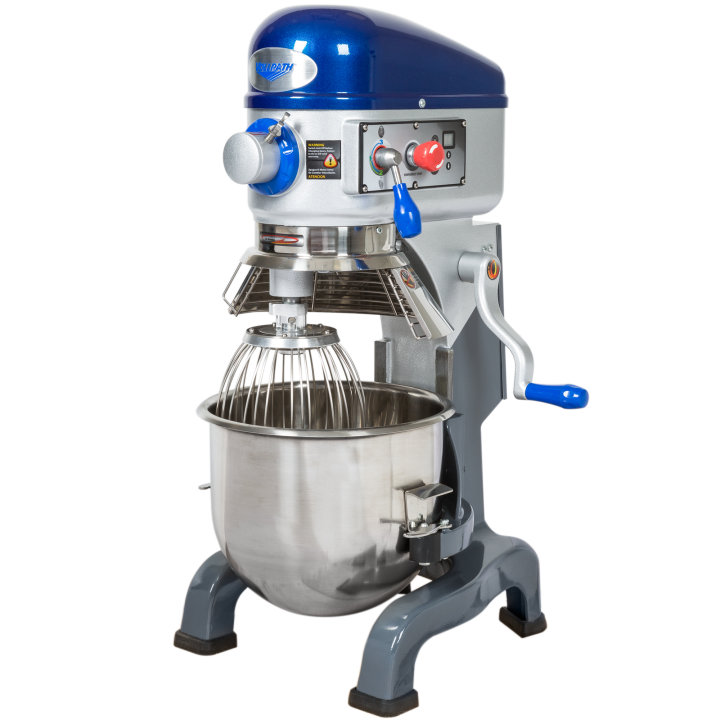

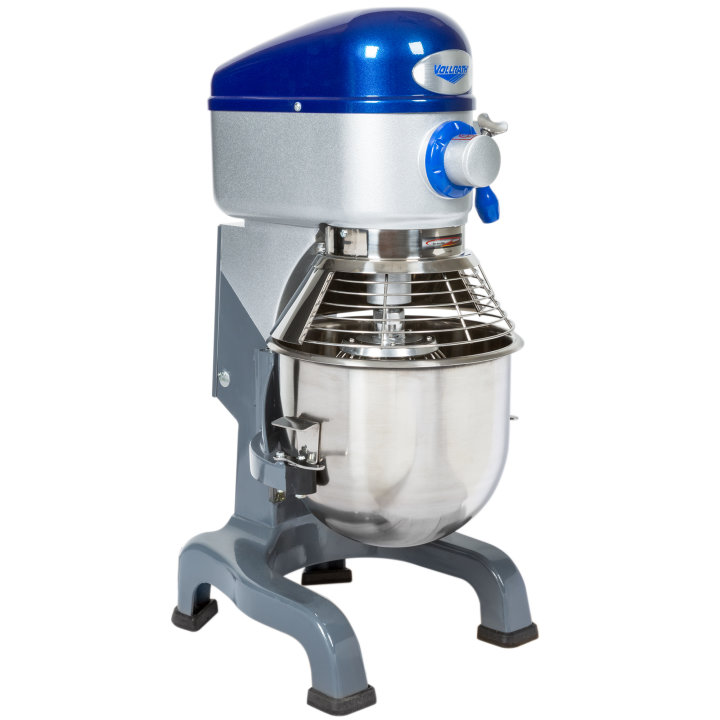

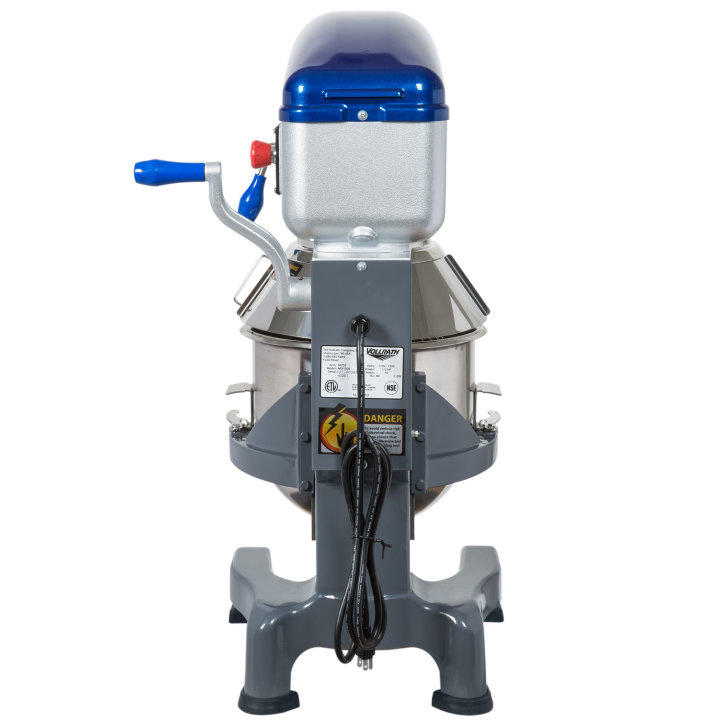

20-quart 110- to 120-volt bench mixer with safety guard
-
This symbol represents products that have met the minimum requirements of prescribed product safety standards. The symbol also indicates that the manufacturer’s production site conforms to a range of compliance measures and is subject to periodic follow up inspections to verify continued conformance.
The Vollrath® 20-quart bench mixer is built tough, promising years of reliability and durability. It features a 3-speed belt drive, allowing you to mix a variety of products at the appropriate speed. The 30-minute timer automatically turns the mixer off for ultimate convenience. This mixer comes with all the accessories required for operation, as well as a safety guard to prevent accidental injury. Strong legs maintain stability while black feet prevent movement during use. If you want to expand your mixer’s versatility to include grinding and slicing, a No. 12 Hub can accommodate the appropriate Vollrath attachments.
- Efficiently mixes, whips and beats a variety of foods
- Safety cut-off interrupts power if gears are changed while the mixer is in use, preventing gear damage and extending the life of this unit
- Stainless steel mixing bowl, dough hook, wire whisk, flat beater and safety guard included
- Meat grinder and vegetable slicer attachments are available for added versatility — for best results Vollrath attachments are recommended
- International models have CE certification only
- 30-minute timer automatically stops unit when time is up
- 3-speed belt drive is built for years of service
- 20-quart mixing bowl included
Product Specifications
Model Information
Name | Value |
---|---|
Model | MIX1020 |
UPC | 029419720484 |

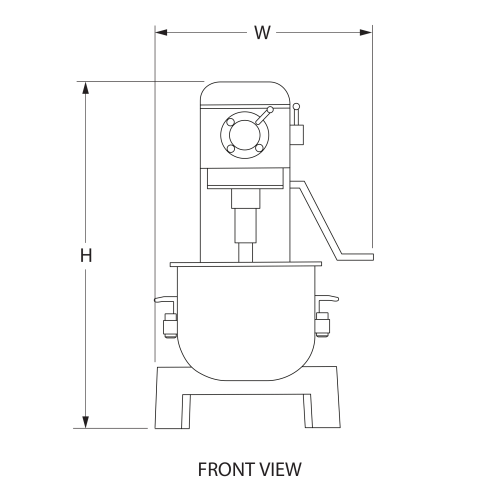

Unit Dimensions
Name | Value |
---|---|
Overall Dimensions (IN) | 20.375 x 20.375 x 35.625 |
(W) Width (IN) | 20.37 |
(D) Depth (IN) | 20.37 |
(H) Height (IN) | 35.62 |
(WL) Width between legs | 16.5 |
(DL) Depth between legs | 17.25 |
(W) Width (CM) | 51.8 |
(D) Depth (CM) | 51.8 |
(H) Height (CM) | 90.5 |
(WL) Width between legs (CM) | 41.9 |
(DL) Depth between legs (CM) | 43.8 |
Size | 20 |
Electrical
Name | Value |
---|---|
Amps | 10 |
Cord Length (IN) | 6" |
Cord Length (CM) | 182.9 |
hp | 1/2 |
Hz | 60 |
Plug | NEMA 5-15P |
Voltage | 110-120 |
Volume
Name | Value |
---|---|
Capacity (L) | 18.9 |
Capacity (OZ) | 640 |
Capacity (QT) | 20 |
Case Lot Measurement
Name | Value |
---|---|
Case Lot | 1 |
Case Width | 21 |
Case Height | 42.5 |
Case Length | 25 |
Case Lot Cube (ft.) | 12.94 |
Case Lot Weight (lbs.) | 264.0 |
Product Accessories
Product Parts
Name | Part # | Price |
---|---|---|
POWERCORD 120V (NEMA5-15P) | XAA0005 | $48.50 |
MIXER GEARBOX GREASE (17.6 OZ) | XMIX0001 | $67.00 |
MIXER PLANETARY GREASE (OMEGA | XMIX0002 | $109.80 |
AGITATOR SHAFT ASSEMBLY | XMIX0007 | $906.20 |
GOVERNOR PLATE MIX7120/9120/71 | XMIX2004 | $15.30 |
GOVERNOR MIX7120 (#148) | XMIX2005 | $22.60 |
CAPACITOR MIX7120 (#146) | XMIX2010 | $60.00 |
BOWL SUPPORT ASSEMBLY | XMIX2017 | $764.80 |
POWER CABLE MIX7120 (NO.37) | XMIX2023 | $28.20 |
PLANETARY SHAFT COMPLETE MIX71 | XMIX2027 | $991.90 |
HUB THUMBSCREW MIX7120 (NO41) | XMIX2033 | $29.50 |
CABLE RESTRAINER MIX7120 (68 | XMIX2037 | $8.80 |
OIL BAFFLE FOR HUB ATTACHMENT | XMIX2039 | $38.20 |
LIFTER ROD MIX7120 (NO.73) | XMIX2049 | $37.00 |
BOWL LIFT SPRING MIX7120 (77 | XMIX2052 | $8.70 |
20 QT BOWL SAFETY GUARD KIT | XMIX2077 | $1,151.80 |
BEARING (6200Z) (#89) | XMIX2089 | $13.80 |
HUB O-RING (OR-P35) MIX7120 ( | XMIX2094 | $5.60 |
PLANETARY OIL SEAL (TC32X47X10 | XMIX2095 | $9.90 |
KEY 6X6X30 MIX7120 (#108) | XMIX2108 | $3.70 |
KEY (1/8X1/8X1/2) MIX7120 (#10 | XMIX2109 | $7.50 |
KEY(6X6X50) MIX7120 (#112) | XMIX2112 | $7.50 |
KEY(5X5X20) MIX7120 (#113) | XMIX2113 | $7.80 |
DOUGH HOOK (C-TYPE) MIX7120 | XMIX2160 | $294.50 |
SAFETY GUARD COMPLETE MIX7120/ | XMIX2250 | $1,048.60 |
MICROSWITCH ON GEARSHIFT (MIX7 | XMIX2270 | $29.30 |
FREEZE PLUG LARGE MIX7120; ALL | XMIX2280 | $20.00 |
FREEZE PLUG SMALL MIX7120 (#3 | XMIX2290 | $14.50 |
BEARING 6203Z (#87) | XMIX3087 | $23.00 |
BEARING 6204Z (#90) | XMIX3090 | $24.90 |
KEY(5*5*30) MIX7130 (#104) | XMIX3104 | $13.60 |
KEY(5X5X15) MIX7130 (#105) | XMIX3300 | $15.00 |
FRONT HUB COVER MIX8160/9160 | XMIX6040 | $19.30 |
HUB COMPLETE MIX1020 (#59-68) | XMIX8200 | $715.80 |
PLASTIC HUB RING MIX1020 (DYNA | XMIX8201 | $52.40 |
EMERGENCY STOP SWITCH MIX1020 | XMIX8202 | $135.90 |
DIGIT-TIMER/FASCIA MIX 1020/30 | XMIX8203 | $378.30 |
GEAR LEVER KNOB(BLUE) & SHAFT | XMIX8205 | $107.00 |
BOWL LIFT ARM CAST ALUMINUM | XMIX8207 | $169.20 |
RUBBER FRONT FOOT COVER MIX102 | XMIX8209 | $35.00 |
RUBBER REAR FOOT COVER MIX102 | XMIX8210 | $35.00 |
RUBBER BOWL ARM COVER LEFT MIX | XMIX8211 | $35.00 |
RUBBER BOWL ARM COVER RIGHT MI | XMIX8212 | $35.00 |
GEARBOX COVER MIX1020 (#4) | XMIX8213 | $150.90 |
TRANSMISSION SHAFT COMPLETE MI | XMIX8214 | $363.60 |
PULLEY & SHAFT MIX1020 (#D) ( | XMIX8215 | $335.50 |
SHIFTER SHAFT & SELECTOR MIX10 | XMIX8216 | $206.30 |
SHIFTER FORK & SHAFT MIX1020 ( | XMIX8217 | $156.60 |
RING GEAR MIX7120/9120/1020 (# | XMIX8219 | $316.80 |
BOWL LIFT ASSEMBLY MIX9120/102 | XMIX8221 | $161.70 |
BOWL LIFT HANDLE/LINKAGE ASSY | XMIX8223 | $360.70 |
BOWL LIFT HANDLE KNOB/BLUE | XMIX8224 | $112.00 |
POWER BOARD MIX1020/1030 (#159 | XMIX8312 | $862.40 |
COGGED DRIVE BELT MIX9120/1020 | XMIX9201 | $90.60 |
MOTOR MIX9120/1020 (#54 55)(I | XMIX9205 | $939.50 |
AGITATOR SHAFT OIL SEAL MIX912 | XMIX9208 | $10.80 |
AGITATOR SHAFT MIX7120/9120/10 | XMIX9209 | $108.10 |
AGITATOR SHAFT TAPERED PIN MIX | XMIX9210 | $10.80 |
WORM GEAR SHAFT MIX9120 | XMIX9229 | $439.00 |
MOTOR PULLEY MIX9120/1020 (# | XMIX9231 | $68.60 |
SAFETY SWITCH 20 QT BOWL GUARD | XMIX9893 | $263.90 |
