4075703
20-quart 220- to 230-volt bench mixer with safety guard and UK plug
$4217.91
MSRP
Manufacturer Suggested Retail Price (MSRP) is a predetermined percentage off of list price (shown is US Dollars) and is valid for vollrathfoodservice.com and the United States and Canada only. Dealer pricing may differ. These prices do not include potential shipping costs. Any sales tax applicable will be added to the final price upon quote or purchase.
$7,029.85
List Price
List price (shown is US Dollars) is valid for vollrathfoodservice.com and the United States and Canada only. Dealer pricing may differ. These prices do not include potential shipping costs. Any sales tax applicable will be added to the final price upon quote or purchase.

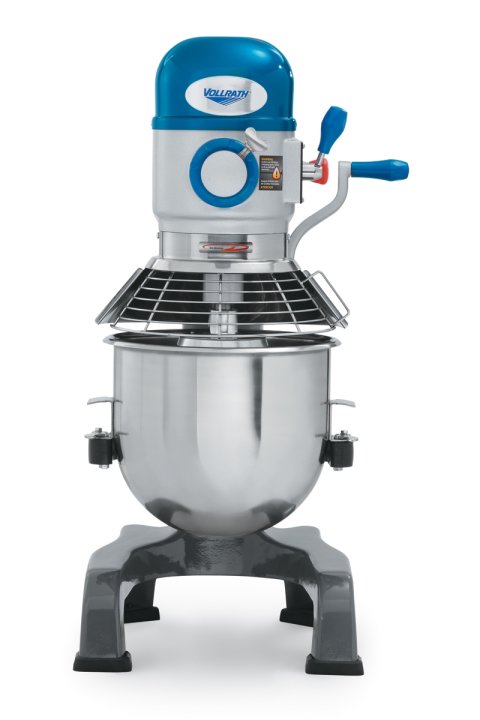

The 20-quart bench mixer by Vollrath is built tough, promising years of reliability and durability. It features a 3-speed belt drive, allowing you to mix a variety of products at the appropriate speed, and the 30-minute timer automatically turns the mixer off at the end of the cycle. This mixer comes with all the accessories required for operation, including a safety guard to prevent accidental injury. Strong legs maintain stability while black feet prevent movement during use. If you want to expand your mixer’s versatility to include grinding and slicing, a No. 12 Hub can accommodate the appropriate Vollrath attachments.
- Efficiently mixes, whips and beats a variety of foods
- Safety cut-off interrupts power if gears are changed while the mixer is in use, preventing gear damage and extending the life of this unit
- Stainless steel mixing bowl, dough hook, wire whisk, flat beater and safety guard included
- Meat grinder and vegetable slicer attachments are available for added versatility — for best results Vollrath attachments are recommended
- International models have CE certification only
- 30-minute timer automatically stops unit when time is up
- 3-speed belt drive is built for years of service
- 6-foot cord and UK plug
Product Specifications
Model Information
| Name | Value |
|---|---|
| Model | MIX1020CE |
| UPC | 029419861941 |
Unit Dimensions
| Name | Value |
|---|---|
| Overall Dimensions (IN) | 20.375 x 20.375 x 35.625 |
| (W) Width (IN) | 20.37 |
| (D) Depth (IN) | 20.37 |
| (H) Height (IN) | 35.62 |
| (W) Width (CM) | 51.8 |
| (D) Depth (CM) | 51.8 |
| (H) Height (CM) | 90.5 |
| Size | 20 |
Electrical
| Name | Value |
|---|---|
| Amps | 4 |
| Hz | 50 |
| Plug | UK |
| Domestic / International | United Kingdom |
| Voltage | 220-230V |
| Watts | 370 |
Case Lot Measurement
| Name | Value |
|---|---|
| Case Lot | 1 |
| Case Width | 21 |
| Case Height | 42.5 |
| Case Length | 25 |
| Case Lot Cube (ft.) | 12.91 |
| Case Lot Weight (lbs.) | 264.0 |
Product Accessories
Product Parts
| Name | Part # | Price |
|---|---|---|
| COGGED DRIVE BELT MIX9120/1020 | XMIX9201 | $93.32 |
| GEAR LEVER KNOB(BLUE) & SHAFT | XMIX8205 | $110.21 |
| GOVERNOR MIX7120 (#148) | XMIX2005 | $23.28 |
| KEY 6X6X30 MIX7120 (#108) | XMIX2108 | $3.81 |
| KEY(5*5*30) MIX7130 (#104) | XMIX3104 | $14.01 |
| RUBBER BOWL ARM COVER RIGHT MI | XMIX8212 | $36.05 |
| BOWL LIFT SPRING MIX7120 (77 | XMIX2052 | $10.50 |
| GOVERNOR PLATE MIX7120/9120/71 | XMIX2004 | $15.76 |
| KEY(5X5X15) MIX7130 (#105) | XMIX3300 | $15.45 |
| HUB COMPLETE MIX1020 (#59-68) | XMIX8200 | $737.27 |
| SAFETY GUARD COMPLETE MIX7120/ | XMIX2250 | $1,080.06 |
| HUB THUMBSCREW MIX7120 (NO41) | XMIX2033 | $35.60 |
| WORM GEAR SHAFT MIX9120 | XMIX9229 | $452.17 |
| BOWL LIFT ASSEMBLY MIX9120/102 | XMIX8221 | $166.55 |
| MOTOR ASSEMBLY 220V 20QT MIXE | XMIX9215 | $1,163.18 |
| DOUGH HOOK (C-TYPE) MIX7120 | XMIX2160 | $303.34 |
| BOWL SUPPORT ASSEMBLY | XMIX2017 | $787.74 |
| BEARING 6203Z (#87) | XMIX3087 | $23.69 |
| FREEZE PLUG LARGE MIX7120; ALL | XMIX2280 | $20.60 |
| KEY(6X6X50) MIX7120 (#112) | XMIX2112 | $7.73 |
| AGITATOR SHAFT MIX7120/9120/10 | XMIX9209 | $111.34 |
| FREEZE PLUG SMALL MIX7120 (#3 | XMIX2290 | $17.50 |
| SHIFTER SHAFT & SELECTOR MIX10 | XMIX8216 | $212.49 |
| EMERGENCY STOP SWITCH MIX1020 | XMIX8202 | $139.98 |
| FRONT HUB COVER MIX8160/9160 | XMIX6040 | $19.88 |
| SHIFTER FORK & SHAFT MIX1020 ( | XMIX8217 | $161.30 |
| RUBBER BOWL ARM COVER LEFT MIX | XMIX8211 | $36.05 |
| BOWL LIFT HANDLE KNOB/BLUE | XMIX8224 | $115.36 |
| BEARING 6204Z (#90) | XMIX3090 | $25.65 |
| SAFETY SWITCH 20 QT BOWL GUARD | XMIX9893 | $271.82 |
| MICROSWITCH ON GEARSHIFT (MIX7 | XMIX2270 | $30.18 |
| PLANETARY SHAFT COMPLETE MIX71 | XMIX2027 | $1,021.66 |
| PLASTIC HUB RING MIX1020 (DYNA | XMIX8201 | $53.97 |
| CAPACITOR MIX7120 (#146) | XMIX2010 | $61.80 |
| LIFTER ROD MIX7120 (NO.73) | XMIX2049 | $38.11 |
| MOTOR PULLEY MIX9120/1020 (# | XMIX9231 | $70.66 |
| AGITATOR SHAFT ASSEMBLY | XMIX0007 | $933.39 |
| PLANETARY OIL SEAL (TC32X47X10 | XMIX2095 | $10.20 |
| KEY (1/8X1/8X1/2) MIX7120 (#10 | XMIX2109 | $7.73 |
| POWER BOARD MIX1040 (#172) | XMIX8417 | $862.42 |
| AGITATOR SHAFT OIL SEAL MIX912 | XMIX9208 | $11.12 |
| BOWL LIFT ARM CAST ALUMINUM | XMIX8207 | $174.28 |
| OIL BAFFLE FOR HUB ATTACHMENT | XMIX2039 | $39.35 |
| RING GEAR MIX7120/9120/1020 (# | XMIX8219 | $326.30 |
| BEARING (6200Z) (#89) | XMIX2089 | $14.21 |
| DIGIT-TIMER/FASCIA MIX 1020/30 | XMIX8203 | $389.65 |
| PULLEY & SHAFT MIX1020 (#D) ( | XMIX8215 | $345.57 |
| KEY(5X5X20) MIX7120 (#113) | XMIX2113 | $9.40 |
| 20 QT BOWL SAFETY GUARD KIT | XMIX2077 | $1,186.35 |
| GEARBOX COVER MIX1020 (#4) | XMIX8213 | $155.43 |
| TRANSMISSION SHAFT COMPLETE MI | XMIX8214 | $374.51 |
| RUBBER FRONT FOOT COVER MIX102 | XMIX8209 | $36.05 |
| CABLE RESTRAINER MIX7120 (68 | XMIX2037 | $9.06 |
| AGITATOR SHAFT TAPERED PIN MIX | XMIX9210 | $13.00 |
| BOWL LIFT HANDLE/LINKAGE ASSY | XMIX8223 | $371.52 |
| RUBBER REAR FOOT COVER MIX102 | XMIX8210 | $36.05 |
| MIXER PLANETARY GREASE (OMEGA | XMIX0002 | $113.09 |
| MIXER GEARBOX GREASE (17.6 OZ) | XMIX0001 | $69.01 |
| HUB O-RING (OR-P35) MIX7120 ( | XMIX2094 | $5.77 |
