40831

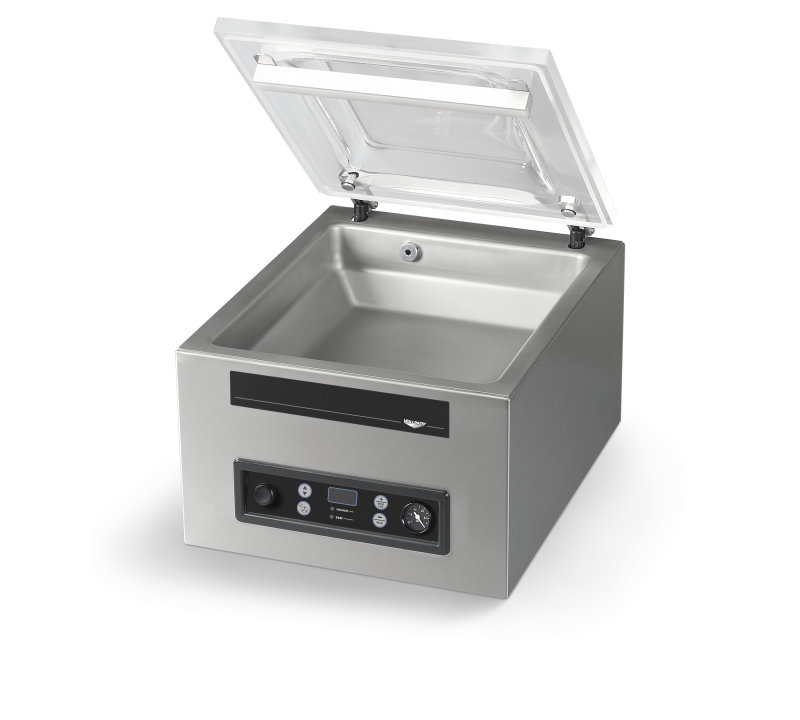

Medium 120-volt in-chamber vacuum-pack machine with 12-inch seal bar
This symbol represents products that have met the minimum requirements of prescribed product safety standards. The symbol also indicates that the manufacturer’s production site conforms to a range of compliance measures and is subject to periodic follow up inspections to verify continued conformance.
Reduce waste and extend the shelf life of your food with the Vollrath® medium in-chamber vacuum-pack machine. This unit has a smooth, stainless steel exterior and a transparent, soft-open lid for ease of use. The customizable front panel controls allow you to set the desired vacuum time. The strong sealing cylinders create a tight seal, while the seal bar accommodates multiple bags up to 12 inches. The seal bar is also easy to remove and clean, while the pump-conditioning program removes unwanted moisture and debris. Both of these features extend the life of the unit and ensure high-quality vacuum sealing.
- Effortlessly vacuum seal meat, cheese, fruit and more
- Models include premium vacuum pump
- Full maintenance kit included for your convenience
- Two sealing cylinders create a tight seal, preventing drips and leaks
- 12-inch seal bar accommodates multiple bags up to 12 inches
Vollrath’s vacuum pack machines are the best in the business. With the Vollrath vac pack machine, we can ensure that our ingredients make it to our guests in pristine condition and quality. We want every meal kit from Truffle Shuffle to arrive like a gift, and the Vollrath vac pack machine allows us to do just that.
Tyler Vorce Founder and CCO - Truffle Shuffle
Product Specifications
Model Information
| Name | Value |
|---|---|
| Model | VP12 |
| UPC | 671080420448 |
Unit Dimensions
| Name | Value |
|---|---|
| Overall Dimensions (IN) | 17.75 x 21.75 x 14.5 |
| (W) Width (IN) | 17.75 |
| (D) Depth (IN) | 21.75 |
| (H) Height (IN) | 14.5 |
| (WL) Width between legs | 14 |
| (DL) Depth between legs | 17.25 |
| Product Opening Width (IN) | 17.75 |
| Product Opening Depth (IN) | 21.75 |
| Product Opening Height (IN) | 26.75 |
| (WC) Cooking Chamber Width (IN) | 14.5 |
| (DC) Cooking Chamber Depth (IN) | 17 |
| (HC) Cooking Chamber Height (IN) | 4 |
| (W) Width (CM) | 45.1 |
| (D) Depth (CM) | 55.2 |
| (H) Height (CM) | 36.9 |
| (WL) Width between legs (CM) | 35.6 |
| (DL) Depth between legs (CM) | 43.8 |
| Product Opening Width (CM) | 45.1 |
| Product Opening Depth (CM) | 55.2 |
| Product Opening Height (CM) | 67.9 |
| (WC) Cooking Chamber Width (CM) | 36.8 |
| (DC) Cooking Chamber Depth (CM) | 43.2 |
| (HC) Cooking Chamber Height (CM) | 10.2 |
| Size | Medium |
Electrical
| Name | Value |
|---|---|
| Amps | 8.5 |
| Cord Length (IN) | 72 |
| Cord Length (CM) | 182.9 |
| hp | 0.64 |
| Hz | 60 |
| Plug | NEMA 5-15P |
| Voltage | 120 |
| Watts | 500 |
Case Lot Measurement
| Name | Value |
|---|---|
| Case Lot | 1 |
| Case Width | 22.75 |
| Case Height | 23.25 |
| Case Length | 28.5 |
| Case Lot Cube (ft.) | 8.72 |
| Case Lot Weight (lbs.) | 118 |
Product Accessories
| Name | Item # |
|---|---|
| 6” x 8” in-chamber boil-in vacuum sealer bags | 23850 |
| 8” x 12” in-chamber boil-in vacuum sealer bags | 23852 |
| 8” x 12” in-chamber vacuum sealer bags | 40815 |
| 10” x 15” in-chamber vacuum sealer bags | 40816 |
| 12” x 16” in-chamber vacuum sealer bags | 40817 |
| PLASTIC HOOD | XVP00058 |
| INCLINED INSERT PLATE VP12 | XVP00059 |
Product Parts
| Name | Part # | Price |
|---|---|---|
| VACUUM PUMP 8 M3 110/120V | XVP00035 | $5,291.02 |
| VACUUM METER | XVP00040 | $136.21 |
| SERVICE KIT VP 12 | XVP00049 | $257.51 |
| OIL PLUG, VACUUM PUMP | XVP00076 | $27.01 |
| SEAL WIRE 3.5 MM 3 M LENGTH | XVP00051 | $174.50 |
| SIGHT GLASS | XVP00067 | $140.24 |
| SEAL TRANSFORMER 10V 500VA | XVP00012 | $595.54 |
| VP12 CTRL BOARD, VAC PRESSURE | XVP00074 | $959.03 |
| INSERT PLATE BIG | XVP00054 | $195.62 |
| INSERT PLATE SMALL | XVP00053 | $145.31 |
| VALVE BLOCK VP 12 | XVP00025 | $738.06 |
| LID GASKET 71 INCHES | XVP00068 | $71.21 |
| LID CLOSING BRACKET VP 12 | XVP00034 | $37.57 |
| POWER SWITCH DPDT 120V 1.5A | XVP00005 | $169.22 |
| CLEAR LID | XVP00065 | $1,722.14 |
| HINGE VP12 | XVP00031 | $92.22 |
| SEAL BAR VP12 | XVP00030 | $674.61 |
| CHECK VALVE W-CLAMPS | XVP00070 | $55.79 |
| OIL REFILL BOTTLE | XVP00038 | $62.10 |
| POWER CORD SJTO 14 AWG | XVP00060 | $157.73 |
| PUMP CONTACTOR | XVP00063 | $240.95 |
| LID GAS SPRING | XVP00041 | $161.87 |
| VP12 CTRL PANEL, VAC TIME | XVP00042 | $1,650.72 |
| VP12 CTRL PANEL, VAC PRESSURE | XVP00075 | $1,522.38 |
| SEAL CONTACTOR RATED 120V | XVP00006 | $196.96 |
| FUSE SEAL TRANSFORMER | XVP00023 | $3.73 |
| FEET VACUUM MACHINE | XVP00001 | $9.94 |
| VP 12 CTRL BOARD, VAC TIME | XVP00014 | $576.91 |
| SWITCH COVER INTERLOCK | XVP00044 | $133.83 |
| CIRCUIT BREAKER | XVP00008 | $80.42 |
| SEAL CYLINDER VP 12 | XVP00027 | $662.71 |
| CONTROL TRANSFORMER | XVP00011 | $161.87 |
| TEFLON TAPE 3 METER LENGTH | XVP00052 | $151.11 |
| EXHAUST FILTER 8M3 PUMP | XVP00047 | $523.71 |
| CONTROL PANEL MOUNTIN CLIP KIT | XVP00073 | $38.92 |
