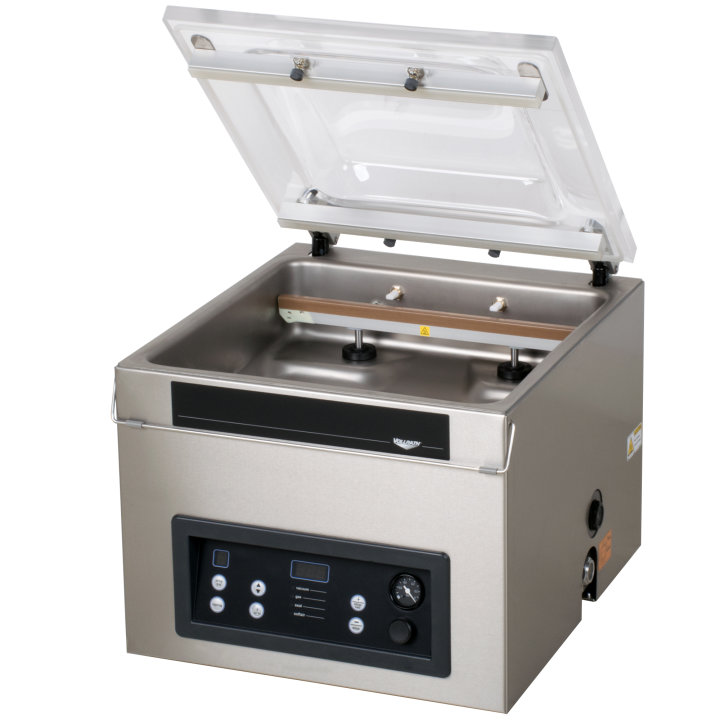

Large 120-volt in-chamber vacuum-pack machine with 16-inch seal bars
-
This symbol represents products that have met the minimum requirements of prescribed product safety standards. The symbol also indicates that the manufacturer’s production site conforms to a range of compliance measures and is subject to periodic follow up inspections to verify continued conformance.
Reduce waste and extend the shelf life of your food with the Vollrath® large in-chamber vacuum-pack machine. This large unit has a smooth, stainless steel exterior and a transparent, soft-open lid for ease of use. The customizable front panel controls allow you to set a desired time control, sensor control or liquid control. The strong sealing cylinders create a tight seal, while the seal bars accommodate multiple bags up to 16 inches. The seal bars are also easy to remove and clean, while the pump-conditioning program removes unwanted moisture and debris. Both of these features extend the life of the unit and ensure high-quality vacuum sealing.
- Effortlessly vacuum seal meat, cheese, fruit and more
- Models include premium vacuum pump
- Full maintenance kit included for your convenience
- Ten programs and soft-air option for increased versatility
- Two sealing cylinders create a tight seal, preventing drips and leaks
- Two 16-inch seal bars accommodates multiple bags up to 16 inches
Product Specifications
Model Information
Name | Value |
---|---|
Model | VP16 |
UPC | 671080420455 |
Unit Dimensions
Name | Value |
---|---|
Overall Dimensions (IN) | 19.5 x 20.75 x 21.5 |
(W) Width (IN) | 19.5 |
(D) Depth (IN) | 20.75 |
(H) Height (IN) | 21.5 |
(WL) Width between legs | 15.5 |
(DL) Depth between legs | 16.25 |
Product Opening Width (IN) | 19.5 |
Product Opening Depth (IN) | 20.75 |
Product Opening Height (IN) | 29.25 |
(WC) Cooking Chamber Width (IN) | 16.8125 |
(DC) Cooking Chamber Depth (IN) | 16 |
(HC) Cooking Chamber Height (IN) | 5 |
(W) Width (CM) | 49.5 |
(D) Depth (CM) | 52.7 |
(H) Height (CM) | 54.7 |
(WL) Width between legs (CM) | 39.4 |
(DL) Depth between legs (CM) | 41.3 |
Product Opening Width (CM) | 49.5 |
Product Opening Depth (CM) | 52.7 |
Product Opening Height (CM) | 74.3 |
(WC) Cooking Chamber Width (CM) | 42.7 |
(DC) Cooking Chamber Depth (CM) | 41.9 |
(HC) Cooking Chamber Height (CM) | 12.7 |
Size | Large |
Electrical
Name | Value |
---|---|
Amps | 13 |
Cord Length (IN) | 72 |
Cord Length (CM) | 182.9 |
hp | 1.3 |
Hz | 60 |
Plug | NEMA 5-20P |
Voltage | 120 |
Watts | 900 |
Case Lot Measurement
Name | Value |
---|---|
Case Lot | 1 |
Case Width | 22.75 |
Case Height | 25.5 |
Case Length | 28.5 |
Case Lot Cube (ft.) | 6.6 |
Case Lot Weight (lbs.) | 166 |
Product Accessories
Name | Item # |
---|---|
6” x 8” in-chamber boil-in vacuum sealer bags | 23850 |
8” x 12” in-chamber boil-in vacuum sealer bags | 23852 |
12” x 16” in-chamber boil-in vacuum sealer bags | 23854 |
8” x 12” in-chamber vacuum sealer bags | 40815 |
10” x 15” in-chamber vacuum sealer bags | 40816 |
12” x 16” in-chamber vacuum sealer bags | 40817 |
14” x 20” in-chamber vacuum sealer bags | 40818 |
Product Parts
Name | Part # | Price |
---|---|---|
FEET VACUUM MACHINE | XVP00001 | $9.60 |
POWER SWITCH DPDT 120V 1.5A | XVP00005 | $163.50 |
SEAL CONTACTOR RATED 120V | XVP00006 | $190.30 |
PUMP CONTACTOR RATED 120V | XVP00007 | $545.70 |
CIRCUIT BREAKER 125V 20A | XVP00009 | $89.70 |
CONTROL TRANSFORMER 64.5VA | XVP00010 | $548.60 |
SEAL TRANSFORMER 15V 700VA | XVP00013 | $678.50 |
SENSOR LIQUID CONTROL | XVP00015 | $1,591.00 |
CONTROL BOARD VP16 | XVP00016 | $2,609.40 |
CABLE LIQUID SENSOR CONTROL | XVP00017 | $584.20 |
FUSE CONTROL BOARD VP16 | XVP00018 | $4.10 |
FUSE CONTROL BOARD VP16 | XVP00019 | $0.70 |
FUSE CONTROL TRANSFORMER | XVP00020 | $3.60 |
FUSE CONTROL TRANSFORMER | XVP00021 | $1.80 |
FUSE SEAL TRANSFORMER | XVP00022 | $8.80 |
SOFT-AIR VALVE | XVP00024 | $195.80 |
VALVE BLOCK VP 16 - VPP16 | XVP00026 | $835.10 |
SEAL CYLINDER VP 16 - VPP16 | XVP00028 | $640.30 |
SEAL BAR VP 16 - VPP16 | XVP00029 | $344.30 |
HINGE VP16 - VPP16 | XVP00032 | $102.20 |
LID CLOSING BRACKET | XVP00033 | $46.50 |
VACUUM PUMP 21 M3 | XVP00036 | $6,676.80 |
OIL SIGHT GLASS 21 M3 PUMP | XVP00037 | $182.60 |
OIL REFILL BOTTLE | XVP00039 | $75.70 |
VACUUM METER | XVP00040 | $131.60 |
LID GAS SPRING | XVP00041 | $156.40 |
FRONT PANEL VP 16 COMPLETE | XVP00043 | $724.00 |
SWITCH COVER INTERLOCK | XVP00044 | $129.30 |
EXHAUST FILTER 21M3 PUMP | XVP00048 | $243.80 |
SERVICE KIT VP 16 - VPP 16 | XVP00050 | $435.40 |
SEAL WIRE 3.5 MM 3 M LENGTH | XVP00051 | $168.60 |
TEFLON TAPE 3 METER LENGTH | XVP00052 | $146.00 |
INSERT PLATE | XVP00055 | $202.80 |
INCLINED INSERT PLATE | XVP00056 | $942.00 |
LEG EXTENSION | XVP00057 | $54.30 |
PLASTIC HOOD | XVP00058 | $1.50 |
POWER CORD SJTOW 12 AWG | XVP00061 | $188.10 |
BAG HOLDER SUPPORT | XVP00062 | $15.40 |
PLASTIC LID | XVP00066 | $1,870.10 |
LID GASKET 71 INCHES | XVP00068 | $68.80 |
FRONT BAG GRIPPER KIT | XVP00071 | $78.50 |
REAR BAG GRIPPER KIT | XVP00072 | $84.90 |
CONTROL PANEL MOUNTIN CLIP KIT | XVP00073 | $37.60 |
OIL PLUG, VACUUM PUMP | XVP00076 | $26.10 |
