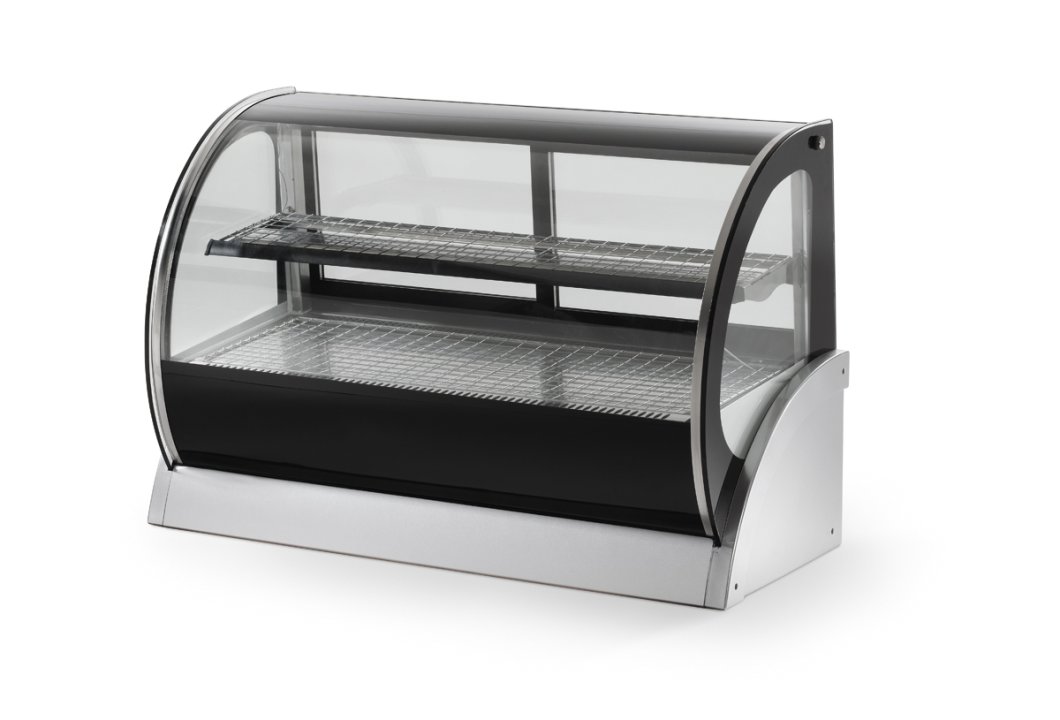

2-tier 36-inch-wide 120-volt curved-glass refrigerated display case with rear access

This symbol represents products that have met the minimum requirements of prescribed product safety standards. The symbol also indicates that the manufacturer’s production site conforms to a range of compliance measures and is subject to periodic follow up inspections to verify continued conformance.

$6522.12 MSRP

$10,870.20 List Price

View New Replacement Product

The Vollrath® curved-glass refrigerated display case chills and displays a variety of food items. Precise temperature controls keep items looking and tasting fresh. Durable, double-glazed front glass provides excellent insulation and visibility, while dual fans circulate air for even temperature distribution. Rear sliding doors allow easy access, making food selection and restocking simple and convenient. The three shelves provide plenty of room for your products, and the interior LED lighting optimizes food visibility.

Accommodates a wide variety of cold food products
Digitally controlled thermostat ensures accurate refrigeration
Rear doors lift out for easy cleaning
Please note that this item must be shipped by truck
3-year limited warranty on compressor
International models have CE certification only
Temperature range from 36°F to 46°F
These units utilize R134a refrigerant

Product Specifications

Model Information

Name	Value
Model	RDE8136
UPC	029419842131

Unit Dimensions

Name	Value
(W) Width (IN)	35.43
(DB) Depth Base (IN)	21.25
(D3) Additional Depth (IN)	9.5
(H) Height (IN)	31
(W) Width (CM)	90
(DB) Depth Base (CM)	54
(D3) Additional Depth (CM)	24.1
(H) Height (CM)	78.7
Size	36

Electrical

Name	Value
Amps	3.6
Cord Length (IN)	72
Cord Length (CM)	183
hp	1/5
Hz	60
Plug	NEMA 5-15P
Voltage	120

Weight

Name	Value
Weight (LB)	190
Weight (KG)	86.2

Case Lot Measurement

Name	Value
Case Lot	1
Case Width	22.5
Case Height	36.75
Case Length	37.5
Case Lot Cube (ft.)	17.94
Case Lot Weight (lbs.)	248.0

Product Parts

Name	Part #	Price
FEET(FITS HDE RDE ADE)	XHDE7012	$103.80
DOOR TRACK LOWER	XHDE7067	$91.10
EVAPOURATOR FAN RDE (ALL)	XRDE7109	$144.10
SIDE PANEL LH VIEWED FROM REAR	XRDE7074	$142.76
FAN COVER	XRDE7090	$6.08
RH SIDE WINDOW	XRDE7007	$419.10
DEMIST HEATER / LIGHT SWITCH	XRDE7005	$10.20
SIDE PANEL RH VIEWED FROM REAR	XRDE7073	$160.30
TRANSFORMER DEMIST HEATER	XRDE7023	$441.20
COMPRESSOR RDE7136	XRDE7415	$1,420.70
ON/OFF SWITCH ADE HDE RDE (ALL	XHDE7008	$14.90
LOUVRE PANEL 36" REAR	XRDE7070	$100.12
BALLAST 20WT-120V RDE 36"	XRDE7028	$62.70
RDE TEMP CNTR MODEL PJEZSOP100	XRDE7004	$474.90
SIDE THUMBSCREWS(FITS ADE HDE	XHDE7011	$56.60
CTRL PANEL BEZEL	XRDE7430	$37.50
CONDENSOR FAN	XRDE7025	$191.40
LIGHT STARTER ALL RDE MODELS	XRDE7031	$7.70
SHELF COMPLETE W/LIGHTS 36"	XRDE7052	$268.62
CONDENSOR	XRDE7027	$471.90
LH SIDE WINDOW	XRDE7009	$319.40
LIGHT FITTING RDE 36"	XRDE7102	$124.40
