5950280

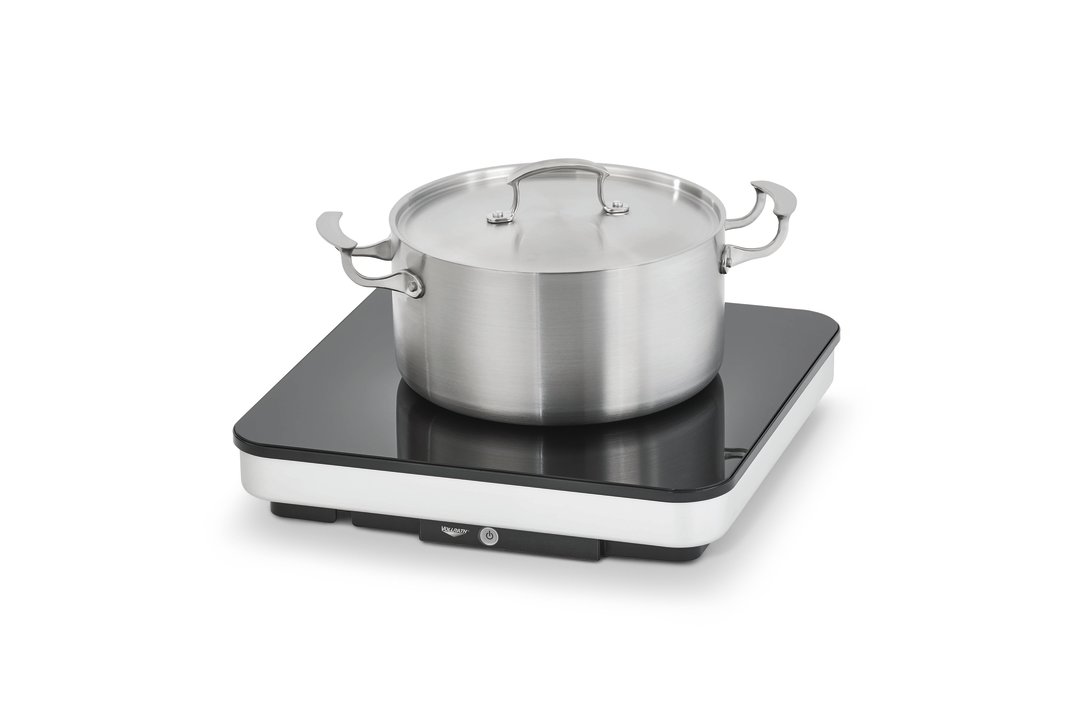

120-volt 16-inch Mirage® square countertop induction buffet warmer in natural finish
This symbol represents products that are certified to safely perform its job as intended. This product has earned this certification by undergoing rigorous testing against standards developed by UL.
California’s Proposition 65, officially known as the Safe Drinking Water and Toxic Enforcement Act, is intended to protect the state’s drinking water sources from contaminants that may be harmful. It has recently been amended, and the change that impacts Vollrath requires more specific labeling for some of our products that contain chemicals identified in Proposition 65.
Expand your menu offerings while saving energy with the Mirage square countertop induction buffet warmer by Vollrath. This warmer’s touch controls are easy to use and prevent accidental temperature adjustments, while the LED indicator lights on the control panel and glass top keep you informed. The four temperature settings allow you to hold a variety of foods at safe temperatures. Several safety features extend the life of the unit and improve the overall experience. The black tempered glass top is durable and easy to clean, while the elegant natural finish and smooth design coordinate with any serving setup. Due to the low power usage, you can operate up to three warming units per electrical outlet, simplifying cord management and easing load capacity concerns. Easily connect up to three units with the included interconnect cords, and then plug the middle unit into a wall outlet. When the cords are not in use, store them in the compartment underneath the unit for ultimate convenience.
- Ideal for any buffet or catering event
- Low, medium, high and preheat chafer temperature settings allow you to serve a variety of foods
- Overheat protection, small article detection, pan auto-detection, and empty pan auto-shutoff safety features extend the life of the unit
- LED indicator lights keep you informed
- Sleek, low-profile design and elegant natural finish create an attractive presentation
- Low power usage and inter-connect cord allows up to three units to run off of one power cord
- Inter-connect cords store in compartment under unit when not in use
- Custom decorative patterns or logos available on 16" x 16" units. Contact your local Vollrath sales representative for more information.
Product Specifications
Model Information
| Name | Value |
|---|---|
| Model | 59502XX |
| UPC | 671080417691 |

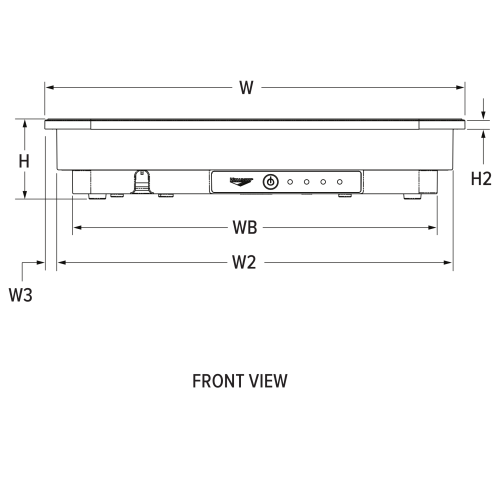

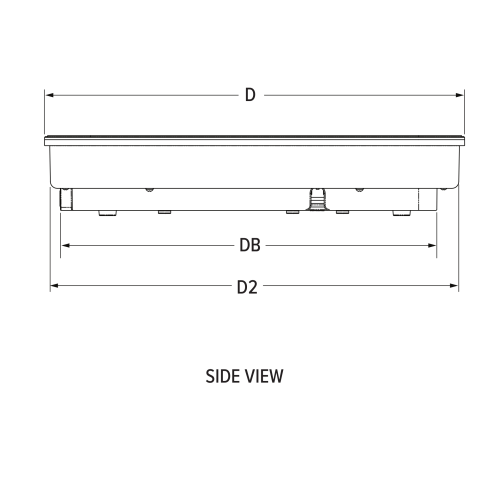

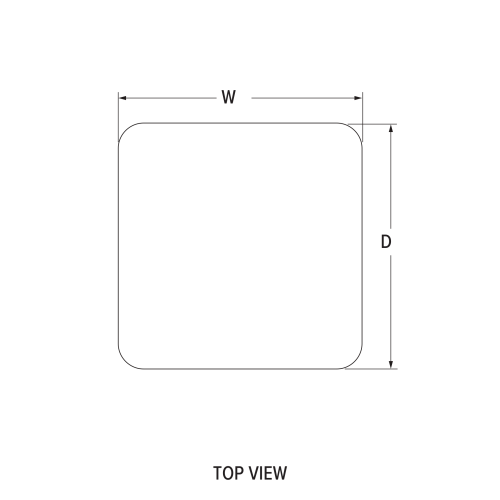

Unit Dimensions
| Name | Value |
|---|---|
| Overall Dimensions (IN) | 16 x 16 x 3.062 |
| (W) Width (IN) | 16 |
| (WB) Width Base (IN) | 13.875 |
| (W2) Secondary Width (IN) | 15.125 |
| (W3) Additional Width (IN) | 0.4375 |
| (D) Depth (IN) | 16 |
| (DB) Depth Base (IN) | 14.375 |
| (D2) Secondary Depth (IN) | 15.125 |
| (H) Height (IN) | 3.06 |
| (H2) Secondary Height (IN) | 0.375 |
| (MPD) Maximum Pan Bottom Diameter (IN) | 14 |
| (W) Width (CM) | 40.6 |
| (WB) Width Base (CM) | 35.3 |
| (W3) Additional Width (CM) | 1.1 |
| (D) Depth (CM) | 40.6 |
| (DB) Depth Base (CM) | 36.5 |
| (D2) Secondary Depth (CM) | 38.4 |
| (H) Height (CM) | 7.8 |
| (H2) Secondary Height (CM) | 1.0 |
| (MPD) Maximum Pan Bottom Diameter (CM) | 35.6 |
| Size | 16 |
Electrical
| Name | Value |
|---|---|
| Amps | 2.5 |
| Cord Length (IN) | 72 |
| Cord Length (CM) | 183 |
| Hz | 50/60 |
| Plug | NEMA 5-15P |
| Voltage | 120 |
| Watts | 300 |
Weight
| Name | Value |
|---|---|
| Weight (LB) | 14 |
| Weight (KG) | 6.4 |
Construction
| Name | Value |
|---|---|
| Countertop or Drop-In | Countertop |
Case Lot Measurement
| Name | Value |
|---|---|
| Case Lot | 1 |
| Case Width | 19.75 |
| Case Height | 6.5 |
| Case Length | 21.25 |
Product Accessories
Product Parts
Product Downloads
CAD / REVIT
For the most updated list for Vollrath products and CAD drawings
