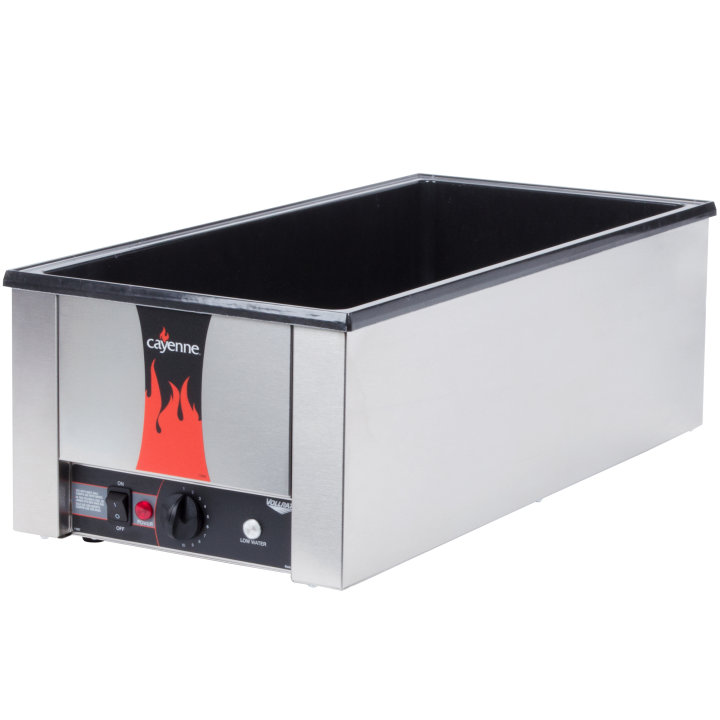

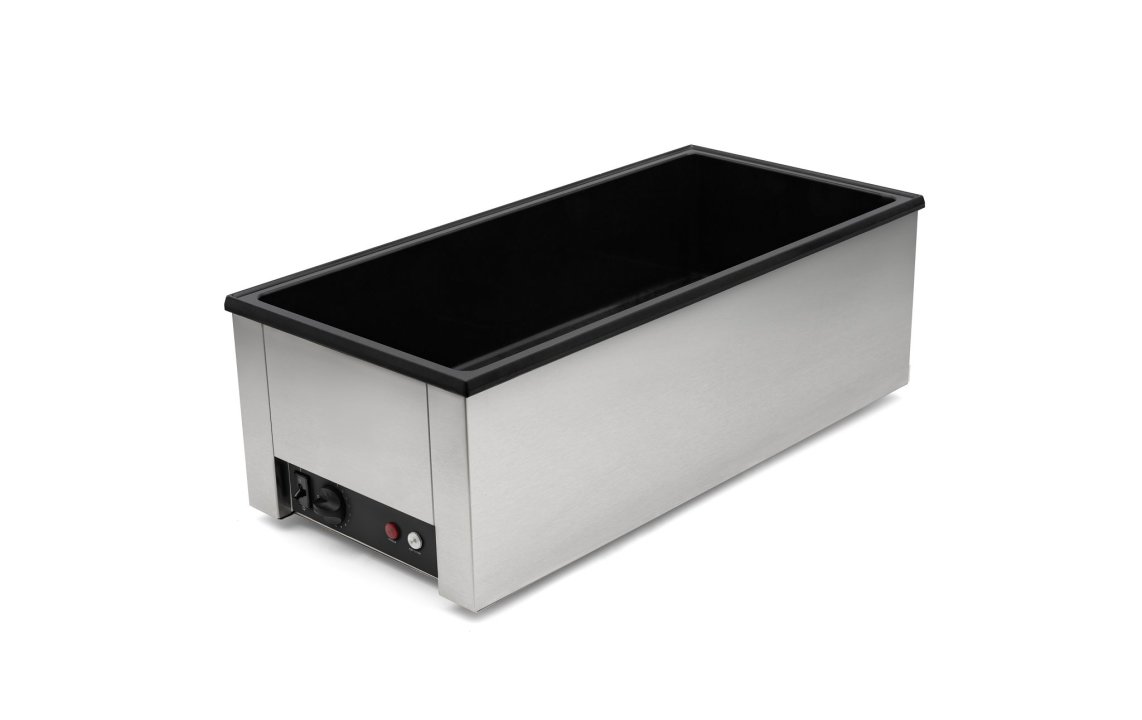

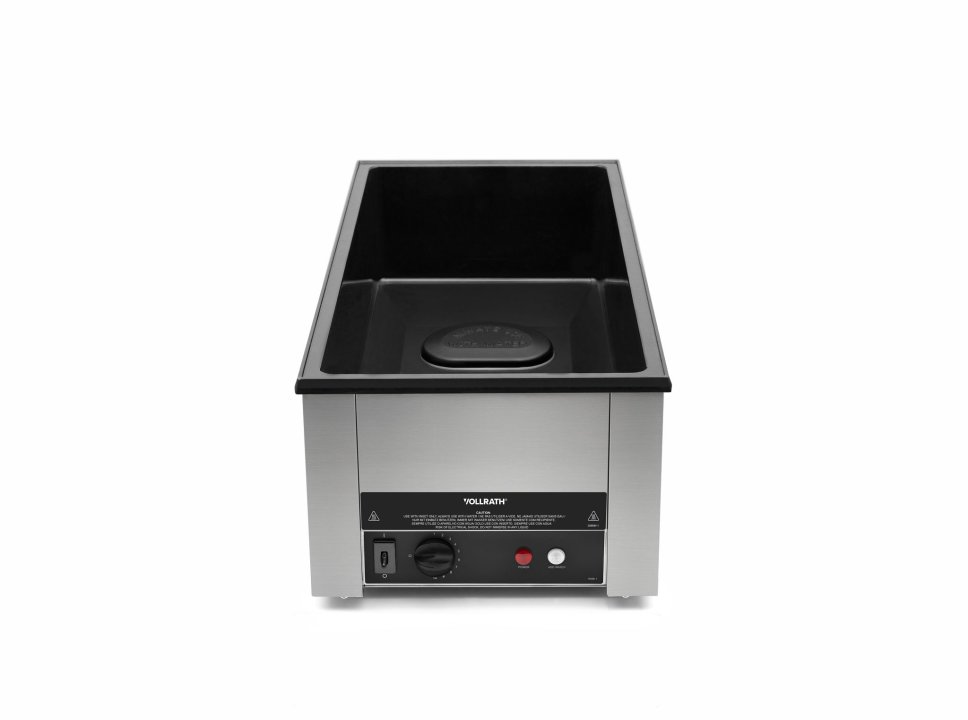

Four-third-size 120-volt Cayenne® model T43R Heat 'N Serve countertop rethermalizer

72050

Four-third-size 120-volt Cayenne® model T43R Heat 'N Serve countertop rethermalizer

  • Made in USA
  • National Sanitation Foundation
  • Underwriter Laboratories

    This symbol represents products that are certified to safely perform its job as intended. This product has earned this certification by undergoing rigorous testing against standards developed by UL.

  • Prop 65
$577.01 MSRP Manufacturer Suggested Retail Price (MSRP) is a predetermined percentage off of list price (shown is US Dollars) and is valid for vollrathfoodservice.com and the United States and Canada only. Dealer pricing may differ. These prices do not include potential shipping costs. Any sales tax applicable will be added to the final price upon quote or purchase.
$961.68 List Price List price (shown is US Dollars) is valid for vollrathfoodservice.com and the United States and Canada only. Dealer pricing may differ. These prices do not include potential shipping costs. Any sales tax applicable will be added to the final price upon quote or purchase.

Maximize your serving capacity with the the Vollrath® four-third-size Cayenne model T43R Heat 'N Serve rethermalizer. The oversized well is made of thermoset fiber-reinforced self-insulating resin, increasing energy efficiency. With the direct-contact heating system, this rethermalizer uses up to 25 percent less energy and quickly heats your food. A capillary tube thermostat ensures temperature accuracy, and the recessed controls and switches prevent accidental adjustments. The low-water light and power indicator light keep you informed, and the dual 800-watt elements have a nonstick surface to prevent scale buildup, reduce cleaning time, and extend the life of this unit. The bottom-exit power cord provides flexibility in countertop placement, increasing the versatility of this compact, powerful rethermalizer.

  • Easily rethermalize multiple foods at once
  • Durable stainless steel exterior makes cleaning easy and efficient
  • Wide no-drip lip keeps countertops dry and returns condensation to well
  • Adapter bars (Item 75012 sold separately) recommended to reduce evaporation and conserve energy
  • Adapter plate (Item 19188 sold separately) with three 8 3/8-inch-diameter holes for 7 1/4-quart round insets
  • 800-watt elements allow for fast heating and recovery times
  • 28 3/4” x 13 3/4” well fits four third-size food pans up to 6 inches deep, creating a serving capacity that is 33 percent greater than full-size warmers

Product Specifications

Engineering front view
Engineering side view

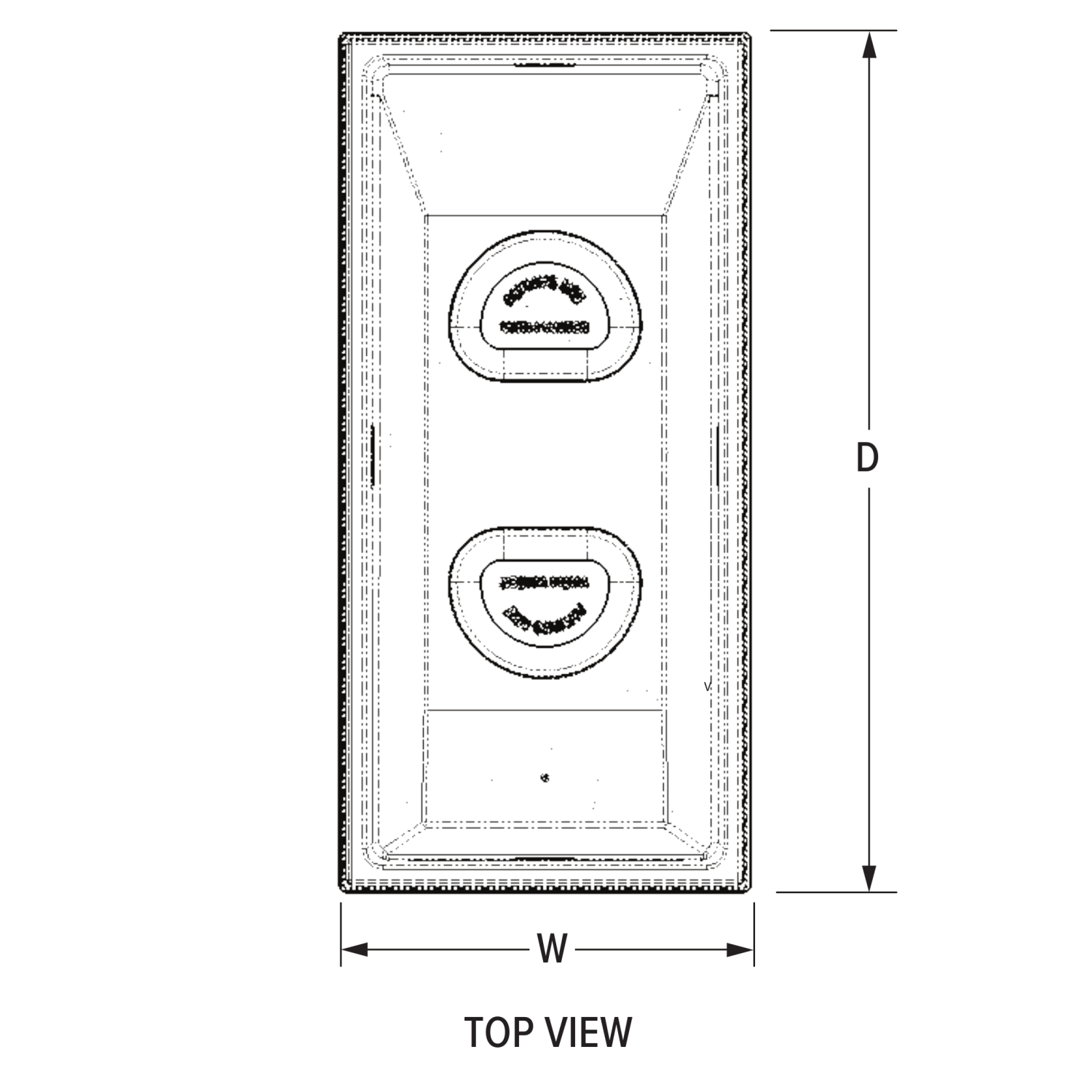

Engineering top view

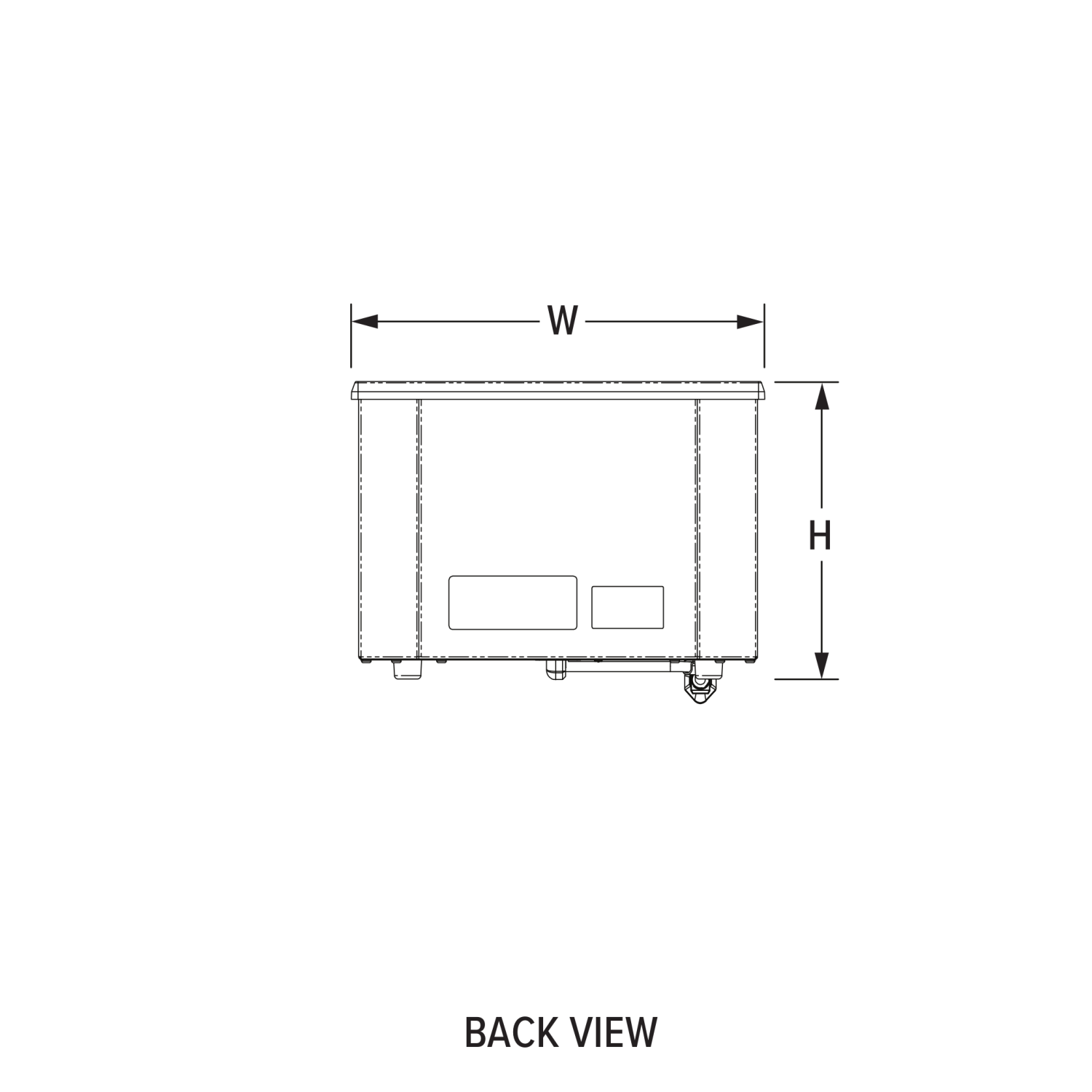

Engineering back view
Model Information
Name Value
Model T43R
UPC 029419429059
Unit Dimensions
Name Value
Overall Dimensions (IN) 13.75 x 28.75 x 9.75
(W) Width (IN) 13.75
(D) Depth (IN) 28.75
(H) Height (IN) 9.75
Usable Height (IN) 6.875
(W) Width (CM) 34.9
(D) Depth (CM) 73
(H) Height (CM) 24.8
Usable Height (CM) 17.5
Size Third
Electrical
Name Value
Amps 13.3
Cord Length (IN) 72
Cord Length (CM) 183
Plug NEMA 5-15P
Voltage 120
Watts 1600
Volume
Name Value
Capacity (L) 21.9
Capacity (OZ) 742.4
Capacity (QT) 23.2
Case Lot Measurement
Name Value
Case Lot 1
Case Width 17.5
Case Height 11.5
Case Length 32.5
Case Lot Cube (ft.) 3.38
Case Lot Weight (lbs.) 32.42
Product Parts
Name Part # Price
HI LIMIT ASSEMBLY 44407-2 $21.75
TIMER/CONTROL KNOB (F/17170) 17388-1 $6.02
POWER SWITCH SPST 125V NON-ILL 2515840-1 $13.07
SWITCH 20A ROCKER - DPST 2325401-1 $17.15
SCREW THREAD ROLLING 10-32 17014-3 $0.71
POP RIVET .125 DIA 23686-3 $1.53
CORDSET 14AWG SJTOW 17847-1 $37.78
HIGH LIMIT SWITCH 17504-1 $10.31
HIGH LIMIT THERMOSTAT 125C 25438-1 $21.30
SILICONE D-HEATER GASKET 178681-1 $15.42
90 DEG STRAIN RELIEF 17872-3 $5.21
THERMOSTAT SHORT CAPIL. EGO 17074-1 $92.71
THERMOSTAT HIGH LIMIT 17950-1 $4.19
HIGH LIMIT SWITCH BRACKET 44459-2 $2.14
LEG - PHENOLIC BLACK 17416-1 $11.13
PILOT LIGHT - BLUE 125V 1755901-1 $5.51
HEATER CAST 800W 120V 44287-1 $107.41
NUT KEPS #6-32 17019-3 $0.71
REG THERMOSTAT FSTB 390MM 121C 355162-1 $28.00
.625" BULLET FOOT 23754-1 $2.96
6-32 X 5/8" PPH MS 23682-3 $1.23

Product Downloads

CAD / REVIT

For the most updated list for Vollrath products and CAD drawings

Visit VOLLRATH.KCLCAD.COM
