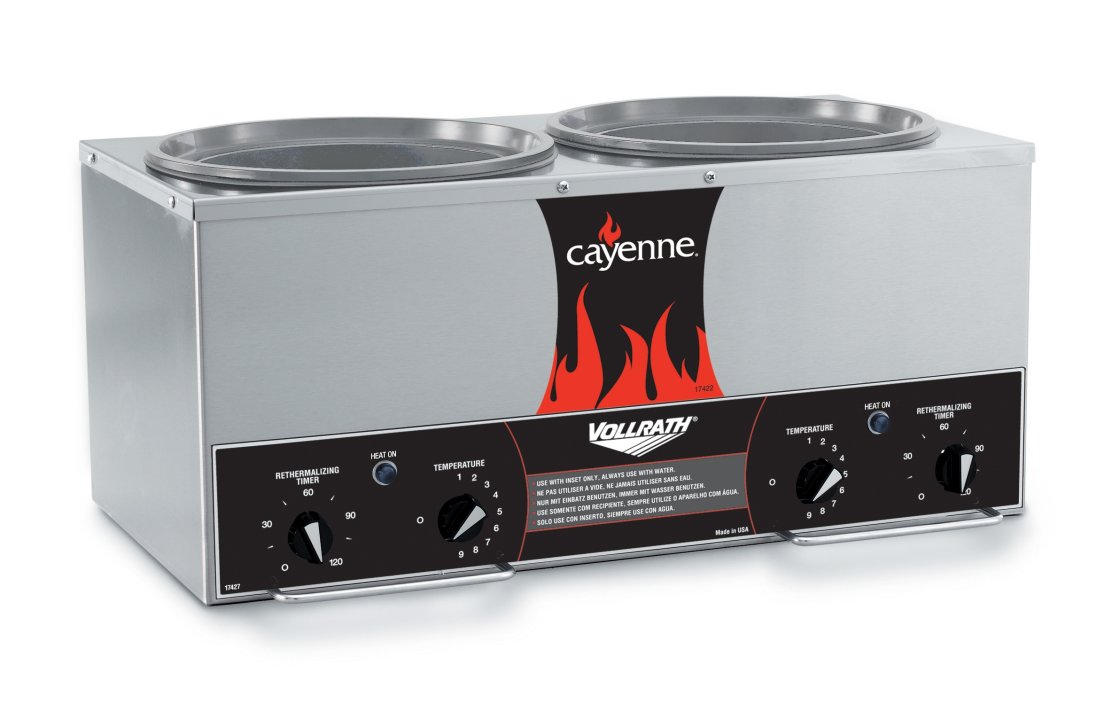

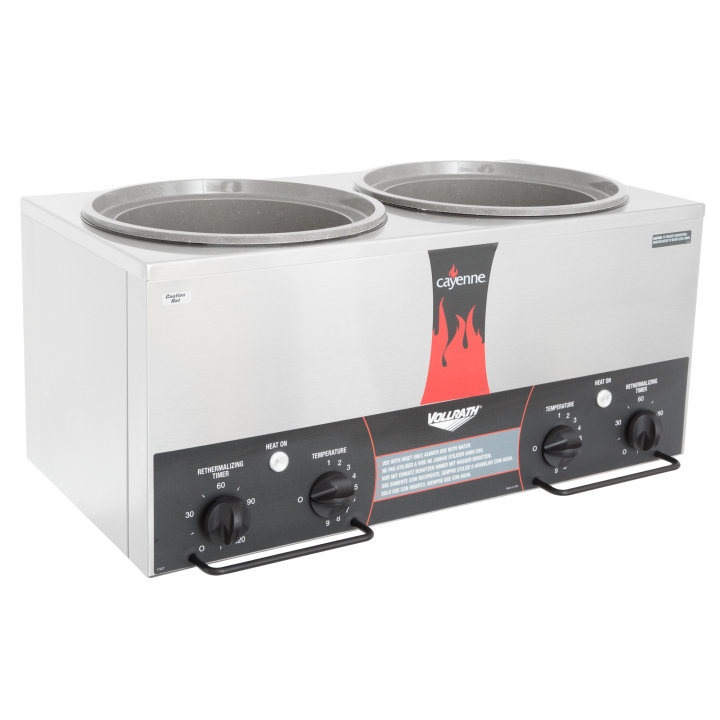

Twin-well 120-volt Cayenne® model TW-27R rethermalizer designed for two 7-quart insets

This symbol represents products that are certified to safely perform its job as intended. This product has earned this certification by undergoing rigorous testing against standards developed by UL.

$712.21 MSRP

$1,187.01 List Price

The Vollrath® Cayenne model TW-27R rethermalizer is durable, energy-efficient, and easy to use. With the direct-contact heating system, this rethermalizer uses up to 25 percent less energy and quickly heats your food. Each well has an independent thermostatic control, allowing you to heat two different products at once, as well as a rethermalizing timer that stops warming when the timer ends. Once the timer is done, simply set your desired holding temperature to maintain heat. Knob guards prevent accidental adjustments, and the durable stainless steel exterior gives this unit a clean look.

Safely rethermalizes soup, stew, chili, sauces and more
Durable stainless steel exterior is easy to clean
Rethermalizing timer stops heating when the timer ends for your convenience
Thermostatic controls ensure accurate heating
Nonskid feet prevent movement
Meets NSF 4 performance requirements for rethermalization and hot food holding equipment
Holds two 7¼-quart insets (product number 78184), sold separately

Twin-well 120-volt Cayenne® model TW-27R rethermalizer designed for two 7-quart insets Inspiration

Product Specifications

Model Information

Name	Value
Model	TW-27R
UPC	029419376698

Unit Dimensions

Name	Value
Overall Dimensions (IN)	22.974 x 13.121 x 11.103
(W) Width (IN)	22.97
(D) Depth (IN)	13.12
(D2) Secondary Depth (IN)	13.121
(D3) Additional Depth (IN)	11.496
(H) Height (IN)	11.1
Usable Height (IN)	7.5
(W) Width (CM)	58.4
(D) Depth (CM)	33.3
(D2) Secondary Depth (CM)	29.2
(H) Height (CM)	28.2
Usable Height (CM)	19.1
Size	7

Electrical

Name	Value
Amps	11.7
Cord Length (IN)	72
Cord Length (CM)	183
Plug	NEMA 5-15P
Voltage	120
Watts	700 per well; 11.7 total

Weight

Name	Value
Weight (LB)	24.1
Weight (KG)	10.9

Case Lot Measurement

Name	Value
Case Lot	1
Case Width	16.25
Case Height	12.35
Case Length	26.5
Case Lot Cube (ft.)	3.08
Case Lot Weight (lbs.)	24.14

Product Accessories

Name	Item #
4-quart inset adapter ring in stainless steel for 7-quart well	72221

Product Parts

Name	Part #	Price
POWER CORD (18 GA) 6 FT	17023-1	$17.46
HIGH LIMIT SWITCH	17504-1	$10.31
16 GA. POWER CORD 120V	17085-1	$19.09
HI LIMIT ASSEMBLY	44407-2	$21.75
TIMER/CONTROL KNOB (F/17170)	17388-1	$6.02
SILICONE D-HEATER GASKET	178681-1	$15.42
120 MINUTE TIMER	17620-1	$66.57
SCREW THREAD ROLLING 10-32	17014-3	$0.71
POP RIVET .125 DIA	23686-3	$1.53
HEYCO STRAIN RELIEF	17045-3	$2.14
EDGING 60 DURO	17144-1	$6.02
THERMOSTAT HIGH LIMIT	17950-1	$4.19
CAST HEATER 700W 120V	44204-1	$99.45
HIGH LIMIT THERMOSTAT 125C	25438-1	$21.30
NUT KEPS #6-32	17019-3	$0.71
THERMOSTAT SHORT CAPIL. EGO	17074-1	$92.71
LEG - PHENOLIC BLACK	17416-1	$11.13
PILOT LIGHT - BLUE 125V	1755901-1	$5.51
REG THERMOSTAT FSTB 390MM 121C	355162-1	$28.00
