72090

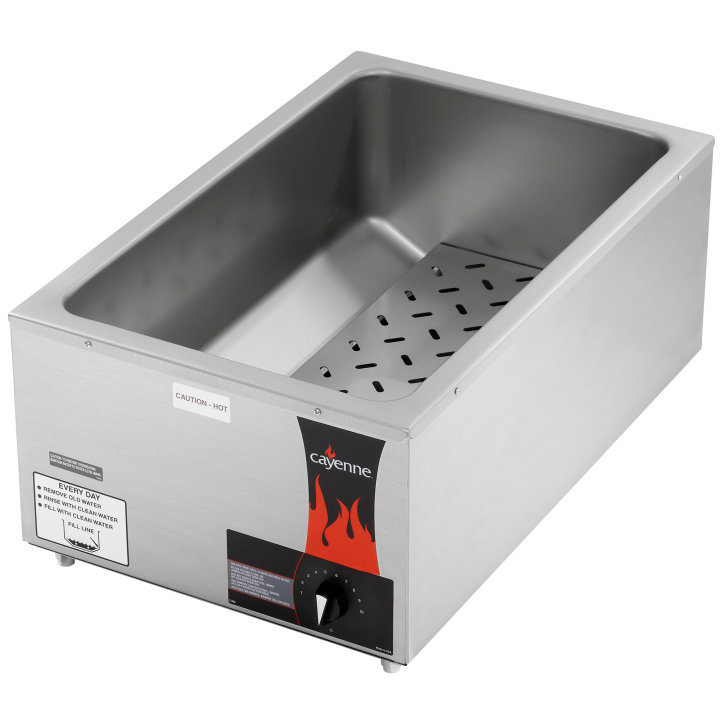

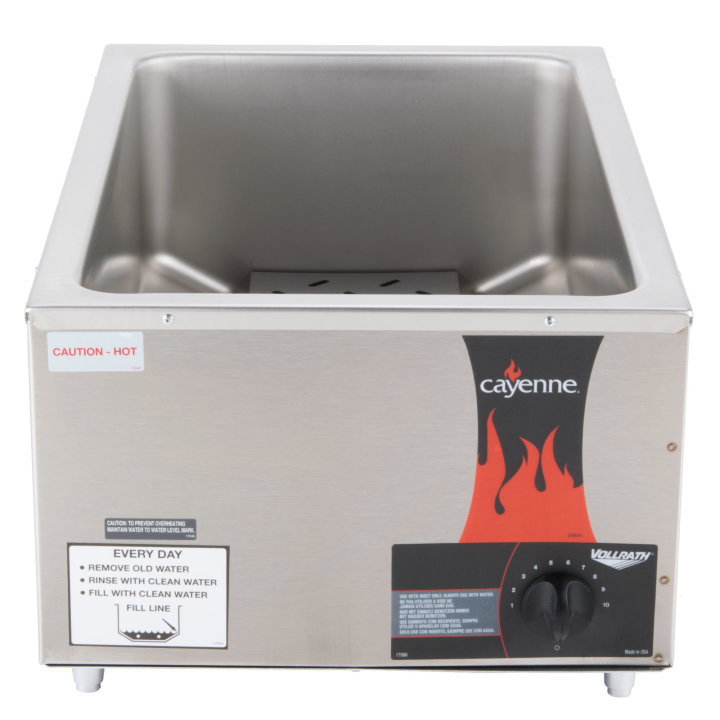

Full-size 120-volt Cayenne® Nitro™ rethermalizer
Safely heat a variety of foods with the Vollrath® Cayenne Nitro rethermalizer. This powerful rethermalizer is designed to take food from a chilled state to a safe heated temperature of 150°F or higher in less than 90 minutes. The energy-efficient direct-contact heating element quickly heats your food by concentrating energy into the well, and the heavy-duty bulb and capillary thermostat have overheat protection to help extend the life of your unit. The large well accommodates full or fractional size food pans up to 4 inches deep, and the extra-large water reservoir reduces the number of refills required for smooth operation.
- Safely and quickly rethermalizes soup, stew, chili, sauces and more
- 300-Series stainless steel well is built for years of service
- NSF 4-listed when using moist heat
- High-efficiency 1440-watt element operates on a 15-amp circuit
- Adjustable 1-inch feet maintain stability on any countertop
- Fits full and fractional size 4-inch deep food pans
- 6-foot cord and plug

Product Specifications
Model Information
Name | Value |
---|---|
Model | PC-21 |
UPC | 029419154722 |

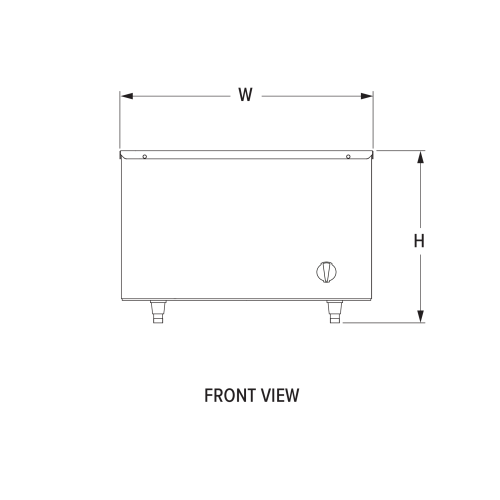

Unit Dimensions
Name | Value |
---|---|
(W) Width (IN) | 14.06 |
(D2) Secondary Depth (IN) | 21.968 |
(H) Height (IN) | 9.56 |
Usable Height (IN) | 6 |
(W) Width (CM) | 35.7 |
(D2) Secondary Depth (CM) | 55.8 |
(H) Height (CM) | 24.3 |
Usable Height (CM) | 15.2 |
Size | Full |
Electrical
Name | Value |
---|---|
Amps | 12 |
Cord Length (IN) | 72 |
Cord Length (CM) | 183 |
Plug | NEMA 5-15P |
Voltage | 120 |
Watts | 1440 |
Case Lot Measurement
Name | Value |
---|---|
Case Lot | 1 |
Case Width | 16 |
Case Height | 10.25 |
Case Length | 25 |
Case Lot Cube (ft.) | 2.37 |
Case Lot Weight (lbs.) | 17.2 |
Product Parts
Name | Part # | Price |
---|---|---|
ELEMENT COVER PC-21 | 44627-2 | $63.71 |
LEG PC-21 | 17084-1 | $5.82 |
002-910-HTEL-RM 120V MDL 1440 | 17069-1 | $107.92 |
TIMER/CONTROL KNOB (F/17170) | 17388-1 | $6.02 |
STRAIN RELIEF BUSHING BLACK | 17024-3 | $1.33 |
THERMOSTAT HIGH LIMIT | 17950-1 | $4.19 |
16 GA. POWER CORD 120V | 17085-1 | $19.09 |
NUT KEPS #6-32 | 17019-3 | $0.71 |
REG THERMOSTAT FSTB 390MM 121C | 355162-1 | $28.00 |
THERMOSTAT DISC REGULAT. 125C | 25166-1 | $27.20 |
THERMOSTAT SHORT CAPIL. EGO | 17074-1 | $92.71 |
O-RING TRADE SIZE #112 | 17070-3 | $1.84 |
CONNECTOR 2 WIRE WAGO 221-412 | 4350810-1 | $1.30 |
Product Downloads
Difference between a Warmer and Rethermalizer
Click below to view an article describing the difference between a warmer and a rethermalizer.
CAD / REVIT
For the most updated list for Vollrath products and CAD drawings
