SS-6BG-031S
45-inch 6-Series Velocity Adjustable Single-Sided Breath Guard for 3-Pan/Well 4-Series Front-of-House Serving System
This symbol represents products that have met the minimum requirements of prescribed product safety standards. The symbol also indicates that the manufacturer’s production site conforms to a range of compliance measures and is subject to periodic follow up inspections to verify continued conformance.

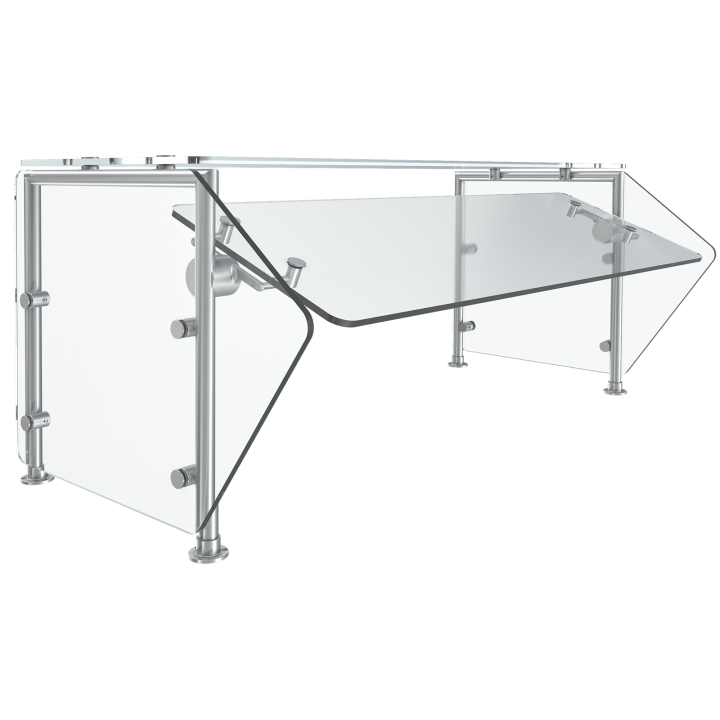

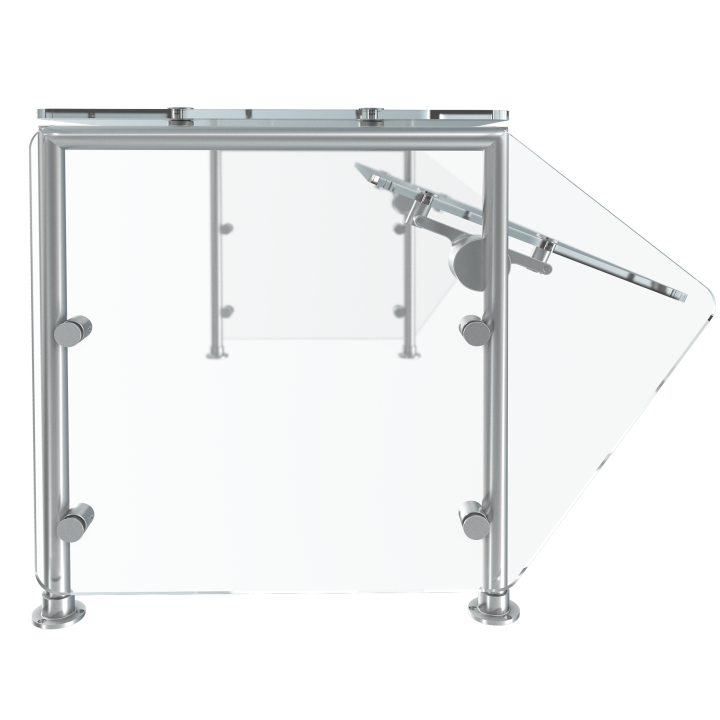

Designed for your 3-pan/well 4-Series front-of-house serving system, the Vollrath 6-Series Velocity single-sided breath guard promises superior convenience, protection and visibility. The durable tempered glass panels provide a clear view of food items and the stainless steel tubing promises years of service. With eight pre-set positions, this breath guard offers both versatility and consistency, and the simple adjustment mechanism allows one person to make adjustments quickly and easily. The reliable design keeps your food safe and adds a sleek appearance to any single-sided buffet.
- Simple push-button mechanism enables single-person adjustment
- Eight pre-set positions accommodate NSF, full-serve, self-serve and cleaning position and ensure consistent spacing across multiple units
- Visual indication shows when breath guard is in NSF position and eliminates need for measuring
- Standard above-counter flange mount (below-counter mount available)
- Ships knocked down (assembled shipment available)
- Stainless steel construction means no plastic parts to break and gives all components a consistent aesthetic
- 11-gauge stainless steel tubing eliminates the need for center support that penetrates the counter/interferes with service
- Comes standard with 3/8-inch-thick tempered glass panels (1/2-inch-thick available)
- Welded mitered joints increase structural integrity
Product Specifications
Model Information
| Name | Value |
|---|---|
| UPC | 671080980836 |
Unit Dimensions
| Name | Value |
|---|---|
| Overall Dimensions (IN) | 45 x 18 x 21.375 |
| (W) Width (IN) | 45 |
| (D) Depth (IN) | 18 |
| (H) Height (IN) | 21.37 |
| Inside Width (IN) | 41 |
| Center to Center Width (IN) | 43 |
| Center to Center Depth (IN) | 17 |
| (W) Width (CM) | 114.3 |
| (D) Depth (CM) | 45.7 |
| (H) Height (CM) | 54.4 |
| Inside Width (CM) | 104.1 |
| Center to Center Width (CM) | 109.2 |
| Center to Center Depth (CM) | 43.2 |
Construction
| Name | Value |
|---|---|
| Number of Wells | 3 |
| Installation | Variety of Countertop Options |
| NSF Compliant | Yes |
| Breath Guard Function | Single-Sided Buffet with Top Shelf |
| Breath Guard - Design Style | Contemporary Style |
Case Lot Measurement
| Name | Value |
|---|---|
| Case Width | 0 |
| Case Height | 0 |
| Case Length | 0 |
